Installing a 1-zone mini split system is one of the smartest ways to get efficient, targeted heating and cooling in your home. But one often overlooked factor can make or break your installation: line set length.
If you’re planning to DIY your installation or just want to make sure your HVAC contractor is doing it right, understanding how line set lengths impact system performance, warranty, and refrigerant charging is essential.
This comprehensive guide covers everything you need to know about line set lengths for single-zone mini splits so you can avoid costly mistakes and optimize your system for performance and reliability.
What Is a Line Set in a Mini Split System?
A line set is the pair of copper tubes that connects your indoor air handler to the outdoor condenser unit. These lines carry refrigerant back and forth during the cooling and heating process.
-
Suction Line (Larger Tube): Carries low-pressure gas refrigerant from the indoor unit to the outdoor compressor.
-
Liquid Line (Smaller Tube): Returns high-pressure liquid refrigerant from the outdoor unit to the indoor evaporator coil.
Line sets are typically pre-insulated and come in various lengths and tubing diameters, depending on your system's tonnage and manufacturer requirements.
Why Line Set Length Matters in 1-Zone Installs
Line set length directly affects:
-
Refrigerant charge and system efficiency
-
Compressor performance and lifespan
-
Installation cost and complexity
-
Warranty validity (especially for DIY systems)
Manufacturers design mini split systems to operate with specific line lengths in mind. Too short, and you might not have enough refrigerant; too long, and the refrigerant may not flow efficiently or evenly.

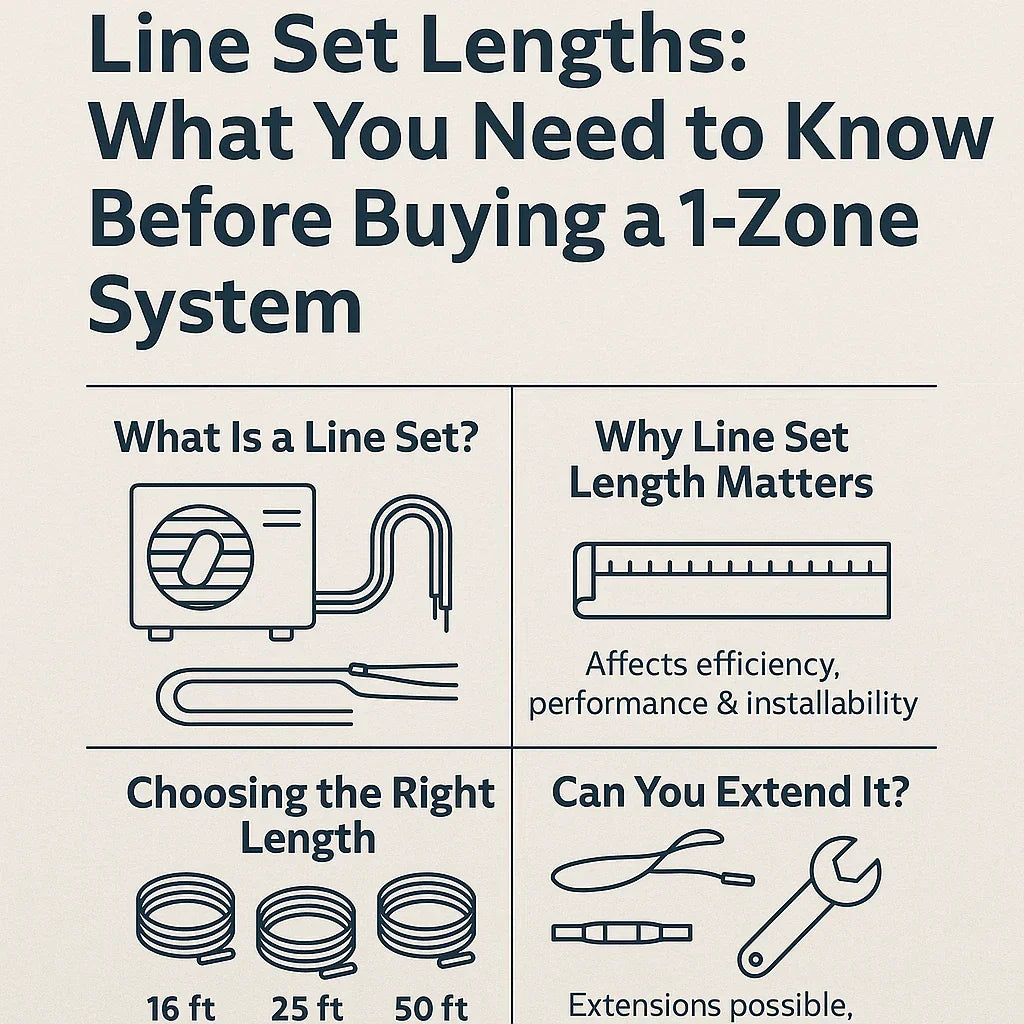

Common Lengths: 16ft, 25ft, 50ft—Which Is Right for You?
Here are the most common pre-charged line set lengths for 1-zone systems:
Line Set Length | Use Case |
---|---|
16 ft | Ideal for back-to-back installations (wall-to-wall setup) |
25 ft | Most common choice for flexible indoor-outdoor placement |
50 ft | For longer runs through attics, crawlspaces, or basements |
When choosing a line set length:
-
Measure the actual path, not just straight-line distance.
-
Include vertical rise, horizontal run, and any bends.
-
Add a 5-10% buffer to account for routing around obstacles.
How Long Is Too Long? Limits Based on Manufacturer Specs
Most manufacturers specify:
-
Maximum line set length (e.g., 75 feet)
-
Maximum vertical separation between indoor and outdoor units (e.g., 25 feet)
-
Pre-charged refrigerant limits (e.g., systems are charged for 25 feet of tubing)
Examples:
Brand | Max Length | Max Vertical Rise | Notes |
MRCOOL | 75 ft | 33 ft | Pre-charged line sets up to 50 ft |
Mitsubishi | 66 ft | 30 ft | Requires field-charging above 25 ft |
Daikin | 49 ft | 32 ft | Line set kits sold separately |
If your line set exceeds the factory-charged length, you’ll need to add refrigerant according to the manual (e.g., 0.5 oz per additional foot).
What Happens If the Line Set Is Too Short or Too Long?
If the line set is too short:
-
Excess refrigerant can cause high pressure.
-
Compressor may short-cycle or overheat.
-
System may become noisy or inefficient.
If the line set is too long:
-
Refrigerant may not reach indoor coil effectively.
-
Compressor may strain, leading to premature failure.
-
Heat transfer may become less efficient.
-
May void warranty unless properly charged and installed.
Always verify your selected line set length against the system's documentation and allowable parameters.
Can You Extend a Line Set? Yes, But Read This First
If you realize mid-install that your line set is too short, you may be tempted to extend it.
You can extend line sets, but it comes with caveats:
-
You must use line set couplers or flare unions.
-
Added joints increase risk of leaks.
-
Must insulate and support the extension properly.
-
For DIY units (like MRCOOL), extending voids warranty unless done with approved accessories.
-
Extra refrigerant may be required (consult tech manual).
If you plan for extensions, it’s often better to buy the longer pre-charged line set upfront.
Do Pre-Charged Line Sets Come in Different Lengths?
Yes. Brands like MRCOOL offer pre-charged, quick-connect line sets in various lengths:
Brand | Pre-Charged Lengths Available | Features |
MRCOOL | 16 ft, 25 ft, 35 ft, 50 ft | Quick connect, pre-vacuumed |
Cooper & Hunter | 16 ft, 25 ft, 50 ft | Compatible with their systems |
Pioneer | Typically 16-25 ft | Often need vacuuming |
If you’re using a DIY system, buy the correct length up front. You cannot shorten or custom-cut pre-charged lines.
Tips for Routing Line Sets Through Walls, Crawlspaces & Attics
Routing affects both the required length and ease of installation.
Wall Penetration Tips:
-
Drill a 2.5” hole at a slight downward angle for condensation drainage.
-
Use a sleeve or grommet to protect copper from damage.
Crawlspace & Attic Routing:
-
Keep bends gradual, not sharp, to maintain refrigerant flow.
-
Avoid running directly on concrete; use supports.
-
Ensure insulation remains intact along the full length.
-
Secure every 3-4 feet with brackets or hangers.
Condensation Drain Line:
-
Must slope downward and terminate outside or at a condensate pump.
-
Do not coil the drain line; stagnant water leads to mold and clogs.
What Tools and Accessories You’ll Need for Line Set Installation
If you’re not using a pre-charged system, you’ll need more tools:
Tool / Material | Purpose |
Line set tubing cutter | Cleanly cuts copper tubing |
Flare tool & deburring kit | Preps pipe ends for flare fittings |
Torque wrench | Ensures flare nuts are tightened correctly |
Refrigerant scale | Measures exact refrigerant charge |
Vacuum pump & gauge set | Removes air/moisture from lines |
Line set insulation wrap | Prevents sweating and energy loss |
Using pre-charged quick-connect line sets eliminates the need for vacuuming and refrigerant handling—making DIY much safer.
Final Checklist Before You Buy Your 1-Zone System
Before purchasing your single-zone mini split and line set, double-check the following:
-
Measure the actual required line set length including vertical rise, wall pass-through, and routing.
-
Consult the brand's specs for maximum allowed length and vertical drop.
-
Match line set diameter to the system size (e.g., 1/4" x 1/2" for 9k-12k BTU).
-
Check refrigerant charge limits (factory charged for 25 ft is common).
-
Decide if pre-charged line sets are right for you (especially for DIY installs).
-
Avoid custom-cutting pre-charged lines – choose the right length up front.
-
Confirm wall sleeve and drain routing plans before drilling.
-
Plan for brackets, insulation, and support points on long runs.
Key Takeaways
-
Line set length affects refrigerant charge, performance, and warranty.
-
Measure carefully and always err on the side of slightly too long (with pre-charged, you can't add length).
-
DIY systems like MRCOOL require approved pre-charged lengths to maintain warranty.
-
Don’t guess on length – calculate based on actual routing and installation plan.
-
When in doubt, consult the installation manual or manufacturer tech support.
