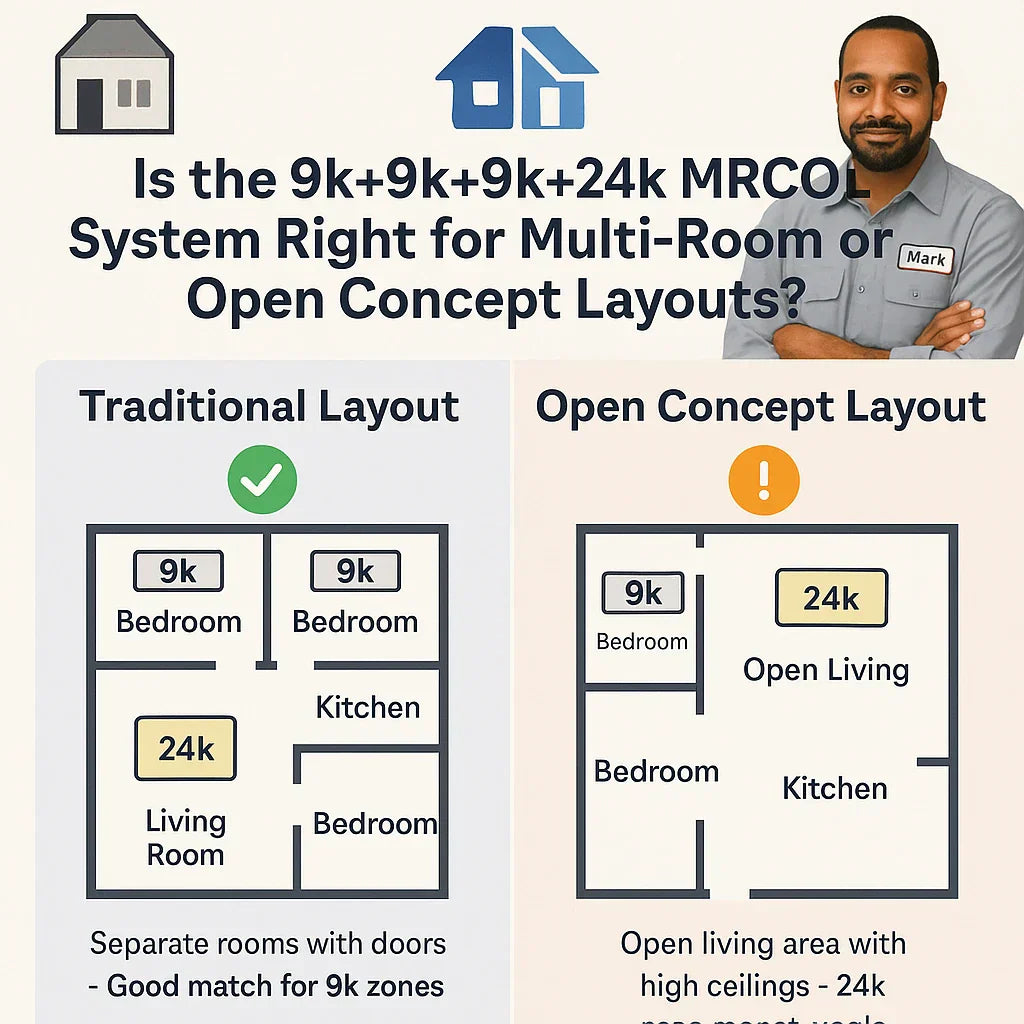

Is the 9k+9k+9k+24k MRCOOL System Right for Multi-Room or Open Concept Layouts?

🛠️ Why Layout Type Is Crucial in HVAC Design

You can choose the most efficient equipment, but if your home’s layout isn’t well-matched to your HVAC system’s zone configuration, you’ll still struggle with:

• Hot and cold spots

• Inefficient airflow

• Uneven humidity

• Wasted energy

That’s why zoning strategy — especially in multi-zone systems like the MRCOOL 48k 4-zone — must be matched to how your home is laid out.

This guide helps you determine whether a 3x9k + 1x24k setup is ideal for:

• 🏠 Traditional multi-room homes

• 🏡 Open-concept layouts

• 🧩 Split-level or mixed-structure designs

---

🔍 System Overview: What the 9k+9k+9k+24k MRCOOL Can Do

Total System Capacity: 48,000 BTUs
Number of Air Handlers: 4
Control Method: Individual zones + SmartHVAC app

🔗 Specs source: MRCOOL DIY 5th Gen Product Page

---

🛏️ Best Fit: Traditional Multi-Room Layouts

The 3x9k zones in this system are tailor-made for homes with separate bedrooms or dens that can be individually controlled — a common layout in ranch-style, colonial, and Cape Cod homes.

✅ Why It Works:

• Closed doors don’t impact conditioning

• Each room gets a dedicated head with its own temperature sensor

• Bedrooms, guest rooms, and home offices typically fall within 100–300 sq. ft.

🧱 Sample Traditional Layout:

• Zone 1: Primary Bedroom – 12x14

• Zone 2: Office – 10x10

• Zone 3: Guest Bedroom – 11x11

• Zone 4: Living/Dining Combo – 22x26 (handled by 24k unit)

📘 Supporting reference: U.S. DOE Efficient Home Layout Planning Guide

---

🏡 How It Performs in Open-Concept Homes

The 24k air handler is designed to cover large, open areas like living rooms that blend into kitchens or dining rooms. These zones often exceed 700 sq. ft. and can have:

• High ceilings

• Large windows

• Fewer dividing walls

• Multiple seating areas

✅ When It Works:

• The open area is under 1,200 sq. ft.

• You have ceiling fans or return airflow loops

• Rooms adjacent to the open area have their own doors and heads

⚠️ When It May Not Work:

• Open-concept zone exceeds 1,300+ sq. ft.

• Space has vaulted ceilings (12+ ft) or two-story atriums

• Airflow obstructions (e.g. kitchen islands, walls) prevent even cooling

🔗 Energy Star Room Air Conditioner Sizing Guide

---

🧩 What About Mixed Layouts or Split-Levels?

Many homes — including Mark’s — include a mix of closed-off rooms and one open shared space. For example:

• Bedrooms on one side of the house

• Kitchen/dining/living on the other

• A central hallway or partial loft space

💡 In this case, the 3x9k heads work well if:

• Doors are closed during sleeping hours

• Hallways don’t obstruct airflow into adjacent rooms

• The open area remains under the 24k head’s load capacity

---

🌀 Airflow Dynamics: Doors, Ceilings, and Obstacles

🚪 Door Considerations

Mark’s Tip: Keep doors closed at night for zone integrity, but open during the day if using shared spaces (like bedroom to office).

🧱 Ceiling Height and Shape

🔄 Obstructions to Avoid

• Partial walls

• Room dividers

• Hanging pendant lights in airflow path

• Furniture taller than 4–5 feet near unit

📗 Learn more: ACCA Manual T – Air Distribution

---

🧮 Zone Sizing Calculator by Layout Type

---

🧊 Alternative Configurations for Large Open Spaces

If your open-concept zone is too large for a single 24k head, consider:

🅰️ Two-Head Approach

• Use two 12k or 18k heads in one open area

• Improves air throw and circulation in irregular spaces

• Allows zoning within an open floor plan (e.g., kitchen vs. lounge)

🅱️ Upgrade to a 30k Head (if available)

• Only possible with MRCOOL Universal or custom multi-zone systems

• May require non-DIY installation and professional charge balancing

🔧 More info: MRCOOL Multi-Zone Compatibility Chart

---

🔄 Can You Use 9k Heads in Open Spaces?

Technically, yes — but it’s not ideal.

A 9k head may cool:

• A small den (~150–200 sq. ft.)

• A partial extension of an open layout

• A hallway or mudroom

But in large rooms (over 500 sq. ft.), they won’t distribute airflow far enough.

---

📱 Smart Zoning Makes Both Layouts Easier

MRCOOL’s SmartHVAC app allows per-zone:

• Scheduling (e.g., living room on 6am–10pm, bedrooms off)

• Remote override (e.g., cool guest room before company arrives)

• Usage tracking (see which zones consume the most energy)

Mark uses this flexibility to automate:

• Bedroom cooling at night

• Daytime zone focus on home office

• 24k head auto mode in evenings



---

✅ Final Verdict: Is It Right for Your Layout?

If your floorplan looks like Mark’s — with clearly divided rooms and one open space under 1,200 sq. ft. — this system is likely a smart, efficient match.

In the next topic we will read more about: Understanding Line Sets and Extensions for Multi-Zone MRCOOL Installs
