🏡 Introduction: Why Sizing Matters More Than You Think
When I first started exploring heating and cooling systems for my own home, I thought it was simple: bigger must be better, right? If a small unit cools a small space, then a bigger one should cool my whole house effortlessly.
But after speaking with HVAC professionals and digging into real data, I realized the truth: oversizing or undersizing your system can cost you thousands of dollars over time—not just in wasted energy, but in repairs, comfort, and even premature replacement.
That’s where the 60,000 BTU furnace + air conditioner combo comes into play. For many homeowners, this “mid-size” option hits the sweet spot—powerful enough for medium to large homes, but not so oversized that you’re short-cycling your system every 10 minutes.
In this guide, I’ll break down:
-
How to determine if 60,000 BTUs is the right fit for your space.
-
Why floorplan, insulation, and climate zone matter just as much as square footage.
-
The pros and cons of choosing a 60,000 BTU system over smaller or larger units.
-
Real-world cost and comfort considerations.
By the end, you’ll be equipped to decide whether this system matches your home’s needs—or if you should size up or down.
📏 What Does 60,000 BTUs Really Mean?
Before we dive into square footage and layout, let’s break down the basics.
BTU stands for British Thermal Unit, and in HVAC, it measures how much heat energy a system can move in an hour.
-
For furnaces: 60,000 BTUs means the unit can produce that much heat output per hour.
-
For air conditioners: It means the system can remove that much heat from your indoor air per hour.
To put it in perspective:
-
A window AC typically produces 5,000–12,000 BTUs.
-
A large residential central unit can produce 100,000+ BTUs.
-
A 60,000 BTU furnace + AC combo sits comfortably in the midrange, often paired with a 2.5–3.5 ton AC condenser (1 ton = 12,000 BTUs).
👉 Translation: This system is designed for mid-sized homes—not tiny condos, not sprawling mansions.

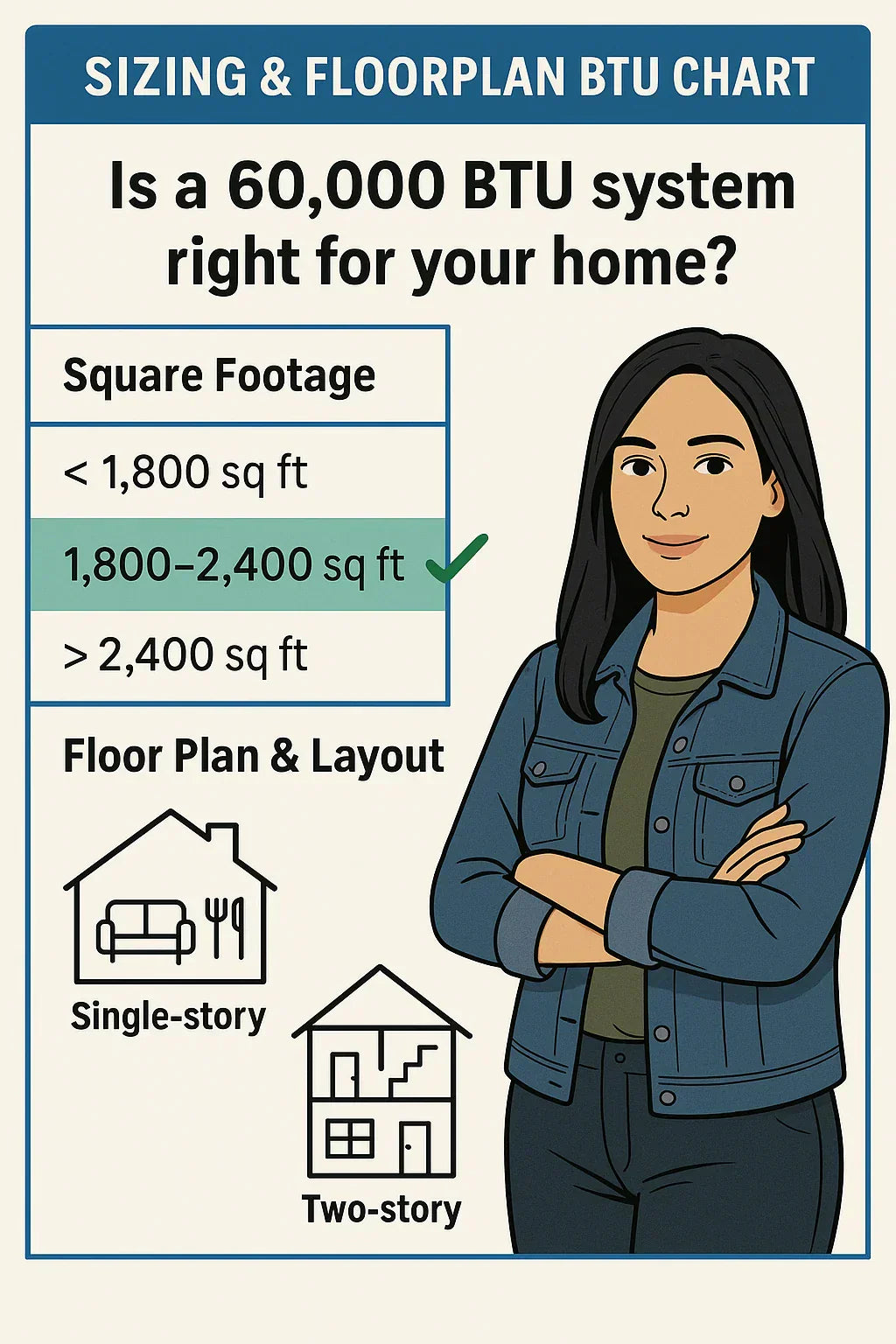

📐 Square Footage Guidelines for 60,000 BTU Systems
Here’s the first rule of thumb most HVAC pros use:
-
20 BTUs per square foot is a baseline for cooling.
-
For heating, you’ll need 30–60 BTUs per square foot, depending on climate.
Using that formula, a 60,000 BTU system could work for:
| Home Size | BTUs Needed (Cooling) | BTUs Needed (Heating, Average Climate) |
|---|---|---|
| 1,500 sq ft | ~30,000 BTUs | 45,000–60,000 BTUs |
| 2,000 sq ft | ~40,000 BTUs | 60,000–80,000 BTUs |
| 2,500 sq ft | ~50,000 BTUs | 75,000–100,000 BTUs |
✅ That means a 60,000 BTU system typically suits:
-
Homes between 1,800–2,400 sq ft, depending on insulation and climate.
-
Medium to larger single-story houses.
-
Average two-story homes with reasonable energy efficiency.
For a quick calculator, you can use the U.S. Department of Energy’s BTU guide here: Energy.gov – Heating & Cooling Sizing
🗺️ Why Floorplan Matters as Much as Square Footage
Here’s where many homeowners make mistakes: square footage alone doesn’t tell the full story. Your floorplan and layout dramatically affect how well a 60,000 BTU system will perform.
🏠 Single-Story Homes
-
Air distributes more evenly.
-
60,000 BTUs may cool/heat up to ~2,400 sq ft if insulation is solid.
🏢 Two-Story Homes
-
Heat rises, so upstairs may feel hotter in summer.
-
Even if square footage matches, you may need zoning or stronger airflow.
🛋️ Open-Concept Layouts
-
Easier airflow distribution.
-
A 60,000 BTU unit may stretch comfortably into larger spaces.
🚪 Compartmentalized Layouts
-
Smaller, closed-off rooms make airflow trickier.
-
Sometimes requires ductwork adjustments or dual-zone systems.
👉 Tip: If you have a 2,000 sq ft multi-story home with poor ductwork, a 60,000 BTU system may struggle. But if it’s an open-concept ranch, it may be perfect.
🌡️ The Climate Factor: Cold vs. Hot Regions
Your geographic location also changes the equation.
-
Northern climates (Chicago, Minneapolis, Boston)
→ Heating load dominates. A 60,000 BTU furnace may only cover ~1,800 sq ft here. -
Southern climates (Texas, Florida, Georgia)
→ Cooling load dominates. A 60,000 BTU AC may handle ~2,200–2,400 sq ft. -
Mild climates (California coast, Pacific Northwest)
→ Balanced loads. A 60,000 BTU system could stretch across ~2,400 sq ft.
Check your climate zone here: EnergyStar Climate Zones
⚡ The Dangers of Oversizing or Undersizing
🚫 Too Small (Undersized)
-
Runs constantly to catch up.
-
Uneven heating/cooling.
-
Higher bills with little comfort payoff.
🚫 Too Large (Oversized)
-
Short cycles → wears out parts faster.
-
Poor humidity control (AC doesn’t run long enough).
-
Hot/cold spots across the home.
👉 A 60,000 BTU system can be “just right” if matched properly. But if you’re at the upper or lower square footage range, a Manual J load calculation is your best friend.
Learn more about Manual J here: HVAC Load Calculation Guide – ACHR News
🛠️ Insulation, Windows & Air Leaks: The Hidden Variables
When I upgraded my system, I was shocked to learn that insulation and windows often matter more than BTU capacity.
-
Poor insulation: You’ll lose heat in winter and gain it in summer, forcing your system to work harder.
-
Leaky windows: A single drafty window can undo thousands of BTUs of capacity.
-
Duct leaks: According to ENERGY STAR, up to 30% of conditioned air is lost in leaky ducts.
👉 Before sizing up to 70,000 or 80,000 BTUs, consider whether weatherproofing your home could make 60,000 more than enough.
📊 Comparing 60,000 BTU Systems to Other Sizes
Here’s how 60,000 stacks up against neighboring sizes:
| System Size | Best For | Pros | Cons |
|---|---|---|---|
| 40,000 BTU | Small homes (<1,500 sq ft) | Lower cost, efficient | Too small for most medium homes |
| 60,000 BTU | Mid-size homes (1,800–2,400 sq ft) | Balanced, versatile | May be undersized in cold zones |
| 80,000 BTU | Large homes (2,500–3,000 sq ft) | More power | Oversized for many homes, higher upfront cost |
👉 Sweet spot: 60,000 BTUs fits the largest number of average U.S. homes, especially in mixed climates.
💡 Samantha’s Real-World Tip
When I compared options for my 2,100 sq ft home in Ohio, the HVAC contractor initially recommended an 80,000 BTU system. But after doing a Manual J calculation, we realized 60,000 BTUs was more than enough—especially after sealing my attic insulation.
The result?
-
My furnace runs more steadily (no constant cycling).
-
Humidity stays balanced in summer.
-
My utility bills dropped by 18% in the first year.
Lesson learned: don’t assume bigger is better—do the math.
💰 Cost Implications of Choosing the Wrong Size
If you pick the wrong system size, the costs add up:
-
Oversized system: Extra $1,000–$2,000 upfront + higher maintenance.
-
Undersized system: Higher monthly bills + comfort complaints + early replacement.
According to HomeAdvisor, the average U.S. HVAC installation costs $5,000–$12,000. That’s too big an investment to gamble on guesswork.
🧰 Tools & Resources for Homeowners
Here are tools I recommend to check if 60,000 BTUs is right for you:
- AC Size Calculator by Energy Vanguard – detailed load calc explainer.
-
HVAC.com BTU Calculator – quick BTU estimate.
✅ Conclusion: Is 60,000 BTUs the Right Choice?
Here’s the bottom line:
A 60,000 BTU furnace + AC system is an excellent fit for:
-
Homes between 1,800–2,400 sq ft.
-
Medium-size single-story or average two-story layouts.
-
Regions with mild to moderate climates.
-
Households that have at least average insulation and ductwork.
But it may not be right if:
-
You live in a northern cold climate with poor insulation (may need 80,000 BTUs).
-
Your home is over 2,500 sq ft.
-
You have major duct leaks or window issues you haven’t addressed.
👉 My advice as a fellow homeowner? Start with a load calculation, not just square footage. Then you’ll know if 60,000 BTUs is truly your home’s sweet spot—or if another size is better.
