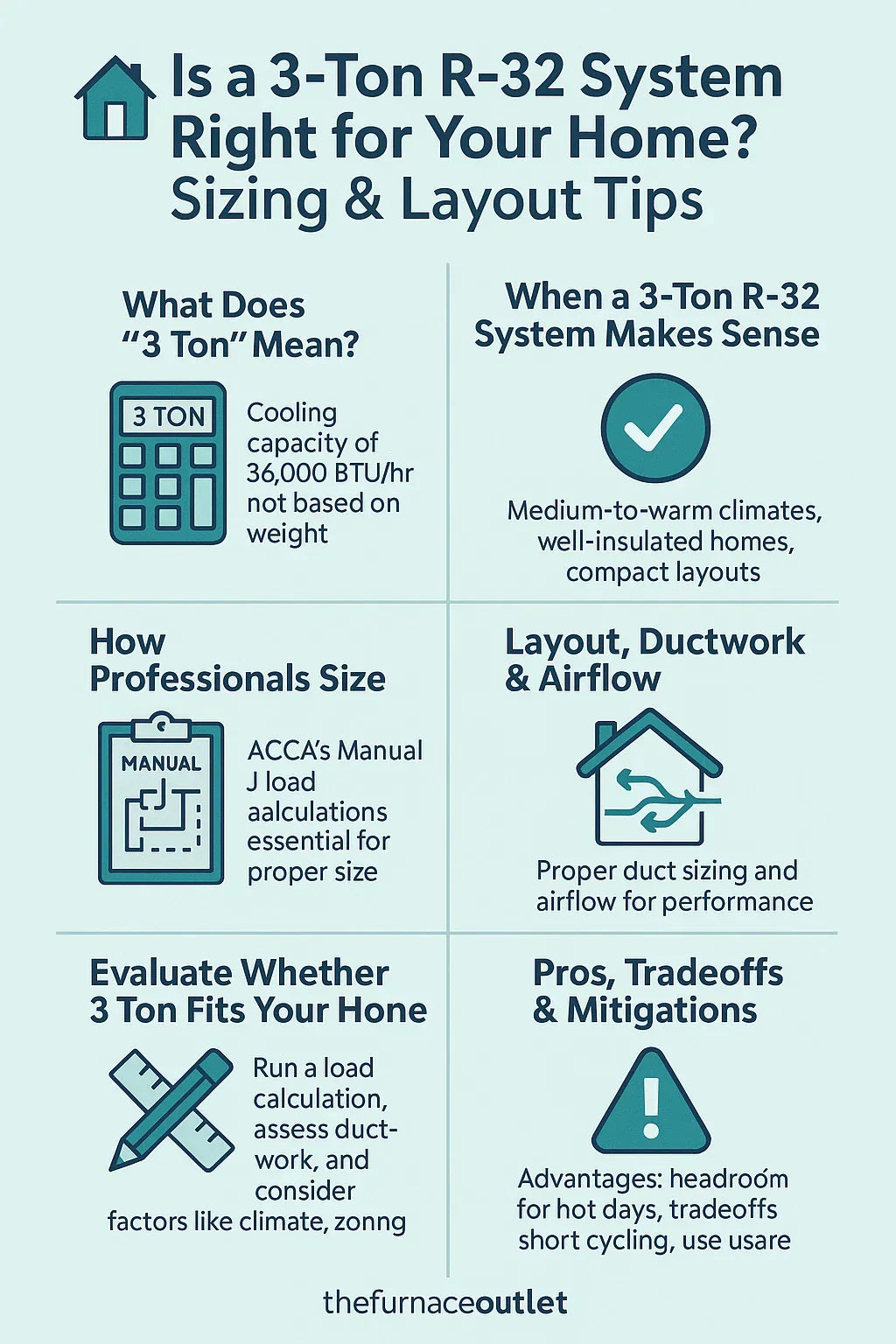

Is a 3-Ton R-32 System Right for Your Home? Sizing & Layout Tips

Getting the tonnage right is one of the most critical decisions in your HVAC project. If you oversize, you’ll suffer short cycling, poor humidity control, and wasted energy. If you undersize, your system will struggle to keep up in peak heat. In 2025 and beyond, with R-32 refrigerant becoming standard, the stakes are even higher.

Best Air Conditioners And Gas Furnace Systems

🧮 1. What Does “3 Ton” Mean in HVAC Terms?

🔹 Tonnage → BTU Conversion

In HVAC terms, one ton = 12,000 BTUs per hour of cooling capacity. So:

• 3 tons = 36,000 BTU/hr

That’s the theoretical maximum cooling capacity under ideal conditions. But “ideal” rarely matches reality.

Many systems nominally rated at 3 tons will have variations in performance based on refrigerant, efficiency, ambient conditions, etc.

📐 Rough Rule of Thumb

A quick “ballpark” rule many contractors use:

• 3 ton → suitable for 1,500 to 2,200 sq ft (depending on climate, insulation, orientation).

But that’s just a starting point. You can find many calculators online (e.g. PickHVAC’s unit sizing tool) that incorporate square footage, climate zone, insulation, etc. How to Choose Best HVAC Systems

However — never rely on this alone. You need a load calculation, which is where Manual J comes in.

🏡 Matching to Home Type & Region

The right tonnage depends heavily on:

• Your local climate zone

• Your home’s insulation / window quality / shading

• Roof pitch, orientation (east-west vs north), solar gain

• Number of occupants, internal heat loads (appliances, lights)

• Future expansions or addition of rooms

In some hot climates, a 3-ton system might be minimal for a 2,000-sq-ft home; in milder climates, it might be overkill.

---

📊 2. When a 3-Ton R-32 System Makes Sense (and When It Doesn’t)

Here are scenarios where a 3-ton R-32 system is or is not the right fit — and what modifiers to watch for.

✅ Ideal Scenarios for 3 Ton

• Homes in a medium-to-warm climate (e.g. hot summers)

• Well-insulated, well-sealed homes (below average thermal leakage)

• Compact, efficient layout (not a sprawling floor plan)

• Ductwork already sized or easily upgradeable

• You want headroom for occasional hot days (but not huge oversizing)

• You plan for some future improvements (e.g. adding insulation, window upgrades)

⚠️ When 3 Ton Might Be Too Big (or Too Small)

Too big risks (oversizing):

• Short cycling: the system turns on and off too frequently, which harms efficiency and comfort

• Poor dehumidification: not enough runtime to remove moisture

• Higher install cost, oversized ductwork, louder starts

• Lower system efficiency at part-load conditions

Too small risks (undersizing):

• Inability to maintain temperature during peak heat

• System will run continuously (higher wear, reduced life)

• Reduced comfort, hot spots, extended cycle times

If your home is lightly insulated, has large windows, or faces heavy solar load, you might need more than three tons to meet peak demand — or at least ensure good design margins.

⚖️ The Sweet Spot

A 3-ton system more often lands in the “sweet spot” for many mid-sized homes in moderate-to-hot climates — provided it's sized correctly, paired with good duct design, and installed by professionals.

The neutrality of R-32's performance curve helps maintain efficiency even when the outdoor temp is higher, which makes that sweet spot less narrow.

---

🧮 3. How Professionals Size — The Manual J & Load Calculation Method

You’ll hear this name often: Manual J. It’s the gold standard for HVAC sizing.

📐 What Is Manual J?

Manual J is a method developed by the Air Conditioning Contractors of America (ACCA) to calculate the heating and cooling load of a home. It considers:

• Floor area & ceiling heights

• Insulation levels (walls, roof, floors)

• Window types, orientation, shading

• Solar heat gain

• Internal loads (occupants, appliances)

• Air infiltration — tightness vs leakage

• Local climate data

This ensures you match your system’s capacity to actual need, not guesswork.

Many HVAC guides (e.g. on HVAC System Sizing sites) emphasize that square footage alone is insufficient — multiple variables matter.

🔍 How It Works (Simplified)

1. Break out your home into zones (if multi-story, multiple orientation)

2. For each zone, input data: dimensions, windows, insulation

3. Add internal load estimates (people, lighting, appliances)

4. Add infiltration/leakage allowance

5. Sum up sensible (temperature) and latent (humidity) loads

6. Apply design margin (sometimes 10–20%) to anticipate extreme days

Once you get your total required BTU/hr cooling load, you compare that to your candidate system (3-ton = 36,000 BTU/hr) to see whether it’s a match, or whether you need a slightly smaller or larger system.

✅ Why Manual J Matters for R-32 Systems

Because R-32 systems are more efficient and behave differently at load extremes, accurate sizing becomes more important. Over-estimating may erode efficiency benefits; underestimating can kill comfort during peak heat.

Additionally, for hybrid R-32 / gas furnace systems, you often pair a Manual J cooling load with a heat load (Manual J heating). Thefurnaceoutlet covers how to do combined load calculation for R-32 + gas systems in their guides.

---

🏗️ 4. Layout, Ductwork & Airflow: Making 3 Ton Work Well

Even a perfectly sized system can fail if the building layout, ductwork, or airflow is poor. Here’s what to watch for:

🌀 Duct Design & Sizing

• Ducts must deliver proper CFM (cubic feet per minute) to each room

• Poorly sized ducts cause pressure drops, imbalance, noise

• Use trunk and branch or radial duct strategies depending on home layout

• Minimize long runs, too many bends, and undersized flex sections

• Seal ducts well (mastic, metal tape) to avoid leakage

🌬️ Proper Airflow & Return Path

• Each major zone/room needs a return — avoid dead air

• Use adequate return grilles; avoid undersized returns

• Balance dampers may help in complex zones

• Avoid placing supply vents overhead in sensitive zones (e.g. bedrooms) if possible

🏢 Layout Tips for Multi-Level or Odd Floor Plans

• For two-story homes, you may need multi-stage systems or zoned operation

• Use duct drops or pressure balancing to account for vertical transport

• Avoid long single branches without balancing

• Consider duct boosters or variable-speed blowers to handle room-by-room demand

🔁 Inverter & Variable-Speed Systems — A Big Advantage

Many modern R-32 systems are inverter / variable-speed. That means:

• They modulate capacity (e.g. run at 50–100%)

• They adapt to partial loads (less than full 3-ton demand)

• Better comfort, quieter operation, better humidity control

This flexibility helps a 3-ton system cover a wide range of load conditions safely, without short-cycling or inefficiency.

---

📏 5. Step-by-Step: Evaluate Whether 3 Ton Fits Your Home

Here’s a step-by-step approach I use in the field (and you can roughly follow to assess your own home).

Step 1: Run a Manual J or Ask Your Installer

This cannot be skipped. Even if you guess 3 tons might work, run the numbers. If load is 30,000 BTU/hr to 40,000 BTU/hr on design day, 3 ton is in the ballpark.

Step 2: Compare Against Peak Load Days

If your design day load (say 95 °F outside) is 38,000 BTU/hr, a 3-ton unit may barely keep up. If it’s 30,000, you're probably safe.

Add a safety margin (~10%) but avoid a 25% oversizing project.

Step 3: Inspect Ductwork & Airflow

If existing ductwork is undersized, a 3-ton unit may struggle to deliver airflow, leading to static pressure issues.

You may need to upgrade trunks, supply branches, or returns.

Step 4: Consider Climate & Region Adjustment

If your climate often pushes extremes (100+ °F or high humidity), you might want some buffer in capacity or use a higher-efficiency model.

Step 5: Check Layout, Zoning & Return Placement

Homes with multiple zones, long runs, or open floor plans may need zoning dampers, multiple systems, or variable capacity equipment.

Step 6: Confirm with Installer’s Recommendation

A qualified HVAC professional should confirm that 3 ton is suitable. If they immediately push for 4 ton without load analysis, be skeptical.

---

✅ 6. Pros, Tradeoffs & Mitigations

👍 Advantages of 3 Ton (When Well Matched)

• Enough headroom for heat waves

• Likely to run in efficient operating bands

• Ability to more easily modulate (via inverter)

• Good longevity if not overworked

⚠️ Tradeoffs & Risks

• Short cycling (if oversized)

• Poor humidity control

• Higher initial cost (slightly larger equipment)

• Higher duct costs if layout changes needed

🛡️ Mitigation Tips

• Use a variable-speed inverter unit

• Choose high-efficiency SEER2 models (so you avoid waste at part load)

• Make sure duct design is top-notch

• Consider zoning or multi-stage staging

• Oversize within reason (max +10–15%), not blindly

---

🏁 Summary & Jake’s Final Advice

• A 3-ton R-32 system can be a great fit for many medium-sized homes — but only when properly sized, ducted, and balanced.

• Never rely on square footage alone. Always do a Manual J load calculation.

• Pay attention to layout, ductwork, and airflow — they make or break performance.

• Use modern features (variable speed, zoning) to adapt system operation over varying loads.

• When in doubt, lean slightly under rather than massive oversizing — because oversizing kills comfort and efficiency.

In the next topic we will know more about: R-32 Efficiency Guide: SEER2, EER, and Energy Savings Explained
