If you’re upgrading your home’s heating system to something more efficient and reliable, the Goodman 96% AFUE 80,000 BTU furnace (Model GR9S960803BN) is a standout choice. But before you place your order or schedule installation, it’s important to understand what the process really involves.
Installing a high-efficiency furnace isn’t just about connecting ducts and flipping a switch — it’s about ensuring your system performs at peak efficiency, runs safely, and lasts for years.
In this guide, I’ll walk you through everything homeowners should know before installing a Goodman 96% furnace — from pre-installation prep to venting requirements, cost expectations, and post-installation care.
🏠 1. Why Installation Quality Matters Just as Much as Efficiency
A furnace can only perform as efficiently as it’s installed. The U.S. Department of Energy estimates that improper installation can reduce heating efficiency by up to 30%, even if the system itself is high-efficiency.
That means a perfectly rated 96% AFUE furnace could end up performing like an 80% unit if ductwork, venting, or calibration is off.
Why Professional Installation Is Non-Negotiable
A 96% AFUE furnace like Goodman’s GR9S960803BN is a condensing furnace — which means it uses advanced technology to squeeze extra heat from combustion gases. It’s not plug-and-play; it requires:
-
Correct PVC venting for the cooler exhaust gases
-
A properly installed condensate drain line
-
Gas pressure calibration to manufacturer specs
-
Sealed combustion to prevent backdrafting
Professional installation ensures the system delivers the full efficiency you paid for — and keeps your warranty valid.
📖 Reference: Energy.gov — Furnace and Boiler Installation
⚙️ 2. Understanding Goodman’s 96% Furnace Design
Goodman’s GR9S960803BN is engineered for flexibility, quiet operation, and energy savings. Let’s break down what’s under the hood.
🔹 Key Components
-
AFUE Rating: 96% — meaning 96% of gas energy becomes usable heat.
-
Blower Motor: 9-speed ECM blower that adapts airflow for comfort and noise control.
-
Heat Exchangers:
-
Primary exchanger handles combustion heat.
-
Secondary exchanger extracts latent heat from water vapor in exhaust gases — this is where extra efficiency comes from.
-
-
Sealed Combustion Chamber: Draws air from outside, improving indoor air quality and safety.
-
PVC Venting: For cool, low-temperature exhaust gases.
This furnace’s upflow or horizontal application options make it suitable for basements, garages, or attics alike — ideal for homeowners upgrading an older mid-efficiency system.
📖 Reference: Goodman Manufacturing — Product Specifications
🧾 3. Pre-Installation Checklist for Homeowners
Before your HVAC technician arrives, there are a few important steps to take.
✅ Home Preparation
-
Confirm Fuel Supply: Ensure your home’s natural gas line is properly sized and has enough flow for the new furnace.
-
Check Electrical Compatibility: Verify that your electrical panel has capacity for the new system’s requirements (typically 120V).
-
Inspect Venting Path: Identify where the furnace will vent exhaust and draw intake air.
-
Plan Condensate Drainage: Since 96% furnaces produce condensation, ensure there’s a floor drain or pump line nearby.
-
Clear the Installation Area: Provide 3–4 feet of space around the unit for safe technician access.
🧠 Pro Tip from Samantha
“Ask your installer to perform a Manual J load calculation before installation. It ensures your furnace is sized correctly for your home — not too small, not too big.”
📖 Reference: ACCA — Manual J Load Calculation Standards
🧭 4. Choosing Between Upflow and Horizontal Installation
Your home’s layout will determine which furnace configuration works best.
| Configuration | Best For | Pros | Considerations |
|---|---|---|---|
| Upflow | Basements or garages | Efficient venting, easy maintenance | Requires vertical clearance |
| Horizontal | Attics, crawlspaces | Saves space, flexible layout | Condensate management needed |
What Goodman Does Best
The GR9S960803BN can be installed in either orientation thanks to its versatile cabinet design. This flexibility makes it a popular choice for homes with unconventional layouts or tight mechanical spaces.
📖 Reference: HVAC.com — Furnace Orientation Explained
🔩 5. Step-by-Step Furnace Installation Process
Professional installation typically takes 6–10 hours, depending on venting and space conditions.
Here’s what to expect:
🧱 Step 1: Old Furnace Removal
Your contractor disconnects the old system, safely caps gas and electrical lines, and removes old duct connections.
⚙️ Step 2: Positioning and Leveling
The new Goodman furnace is positioned and leveled to ensure proper condensate drainage and duct alignment.
🔧 Step 3: Gas Line Connection
Licensed installers attach the gas line using proper fittings and perform a pressure leak test.
🌬️ Step 4: Venting Installation
PVC vent pipes are routed for intake and exhaust. Each must slope downward toward the furnace for condensate return.
💧 Step 5: Condensate Drain Setup
A small drain hose connects to a nearby floor drain or condensate pump.
⚡ Step 6: Electrical and Thermostat Wiring
Installers connect control wiring, breakers, and integrate the thermostat. Smart thermostats like Google Nest or Honeywell Home T9 are compatible.
🔥 Step 7: Airflow and Combustion Testing
Your technician checks temperature rise, pressure switch operation, blower speeds, and CO safety readings.
✅ Step 8: Startup & Homeowner Orientation
The technician registers your warranty, demonstrates filter changes, and verifies that heat is evenly distributed through your home.
📖 Reference: EnergyStar.gov — HVAC Installation Best Practices
🧰 6. Key Installation Requirements for a 96% Furnace
High-efficiency (condensing) furnaces have unique requirements that differ from older 80% models.
🧱 Venting System
-
Must use PVC pipe instead of metal because exhaust gases are cool (~100°F).
-
Exhaust and intake must be separated outdoors to prevent recirculation.
💧 Condensate Management
-
A drain trap ensures proper flow and prevents odor.
-
If gravity draining isn’t possible, a condensate pump lifts water to a drain or sink.
🌬️ Combustion Air Supply
-
Sealed combustion ensures air is drawn from outside, not your indoor air — improving safety and efficiency.
🧯 Clearance & Safety
-
Maintain 1–3 inches of clearance around the cabinet.
-
Keep combustibles away from venting and drain lines.
-
Confirm CO detectors are working nearby.
📖 Reference: NFPA 54 — National Fuel Gas Code
💸 7. How Much Does Goodman Furnace Installation Cost?
Installing a Goodman 96% furnace generally costs $3,800–$5,200 total, depending on complexity and region.
| Cost Component | Typical Range |
|---|---|
| Equipment | $1,800–$2,400 |
| Labor | $1,800–$2,600 |
| Venting + Drain Setup | $150–$350 |
| Electrical/Thermostat | $100–$300 |
| Total | $3,800–$5,200 |
Factors That Affect Cost
-
Location: Prices are higher in cold regions or dense metro areas.
-
Installation difficulty: Crawlspaces or attic installs require extra labor.
-
System upgrades: Adding a new thermostat or humidifier increases cost slightly.
📖 Reference: Furnace Replacement Cost Guide
🧾 8. Rebates, Permits & Inspections
🎫 Permits
Most municipalities require a mechanical permit for furnace replacements. Licensed contractors typically handle this paperwork.
👷 Inspections
Your local inspector verifies:
-
Venting slope
-
Gas pressure
-
Electrical safety
-
Condensate drain functionality
💰 Rebates and Incentives
You may qualify for:
-
Federal tax credit (up to $600) for 95%+ AFUE furnaces under the Inflation Reduction Act
-
State or utility rebates (usually $200–$500) for ENERGY STAR models
📖 Reference: EnergyStar.gov — 2025 HVAC Tax Credits
🧊 9. Post-Installation Maintenance & Testing
After installation, there’s still work to do to keep your new Goodman furnace efficient and reliable.
🛠️ Homeowner Maintenance
-
Replace filters every 1–3 months
-
Check drain lines for clogs
-
Inspect vent pipes annually for obstructions or leaks
👨🔧 Professional Maintenance
Schedule a yearly inspection that includes:
-
Combustion analysis
-
Blower motor lubrication
-
Condensate line cleaning
-
Flame sensor calibration
This ensures you maintain warranty coverage and prolong the furnace’s lifespan (typically 15–20 years).
📖 Reference: Goodman — Furnace Maintenance Guide
⚠️ 10. Common Installation Mistakes to Avoid
Even professionals can make errors if rushed or inexperienced. Here are pitfalls to watch for:
-
Improper venting slope — can cause water pooling and backflow.
-
Missing condensate trap — leads to leaks and odors.
-
Undersized ductwork — reduces airflow and efficiency.
-
Incorrect thermostat wiring — common with smart thermostat upgrades.
-
No combustion test — risks poor fuel efficiency or carbon monoxide buildup.
Samantha’s Advice
“Ask your installer for a copy of their final inspection report — it should show temperature rise, CO levels, and static pressure readings. That’s your assurance of a quality job.”
📖 Reference: HVAC.com — Common Furnace Installation Mistakes
🏁 11. Final Walkthrough: What to Expect After Installation
Before your HVAC technician leaves, they should provide a post-installation orientation, including:
✅ How to replace the furnace filter
✅ Thermostat operation overview
✅ Warranty registration steps
✅ Maintenance recommendations
✅ Local rebate documentation
They’ll also review your startup readings, confirming the furnace’s combustion efficiency and airflow match Goodman’s specifications.
🧾 Samantha’s “Homeowner Quick Sheet”
Keep this near your furnace:
-
Furnace Model: GR9S960803BN
-
Filter Size: ___ x ___
-
Next Filter Change: __________
-
Annual Tune-Up Date: __________
🌟 12. The Payoff: Comfort, Savings, and Longevity
A properly installed Goodman 96% AFUE furnace doesn’t just heat your home — it brings:
-
Up to 20% lower energy bills compared to older 80% models
-
Consistent, even heating in every room
-
Quieter performance
-
Cleaner indoor air
-
Peace of mind with Goodman’s lifetime heat exchanger warranty
When you invest in professional installation, you’re not just buying a furnace — you’re securing years of comfort and efficiency.

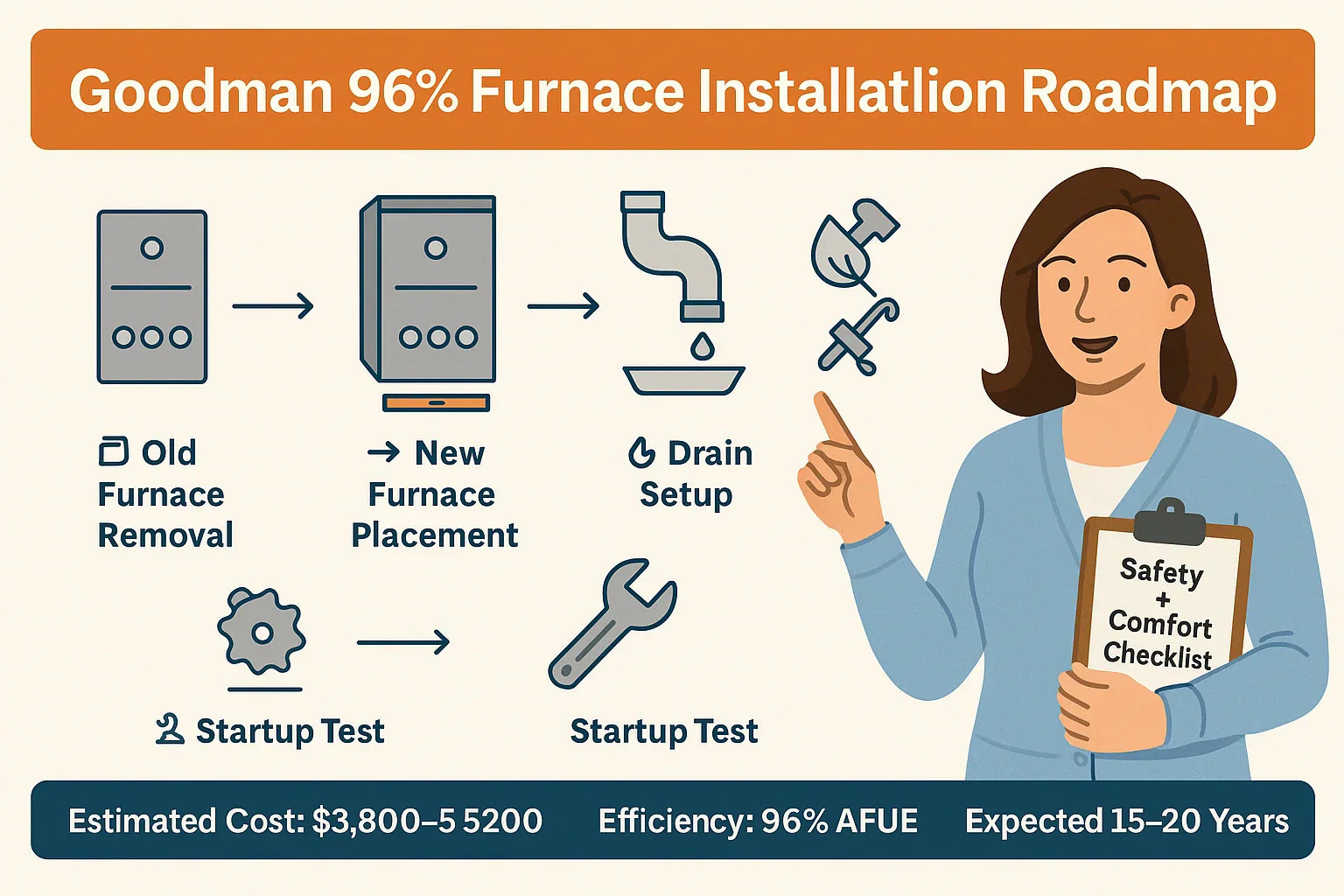

🎨 Visual Companion Infographic
Title: “Goodman 96% Furnace Installation Roadmap”
Design Elements:
-
Step-by-step timeline icons: Old Removal → New Placement → Venting → Drain Setup → Startup Test
-
Side illustration of Samantha holding a clipboard labeled “Safety + Comfort Checklist.”
-
Bottom bar: “Estimated Cost: $3,800–$5,200 | Efficiency: 96% AFUE | Expected Lifespan: 15–20 Years”
