🏠 Introduction: More Than Just Sliding It In
If you’re considering an Amana 12,000 BTU PTAC unit, you probably know they’re a favorite for hotels, apartments, and small rental spaces. They’re compact, reliable, and offer cooling + heating in a single wall-mounted package.
Amana Distinctions Model 12,000 BTU PTAC Unit with 2.5 kW Electric Heat
At first glance, installing one looks simple: cut a hole in the wall, slide it in, and plug it up. But in reality, there are important details that make or break the performance of your unit. From wall sleeves and electrical setup to drainage and airflow, getting installation right ensures your PTAC runs quietly, efficiently, and lasts years longer.
This Savvy-style guide covers:
-
📦 Pre-installation checklist (measurements, power, wall prep)
-
🛠️ Tools & materials you’ll need
-
🔧 Step-by-step installation process
-
⚠️ Common mistakes to avoid
-
🏨 DIY vs. professional installation: what’s realistic?
-
💡 Post-install tips to keep things running smoothly
By the end, you’ll have the confidence to install your Amana PTAC — or know exactly when it’s worth calling in the pros.
📦 Section 1: Pre-Installation Checklist
Before you unbox your PTAC, pause and double-check these items:
🔲 Measure Your Wall Opening
-
Standard PTAC wall sleeves are 42" wide, 16" high, and ~14" deep.
-
Confirm that your wall cutout matches the sleeve dimensions.
-
If replacing an old unit, measure the sleeve and confirm compatibility.
⚡ Electrical Requirements
-
Most Amana PTACs use 208/230V power. Some smaller models may be 265V.
-
Requires a dedicated circuit breaker.
-
Check your breaker panel: you’ll likely need a 20A or 30A breaker.
-
Using the wrong outlet or breaker can damage the unit.
🧩 Wall Sleeve
-
Required for all new installations.
-
Provides insulation and support.
-
Can often reuse an existing sleeve if it’s Amana or a compatible size.
💧 Drainage Setup
-
PTACs generate condensation in cooling mode.
-
Options:
-
Internal drainage: moisture evaporates via condenser heat.
-
External drain kit: directs water outside through tubing.
-
📜 Local Permits & Codes
-
Many areas require permits for electrical work.
-
If you’re adding a new 230V outlet, expect to bring in a licensed electrician.
🔗 Energy.gov – Room AC installation guidance
🛠️ Section 2: Tools & Materials You’ll Need
Gather these before you start:
-
Wall sleeve & exterior grille
-
Power drill + masonry bits
-
Screwdrivers (flat & Phillips)
-
Level (critical for drainage)
-
Caulking gun & sealant
-
Utility knife
-
Voltage tester
-
Drain kit (if using external drainage)
-
Safety glasses & gloves
Optional but smart:
-
Insulation foam (for sealing gaps)
-
Weatherstripping (to block drafts)
-
Shop vacuum (for dust during wall prep)

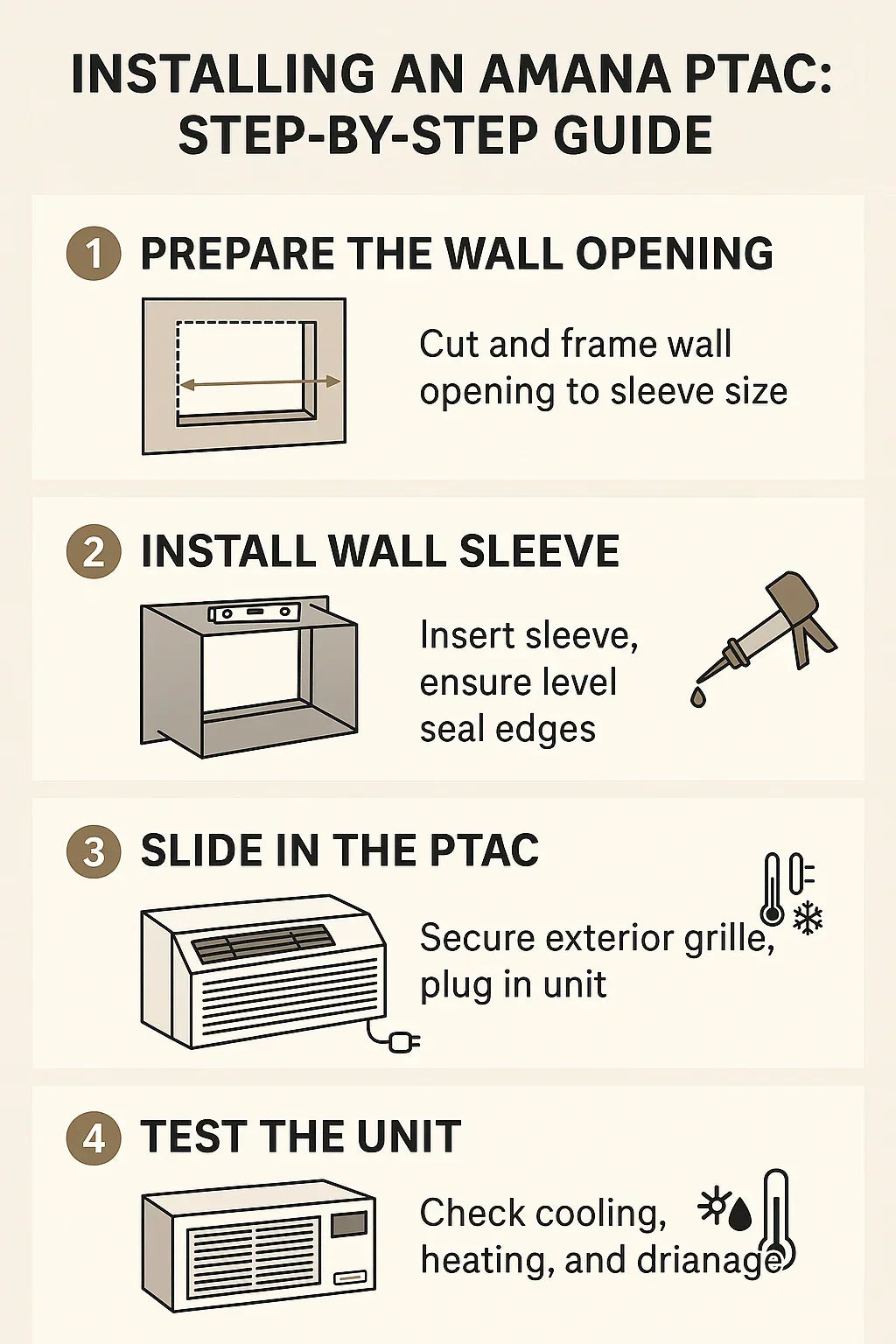

🧰 Section 3: Step-by-Step Installation
Here’s the Savvy-friendly process for installing your Amana PTAC:
1️⃣ Prepare the Wall Opening
-
Cut a hole in the wall matching sleeve dimensions.
-
Frame with treated wood for structural support.
-
Clear away debris and ensure edges are clean.
2️⃣ Install the Wall Sleeve
-
Place sleeve in opening.
-
Use a level to ensure it slopes slightly downward outdoors (for drainage).
-
Secure with screws into framing.
-
Seal edges with foam or caulk to prevent leaks and drafts.
3️⃣ Attach the Exterior Grille
-
Fit grille onto sleeve’s outside face.
-
Ensure airflow direction matches manufacturer’s spec.
-
Secure firmly — loose grilles can rattle and reduce efficiency.
4️⃣ Electrical Connection
-
Test outlet with voltage tester (confirm 208/230V).
-
Plug in the PTAC cord to the dedicated outlet.
-
For hardwired installs, hire a licensed electrician.
5️⃣ Slide In the PTAC
-
Carefully align unit with sleeve.
-
Push until it locks into place.
-
Secure with included mounting hardware.
6️⃣ Install Drain Kit (if needed)
-
Connect drain pan to tubing.
-
Route tubing downward outdoors.
-
Ensure no kinks in the line.
7️⃣ Test Operation
-
Turn on cooling mode → check airflow + drainage.
-
Switch to heating → confirm power draw matches label.
-
Listen for unusual noises.
🔗 Amana PTAC Installation Manual
⚠️ Section 4: Common Installation Mistakes to Avoid
-
❌ Wrong Voltage Outlet – Plugging into 115V instead of 230V will damage the unit.
-
❌ Poor Sealing Around Sleeve – Leads to drafts, bugs, and higher bills.
-
❌ Improper Drain Line Slope – Causes water leaks indoors.
-
❌ No Clearance for Airflow – Curtains, beds, or furniture blocking vents reduce efficiency.
-
❌ Skipping the Level Check – PTACs must slope slightly outward to drain properly.
🔗 HVAC.com – Common PTAC mistakes
🏨 Section 5: DIY vs. Professional Installation
👍 When DIY Makes Sense
-
Replacing an old PTAC with the same size unit.
-
Existing wall sleeve and outlet are already installed.
-
You’re comfortable with basic tools and sealing.
👷 When to Hire a Pro
-
Installing in a wall with no existing cutout.
-
Running new 230V wiring and breakers.
-
Installing multiple units in a hotel or apartment complex.
-
Ensuring compliance with building codes and permits.
💡 Section 6: Post-Installation Tips
-
🧹 Filter Maintenance: Clean every 30 days; replace 2–3 times per year.
-
🌀 Check Airflow: Keep 3–4 feet clear in front of the unit.
-
💧 Inspect Drainage: Ensure water flows outdoors.
-
📉 Seal Check: Re-seal edges yearly to prevent air leaks.
-
🔧 Annual Tune-Up: Have a tech clean coils and check refrigerant.
🔗 ASHRAE – Maintenance Guidelines
✅ Conclusion: Get It Right from Day One
Installing an Amana PTAC is straightforward — but the details matter.
-
Get your measurements, voltage, and sleeve right.
-
Always slope the sleeve slightly outward for proper drainage.
-
Seal every edge to stop leaks, drafts, and bugs.
-
If wiring or wall cutting is required, call a pro.
👉 Do it right once, and your Amana 12,000 BTU PTAC will deliver quiet, efficient heating and cooling for years to come.
In the next topic we will Know more about: Amana vs. GE vs. Friedrich: Which PTAC Brand Should You Choose?
