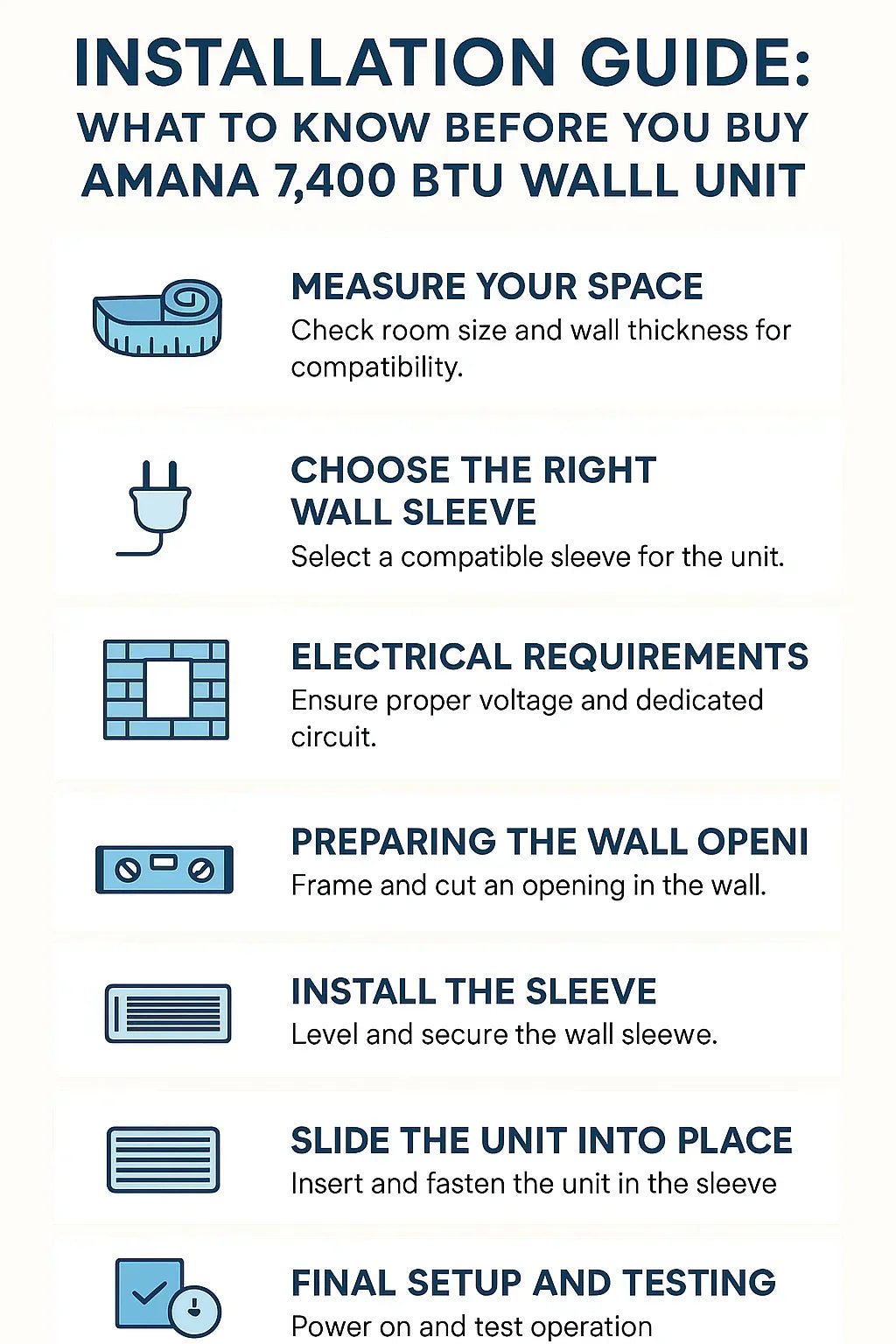

Installation Guide What to Know Before You Buy the Amana 7,400 BTU Wall Unit

0 comments

Introduction: Why Installation Prep Matters

A few years back, I made what I thought was a smart purchase: a shiny new through-the-wall AC unit. I was so excited to finally ditch my rattling old window air conditioner. I clicked “buy,” had it delivered, and then realized… I didn’t have a wall sleeve.

That one mistake cost me weeks of waiting, extra money, and a whole lot of frustration.

That’s why I’m writing this guide. If you’re considering the Amana 7,400 BTU Through-the-Wall AC with Heat Pump, you’re making a smart choice — it’s efficient, quiet, and gives you heating and cooling in one unit. But before you buy, it’s crucial to know what installation actually involves.

I’ll walk you through everything I wish I had known: measuring, sleeves, electrical needs, wall prep, costs, and whether to go DIY or hire a pro. Trust me, a little prep now will save you big headaches later.

Through-the-Wall Units vs. Window Units: Why Installation Is Different

Most of us start with window units because they’re cheap and easy. You just drop them in a window, plug them in, and you’re done.

But through-the-wall (TTW) systems are different:

They mount directly in an exterior wall instead of blocking a window.
They need a wall sleeve for stability, insulation, and drainage.
They require a dedicated wall opening, which means cutting through drywall and possibly framing.

When I switched from a window unit to a TTW, I was shocked at the difference. It wasn’t a 30-minute DIY job. It was more like a weekend project — or in my case, a half-DIY, half-pro job.

If you’re prepared, though, the installation is straightforward and results in a cleaner, quieter, and more efficient setup.

Step 1: Measure Your Space

Before you do anything, confirm that the 7,400 BTU size is right for your room.

Room Size

Ideal range: 200–350 sq ft (bedrooms, small offices, guest rooms).
Too small a room = overcooling, wasted energy.
Too large a room = undercooling and constant cycling.

Wall Thickness

Most TTW units require walls between 24 and 27 inches thick with a sleeve.

If your wall is thinner, you’ll need framing adjustments.
If thicker, you may need an extended sleeve.

Placement Tips

Install the unit near the center of the wall for even air distribution.
Avoid spots directly behind furniture or curtains.
Choose a location with outdoor clearance — no bushes or fences blocking airflow.

👉 Samantha’s tip: Measure twice, cut once. I nearly cut into a wall with a support stud before double-checking.

Step 2: Choose the Right Wall Sleeve

Here’s the part most first-timers miss: you can’t install a TTW unit without a sleeve.

What Is a Wall Sleeve?

A metal or insulated box that fits inside the wall opening.
It supports the weight of the unit, seals out air, and channels condensation.

Amana Sleeve Compatibility

The Amana 7,400 BTU typically uses a 26-inch sleeve. Make sure the one you buy is Amana-compatible, though many universal sleeves also work.

Sleeve Options

Galvanized steel: durable, standard choice.
Insulated sleeves: better thermal performance.

👉 Samantha’s mistake: I ordered my unit without a sleeve, thinking it came in the box. It didn’t. Learn from me: order both together.

Step 3: Electrical Requirements

This is another critical factor: TTW units don’t always use the same power as a window unit.

The Amana 7,400 BTU model uses 230/208V, not a standard 115V outlet.
You’ll likely need a dedicated 230V circuit installed by an electrician.
The amperage is usually around 15 amps, so check your breaker panel.

👉 Samantha’s tip: Don’t assume you can just plug it into any wall outlet. I had to have an electrician add a new line, which cost me about $250 — but it’s safer and ensures the unit runs properly.

Step 4: Preparing the Wall Opening

If you don’t already have an existing wall sleeve opening, you’ll need to create one.

Cutting the Opening

Measure your sleeve dimensions.
Check for studs, pipes, or wiring in the wall before cutting.
Use a level to make sure the opening is straight.

Framing the Opening

Frame the opening with 2x4 lumber for strength.
Add a slight slope outward (¼ inch) for proper water drainage.

Weatherproofing

Seal the edges with exterior-grade caulking.
Add flashing outside if necessary.

👉 Samantha’s story: I hired a carpenter for this part. Cutting through drywall and siding made me nervous, and I didn’t want to mess up my home’s structure. Best $300 I spent.

Step 5: Installing the Sleeve

Now it’s time to put the sleeve into the wall.

Slide the sleeve into the framed opening.
Use a level to ensure it’s tilted slightly downward toward the outside.
Screw it into the framing securely.
Seal the perimeter with caulk or foam to prevent air leaks.

👉 Samantha’s tip: Don’t skip sealing — it keeps out drafts, pests, and noise.

Step 6: Sliding the Unit Into Place

This is the fun part.

Unbox your Amana 7,400 BTU unit.
Carefully lift it (it weighs around 70 lbs — get help if needed).
Slide it into the sleeve until it locks into position.
Attach the trim kit if included for a clean finish.

When I did this step, it felt incredibly satisfying. All the prep finally paid off.

Step 7: Final Setup and Testing

Now that the unit is in place:

Plug it into the correct 230V outlet.
Turn it on cooling mode to check airflow.
Switch to heat mode to confirm the heat pump works.
Adjust thermostat and remote settings.

👉 Samantha’s tip: Run the unit for at least 15 minutes in both modes. Better to catch any issues now than later.

Common Mistakes to Avoid

Here are the top errors I’ve seen (and made):

Skipping the wall sleeve — the unit won’t work without one.
Forgetting voltage — check 230V vs. 115V before buying.
Cutting the wall without planning — you don’t want to hit a stud or water line.
Not sealing gaps — results in drafts, noise, and energy waste.
Poor placement — don’t install where airflow is blocked.

👉 Samantha’s checklist: Measure, sleeve, voltage, wall cut, seal — confirm each step before moving forward.

Amana PTAC Install

Professional vs. DIY Installation: Which Should You Choose?

This is a big decision.

DIY Pros:

Saves money (only costs are unit + sleeve + tools).
Satisfaction of doing it yourself.
Faster if you’re handy.

DIY Cons:

Risk of mistakes (crooked cut, wrong voltage, leaks).
Requires power tools and electrical knowledge.
Could void warranty if not done properly.

Professional Pros:

Precise installation.
Safe electrical work.
Warranty stays intact.

Professional Cons:

Costs more (usually $300–$700 depending on wall work).

👉 Samantha’s take: I did half-and-half. I hired a pro for the wall cut and electrical, but I installed the sleeve and unit myself. That gave me peace of mind and saved a little money.

Cost Breakdown: What to Budget For

Here’s a realistic breakdown of what you’ll spend:

Unit: $700–$900
Wall Sleeve: $80–$150
Professional Install (optional): $200–$500
Electrical Work (if needed): $200–$400
Accessories (sealant, trim kit): $50

Total:

DIY: ~$850–$1,000
Pro Install: ~$1,100–$1,500

For me, my total was about $1,100, since I hired out the tough parts.

Conclusion: Samantha’s Advice for a Smooth Install

Installing the Amana 7,400 BTU Wall Unit isn’t a five-minute job, but it’s absolutely worth it. With the right prep, it becomes a permanent, efficient, and attractive solution for heating and cooling your room.

Here’s my final checklist for you:
