🏠 Introduction: Why Prep Work Is Half the Battle
When homeowners ask me what makes the difference between a furnace that runs for 25 years and one that burns out in 10, my answer is simple: the installation.
I’ve been installing HVAC systems for more than 15 years, and I can tell you — a furnace, no matter how efficient or modern, is only as good as the prep work that goes into fitting it.
And when it comes to 40,000 BTU furnaces, which are typically used in smaller homes, apartments, and townhouses, the prep work matters even more. These furnaces don’t have the raw power of an 80,000 or 100,000 BTU unit, so they rely on everything else in the system being right.
Today, I’ll walk you through my step-by-step pre-installation checklist — the same one I use before fitting a 40,000 BTU R-32 gas furnace for a customer.
📏 Step 1: Confirm Proper Sizing
Before I even unload the furnace from the truck, I make sure it’s the right size for the home.
❌ Why Oversizing Is a Problem
-
Causes short cycling (furnace kicks on and off too often).
-
Uneven heating across rooms.
-
Higher gas bills and more wear on the system.
❌ Why Undersizing Is a Problem
-
Furnace runs constantly without ever fully heating the house.
-
More stress on components, shortening lifespan.
-
Home never feels comfortable in extreme cold.
✅ My Rule
For smaller homes (1,000–1,600 sq. ft.) in moderate climates, a 40,000 BTU furnace is often perfect. But I don’t guess. I always run a Manual J load calculation.
Manual J factors in:
-
Square footage
-
Climate zone
-
Insulation levels
-
Windows and air leakage
-
Number of occupants
📖 Reference: ACCA – Manual J Load Calculations
👉 Pro Tip: Don’t let anyone size your furnace by square footage alone. That’s lazy. Get the calculation done right.
🌬️ Step 2: Inspect Ductwork
I can’t stress this enough: ductwork makes or breaks a furnace install.
What I Check:
-
Leaks: I look for disconnected joints, gaps, or old tape peeling away.
-
Sizing: Undersized ducts can choke airflow, causing overheating and shutdowns.
-
Insulation: Uninsulated ducts in unconditioned spaces waste huge amounts of heat.
The Department of Energy estimates 20–30% of conditioned air is lost to duct leaks in the average home . Imagine running a 40,000 BTU furnace and losing 8,000 BTUs into your attic. That’s like throwing money out the roof vent.
📖 Reference: U.S. Department of Energy – Duct Sealing
👉 Pro Tip: I always seal ducts with mastic, not duct tape (which dries and cracks).
🪟 Step 3: Check Insulation & Envelope
A furnace doesn’t just fight cold air — it fights heat loss.
My Inspection Routine:
-
Attic insulation: Should meet modern R-value standards (R-38+ in many regions).
-
Wall insulation: Older homes often have little or none.
-
Windows & doors: Drafts, single-pane glass, or poor weatherstripping.
If I find issues, I’ll tell the homeowner: “Fixing your insulation first might let you get away with a smaller furnace — and smaller bills.”
📖 Reference: ENERGY STAR – Insulation Guidance
👉 Pro Tip: A $500 investment in insulation can sometimes do more for comfort than a $5,000 furnace.
🔌 Step 4: Electrical Requirements
Even gas furnaces need electricity.
What I Look For:
-
Dedicated circuit: Many modern furnaces require a 15–20 amp dedicated circuit.
-
Shutoff switch: Must be located near the furnace.
-
Thermostat wiring: Old two-wire setups may not work with modern furnaces.
I also check for GFCI protection if the furnace is in a damp location (like a basement).
📖 Reference: National Electrical Code (NEC) Furnace Requirements
👉 Pro Tip: If you’re upgrading your furnace, consider upgrading your thermostat wiring too — it opens the door to smart thermostats.
🔥 Step 5: Gas Line & Venting
This is where safety becomes non-negotiable.
Gas Line Checks:
-
Correct pipe sizing (usually ½” or ¾” depending on distance).
-
Shutoff valve within six feet of the furnace.
-
Check for leaks with soap solution or electronic sniffer.
Venting Checks:
-
Proper vent pipe material (PVC or metal, depending on furnace type).
-
Correct slope to prevent condensation buildup.
-
Clearance to windows, soffits, and other intakes/exhausts.
📖 Reference: International Fuel Gas Code – Venting Requirements
👉 Pro Tip: I always double-check the manufacturer’s venting chart. Even a 40,000 BTU furnace can backdraft dangerously if vented wrong.
📐 Step 6: Utility Space Fit
In small homes, furnaces often go in closets, attics, or basements. That means space is tight.
My Fit Checks:
-
Clearance: Most furnaces require at least 24 inches front clearance for servicing.
-
Combustion air: Closets need vent grilles or louvered doors.
-
Noise: Thin walls near bedrooms may require extra soundproofing.
📖 Reference: ENERGY STAR – Proper Installation Guidelines
👉 Pro Tip: Don’t let a contractor wedge a furnace into a space with no service clearance. You’ll pay double when repairs are needed.
🛡️ Step 7: Safety Checks
Safety is always the final (and most important) box on my list.
What I Require:
-
Carbon monoxide detectors installed on every level.
-
Combustion air supply (from indoors or outdoors, depending on setup).
-
Draft and combustion test after installation.
📖 Reference: CDC – Carbon Monoxide Safety in Homes
👉 Pro Tip: I never leave a furnace running until I’ve tested for backdrafting and CO levels.
🧰 Step 8: Final Prep Before Installation
Once the checks are done, I prep the job:
-
Confirm delivery of furnace, vent kit, filter, and accessories.
-
Review the manufacturer’s installation manual (yes, I still read them — even after 15 years).
-
Lay down protective coverings in the home to avoid tracking in dirt.
Then, and only then, do I set the furnace in place.
🏆 Mark’s Take: Why This Checklist Matters
A 40,000 BTU furnace is a precision tool. It’s not about brute force; it’s about balance. When installed right:
-
✅ You get even heating.
-
✅ You save money on energy.
-
✅ You maximize the life of your system.
When installed wrong:
-
❌ You deal with drafts, high bills, and dangerous CO risks.
So whether you’re a homeowner shopping for a furnace or a DIYer thinking about tackling installation, remember this: installation isn’t just “hook it up and go.” It’s about prep, planning, and doing it right the first time.

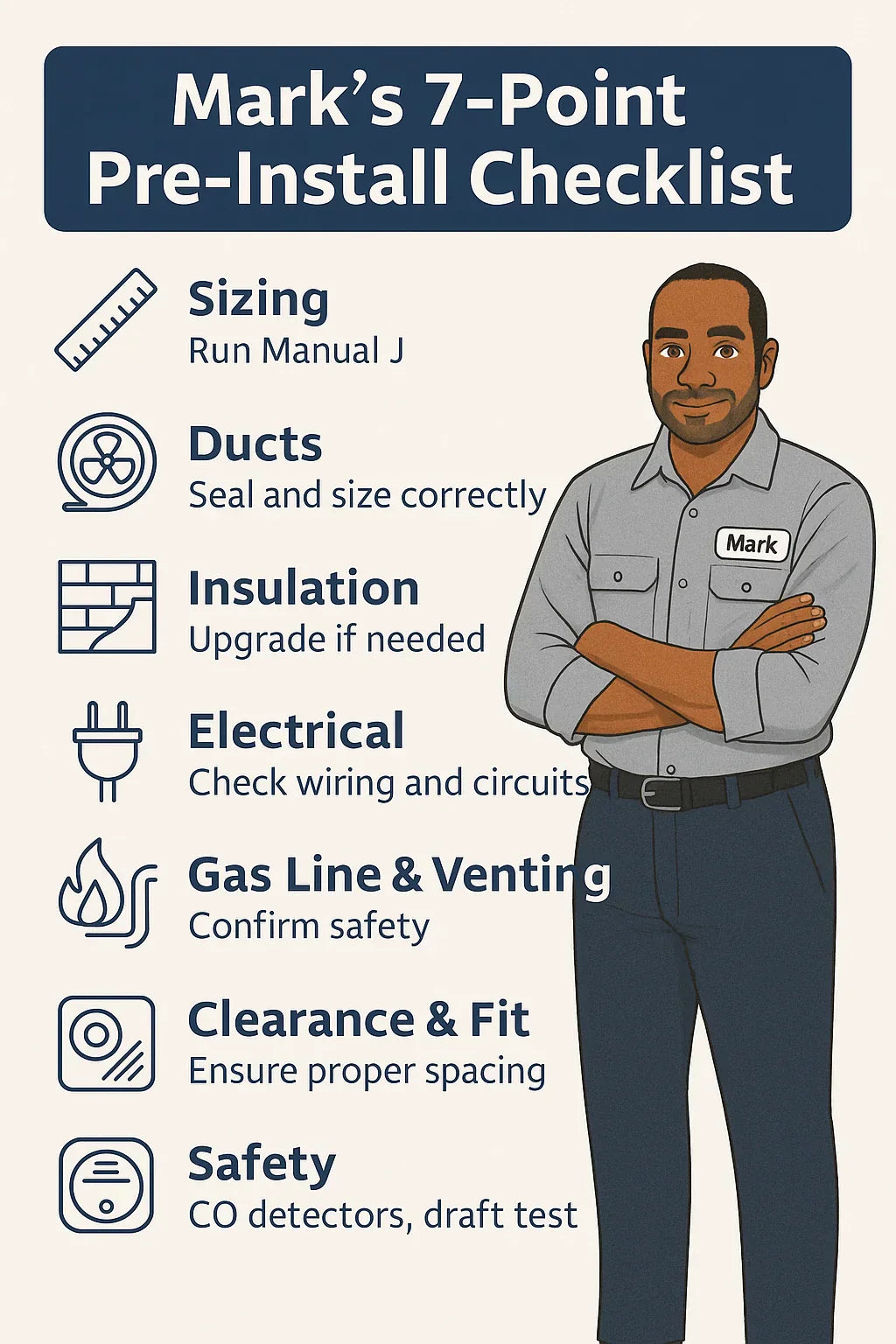

🎨 Infographic Idea: “Mark’s 7-Point Pre-Install Checklist”
-
Sizing – Run Manual J
-
Ducts – Seal and size correctly
-
Insulation – Upgrade if needed
-
Electrical – Check wiring and circuits
-
Gas Line & Venting – Confirm safety
-
Clearance & Fit – Ensure proper spacing
-
Safety – CO detectors, draft test
In the next topic we will know more about: Cost Breakdown: Equipment, Installation & Long-Term Savings
