Savvy Mavi walks you through installing your GE 8,200 BTU wall AC/heat pump safely—tools, prep, sleeves, electrical, sealing, and pro tips for long-term comfort.
🌟 Why Safe Installation Matters
So, you’ve picked up a GE 8,200 BTU 115-Volt Through-the-Wall AC with Heat Pump. Smart choice!
Before you pop it into your wall sleeve, here’s something to keep in mind: installation is where most DIYers either nail it… or regret it.
Why? Because an incorrect install can:
-
Reduce cooling/heating efficiency.
-
Cause noisy vibrations.
-
Lead to condensation leaks.
-
Or worse—create electrical hazards.
That’s why I’m walking you through a safe, step-by-step process—with plenty of Savvy tips along the way.

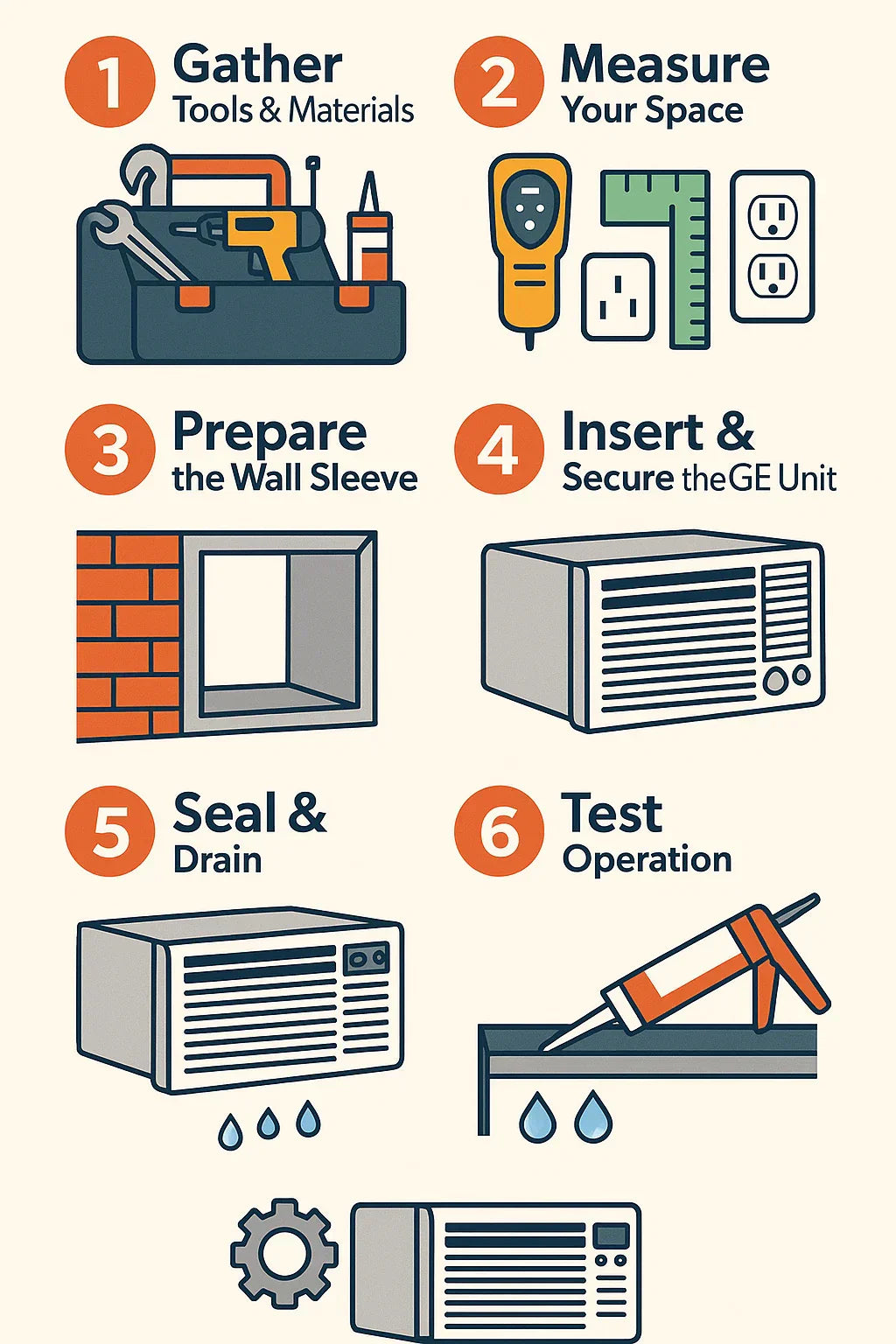

🧰 Step 1: Gather Your Tools & Materials
You’ll save yourself headaches if you have everything ready before starting.
Tools:
-
Power drill + screwdriver bits
-
Level
-
Measuring tape
-
Stud finder
-
Utility knife
-
Caulking gun
-
Safety glasses & gloves
Materials:
-
GE-compatible wall sleeve (standard size: 26" W × 15" H × 16–20" D)
-
Mounting hardware (included with sleeve or unit)
-
Weatherproof caulk or foam sealant
-
Support brackets (if wall structure needs reinforcement)
-
Electrical tester
👉 Pro Tip: Always buy the manufacturer-recommended sleeve. Using a generic or old sleeve can cause airflow problems.
For a quick accessory guide, check out: Wall Sleeves, Grilles & Accessories: What You Need for Your GE 8,200 BTU Install.
📏 Step 2: Measure Your Wall Opening
The GE 8,200 BTU unit is designed to fit into a standard 26" sleeve. But don’t assume—measure twice, cut once.
-
Use your measuring tape to check:
-
Width: 26 inches
-
Height: ~15.5 inches
-
Depth: 16–20 inches
-
-
Verify wall thickness. Most residential walls range between 4–8 inches. Make sure your sleeve depth is compatible.
-
Use a level to ensure the opening is straight.
💡 Savvy Tip: The sleeve should tilt slightly downward (¼ inch) toward the outside. This prevents water from draining inside.
According to the DOE’s Energy Saver guidelines, improper slope is one of the top causes of AC water leaks indoors.
🧱 Step 3: Prepare the Wall Sleeve
If you’re replacing an old unit:
-
Remove the old AC and clean the sleeve.
-
Inspect for rust or structural damage.
-
Replace if sleeve is more than 10 years old.
For a new installation:
-
Cut an opening in the wall (only if landlord/HOA permits).
-
Frame the cavity with studs for reinforcement.
-
Slide sleeve into opening and secure with screws.
👉 Important: Do not skip framing. The International Residential Code (IRC) requires proper framing around wall penetrations for safety and durability.
⚡ Step 4: Electrical Safety Check
Your GE 8,200 BTU model runs on 115V (standard household outlet). That’s good news—no special 230V wiring needed.
But still:
-
Plug into a dedicated circuit if possible.
-
Never use an extension cord.
-
Check your breaker—most units need 15 amps.
-
Use a tester to ensure outlet is properly grounded.
👉 Savvy Tip: If you’re unsure about wiring, call an electrician. According to the National Fire Protection Association (NFPA), improper AC wiring is a leading cause of residential electrical fires.
📦 Step 5: Slide the GE Unit into Place
Now the fun part: installing the unit.
-
Two-person job: These units are heavy (~80 lbs). Don’t risk your back.
-
Slide unit carefully into the sleeve.
-
Ensure it fits snugly—no wobble, no gaps.
-
Check again that the unit tilts slightly outward.
💡 Pro Tip: Place a towel or cardboard on the sleeve rails to avoid scratches while sliding it in.
💧 Step 6: Seal & Weatherproof
A snug fit isn’t enough—you need to seal it airtight.
-
Apply caulk around exterior edges.
-
Seal interior gaps with foam weatherstrip.
-
Ensure no daylight is visible around unit.
This prevents:
-
Energy loss.
-
Pests sneaking inside.
-
Rainwater leaks.
🔌 Step 7: Power Up & Test
Now it’s time to plug in and test both modes.
-
Set AC mode to Cool.
-
Check airflow strength.
-
Ensure compressor kicks in.
-
-
Switch to Heat Pump mode.
-
Warm air should blow after a short delay.
-
-
Listen for unusual vibrations.
-
Minor hum = normal.
-
Rattling = unit not level or sleeve loose.
-
🛠️ Troubleshooting During Installation
❌ Unit won’t power on
-
Check breaker.
-
Test outlet with a lamp.
-
Verify power cord fully seated.
❌ Water dripping indoors
-
Sleeve not sloped outward.
-
Reseal with caulk.
❌ Excess noise
-
Unit not level.
-
Loose mounting hardware.
If issues persist, consult the GE installation manual or call a licensed technician.
👷♂️ When to Call a Professional
DIY is great, but not always safe. Call a pro if:
-
You need to cut a new wall opening.
-
You’re unsure about electrical load.
-
You’re in a multi-unit condo with HOA restrictions.
-
The unit is too heavy for safe handling.
According to HomeAdvisor, professional installation costs between $300–$600, which is worth it for safety in complex cases.
✅ Savvy’s Final Safety Checklist
Before you pat yourself on the back, double-check:
-
Sleeve secured and tilted outward.
-
Electrical outlet tested and grounded.
-
Unit leveled, no vibrations.
-
Edges sealed airtight.
-
Cooling & heating modes tested.
If all boxes are ticked—you’re officially set up for year-round comfort.
🧠 Savvy’s Final Word
Installing the GE 8,200 BTU Through-the-Wall Heat Pump isn’t rocket science—but it does require precision.
-
Do it right, and you’ll enjoy a quiet, efficient, year-round system that lasts a decade or more.
-
Cut corners, and you’ll be chasing leaks, rattles, and high energy bills.
The bottom line? Take your time, follow the steps, and don’t hesitate to call in help when needed.
Because with HVAC installs—safe and correct beats fast and sloppy every time.
