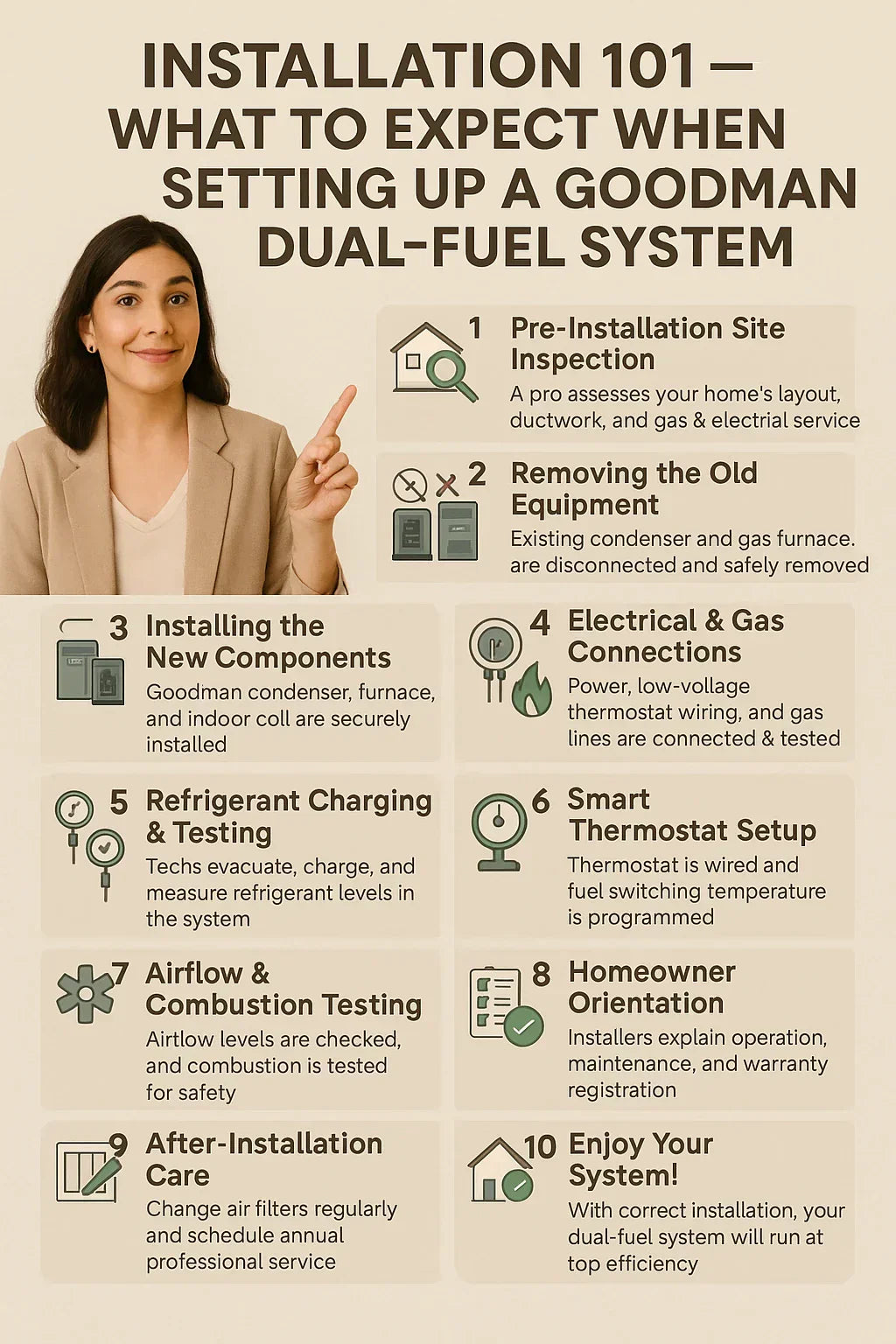

Installation 101 — What to Expect When Setting Up a Goodman Dual-Fuel System

Upgrading to a Goodman dual-fuel HVAC system is one of the smartest investments you can make for your home — especially in climates like the Northeast, where freezing winters and humid summers put your comfort system to the test. But before your installation day arrives, it helps to know what to expect.

This guide walks you through each stage of the process — from the first inspection to the final thermostat setup — so you feel informed, prepared, and confident when your Goodman 2 Ton 14 SEER2 system is being installed.

---

🌿 What Is a Dual-Fuel System, and Why It’s Different

A dual-fuel system combines the best of both energy sources:

• Electric cooling (via the outdoor condenser) for efficiency in mild weather

• Gas heating (via the indoor furnace) for reliable warmth when temperatures plummet

Instead of relying on one power source year-round, the system automatically switches between the two for maximum efficiency and comfort.

According to the U.S. Department of Energy, dual-fuel setups can cut heating and cooling costs by up to 50% compared to conventional systems — because they always use the most cost-effective fuel for the conditions.

In other words, your Goodman system will do the thinking for you — cooling efficiently in summer, heating powerfully in winter, and running in hybrid mode during those unpredictable shoulder seasons.

---

🏠 Step 1: Pre-Installation Site Inspection

Before installation begins, your HVAC professional will visit your home for a site inspection and load calculation. This ensures your system is sized correctly and your home is ready for the upgrade.

Key tasks include:

• Measuring your home’s square footage and insulation levels

• Checking ductwork condition for leaks or poor insulation

• Verifying access to natural gas lines and electrical service

• Reviewing venting and condensate drain routes

Proper sizing is crucial. An undersized unit will struggle to maintain comfort, while an oversized one can short-cycle and waste energy.

Most technicians use Manual J load calculations, the industry-standard method recommended by the Air Conditioning Contractors of America (ACCA), to get it right.

Savvy’s tip: “Before my installation, I made sure the area around my old furnace and outdoor pad was clear. It made the technician’s job smoother — and it helped me visualize how the new system would fit.”

---

🧰 Step 2: Removing the Old Equipment

Once the prep work is complete, the crew will safely disconnect and remove your old furnace and condenser.

Here’s what happens:

1. The power and gas supply are shut off.

2. Refrigerant is safely recovered using certified equipment (per EPA Section 608 regulations).

3. The old furnace is detached from the duct system.

4. The condenser outside is disconnected and lifted away.

Technicians handle refrigerant removal carefully because improper disposal can harm the environment. EPA-certified contractors must use recovery equipment to prevent release into the air.

Savvy says: “Watching them remove my old unit made me realize how much technology has changed — my Goodman system is lighter, quieter, and much more efficient.”

---

⚙️ Step 3: Installing the New Goodman Components

Now the exciting part begins — the installation of your Goodman dual-fuel system.

Your system includes three major components:

• The outdoor condenser (GLXS3BN2410)

• The indoor gas furnace (GR9S960803BN)

• The vertical cased evaporator coil (CAPTA2422B3)

Each piece plays a vital role, and when installed as a factory-matched set, they ensure your system reaches its rated 14 SEER2 efficiency and 96% AFUE heating.

🧱 Furnace Installation

The technician positions the Goodman furnace on level flooring and connects it to the plenum and return ducts. If venting through PVC, they’ll cut and seal the pipe through an exterior wall to safely expel exhaust gases.

💨 Coil Installation

The cased coil is mounted above the furnace. This component allows refrigerant from the outdoor condenser to absorb heat indoors for cooling or release it for heating.

🌡️ Condenser Setup

Outside, the condenser unit is mounted on a concrete or composite pad. Proper spacing (at least 12 inches from walls) ensures good airflow. Copper refrigerant lines are then connected and sealed for leak-free operation.

Goodman’s design simplifies this process with easy-access panels and factory-flared fittings, helping installers achieve a tight, clean setup.

---

⚡ Step 4: Electrical and Gas Connections

Once the components are in place, the next step is powering and fueling the system.

Electrical Setup:

• The condenser connects to a 240V power source through a disconnect box.

• Low-voltage wiring links the furnace, condenser, and thermostat.

• The control board inside the furnace manages communication between components.

Gas Connection:

• The furnace is connected to the home’s natural gas line or propane tank.

• The line is tested for leaks and pressure consistency before ignition.

Goodman furnaces are known for installer-friendly terminal boards and color-coded wiring, which reduce installation time and the risk of errors.

If you’re using a smart thermostat, this is when the technician wires and configures it to work with both fuel sources — something Savvy was particularly excited about.

“My Nest thermostat lets me see when the system switches between electric and gas. It’s fascinating — and I can adjust my comfort settings right from my phone.”

---

🔄 Step 5: Refrigerant Charging and System Testing

Refrigerant is the lifeblood of your cooling system, and proper charging ensures efficiency and reliability.

During this step, the technician:

1. Evacuates the refrigerant lines to remove air and moisture.

2. Weighs and charges the system with the manufacturer-specified amount of refrigerant.

3. Measures superheat and subcooling to fine-tune performance.

4. Tests the refrigerant flow through the coil and condenser.

According to HVAC.com’s refrigerant guide, even a 10% undercharge can reduce efficiency by 20%. That’s why precision matters — Goodman systems are calibrated to deliver the rated SEER2 performance when charged correctly.

---

🧠 Step 6: Smart Thermostat Setup and Fuel Switching

One of the coolest parts of a dual-fuel system is its intelligence. The thermostat decides which heat source — electric or gas — is most efficient based on the outside temperature.

For example:

• Above 35°F: The electric condenser handles heating efficiently.

• Below 35°F: The gas furnace automatically takes over for powerful warmth.

This is managed by a dual-fuel thermostat, which can be either Goodman’s proprietary control or a third-party smart thermostat like ecobee or Google Nest.

According to Nest’s Energy Savings data, smart thermostats can reduce heating and cooling costs by an additional 10–15%, especially when paired with high-efficiency systems like Goodman’s.

Savvy recalls:

“I didn’t have to do anything — the system just knows. On mild days it runs quietly on electric, and when it’s freezing, the gas kicks in automatically.”

---

💨 Step 7: Airflow Balancing and Combustion Testing

After everything is connected, the installer runs a series of performance and safety tests to confirm the system’s operation:

• Static pressure check: Ensures proper duct airflow.

• Temperature rise test: Confirms furnace is producing rated BTU output.

• Combustion analysis: Verifies complete gas burn and low carbon monoxide.

• Fan speed calibration: Adjusted for comfort and noise balance.

These tests are essential to achieving the unit’s full efficiency potential. The U.S. Department of Energy notes that improper airflow or burner settings can reduce performance by up to 25%, even in a high-efficiency unit.

---

🧾 Step 8: Homeowner Orientation and Warranty Setup

Once installation and testing are complete, your technician will walk you through the system’s operation.

Expect a quick orientation:

• Demonstration of thermostat modes (cool, heat, auto, emergency heat)

• Filter replacement instructions

• Location of circuit breakers and shut-off valves

• Review of warranty registration steps

Goodman provides one of the best warranties in the industry:

• 10-Year Parts Limited Warranty

• Lifetime Heat Exchanger Warranty

• Lifetime Compressor Warranty (for registered equipment)

Be sure to register your unit within 60 days at the Goodman Warranty Portal to activate full coverage.

---

🧽 Step 9: After-Installation Care and Maintenance

Once your Goodman dual-fuel system is up and running, maintenance is key to keeping it performing at its rated efficiency.

Seasonal Checklist:

1. Replace air filters every 90 days (EPA Indoor Air Quality guidelines).

2. Schedule an annual tune-up before each heating and cooling season.

3. Keep outdoor condenser clear of leaves and snow.

4. Have a pro check refrigerant charge and gas pressure yearly.

5. Inspect venting and drains for blockages.

Regular maintenance not only keeps efficiency high but also protects your warranty and ensures safe, consistent performance during peak demand seasons.

---

💡 Step 10: Common Homeowner Questions

🕓 How long does installation take?

Usually 1.5 to 2 days, depending on duct modifications or thermostat setup.

🧾 Do I need new ducts?

Not always. If your current ducts are sealed and sized correctly, they can often be reused. Your installer will test for leaks before finalizing.

💸 Can I get rebates?

Yes — Goodman dual-fuel systems often qualify for ENERGY STAR and local utility rebates (EnergyStar.gov Rebate Finder).

🧰 Will installation affect my home for long?

The process is clean and efficient. Most of the work happens in the basement or utility area, with only minor outdoor activity for the condenser.

---

💬 Savvy’s Takeaway:

“The installation was seamless. I loved seeing how everything came together — the technicians were meticulous, from wiring the thermostat to testing every vent. Now the system runs so quietly that I barely notice it. And when winter hit, the gas furnace made my home instantly cozy.”

Her experience is exactly what Goodman designs for: high performance with low hassle. With the right installer and a little homeowner preparation, your dual-fuel system can transform the comfort and efficiency of your entire home.

---
