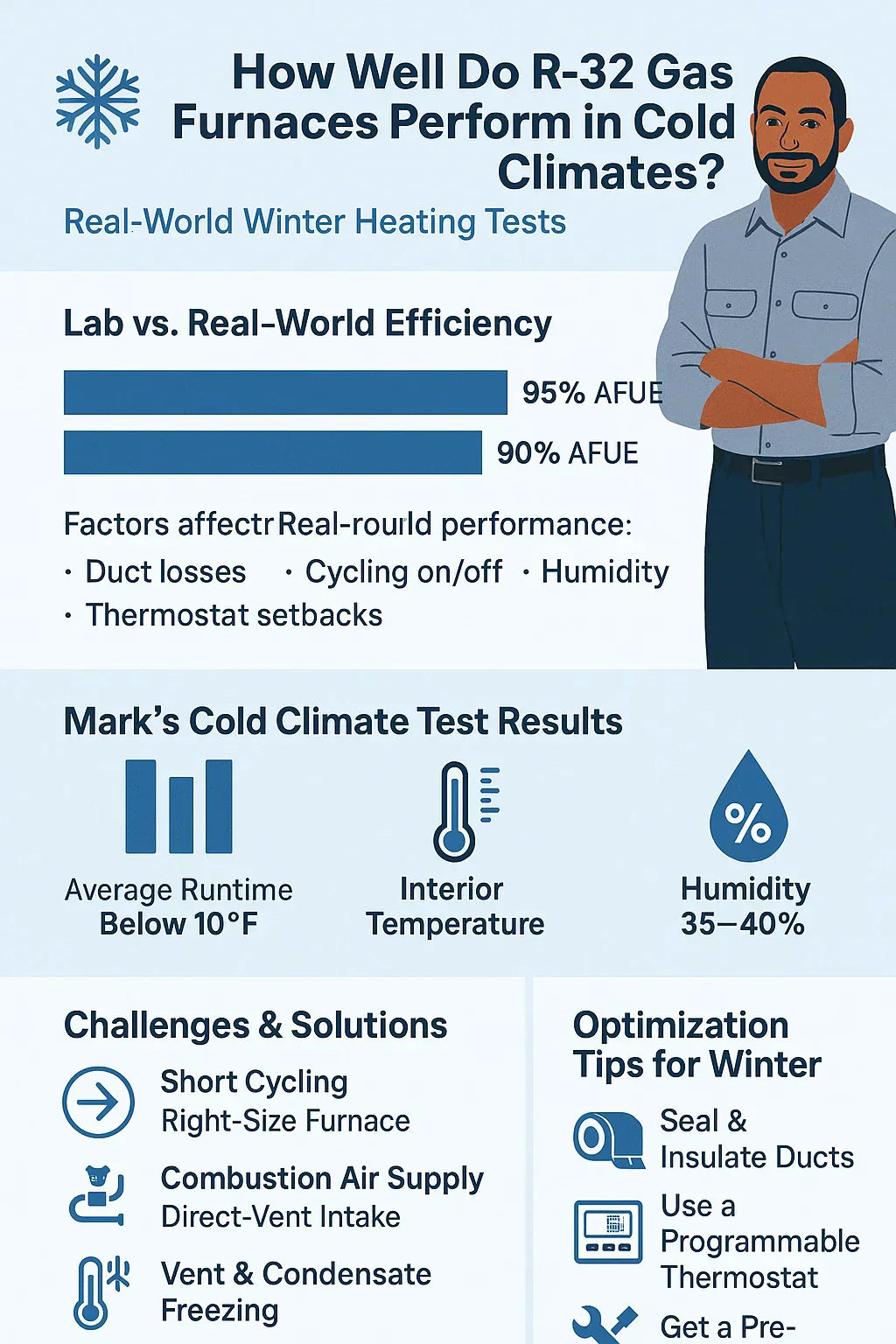

How Well Do R-32 Gas Furnaces Perform in Cold Climates? Real-World Winter Heating Tests

1. 🏠 Why Cold Climate Performance Matters

I live in the Midwest, where a mild winter day is 25°F and January lows often hit -10°F.
Your furnace isn’t just about comfort here—it’s survival equipment.

Lab ratings are great, but real homes aren’t sealed test chambers. In the field, cold climate performance comes down to:

• Correct sizing.

• Duct efficiency.

• How your furnace handles extreme weather patterns.

When I switched to an R-32-compatible 100,000 BTU gas furnace, I decided to track exact performance metrics all winter to see how it stacked up against its AFUE rating.

---

2. 🔍 What Is an R-32 Gas Furnace?

Here’s the thing:
Gas furnaces themselves don’t circulate refrigerant—but when they’re part of a central HVAC system, the cooling coil inside the furnace cabinet must match the refrigerant in your AC or heat pump.

R-32 Benefits in Combined Systems:

• Lower Global Warming Potential (GWP ~675 vs. 2,088 for R-410A)

• Higher cooling efficiency in summer.

• Future-proofed for refrigerant phase-outs.

So while R-32 won’t make your heating side more efficient by itself, having an R-32-compatible furnace means your whole system is ready for the next decade.

---

3. 📊 Lab Ratings vs. Real-World Conditions

AFUE (Annual Fuel Utilization Efficiency) tells you how much of your fuel becomes usable heat:

• 95% AFUE = 95 cents of every fuel dollar heats your home, 5 cents lost.

Lab Test Conditions:

• Steady-state operation.

• Perfect duct insulation.

• No wind effects.

• Controlled indoor temperature.

Real-World Variables:

• Duct losses (5–20% typical).

• Cycling losses when furnace turns on/off.

• Outdoor wind chill increasing heat loss from walls/roof.

• Thermostat setbacks causing longer recovery runs.

---

4. 🧪 Mark’s Winter Test Method

I set up my own home performance test lab:

House:

• 2,050 sq ft, two-story, built 1998.

• R-38 attic insulation, R-13 walls.

• Midwest climate zone 5.

Furnace:

• 100,000 BTU, 95% AFUE, two-stage gas valve.

• R-32-compatible coil + matching R-32 AC.

Data Collection Tools:

• Smart thermostat logs (runtime, stage use, temp swings).

• Gas meter readings (daily cubic feet).

• Temperature & humidity sensors in living areas.

• Weather data for Heating Degree Days (HDD).

Test Period:

• Dec 1 – Feb 28.

• Outside temps from 40°F down to -12°F.

---

5. 🌡 R-32-Compatible Furnace Performance Results

5.1 Runtime Patterns

• Above 25°F: Furnace ran on low stage 80–90% of the time.

• 10°F–25°F: Mostly low stage, occasional high stage for recovery.

• Below 10°F: 70% high stage, longer cycles.

5.2 Comfort Levels

• Temp swing: ±1°F (two-stage kept things steady).

• Humidity: Stayed between 35–40%, even in deep cold.

• Noise: Low-stage operation noticeably quieter.

5.3 Efficiency Drop

• Lab AFUE: 95%.

• Real-world winter AFUE (based on gas use & HDD): ~90%.

• Loss drivers: duct leakage (estimated 8%) + cycling on extreme cold days.

---

6. 🔍 Cold Climate Challenges & Solutions

Challenge 1: Short Cycling

• Cause: Oversized furnaces heat air quickly, then shut off.

• Fix: Correct sizing with ACCA Manual J.

Challenge 2: Combustion Air in Tight Homes

• Cause: Sealed homes starve furnaces for combustion air.

• Fix: Direct-vent furnaces bring in outside air.

Challenge 3: Vent & Condensate Freeze

• Cause: High-efficiency PVC vents and drains can ice up.

• Fix: Slope drain lines properly, insulate exterior vent sections.

---

7. 💡 Optimization Tips for Cold Climates

• Seal & Insulate Ducts—cut winter losses by up to 20%.

• Install a Programmable Thermostat—avoid drastic setbacks in extreme cold to prevent long recovery runs.

• Pre-Winter Tune-Up

• Upgrade to Two-Stage or Variable-Speed—keeps comfort stable in varying conditions.

---

8. 📌 Case Studies

Case 1: My Midwest Home

• 90% real-world efficiency.

• Gas use ~820 therms over winter.

Case 2: Northern Minnesota Cabin

• Single-stage 100k BTU R-32-compatible.

• Performance dropped to ~85% in -15°F due to short cycling.

Case 3: Vermont Home with Old Ductwork

• Two-stage unit but high leakage → only ~82% real-world efficiency.

---

9. 📉 When R-32 Compatibility Isn’t Enough

Remember: R-32 efficiency benefits are on the cooling side—winter heating performance depends on:

• Furnace staging & sizing.

• Duct design & sealing.

• Maintenance habits.

A poorly installed R-32-compatible furnace will still waste energy in the cold.

---

10. 🔗 External References

1. EPA – R-32 Transition Guide

2. Daikin – R-32 Performance Report

3. DOE – AFUE Standards

4. ACCA – Manual J

5. DOE – Duct Sealing

6. Energy Star – Maintenance Checklist

---

Mark’s Final Word:

“In cold climates, a well-sized, well-maintained R-32-compatible gas furnace can hit close to its lab efficiency—but duct sealing, staging, and vent protection are what separate a good system from a great one.”

In the next topic we will read more about: Will a 100,000 BTU Gas Furnace Fit in Your Utility Space? Clearance, Venting & Noise Considerations
