How to Solve the Problem of Your Wall AC Not Cooling (or Heating)

By Jake — weekend project guy, self-taught DIYer, and proud owner of a perfectly quiet wall AC (after a few close calls).

---

⚙️ 1. Start Here: The Quick Reset Before You Panic

If your through-the-wall air conditioner suddenly stops cooling or heating, don’t grab your wallet just yet.

Nine times out of ten, it’s something simple — a setting, a dirty filter, or a tripped breaker.

When my AC first blew warm air on a 95° afternoon, I was ready to call for a replacement. Turns out, it was in Fan Only mode. So before assuming the worst, try these quick fixes:

✅ Step-by-Step Quick Reset

1. Check power: Make sure the plug is secure and your breaker hasn’t tripped. Many wall units have a reset button on the cord.

2. Check mode: Verify that it’s set to Cool (or Heat if you’re testing in winter).

3. Wait three minutes: Most compressors have a built-in delay to protect from short-cycling.

4. Listen: You should hear a low hum or click when the compressor kicks on.

If nothing happens after that, move to diagnostics mode — Jake-style.

---

🌬️ 2. When There’s Air, But It’s Not Cold

So your fan’s blowing, but the air feels like a weak summer breeze?
That’s almost always a restriction problem — the unit’s not moving air efficiently.

🧰 Start With the Filter

Remove the front grille and inspect the air filter. If it’s gray or fuzzy, rinse it gently under warm water, let it dry, and reinstall.
Dirty filters are the #1 reason wall ACs lose cooling power — they suffocate airflow and trap heat in the coils.

If your filter’s brittle or permanently dirty, replace it. Most standard through-the-wall units (like GE, Friedrich, and Amana) have reusable mesh filters that last several seasons.

🌀 Check Airflow Path

• Make sure the intake grille isn’t blocked by curtains or furniture.

• Verify that the exhaust grille (outside) has at least 20 inches of clearance.

• Clean debris off the external fins with a soft brush or low-pressure hose.

Jake’s tip:

“If you can’t feel strong airflow coming out the front, it’s not cooling — it’s recirculating hot air inside itself.”

External Resource:
🔗 Energy Star – Room Air Conditioner Troubleshooting

---

❄️ 3. Cooling, But Not Cold Enough

If your unit’s cooling somewhat but struggles to reach the set temperature, it’s probably one of three things: airflow, settings, or coil cleanliness.

🔧 Double-Check the Settings

• Thermostat: Lower it by 5°F to test responsiveness.

• Mode: Make sure it’s not in Eco or Dry mode — both limit compressor use.

• Fan Speed: Higher fan speeds push more air across the coil for better cooling.

🧽 Clean the Coils

A thin layer of dirt acts like insulation, preventing heat transfer.
Remove the front cover, unplug the unit, and use a coil cleaning spray (or mild soap + warm water).
Let it soak 10 minutes, then rinse gently.

Jake’s rule:

“If your coils look fuzzy or brown, they’re stealing your cooling power.”

☀️ Consider Heat Gain

If your unit’s installed on a wall that gets direct afternoon sunlight, it’s fighting an uphill battle. Close blinds, use light curtains, or add an awning to shade that side.

---

🔌 4. Compressor Won’t Kick On

You’ve got power, the fan’s spinning — but there’s no cold air and no hum from the compressor.

Here’s how to test safely before assuming it’s dead.

🧭 Possible Causes

• Thermostat set above room temp

• Power surge tripped breaker or thermal fuse

• Overheated compressor (auto shut-off triggered)

• Failed capacitor or start relay (requires pro repair)

🔋 DIY Diagnostic Steps

1. Set your thermostat at least 5°F lower than current temp.

2. Switch from Fan to Cool mode.

3. Wait 3–5 minutes — listen for a click or vibration.

4. Feel the back grille: if it’s cold after a few minutes, compressor’s running.

If it stays silent: unplug, wait 10 minutes, and plug it back in.
Some units lock out temporarily when overheating.

Jake’s tip:

“On a blazing day, your compressor needs a break too. Let it rest before assuming the worst.”

External Resource:
🔗 GE Appliances – Air Conditioner Support

---

🧊 5. Frost or Ice on Coils

Ice might look cool, but it’s your AC’s way of saying, “I can’t breathe.”

❄️ Why It Happens

• Dirty filter restricting airflow

• Clogged coils

• Low fan speed or broken fan motor

• Low refrigerant

Turn your unit to Fan Only mode for 30 minutes to melt the ice.
Once thawed, clean the filter and coils before restarting cooling.

If the problem repeats — especially if you hear bubbling or hissing — you may have a refrigerant leak, which requires a technician.

Top 5 Causes of Frozen AC Coils and How to Fix Them

Jake’s reminder:

“Ice belongs in your lemonade, not on your air conditioner.”

---

🔥 6. Heating Mode Isn’t Working (for Heat Pump Units)

If your wall AC includes a heat pump, it can also heat your space in the colder months. But when that heating side fails, here’s how to troubleshoot.

🧯 Check the Obvious

• Mode: Make sure it’s set to Heat, not Auto.

• Temperature: Raise it at least 5°F above room temp.

• Outdoor Temperature: Most wall heat pumps stop working efficiently below 35°F — switch to backup heat below that.

• Air Filter & Coils: Clean them — restricted airflow causes both poor cooling and weak heat output.

If the unit starts but only blows cold air, the reversing valve (which switches from cooling to heating) may be stuck — a technician fix.

---

💧 7. Water Leaking or Dripping Indoors

Water inside your home means something’s wrong with the drainage system.

🚰 Causes and Fixes

• Sleeve not tilted outward: Your unit must slope ¼ inch toward the exterior wall to drain condensation.

• Clogged drain hole: Use a soft pipe cleaner or small brush to clear debris.

• Missing foam insulation: Replace weatherstripping around the unit to stop condensation from leaking back inside.

🧱 Inspect the Wall Sleeve

Sometimes debris builds up in the sleeve’s rear section. Pull the unit out and inspect with a flashlight.

Jake’s note:

“I once blamed my AC for leaking when it was really my sleeve full of gunk. Five minutes with a bottle brush fixed it.”

External Resource:
🔗 Amana – Wall Sleeve Drain Maintenance

---

🔇 8. Loud, Rattling, or Buzzing Sounds

A wall AC should run quietly — if it sounds like a washing machine full of rocks, something’s off.

🪛 Common Noise Fixes

Jake’s insight:

“Most noise comes from something loose. Tighten, test, repeat—it’s amazing what five turns of a screwdriver can do.”

---

🔌 9. Remote or Control Panel Isn’t Responding

Sometimes, the problem’s not mechanical — it’s electronic.

🧠 Basic Fixes

1. Replace the batteries in your remote.

2. Hold the remote close to the receiver and press Reset (if available).

3. For digital panels, unplug for 5 minutes to reboot.

4. Check if “Control Lock” mode is active (usually a padlock icon).

If the screen flickers or shuts off, test the outlet with another device — voltage issues can cause erratic behavior.

Jake’s hack:

“I label my AC plug and breaker so I can power-cycle it in 10 seconds flat when it freezes up.”

---

⚡ 10. Strange Smells or Burnt Odors

• Musty smell: Mold or bacteria in coils — clean with AC coil cleaner.

• Burning plastic: Electrical issue — unplug immediately.

• Chemical smell: Possible refrigerant leak — call a technician.

Jake’s take:

“If it smells like burning, that’s not a DIY fix. Unplug it and make a call.”

External Resource:
🔗 Friedrich Uni-Fit Owner’s Manual – Safety Warnings

---

🧯 11. When to Call a Professional

If you’ve gone through all the DIY steps and the problem persists, it’s time to bring in a certified HVAC tech.

🧩 Situations That Require a Pro

• Compressor won’t start even after reset

• Repeated coil freezing despite cleaning

• Visible oil spots or bubbling (refrigerant leak)

• Electrical burning smell

• Circuit breaker keeps tripping

Typical service cost: $120–$250 depending on brand and region.

Jake’s rule:

“If it involves refrigerant or wiring, I stop. I’m handy—but not reckless.”

---

🧾 12. Preventive Maintenance Checklist



---

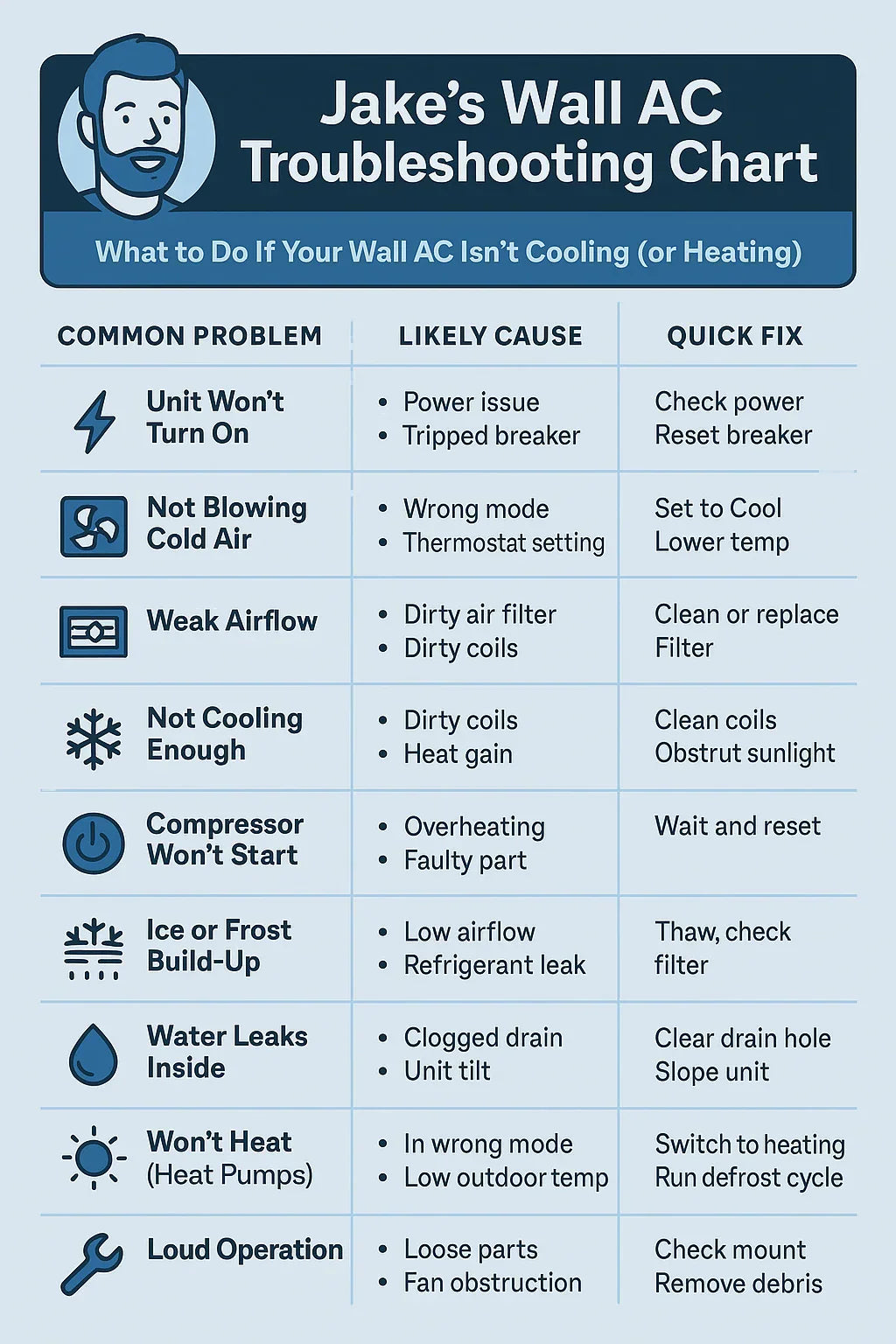

🧠 13. Symptom & Solution Cheat Sheet

---

🧮 14. Tools & Supplies Jake Recommends

• Screwdriver set 🪛

• Soft brush or small vacuum 🧹

• Fin comb (for coil repair)

• Mild coil cleaner

• Silicone caulk

• Foam insulation tape

• Level (for proper sleeve slope)

• Small pipe cleaner (for drains)

Jake’s gear philosophy:

“If you can fix a sink drain, you can fix a wall AC. Just add patience — and a good shop light.”

---

🧩 15. How to Avoid Future Problems

After you’ve fixed your wall unit once, you’ll want to make sure it doesn’t happen again. Here’s how I keep mine running strong every summer:

1. Stick to a monthly filter cleaning.

2. Inspect outdoor grille after storms.

3. Re-caulk sleeve edges every spring.

4. Run on high fan for 15 minutes before shutting down to dry moisture inside.

5. Cover it in winter or remove the unit entirely to prevent corrosion.

Jake’s closing advice:

“Through-the-wall ACs are like old trucks — take care of them, and they’ll run forever. Ignore them, and you’ll pay for it in the heat.”

---

🧩 16. Jake’s DIY Decision Tree

Question: Is air coming out?

• No → Check power and reset breaker.

• Yes → Is it cold?

  • No → Check filter and mode settings.

  • Yes, but weak → Clean coils and clear vents.

• Still not working → Compressor or refrigerant → Call a pro.

---

🏁 17. Final Thoughts: Confidence Beats Guesswork

Troubleshooting your through-the-wall air conditioner isn’t about being an HVAC pro — it’s about understanding the basics.

Once you know how airflow, coils, and drainage work together, 90% of issues become easy to solve.

So the next time your wall unit blows warm air or starts humming like a lawnmower, grab your flashlight and run through this checklist. Chances are, you’ll have it cooling again before the pros even call you back.

Jake’s final thought:

“DIY doesn’t mean doing everything yourself — it means knowing what you can handle and what’s worth calling in help for. That’s real homeowner power.”

In the next topic we will know more about: Evaluating the Most Effective Through-the-Wall Air Conditioner Brands: Friedrich, GE, and LG
