Installing an HVAC system might seem like an intimidating task, but the Amana 14,700 BTU PTAC unit is designed for straightforward installation, even for homeowners with basic tools and skills. By opting for a DIY installation, Tony can save on professional service fees, gain a deeper understanding of how his system works, and have the satisfaction of completing the project himself.
With this step-by-step guide, Tony will be able to install his Amana PTAC unit efficiently, ensuring that it works optimally and keeps his space comfortable throughout the year. Whether you're a first-time installer or an experienced DIYer, this guide will help you install your unit with confidence.
Section 1: Tools and Materials You’ll Need 🧰
Before diving into the installation process, Tony needs to gather the right tools and materials to ensure everything goes smoothly. Here’s the full list of what you’ll need:
Tools:
-
Screwdriver (Phillips and Flathead) – Essential for attaching screws and securing the unit.
-
Drill and Drill Bits – For cutting and making holes in the wall to fit the wall sleeve.
-
Tape Measure – To measure the placement of the unit and wall sleeve accurately.
-
Level – Ensures that the unit is perfectly horizontal for optimal performance.
-
Utility Knife – Used for cutting drywall or insulation if needed.
-
Wrench Set – For tightening bolts and ensuring the unit is securely fastened.
-
Caulking Gun (Optional) – To apply caulk around the edges of the wall sleeve for an airtight seal.
Materials:
-
Wall Sleeve (sold separately) – This is required to house the PTAC unit securely in the wall.
-
Caulk (optional) – To seal the wall sleeve around the edges for better insulation and preventing air leaks.
-
Screws and Anchors – Used to fasten the PTAC unit to the wall sleeve.
-
Electric Cord (if needed for installation) – Some PTAC units come with a pre-installed cord; if not, you’ll need to supply a compatible one.
Having these tools and materials will ensure Tony can complete the installation efficiently and avoid any unnecessary trips to the hardware store.
Section 2: Preparing for Installation ⚒️
Step 1: Choose the Right Location
Selecting the right spot for your Amana PTAC unit is crucial for proper airflow, aesthetics, and performance. Tony needs to consider the following before drilling any holes:
-
Wall Space:
-
The unit requires a wall sleeve to hold it in place. The sleeve should be installed at a height of 16 inches to 18 inches from the floor to allow for optimal air circulation.
-
Measure the width and height of the area where the unit will go. The Amana PTAC requires a standard 42-inch wide wall sleeve. Check your wall to make sure there’s no obstructions like pipes or wiring that would interfere with the sleeve installation.
-
-
Airflow Considerations:
-
The unit needs ample airflow to function correctly. It must not be obstructed by furniture, curtains, or other objects. Make sure the surrounding area is clear for the PTAC unit to breathe and cool or heat effectively.
-
-
Electrical Outlet:
-
Ensure the location of the PTAC unit is close to a 120V electrical outlet. The unit should ideally be plugged into a dedicated circuit to handle its energy demands.
-

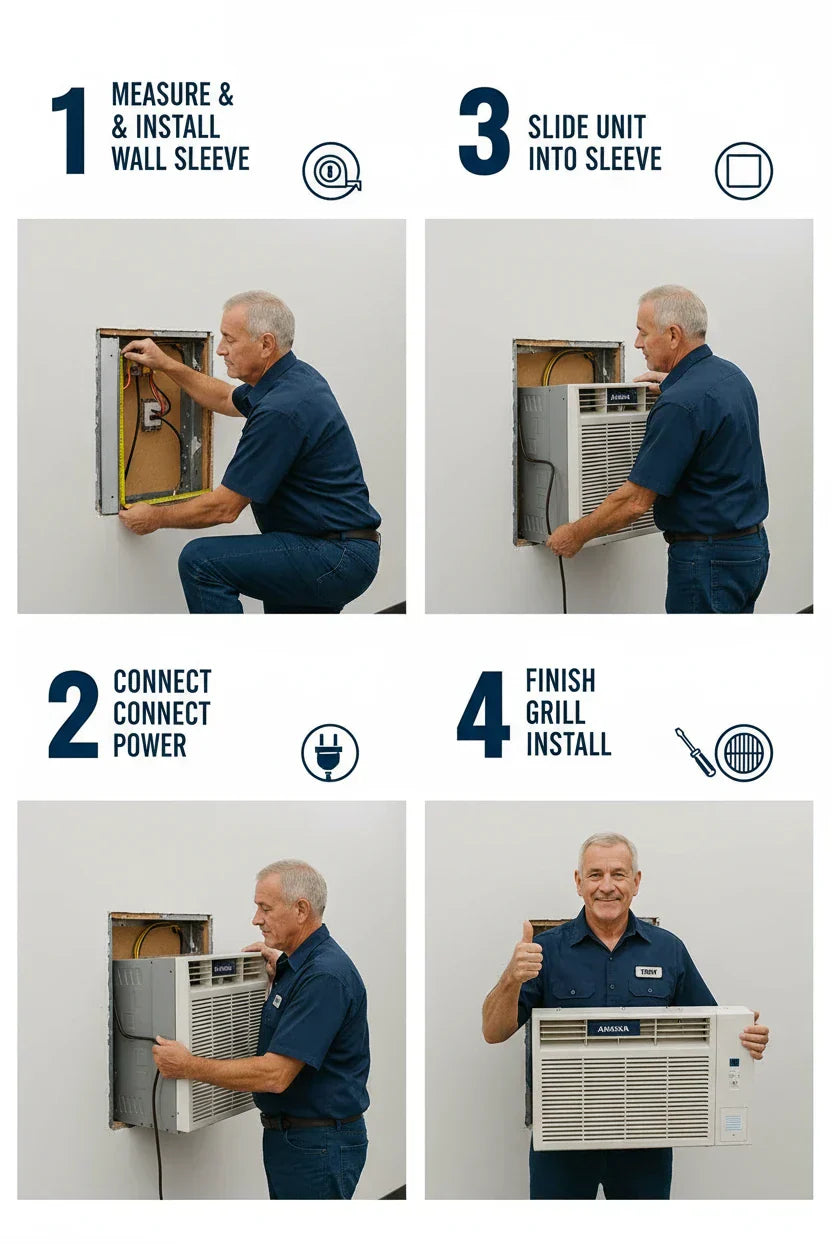

Step 2: Install the Wall Sleeve (if not already in place)
Installing the wall sleeve is the first step in securing the Amana PTAC unit. Here's how Tony can do it:
-
Mark the Wall for Sleeve Placement:
-
Measure and mark the spot on the wall where the sleeve will go. The hole needs to be 42 inches wide and about 16 inches high to accommodate the unit.
-
Ensure the sleeve is positioned level to allow the PTAC unit to slide in without any issues.
-
-
Cut the Opening in the Wall:
-
Use a drill to create holes at the corners of the marked area, then use a utility knife to cut along the edges of the marked rectangle. Ensure the cut is straight and clean for easy sleeve insertion.
-
-
Insert the Wall Sleeve:
-
Once the hole is ready, insert the wall sleeve into the opening. Make sure it fits snugly and is level. Use screws to secure the sleeve to the wall, making sure the unit will not shift out of place once installed.
-
-
Seal the Edges:
-
If needed, apply a bead of caulk around the edges of the sleeve to prevent any air leaks or moisture buildup that could affect the unit’s efficiency.
-
Tony’s Tip: “I used a level to make sure the sleeve was perfectly straight. The caulk really helps with insulation too, preventing cold drafts in the winter!”
Section 3: Installing the PTAC Unit into the Wall Sleeve ⚡
Step 3: Insert the Unit into the Sleeve
With the wall sleeve installed, it’s time to insert the Amana PTAC unit. This step will require some careful handling:
-
Lift the Unit:
-
The Amana PTAC can be quite heavy, so it’s advisable to have a friend or family member assist with lifting and positioning the unit into the sleeve. Make sure you lift it carefully and evenly to avoid any damage.
-
-
Slide the Unit into the Sleeve:
-
Gently slide the Amana PTAC into the wall sleeve, aligning the vents and ensuring the unit slides smoothly into place. Make sure it’s perfectly centered.
-
-
Secure the Unit:
-
Once the unit is inside the sleeve, use screws to attach the PTAC to the sleeve. Most units have pre-drilled holes for screws that will keep the unit secure.
-
Step 4: Connect the Electrical Wiring
Before turning on the power, it’s critical to handle the electrical connections properly to avoid any potential safety hazards:
-
Plug the Unit into the Electrical Outlet:
-
If the Amana PTAC unit has a pre-installed cord, plug it into the nearest 120V outlet. This is the most straightforward setup, but make sure the outlet is rated for the unit’s power demand.
-
-
Hardwiring the Unit:
-
If your unit doesn’t have a plug or requires hardwiring, the installation will require a bit more expertise. You’ll need to connect the PTAC’s electrical wires to the corresponding junction box. Turn off the power before doing any electrical work, and if you’re unsure, consult a licensed electrician for proper installation.
-
Tony’s Safety Tip: “I made sure to turn off the power at the circuit breaker before doing any electrical work. If you don’t feel comfortable with electrical wiring, it’s best to call in a professional.”
Section 4: Testing and Adjusting the Unit 💡
Step 5: Turn on the Power and Test the System
Now that the unit is installed and connected, it’s time to power it up and test its functionality:
-
Power on the Unit:
-
Turn on the Amana PTAC unit and adjust the settings on the thermostat. Make sure the unit is working correctly by testing both the cooling and heating functions.
-
-
Check for Airflow:
-
Check that the airflow is smooth and unobstructed. If you feel any resistance or noise, ensure nothing is blocking the unit’s vents or airflow paths.
-
-
Adjust the Thermostat:
-
Set the thermostat to the desired temperature. The Amana PTAC unit has a programmable thermostat that can be set to run at specific times. Make sure the unit is responding to the thermostat and reaching the desired temperature effectively.
-
-
Check for Noise:
-
Listen carefully for any unusual sounds, such as rattling or buzzing, which might indicate that the unit isn’t installed properly or there are issues with the installation.
-
Step 6: Final Sealing and Adjustments
Once the unit is functioning properly:
-
Seal the Edges:
-
Apply caulk around the edges of the wall sleeve to seal any gaps and prevent drafts. This will also help keep your unit working efficiently by reducing heat loss.
-
-
Check for Air Leaks:
-
Feel around the edges of the unit and the wall sleeve to check for any noticeable drafts. If you find any, reapply caulk and ensure the unit is properly sealed.
-
Tony’s Tip: “Make sure everything is sealed properly—no one wants to waste energy because of air leaks, especially in winter!”
Section 5: Maintenance and Care 🧼
Step 7: Routine Maintenance for Long-Term Efficiency
To keep your Amana PTAC unit running efficiently for years, regular maintenance is key:
-
Clean the Filters:
-
Check and clean the filters every 3-6 months. Dirty filters can impede airflow and reduce the unit's efficiency.
-
-
Check the Condenser Coils:
-
Clean the condenser coils yearly to ensure they don’t become clogged with dust and dirt. This will help the system operate at peak efficiency.
-
-
Inspect for Leaks:
-
Periodically check the unit for water leaks or unusual moisture buildup around the unit.
-
-
Test the Heating and Cooling:
-
Make sure both the cooling and heating functions are still working properly, especially as the seasons change.
-
Conclusion: Enjoy Your New Amana PTAC Unit! 🎉
By following this DIY guide, Tony can easily install his Amana PTAC unit and start enjoying the comfort it provides. Whether it’s a cooling breeze during the summer or warm heat in the winter, Tony will now have a fully functional and efficient system in his home. With regular maintenance, the Amana PTAC will continue to perform at its best, saving Tony money on energy bills and enhancing his living experience.
Tony’s Final Thoughts: “It wasn’t as hard as I thought! I’ve got the satisfaction of knowing my system was installed correctly, and it’s already keeping my place at the perfect temperature. And I didn’t have to pay for installation!”
In the next topic we will know more about: Can the Amana PTAC Heat and Cool an Entire Apartment? Use Cases and Limitations
