How Do Through-the-Wall and the Window Air Conditioners Differs - points you need to know

1. Why I Started Questioning My Window Unit

If you’ve ever lugged a window air conditioner into place in the middle of summer, you know the struggle: balancing the unit on the sill, sealing up gaps with foam, then listening to the constant rattle while cold air pours out unevenly.

That was me every May. My trusty window unit cooled the room, sure—but it also blocked sunlight, made the window unusable, and leaked air around the edges.

So when I learned about through-the-wall air conditioners, I had one question: What’s the real difference?

Turns out, the difference is more than just where they sit—it’s about performance, insulation, and long-term efficiency.

Let’s break it all down so you can decide which type fits your home best.

---

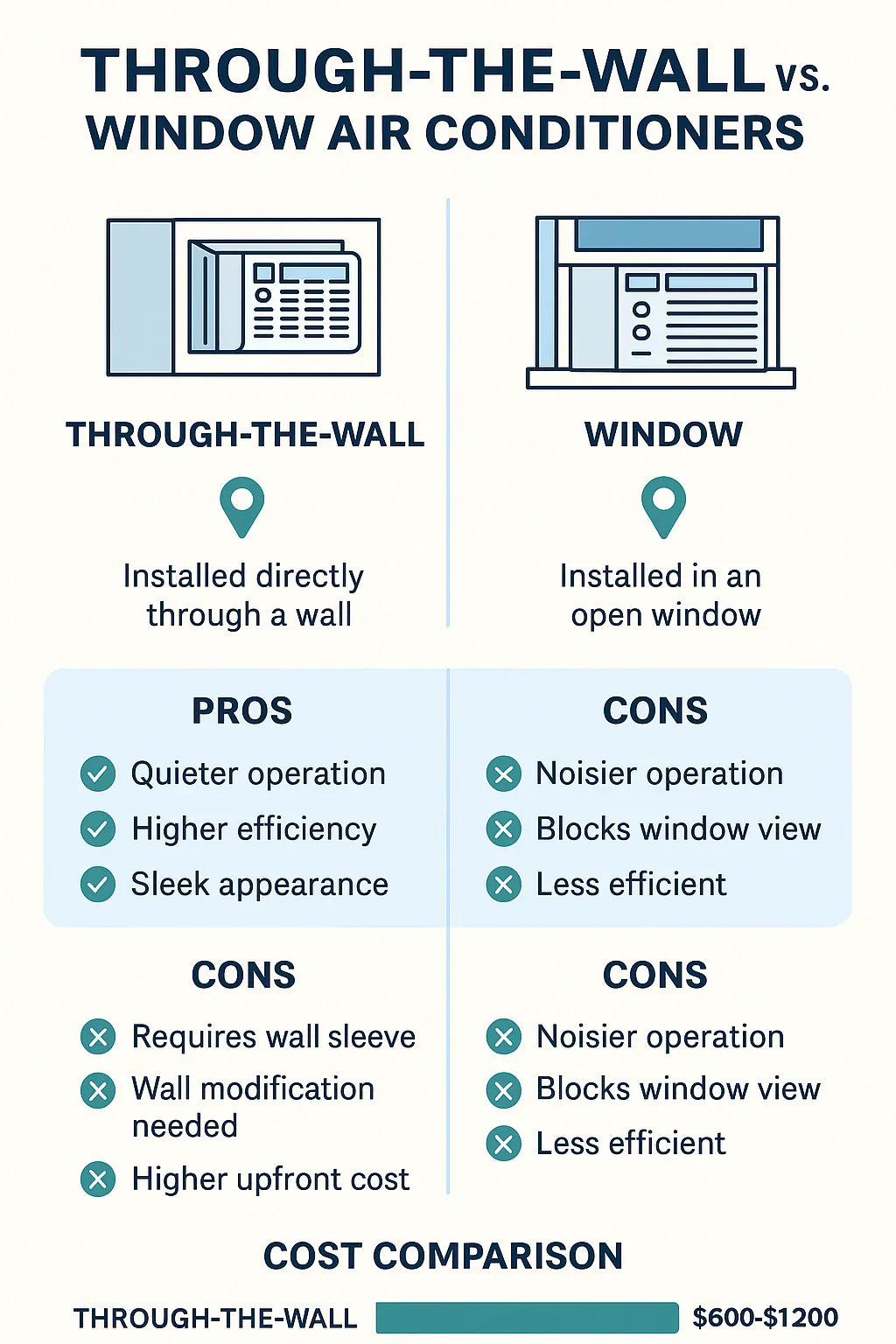

🧱 2. The Core Difference: How Each System Is Installed

The biggest difference between the two units comes down to how they’re installed and sealed.

Window ACs sit inside a window opening, partially indoors and partially outdoors. They’re easy to install, but they rely on the window frame and temporary insulation panels—leaving small gaps for air leakage.

Through-the-wall units, on the other hand, are installed through a dedicated wall opening using a metal or plastic sleeve. The sleeve supports the unit’s weight and keeps it sealed tight—meaning no air leaks, less vibration, and improved noise control.

---

🔇 3. Noise Levels: Why Wall Units Are Quieter

Noise is one of the biggest reasons homeowners (including me) switch from a window to a wall unit.

Because window units sit directly in the frame, vibration transfers easily through the glass and sill. Add in thin foam panels on each side, and you’ve got a constant hum amplified by resonance.

Wall units, by contrast, are mounted in a solid structure and surrounded by insulation. The result is a quieter experience—especially when you’re watching TV, working from home, or sleeping.

💬 “I replaced my old 8,000-BTU window unit with a 9,000-BTU wall model—and I can finally take calls without that background buzz.”

✅ Average Noise Levels:

• Window units: 55–65 dB

• Through-the-wall units: 45–55 dB

That might not sound like much, but every 10 dB reduction cuts perceived noise in half.

External Resource:
🔗 Energy Star – Room AC Noise Levels

---

💡 4. Energy Efficiency: Who Wins the Battle?

When it comes to energy use, through-the-wall air conditioners typically outperform window units.

The reason? Sealing and insulation.
Window units rely on temporary foam panels, which leak conditioned air over time. Through-the-wall units are sealed into the wall sleeve, reducing air loss and maintaining pressure efficiency.

✅ Typical CEER Ratings (Combined Energy Efficiency Ratio):

• Window ACs: 9.0–10.5

• Through-the-wall ACs: 10.0–11.5

In 2025, Energy Star certification requires CEER ≥ 10.7 for both categories, but more wall units hit that threshold thanks to tighter sealing.

You’ll also find wall models with heat pump functionality, which can both cool and heat your room efficiently—something most window units can’t do.

External Resource:
🔗 U.S. Department of Energy – Room Air Conditioner Efficiency Standards

---

🏠 5. Aesthetics and Home Design: Which Looks Better?

There’s no contest here—through-the-wall units win for aesthetics.

Window ACs stick out of the window frame, block sunlight, and reduce curb appeal. They can also pose a security risk if they’re easily removable from outside.

Through-the-wall units, by contrast, sit flush with the wall. They blend into your décor, don’t block windows, and create a more built-in, professional look.

“Once I sealed mine into the wall, my living room instantly looked cleaner—and my cat finally got his favorite windowsill back.”

For homeowners’ associations or apartments with exterior appearance restrictions, a wall-mounted design can also keep you compliant.

External Resource:
🔗 Installing Wall Air Conditioners

---

⚡ 6. Power and Cooling Capacity: When to Go Bigger

Through-the-wall ACs are built to handle larger spaces than most window units.

Typical ranges:

• Window units: 5,000–12,000 BTUs (150–550 sq. ft.)

• Wall units: 8,000–18,000 BTUs (250–700 sq. ft.)

If you’re cooling a living room, master bedroom, or open-concept layout, you’ll find wall units that deliver more consistent coverage.

However, both types use similar refrigerant systems—these days, most new models use R-32, an eco-friendly alternative to the older R-410A refrigerant.

External Resource:
🔗 EPA – R-32 Refrigerant Overview

---

🧰 7. Installation: Simplicity vs. Permanence

If you’re renting or only need temporary cooling, a window unit is the simplest choice. Most people can install one in under 30 minutes using basic tools.

Through-the-wall installation, on the other hand, requires cutting an opening in your exterior wall and inserting a wall sleeve—a metal or heavy-duty plastic frame that holds the AC securely.

Here’s how they compare:

If you own your home and plan to stay put, through-the-wall is a smarter investment. If you’re renting, window units make more sense since you can take them when you move.

External Resource:
🔗 Family Handyman – How to Install a Through-the-Wall Air Conditioner

---

🧩 8. Maintenance & Longevity

Both types of units require the same basic care:

• Clean or replace filters monthly.

• Vacuum dust off coils.

• Check for condensation or water pooling.

But wall units have one big advantage—they stay installed year-round. There’s no lifting, storage, or reinstallation each summer.

Because of their permanent structure and sealed design, wall units also tend to last longer.

• Window unit lifespan: 6–8 years

• Through-the-wall unit lifespan: 10–15 years

(Internal link cue → “Maintenance Tips to Keep Your Through-the-Wall AC Running Like New”)

---

🌬️ 9. Air Circulation and Performance

Airflow direction plays a bigger role than most people realize.

Window ACs push air straight out, which can be fine in small rooms—but often leads to uneven cooling, especially if furniture blocks the flow.

Through-the-wall units typically have adjustable louvers and multi-speed fans, letting you direct airflow across the room for better distribution.

In other words, they’re designed for more permanent, controlled comfort rather than quick fixes.

External Resource:
🔗 Consumer Reports – How to Get the Most from Your Room Air Conditioner

---

🧾 10. Cost Breakdown: What You’ll Spend Upfront (and Save Later)

Here’s what real-world pricing looks like in 2025:

💰 Bottom line:

• Window ACs cost less upfront but have shorter lifespans and lower efficiency.

• Through-the-wall units pay for themselves in the long run through lower energy bills and fewer replacements.

---

🧊 11. Heating Capabilities: Bonus Functionality for Wall Units

Many modern wall units come with heat pump technology, letting them provide both cooling and heating in a single system.

That means you can use one appliance year-round—ideal for smaller homes, apartments, or garages that lack central HVAC.

Window units rarely include heating, and when they do, it’s usually electric resistance heat, which is less efficient.

External Resource:
🔗 ENERGY STAR – Heat Pump Room Air Conditioners



🔌 12. Voltage & Electrical Needs

Before buying, check your outlet type.

• Window units: Usually 115V (standard plug).

• Through-the-wall units: Often 230V for models above 12,000 BTU.

If your home doesn’t have a 230V outlet near your desired wall location, you’ll need an electrician to install one.

That extra step costs a bit upfront but ensures your unit runs efficiently and safely for years.

---

🌡️ 13. Which One’s Right for You? (Decision Checklist)

Use this quick comparison checklist to see which style fits your situation best.

Jake’s Take:

“If you’re planning to stay in your home for a while, go for the wall unit. You’ll save on energy, enjoy quieter operation, and never have to wrestle with a window unit again.”

---

🛠️ 14. Installation Tips from My Own Project

When I installed my wall unit, I learned a few things the hard way:

1. Measure twice, cut once. Walls aren’t always even, especially in older homes.

2. Use a level. A slight downward tilt to the outside helps condensation drain.

3. Seal it tight. Apply foam insulation and silicone caulk around the sleeve to prevent leaks.

4. Check clearance. Leave at least 20 inches outside for proper airflow.

5. Test before sealing. Plug it in, make sure it cools, then finish the trim.

After that, it’s smooth sailing—and unlike my window unit, I haven’t had to reinstall it once.

---

🌎 15. Environmental Impact: Small Changes, Big Difference

Most new models—both window and wall—use R-32 refrigerant, which has a much lower global warming potential (GWP) than R-410A.

But here’s where through-the-wall units stand out again: their improved sealing and insulation mean less energy waste over time.

So even if you’re buying a small unit, you’re reducing your home’s carbon footprint year after year.

External Resource:
🔗 EPA – Energy Efficiency & Environmental Benefits of Room Air Conditioners

---

🧮 16. Real-World Example: Jake’s Energy Comparison

Before switching, my electric bill averaged $110/month during summer using a window unit.

After installing a 9,000-BTU Energy Star wall unit, my bill dropped to $92/month—that’s nearly $100 saved each cooling season.

Over 10 years, that’s a full replacement cost back in my pocket.

Multiply that by quieter operation, better comfort, and less hassle, and it’s an easy decision.

---

🧠 17. Expert Opinions & Testing Data

According to Consumer Reports and Energy Star testing, through-the-wall units outperform window models by roughly 10–15% in energy efficiency when installed correctly.

They’re also less prone to failure from moisture exposure, since their sleeves protect the electrical components better than window setups.

External Resource:
🔗 Consumer Reports – Air Conditioner Buying Guide

---

🏡 18. Pros and Cons at a Glance

✅ Through-the-Wall AC Pros

• Permanent installation = quieter, cleaner look

• Higher efficiency (lower CEER losses)

• Better for large or sunny rooms

• Longer lifespan

• Year-round heating/cooling options

⚠️ Through-the-Wall AC Cons

• Requires wall modification

• Higher upfront cost

• Not easily moved or resold

✅ Window AC Pros

• Cheap, fast setup

• Easy to move or replace

• Perfect for renters or temporary use

⚠️ Window AC Cons

• Noisy

• Blocks window view

• Lower insulation and energy efficiency

• Shorter lifespan

---

📋 19. Summary Table: Which Should You Choose?

---

🔍 20. Final Verdict: My Honest Recommendation

If you’re a renter or live somewhere temporary, a window unit is fine. It’s affordable, simple, and quick to install.

But if you’re a homeowner, planning to stay put, or just tired of the noise and mess, a through-the-wall AC is the smarter choice. It’ll last longer, look better, and save you money in the long run.

When I finally sealed that wall sleeve and switched mine on, I realized something simple:

“Comfort isn’t just about temperature—it’s about peace and quiet, too.”

In the next topic we will know more about: Energy Efficiency & Tax Credits: Do Wall Units Qualify in 2025?
