🧭 Topic Overview

Modern 96% AFUE furnaces promise peak efficiency — but only if their input and output BTUs actually match your home’s real load.

When the math is off, even high-end models waste fuel by short-cycling: turning on and off too quickly to reach full thermal balance.

80,000 BTU 96% AFUE Upflow/Horizontal Two Stage Goodman Gas Furnace - GR9T960804CN

Samantha’s formula-based approach teaches homeowners how to connect AFUE ratings, input BTUs, and true heat output, ensuring consistent comfort without oversized equipment or constant start-stop wear.

“Efficiency isn’t just a label,” Samantha says. “It’s a balance between what your furnace makes, what your home needs, and how long it runs to meet that need.”

🏠 1. Introduction — The Silent Cost of Short-Cycling

Short-cycling happens when a furnace produces heat faster than the home can absorb it.
The thermostat satisfies too quickly, the system shuts off, and the cycle repeats every few minutes.

This leads to:

10–15% higher fuel use
Uneven heating and noisy airflow
Premature blower and ignitor wear
Reduced lifespan

And ironically, it happens most often in high-efficiency (96%+ AFUE) systems — because their owners trusted the “bigger is safer” sizing myth.

🔥 2. The Core Concept — AFUE and Real Output

AFUE (Annual Fuel Utilization Efficiency) tells you how much of your furnace’s input BTUs turn into usable heat.

Formula:

$\text{Output BTUs} = \text{Input BTUs} × \text{AFUE}$

Example:
80,000 BTU input × 0.96 = 76,800 BTU output.

That’s the real heating your home receives — not 80k.

🔗 Energy.gov – Furnaces and Boilers

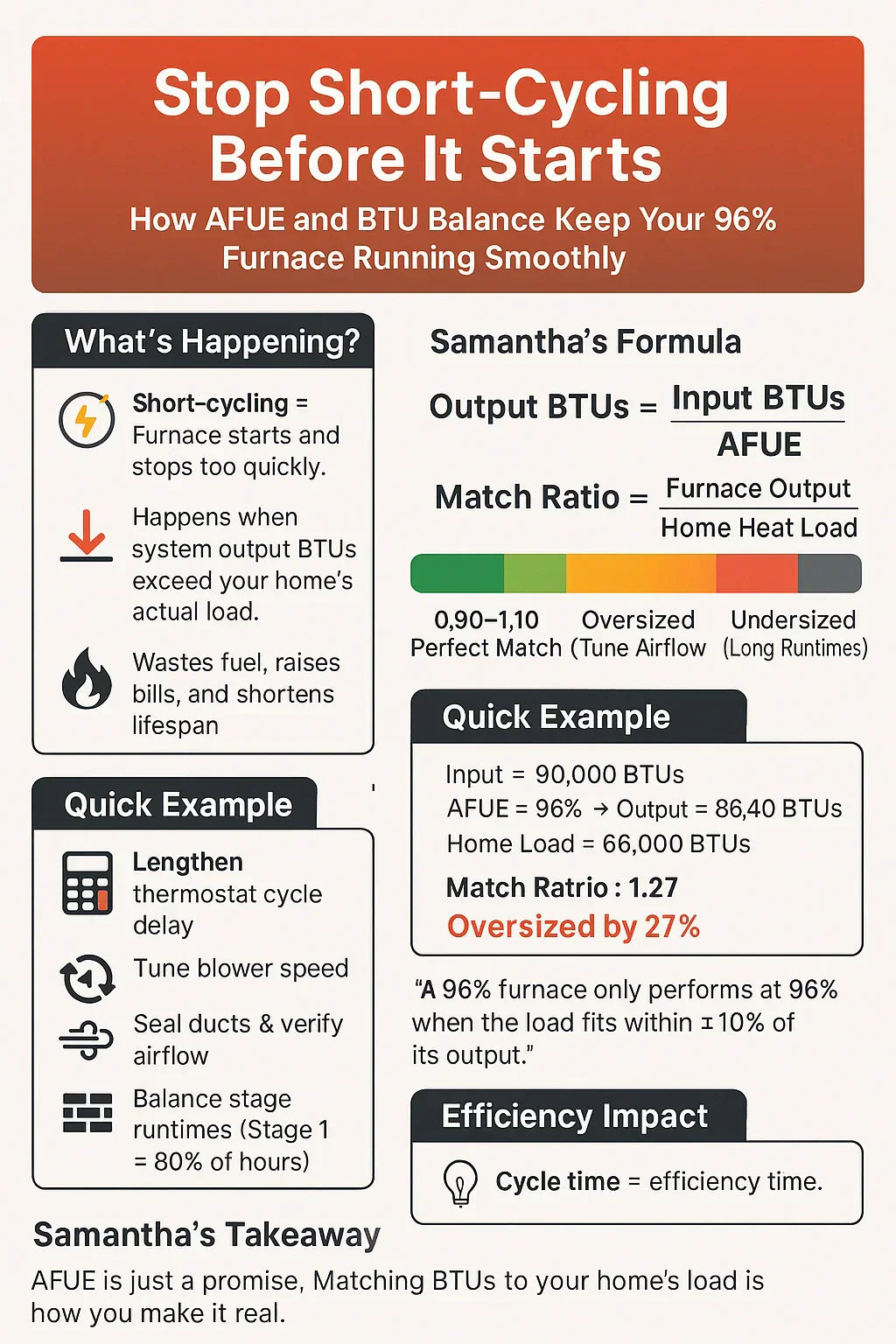

🧮 3. Samantha’s AFUE-to-BTU Matching Formula

Her complete check combines AFUE and load data:

$\text{Match Ratio (MR)} = \frac{\text{Furnace Output BTUs}}{\text{Home Heat Load BTUs}}$

MR = 0.90–1.10 → Perfect match
MR > 1.20 → Oversized (short-cycling risk)
MR < 0.85 → Undersized (long runtimes)

By measuring runtime and indoor stability, Samantha pinpoints where your MR sits — and how much tuning it needs.

⚙️ 4. Why 96% Systems Are More Sensitive

High-AFUE furnaces recover heat more efficiently but store less residual heat in the exchanger.
That means they respond faster — and overshoot faster, too.

If matched poorly, the thermostat clicks off before airflow distributes, leading to hot-and-cold pockets.

🌡️ 5. Samantha’s 3-Step Check for Short-Cycle Symptoms

Measure runtime:
- Less than 10 minutes = oversized risk.
- Ideal: 15–25 minutes per cycle.
Check vent temperature swing:
- Should rise 20–40 °F above intake air.
Observe stage usage:
- Stage 1 should handle 80–90% of runtime; if Stage 2 runs constantly, it’s mismatched.

💨 6. The Real-World Math of Comfort

Let’s say your home’s calculated heating load is 68,000 BTUs.
You install a 96% furnace rated for 90,000 input.

90,000 × 0.96 = 86,400 output.
Match Ratio = 86,400 ÷ 68,000 = 1.27 → 27% oversized.

The result?

6-minute cycles
Hot ducts, cold corners
Unstable humidity

“Oversizing doesn’t make your home warmer,” Samantha notes. “It just makes it louder and less efficient.”

🧠 7. How Short-Cycling Destroys Efficiency

Each ignition wastes a burst of gas before the heat exchanger warms up.
Frequent cycling prevents the furnace from reaching steady-state efficiency — where AFUE ratings are measured.

If your 96% system runs for short bursts, it’s not really a 96% furnace anymore. It might operate closer to 88–90%.

🔗 ENERGY STAR – Furnace Efficiency Tips

🪟 8. The Envelope Factor — Matching Starts with the Home

Samantha reminds homeowners that AFUE math only works when the home’s heat loss is accurate.
Poor insulation, window drafts, and attic leakage can make a “perfectly sized” furnace short-cycle.

Fix the shell, then fine-tune the BTUs.

🔗 ENERGY STAR – Home Sealing and Insulation Guide

🧊 9. Using Runtime Data to Reverse Engineer Load

Samantha’s field method:
Measure how long your furnace runs at full output to raise indoor temp 1°F.

Each minute represents a portion of BTUs delivered.
Example:
If it takes 15 minutes to raise 1°F in a 2,000 sq ft home with 8’ ceilings →
Approx. 240,000 BTUs of air volume × 0.018 BTU/(°F·cu.ft) = 4,320 BTUs per °F.

That data helps you validate your home’s actual load against calculated models.

🧰 10. Samantha’s “Efficiency Recovery” Checklist

Before resizing, she runs this order of operations:

Seal ducts (20–30% of heat can leak away).
Confirm airflow (CFM matches output BTUs).
Add return vents or balance dampers.
Lengthen thermostat cycle delay.
Run Match Ratio test again.

🔗 U.S. DOE – Duct Sealing and Airflow Guidelines

🧾 11. Sample Efficiency Audit Table

Furnace Input	AFUE	Output	Home Load	Match Ratio	Result
100k	96%	96k	75k	1.28	Oversized
80k	96%	76.8k	72k	1.07	Perfect
60k	96%	57.6k	72k	0.80	Undersized

🔧 12. The Two-Stage Advantage

Two-stage furnaces reduce short-cycling by operating at low fire (≈65%) most of the time.
That means your 80k system outputs 52k BTUs during normal weather — matching your home’s partial load beautifully — and ramps up to 80k only on the coldest days.

🔗 EnergyStar – Two-Stage Furnace Benefits

📊 13. Samantha’s AFUE-BTU Calculator (Homeowner Edition)

$\text{Output BTUs} = \text{Input BTUs} × \text{AFUE}$ $\text{Match Ratio} = \frac{\text{Output}}{\text{Home Load}}$

If Match Ratio > 1.20 → short-cycling risk.
If < 0.85 → undersized, potential long runtime.

“This is the math the sticker doesn’t show you,” Samantha says. “And it’s the math that keeps your comfort steady.”

⚡ 14. The Runtime Sweet Spot

Short cycles (under 10 minutes) waste gas.
Long cycles (45+ minutes) indicate undersizing or duct issues.
The ideal furnace cycle is 15–25 minutes, maintaining temperature without stop-start stress.

Track runtime with your smart thermostat — many show cycle durations in the app.

🧊 15. Diagnosing Oversizing vs. Airflow Restriction

Oversized system: Fast warm-up, noisy ducts, early shutoff, warm core/cold edges.
Airflow restriction: Long runtime, weak vents, steady but slow warming.
Both feel similar — but Samantha’s formula separates them with precision.

🧱 16. Case Study — The “96% and Still Wasting Gas” Home

A homeowner installed a 100k 96% furnace for a 1,900 sq ft home in Illinois.
AFUE = 0.96 → 96,000 BTU output.
Home load = 70,000 BTU.
Match Ratio = 1.37 → massively oversized.

The result:

8-minute cycles
Uneven heat
12% higher gas usage

Samantha swapped in an 80k two-stage unit (76.8k output), rebalanced ducts, and runtime normalized to 21 minutes.
Result: smoother heat, 15% lower bills, and quieter operation.

💡 17. Thermostat Settings That Help

Cycle delay → set to “long.”
Fan mode → “circulate” to even temperature.
Stage delay → increase from 5 to 10 minutes.
Adaptive recovery → off for consistent runtime measurement.

These small tweaks extend each heating cycle without changing equipment.

🌿 18. Environmental & Cost Payoff

Every avoided short-cycle reduces wasted ignition gas and improves seasonal AFUE performance.
According to the EPA, optimizing cycle length can cut heating emissions by 10–12% annually in cold-climate homes.

🔗 EPA – Energy Efficiency & Climate Impact

🧠 19. Samantha’s 4-Step Oversizing Audit

Check cycle time.
Compute Match Ratio.
Inspect ducts and returns.
Adjust blower or staging delay.

If Match Ratio still exceeds 1.2 after airflow tuning, downsizing is justified.

🧾 20. Final Checks — Samantha’s “Furnace Fitness” Scale

Match Ratio	Efficiency Health	Action
0.85–1.10	✅ Ideal	Maintain settings
1.10–1.25	⚠️ Slight oversize	Tune airflow & staging
> 1.25	🚫 Oversized	Consider replacement
< 0.85	⚙️ Undersized	Audit envelope & ducts
