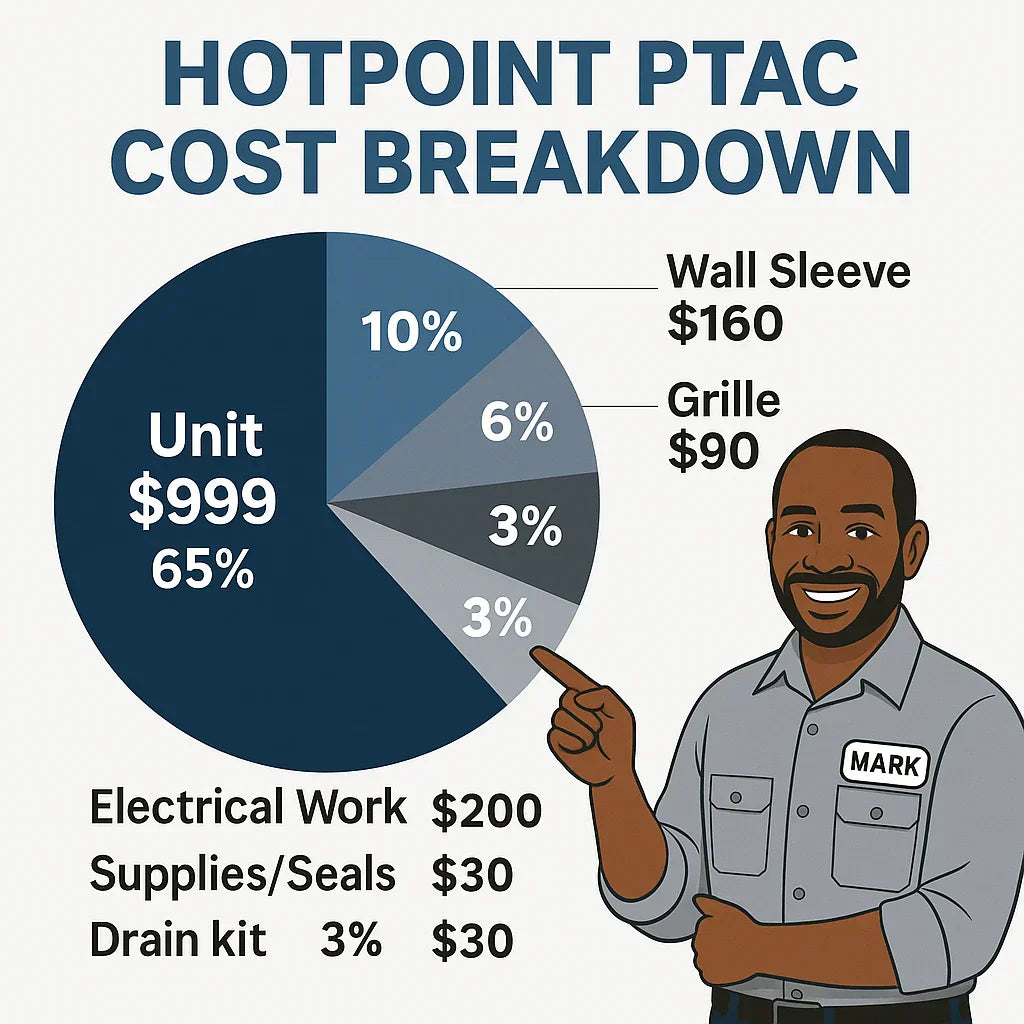

Cost Breakdown: Hotpoint PTAC Equipment, Accessories & Installation

0 comments

When I first went shopping for a Hotpoint PTAC (Packaged Terminal Air Conditioner), I figured the sticker price was the whole deal. The 15,000 BTU model I wanted was listed at $999. That sounded manageable.

But here’s the reality: the cost of a PTAC isn’t just the unit. You also need a wall sleeve, a grille, and sometimes professional installation. By the time I had everything up and running in my basement suite, my total was closer to $1,529.

This guide breaks down all the costs — from the equipment itself to hidden add-ons and installation. If you’re considering a Hotpoint PTAC, this will help you budget smarter.

🏷️ More Than Just the Price Tag

PTACs are popular because they’re:

Compact.
Self-contained.
Reliable for both heating and cooling.

But they don’t just “plug in.” To install one properly, you’ll need:

The unit.
A wall sleeve for structural support and insulation.
An exterior grille to protect and ventilate.
Optional accessories like drain kits, thermostats, and filters.
Installation labor if you don’t DIY.

📖 ENERGY STAR emphasizes that proper installation and accessories directly affect PTAC efficiency and lifespan: ENERGY STAR PTAC Guide

👉 Lesson I learned: By only budgeting for the unit, I almost short-changed myself. Accessories aren’t optional — they’re part of the system.

💵 Equipment Costs: The PTAC Unit

Hotpoint PTACs come in different BTU sizes, typically 7,000 to 15,000 BTUs.

7,000–9,000 BTU models → $750–$850.
12,000 BTU models → $850–$950.
15,000 BTU models → $950–$1,100.

Heating Options

Electric resistance heat (like my Hotpoint) → lower upfront cost, higher operating cost in winter.
Heat pump PTACs (not always available in Hotpoint models) → higher upfront cost, more efficient heating in mild climates.

📖 DOE notes that BTU size directly impacts both cost and efficiency: DOE Energy Saver: Room AC Sizing

👉 My example: I paid $999 for the 15,000 BTU Hotpoint PTAC with electric heat. Perfect size for my 650 sq. ft. basement suite.

🧱 Accessories: The Hidden Essentials

When I opened the PTAC box, I realized it didn’t include a wall sleeve or grille. That’s when I learned about hidden accessory costs.

🧱 Wall Sleeve (Required)

Cost: $150–$200.
Provides structure, insulation, and drainage slope.
Standard size: 42" wide × 16" high × 14" deep.

👉 My mistake: I tried to reuse an old sleeve. It was warped and let in drafts. I ended up buying a new one.

📖 Amana explains why wall sleeves are essential in their installation manual: Amana PTAC Sleeve Guide

🌀 Exterior Grille (Required)

Cost: $75–$150.
Protects the unit from rain, snow, pests, and debris.
Ensures proper airflow.
Materials: aluminum (standard), steel (durable), or polymer (rust-proof).

👉 My lesson: The cheap grille rattled in the wind. I replaced it with a heavier-duty grille, which reduced noise and drafts.

📖 GE recommends using matched grilles for airflow performance: GE Appliances PTAC Support

💧 Drain Kit (Optional but Recommended)

Cost: $40–$60.
Routes condensation water outside.
Essential in humid climates.

👉 I didn’t install one at first, and water leaked into the room. The $50 fix would’ve saved my carpet.

📖 ASHRAE highlights condensate mismanagement as a top PTAC complaint: ASHRAE Moisture Management

📲 Thermostat (Optional)

Cost: $80–$150.
Wall-mounted for more accurate temperature control.
Can reduce energy use by 10–15%.

📖 Energy.gov confirms programmable thermostats save money: DOE Smart Thermostats

🧹 Filters (Ongoing Cost)

Cost: $15–$40 every 3–6 months.
Protects coils and improves indoor air quality.
Washable filters can be reused but still need replacing every few years.

📖 EPA stresses filter replacement as the most important maintenance task: EPA Indoor Air Quality Guide

🪟 Weather Seals (Optional)

Cost: $10–$20.
Foam seals around the sleeve stop drafts and improve efficiency.
Small cost, big payoff.

👉 I spent $15 on seals — saved me about $100 in winter heating bills.

🛠️ DIY Installation Costs

Installing a Hotpoint PTAC isn’t rocket science, but it does take time, tools, and help.

Tools & Supplies Needed

Drill, caulk, insulation, level.
Miscellaneous supplies: $30–$50.

Time Commitment

4–6 hours with two people.
Trickiest part = sliding the heavy unit into the sleeve.

DIY Total

PTAC unit + accessories + supplies: $1,300–$1,500.

👉 My DIY setup cost: $1,529 (including electrician help for outlet).

👷 Professional Installation Costs

If DIY isn’t your style, hiring a pro ensures a correct setup.

Labor Costs

$400–$700 depending on region.
Includes sleeve, grille, and sealing.

Electrical Costs

$200–$400 for a new 208/230V outlet or circuit.
Required if your room doesn’t already have one.

Pro Install Total

$1,800–$2,200.
Advantage: Warranty protection, no risk of mistakes.

👉 My compromise: I hired an electrician for $200 to check the outlet and circuit, but I installed the sleeve and unit myself.

💲 Ongoing Costs: Energy & Maintenance

Even after installation, PTACs come with regular expenses.

Electricity use:
- 15,000 BTU PTAC at 10 EER = 1,500 watts/hour.
- $0.18–$0.25/hour in most U.S. markets.
- Monthly: $20–$40 depending on climate.
Filters: $15–$40 every 3–6 months.
Coil cleaner: $10 annually.
Service calls (if needed): $150–$300.
