Choosing the Goodman 2 Ton R-32 Compatible Wall-Mounted Air Handler (Model AWST24SU1308) is a smart step toward comfort and efficiency. But before buying, one critical question remains:
“Will it actually fit in my space?”
Clearance and placement aren’t just about whether the box will squeeze into your utility closet. They affect airflow, safety, efficiency, and long-term serviceability. Mark, our DIY-minded homeowner, learned this lesson the hard way:
“I once had an air handler crammed into a closet so tight I couldn’t even change the filter without taking the door off. It worked, but it was a constant headache.”
This guide will cover the unit’s dimensions, required clearances, best placement scenarios, and Mark’s practical tips for making sure your air handler doesn’t just fit—it fits right.
📏 Key Dimensions of the Goodman AWST24SU1308
Before you plan placement, you need to know the size:
-
Width: 20.2 inches
-
Depth: ~22 inches
-
Height: ~45 inches
-
Weight: ~95 lbs
That makes it a slim, vertical cabinet that’s easier to fit than some bulky horizontal units. But remember: dimensions are just the starting point—you also need airflow and service clearances.
👉 The AHRI Directory lists certified performance specs for matched systems, which depend on correct installation (AHRI Directory).
🌀 Airflow Clearance Requirements
An air handler is useless if it can’t move air freely. Blocked intakes or cramped spaces reduce efficiency and strain the blower motor.
General clearance guidelines:
-
Front (service side): Minimum 24 inches for airflow and filter access.
-
Sides: 6–12 inches to allow panel removal and airflow.
-
Top & bottom: 6–12 inches for duct connections.
-
Rear: Mounted flush against a wall is fine if it’s a wall-mounted model.
👉 The Air Conditioning Contractors of America (ACCA) recommends following manufacturer clearance charts to avoid airflow restrictions that can reduce efficiency by up to 20% (ACCA Standards).
Mark adds:
“When in doubt, add more clearance. I’ve never heard anyone complain about too much service space.”
🛠️ Placement Scenarios
Different homes offer different options for where to put the air handler. Let’s break down the most common scenarios.
✅ Utility Closet
-
Works well if properly ventilated.
-
Door louvering may be required for airflow.
-
Make sure there’s enough space to remove filters and service panels.
✅ Garage
-
Good option for accessibility.
-
Must be raised off the floor if required by code (to avoid ignition risk from car fumes).
-
Protect from dust and debris.
✅ Basement
-
Easy access and space in many homes.
-
Keep clear of damp spots or floor drains.
⚠️ Attics
-
Often used in southern climates.
-
Can be difficult to service due to tight space.
-
Must be insulated and protected from extreme heat.
⚠️ Crawlspaces
-
Possible, but clearance is usually limited.
-
Requires extra planning for drainage and service access.
Mark recalls:
“My first air handler was in the attic. Every time I had to change the filter, I dreaded climbing that ladder. Now I always place mine where I can get to it in five minutes.”
🔌 Electrical Clearance & Requirements
The Goodman AWST24SU1308 runs on 208/230V single-phase power. Electrical planning is as important as physical space.
-
Disconnect box: Must be installed within sight of the unit.
-
Breaker size: Depends on whether the 8 kW heater kit is installed. Typically 30–60 amps.
-
Clearance: NEC (National Electrical Code) requires 30 inches of working space width and 36 inches depth in front of electrical panels and disconnects.
👉 The DOE’s Energy Saver program emphasizes the importance of code-compliant wiring for efficiency and safety (DOE Energy Saver).
💧 Drain Line Planning
Condensate drains are often overlooked, but poor planning causes leaks, mold, and costly repairs.
-
Maintain ¼ inch per foot slope away from the unit.
-
Use a trap if required by manufacturer.
-
Install a secondary drain pan in attics or other leak-sensitive spaces.
👉 The EPA Energy Star program highlights condensate management as a key installation step
Mark’s mistake:
“My installer once ran the drain line uphill for a few feet before sloping it. Within a week, I had water dripping in the garage. Now I always double-check the slope myself.”
🏗️ Serviceability Considerations
Clearance isn’t just about today—it’s about the next 10–15 years of maintenance.
-
Can you remove filters easily?
-
Is there room to swap the blower motor if it fails?
-
Can a tech bring in gauges and tools for refrigerant service?
-
Are there code-mandated access panels?
👉 The Building Performance Institute (BPI) stresses designing HVAC systems with serviceability in mind to reduce lifecycle costs (BPI Resources).
📋 Mark’s Clearance & Placement Checklist
Before finalizing placement, Mark runs through this list:
✅ At least 24” clearance at the front
✅ Minimum 6–12” on sides/top/bottom
✅ Filter access without removing doors
✅ Proper slope for drain line
✅ Electrical disconnect accessible
✅ Room for future service and repairs
✅ Compliance with NEC and local codes
“Trust me—spend an extra hour measuring now. It’ll save you years of frustration later.”
💲 Cost of Placement Mistakes
Placing an air handler in the wrong spot isn’t just inconvenient—it’s expensive.
-
Blocked airflow: Reduces efficiency, raises bills.
-
Difficult service access: Higher labor costs for maintenance.
-
Poor drainage: Water damage to flooring or drywall.
-
Electrical clearance violations: Potential code fines or safety hazards.
In some cases, moving an air handler after installation can cost $1,500–$3,000.
🪟 Climate & Regional Considerations
Placement often depends on your climate zone:
-
Hot South (Florida, Texas): Attics are common, but insulation and drain pans are critical.
-
Mild West (California, PNW): Garages or basements preferred for moderate temps.
-
Cold North (Midwest, Northeast): Basements or utility rooms help protect from freezing.
👉 The DOE Climate Zone Map helps determine where placement challenges are most likely (DOE Climate Zones).

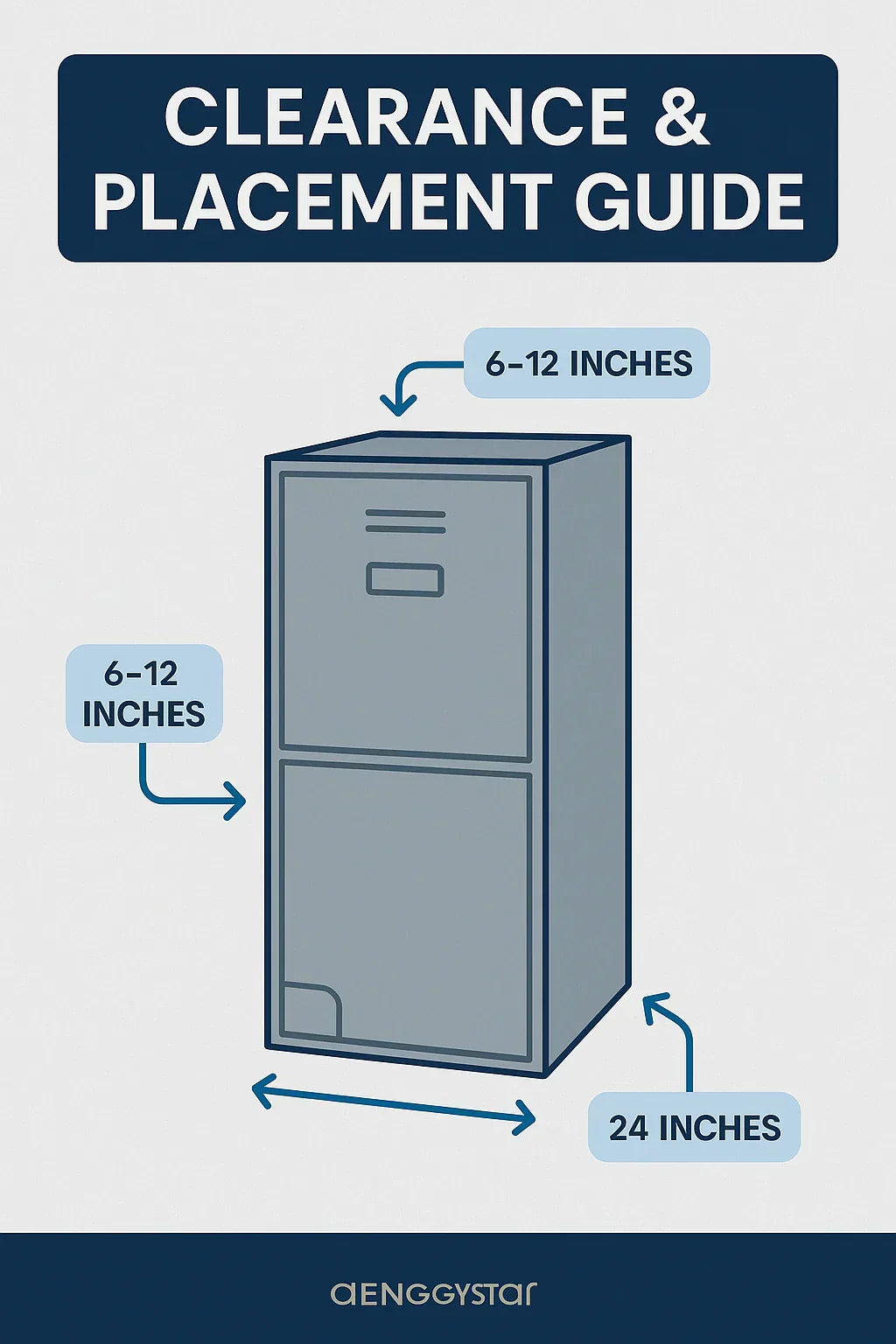

📊 Infographic Idea
“Clearance & Placement Guide: Goodman AWST24SU1308”
-
Diagram of front, side, and top clearance needs.
-
Callouts for electrical, drain, and service panels.
-
Icons for best placement (garage, basement, utility closet).
💡 Mark’s Final Takeaway
Mark sums up placement planning simply:
-
“Don’t just ask if it fits—ask if it works. You want space to breathe, space to drain, and space to service. If you check those boxes, you’re set for the next 15 years.”
The Goodman AWST24SU1308 was built for efficiency, but only if installed with proper clearance and smart placement. Plan it right, and your air handler will run quietly and reliably for years.
In the next topic we will know more about: Goodman vs. Competing Wall-Mounted Air Handlers: How Does It Compare?
