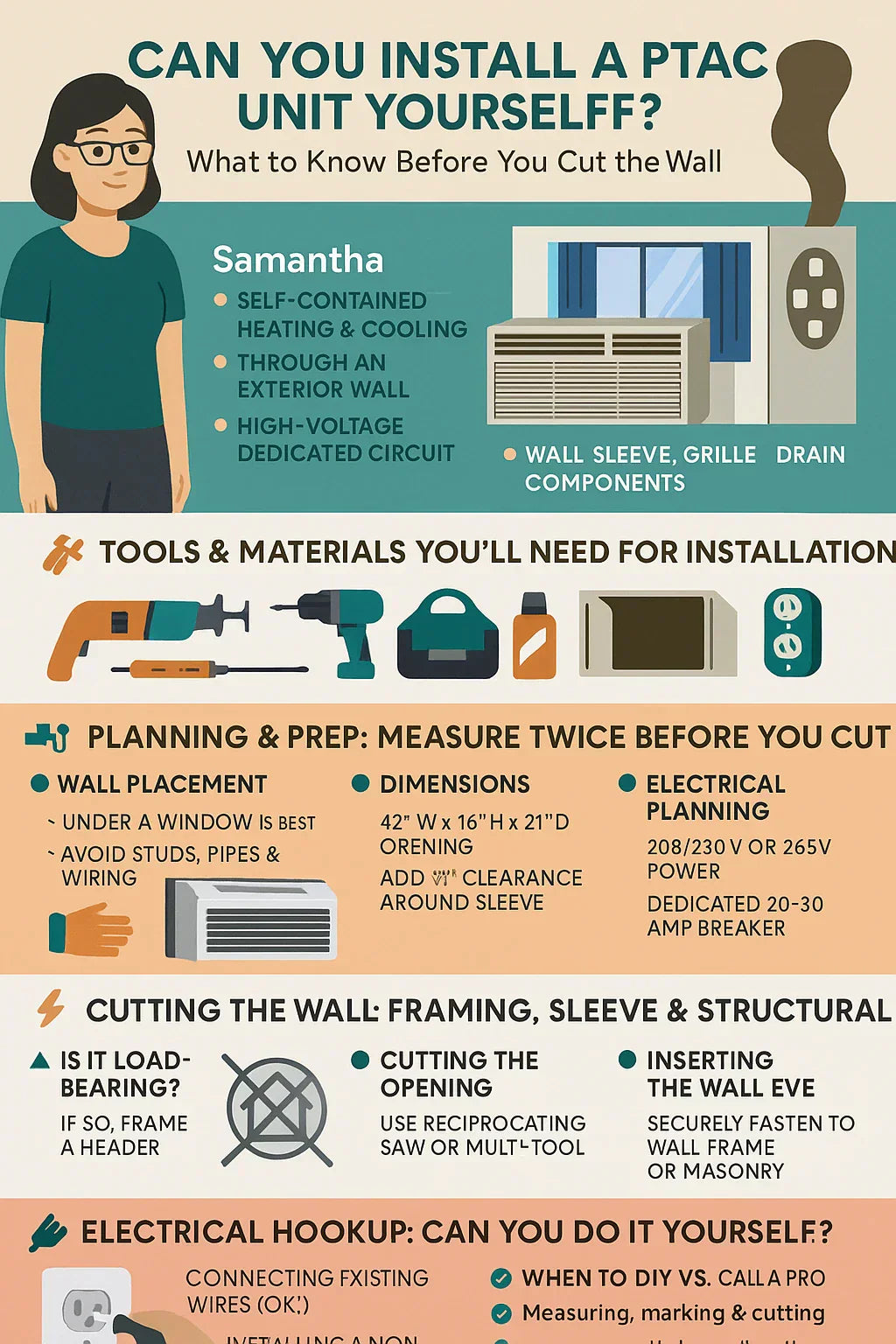

Can You Install a PTAC Unit Yourself? What to Know Before You Cut the Wall

📌 Introduction: A DIY Dream or a Disaster Waiting to Happen?

PTAC (Packaged Terminal Air Conditioner) units are commonly seen in hotels, but they’re gaining traction with homeowners, Airbnb hosts, and small business owners — especially those looking to heat and cool a single space without expensive ductwork or a full HVAC overhaul.

If you're Samantha — the hands-on, cost-conscious type who’s willing to roll up her sleeves — you might be wondering: Can I install a PTAC unit myself? The short answer is yes… but only if you know what you’re doing.

This guide will walk you through every step of a DIY PTAC installation, from planning and cutting the wall to placing the sleeve and connecting power. We’ll also break down when you must hire a pro — and how to stay code-compliant while protecting your warranty.

---

🧱 What Is a PTAC Unit, and Why Choose One?

A PTAC is a self-contained, through-the-wall heating and cooling system. Unlike mini splits (which need an outdoor unit) or central HVAC systems (which rely on ductwork), PTACs deliver zoned comfort through one plug-in appliance installed in an exterior wall.

Core Components:

• Indoor/outdoor combination unit

• Wall sleeve (metal frame)

• Exterior grille

• Thermostat (built-in or remote)

• Electric or heat pump heater

• Optional drain kit

Popular PTAC Use Cases:

• Guest suites and in-law apartments

• Converted garages and basements

• Home offices or studios

• Small businesses and salons

According to Energy.gov, PTACs are a cost-effective, energy-conscious choice for zoned heating and cooling, especially in retrofits.

---

🧰 Tools & Materials You’ll Need for a PTAC Installation

Before you start cutting holes in your wall, make sure you have the right tools and supplies:

🔨 Tools

• Oscillating multi-tool or reciprocating saw

• Drill and masonry bits

• Level and measuring tape

• Stud finder

• Screwdrivers and utility knife

• Caulking gun

🧱 Materials

• PTAC unit + wall sleeve + exterior grille

• Weatherproof silicone caulk

• Insulation foam or backer rod

• Flashing tape

• Mounting brackets (optional)

• Electrical whip or flex cable (if hardwired)

📝 Pro Tip: Some PTAC units come with a complete installation kit. Read the manual before buying accessories you may not need.

---

📐 Planning: Placement, Power, and Permits

🪟 1. Choose Your Location Wisely

PTACs are traditionally installed beneath windows, but any exterior-facing wall will do. Here’s what to check:

• Minimum 6–12 inches of clearance on each side

• At least 12 inches of space in front of the unit inside the room

• Unobstructed airflow outside (no shrubs or furniture)

• Avoid load-bearing walls unless you can frame a proper header

Use a stud finder to confirm there are no obstructions (pipes, wiring, structural studs) where the sleeve will go.

⚡ 2. Confirm Electrical Requirements

Most PTACs require:

• 208/230V or 265V power

• A dedicated 20–30 amp breaker

• 10- or 12-gauge wiring for higher amperage

This is not a standard 115V outlet job. If you don’t already have a high-voltage circuit in place, you’ll need a licensed electrician.

Use Electrical Load Calculator to confirm wire gauge and breaker compatibility.

🧾 3. Do You Need a Permit?

In most areas, a permit is required for:

• Cutting an exterior wall opening

• Installing a new electrical circuit

• HVAC equipment installs

Check local codes at UpCodes or your city’s permit office. Skipping permits can void warranties and insurance coverage.

---

✂️ Cutting the Wall: Framing, Safety & Sleeve Installation

📐 Step 1: Mark the Opening

Measure the wall sleeve dimensions. Most PTAC sleeves are:

• 42" wide

• 16" high

• 21" deep

Add ½" clearance on all sides.

Mark the inside wall using a pencil and level. Confirm alignment from both inside and outside. Use masking tape to reduce drywall tear-out during cutting.

🧱 Step 2: Cut the Opening

Use an oscillating tool or reciprocating saw to cut the drywall first. Remove insulation. Then move to the exterior siding, stucco, or brick using appropriate blades or masonry bits.

⚠️ Cutting brick veneer or stucco? Use a grinder with a diamond blade and wear protective gear.

🧠 Note: If the wall is load-bearing, install a header beam to support the structure. This usually requires pro framing help.

🪛 Step 3: Insert the Wall Sleeve

Slide the sleeve into the wall from the inside. It should sit level, flush with the interior wall surface, and slope slightly downward (¼" over the length) for drainage.

Secure the sleeve using:

• Lag bolts (wood framing)

• Masonry anchors (brick/block)

• Flashing tape on exterior perimeter

---

🌬️ Exterior Grille & Weatherproofing

Install the grille on the outside to:

• Allow airflow to condenser

• Protect against pests and debris

• Prevent water intrusion

Use:

• Screws or clips provided with your PTAC sleeve

• Foam gasket or weather stripping

• Exterior-grade caulk around edges

Insulate all gaps with foam or backer rod from inside the wall.

---

⚡ Electrical Connection: DIY or Pro?

Here’s where many DIYers call in an electrician — and for good reason.

✅ What You Can Do:

• Replace an old PTAC with the same voltage

• Connect to an existing disconnect box

• Plug into a factory-installed 230V outlet (if available)

❌ What You Shouldn’t Do:

• Install a new 230V circuit without a permit

• Connect live wires without proper training

• Skip grounding or overfuse the unit

According to the National Electrical Code (NEC), any new high-voltage circuit installation must be performed by a qualified individual.

Some PTACs require hardwiring; others accept plug-and-play cords. Follow the installation manual to the letter.

---

💦 Drainage and Condensate Management

Most PTACs handle condensation by evaporating water off the hot coil, but you still need to manage overflow and humidity.

Options:

• Internal drain pan: Auto-evaporates moisture

• External drain: Directs water outdoors via a drain port

• Drain pump (optional): Used in areas with no natural slope

Ensure the sleeve is angled slightly outward so water doesn’t pool inside the unit.

---

🧼 Final Setup: Testing Your PTAC

Once installed:

1. Turn on the breaker or plug in the power cord

2. Check for airflow, cooling, and heating

3. Adjust thermostat and fan speed

4. Confirm that outside grille is venting warm air

5. Look and listen for:

   • Unusual noise or vibration

   • Water leaks

   • Error codes

Install a cord cover or raceway over exposed cables indoors to keep it neat and code-compliant.

---

⚠️ Common Mistakes DIYers Make

---

🧠 DIY vs. Pro Summary: What Should Samantha Do?

---

📋 Samantha’s Final Checklist

✅ Chose a PTAC with the right BTU and voltage
✅ Located studs, wires, and verified no obstructions
✅ Bought a compatible wall sleeve and grille
✅ Marked and cut the wall cleanly and level
✅ Mounted the sleeve with slope and insulation
✅ Wired the unit safely (or called an electrician)
✅ Confirmed airflow, thermostat, and drainage
✅ Checked local code for inspection or permits

If all boxes are checked, congratulations — you’ve just installed your own PTAC!
