🧩 1. Why This Guide Matters
Installing a central HVAC system isn’t like swapping out a window unit. The Goodman 3 Ton 15.2 SEER2 AC and 80,000 BTU Downflow/Horizontal Gas Furnace is a powerful, high-performance system—but installation requires precision, permits, and in many cases, EPA certification.
This guide helps homeowners like Mark understand what’s safe and legal to DIY—and what must be left to the pros.

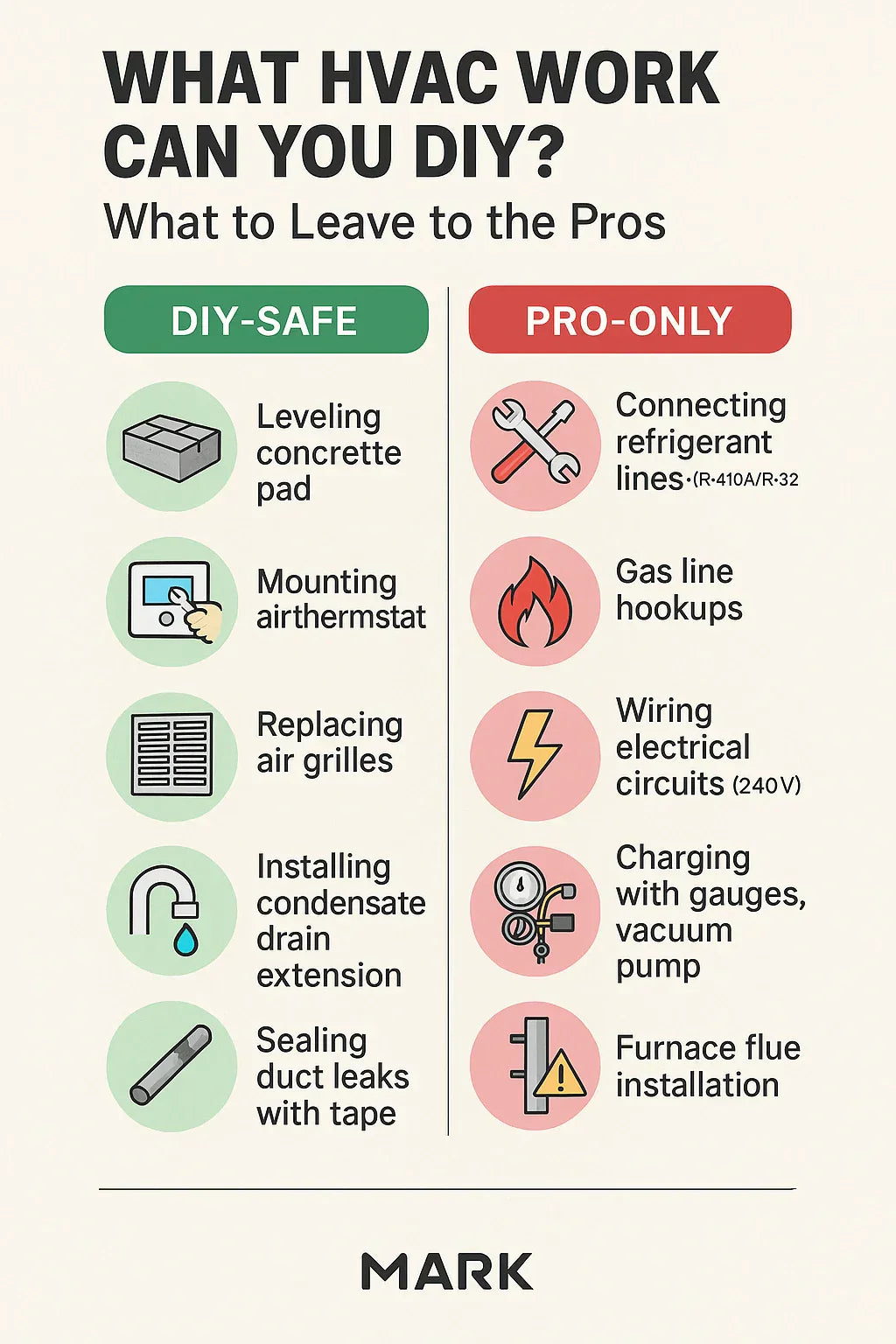

✅ 2. What Parts of an HVAC Install Can Be Done DIY
You can:
-
Clear and prep the install site (remove debris, level ground)
-
Pour or level a concrete pad for the outdoor AC condenser
-
Install or replace return air grilles and supply vents
-
Mount the thermostat (and possibly wire it, if replacing an existing unit)
-
Run low-voltage wiring between thermostat and air handler (in some states)
-
Install condensation drain line extensions (PVC routing to floor drain)
These tasks do not involve refrigerants, gas, or high-voltage wiring.
Important: Always shut off power and follow local codes, even for “basic” work.
🚫 3. What You Cannot DIY Without Certification or Licensing
🔧 The following tasks must be handled by a licensed HVAC professional:
-
Connecting or modifying refrigerant lines (R-410A systems require EPA Section 608 Certification)
-
Installing or adjusting a TXV (Thermal Expansion Valve)
-
Charging or evacuating refrigerant using gauges, vacuum pump, or manifold tools
-
Hooking up natural gas or LP lines to the furnace (requires plumber’s or HVAC gas license)
-
Running 240V high-voltage electrical circuits to the air handler or condenser
-
Performing pressure/leak tests on refrigerant lines
-
Installing the furnace flue vent and condensate trap
-
Pulling permits and passing final inspection (required in most states)
Attempting these on your own could void the warranty, cause carbon monoxide or refrigerant leaks, or result in fire or explosion.
📜 4. Legal Requirements: EPA & Local Codes
🧾 EPA Section 608 Certification
-
Required to purchase, handle, or install refrigerants (like R-410A or R-32)
-
Violations can lead to fines up to $37,500 per day
🏛️ State and Local Building Codes
-
Most states require permits and licensed installation for gas furnaces and central AC
-
Work must often pass a municipal final inspection to legally operate
Use your city’s building department website to check:
-
Permit requirements
-
Inspection timelines
-
Licensed contractor list
💥 5. Common Mistakes DIYers Make
❌ Mistake #1: Cutting and Flaring Refrigerant Lines
-
Even minor mistakes here can cause leaks, poor cooling, or compressor failure
❌ Mistake #2: Reusing an Old Line Set
-
Sludge and residue from older R-22 systems can contaminate a new R-410A system
❌ Mistake #3: Skipping Ductwork Upgrades
-
A powerful new system paired with old undersized ducts = short cycling and noise
❌ Mistake #4: Wrong TXV or Orifice Match
-
The AC coil and condenser must be perfectly matched in tonnage and metering method (TXV vs piston)
🔍 6. What Happens If You Try Anyway?
🚨 Warranty Issues
-
Goodman’s warranty is voided if:
-
Unit is not installed by a licensed HVAC technician
-
You skip coil registration or fail to pair it with a Goodman condenser
-
⚠️ Safety Risks
-
Improper venting of the furnace = carbon monoxide danger
-
Unsealed refrigerant system = toxic exposure, compressor damage
-
Improper wire sizing = electrical fire
🛑 Legal Risks
-
No permit = code violation
-
Unlicensed gas work = criminal liability in case of explosion
💸 7. How to Save Money Without Breaking the Rules
If you’re trying to reduce HVAC install costs, focus your DIY energy on these:
-
Prep the pad and physical space for outdoor condenser
-
Install/remount the indoor return grilles and supply registers
-
Mount smart thermostats (Ecobee, Nest, Honeywell) and program them
-
Add duct sealing tape or mastic to visible air leaks
-
Upgrade attic or crawl space insulation to reduce heat load
Then hire a licensed pro for the HVAC-specific work. You can still save $500–$1,000+ by bundling other labor tasks into your GC or doing them yourself.
🧠 8. How to Find a Qualified HVAC Installer
Look for techs who:
-
Are EPA Section 608 certified
-
Have a state HVAC license
-
Can provide proof of Goodman-approved training or experience
-
Are insured and bonded
-
Offer permit and inspection handling
📲 9. Trusted Resources and Guidelines
✅ Final Word for Mark
“Think of HVAC installation like surgery—just because you can watch a YouTube video doesn’t mean you should grab a scalpel.”
With the Goodman 3 Ton 15.2 SEER2 AC and 80,000 BTU furnace, it’s fine to DIY prep work and accessories. But for refrigerants, gas, pressure systems, and wiring, hire a pro. It protects your warranty, your home, and your safety.
A smart hybrid approach lets you save money and stay compliant—without risking disaster.
In the next topic we will know more about: Is a 3‑Ton HVAC System Right for Your Home?
