🏡 1. Samantha’s “One AC, Two Rooms” Challenge
When I bought my 12,000 BTU through-the-wall AC, my main goal was cooling my open-plan living/dining area. But as summer wore on, I wondered:
Could this same unit keep my connected kitchen comfortable… and maybe even push some cool air toward the hallway bedrooms?
The answer isn’t as simple as yes or no. It depends on:
-
Room size & layout
-
Airflow paths
-
Your willingness to help the air along with a few hacks
This guide will walk you through exactly what I learned—plus a few tricks from HVAC pros—so you can decide if your wall unit can do double-duty.
đź“Ź 2. The Basics: Cooling Capacity & Room Size
BTU rating tells you how much heat the AC can remove from a room in an hour. A 12,000 BTU unit is generally recommended for:
-
450–550 sq ft (average ceiling height, moderate insulation, normal sun exposure)
-
Smaller rooms with high heat loads (like kitchens) may still need the full capacity.
đź“– Reference: ENERGY STAR Room AC Sizing Guide
Why Size Matters
-
Too small → Can’t keep up, runs constantly, high bills.
-
Too large → Cools quickly but doesn’t dehumidify properly, leading to a clammy feel.
🌬️ 3. Understanding Zoning & Airflow
Cooling one room is easy—cooling multiple rooms with one unit takes a bit of planning.
How Cool Air Moves
-
Cold air is denser than warm air, so it sinks and spreads slowly.
-
Air takes the path of least resistance—often pooling near the unit if there’s no push.
-
Closed doors, narrow hallways, and sharp turns block airflow.
Why Layout Matters
-
Open floor plan: Cool air can flow more freely into connected spaces.
-
Partitioned rooms: Require active air movement (fans, vents).
đź“– Reference: U.S. DOE on Air Circulation

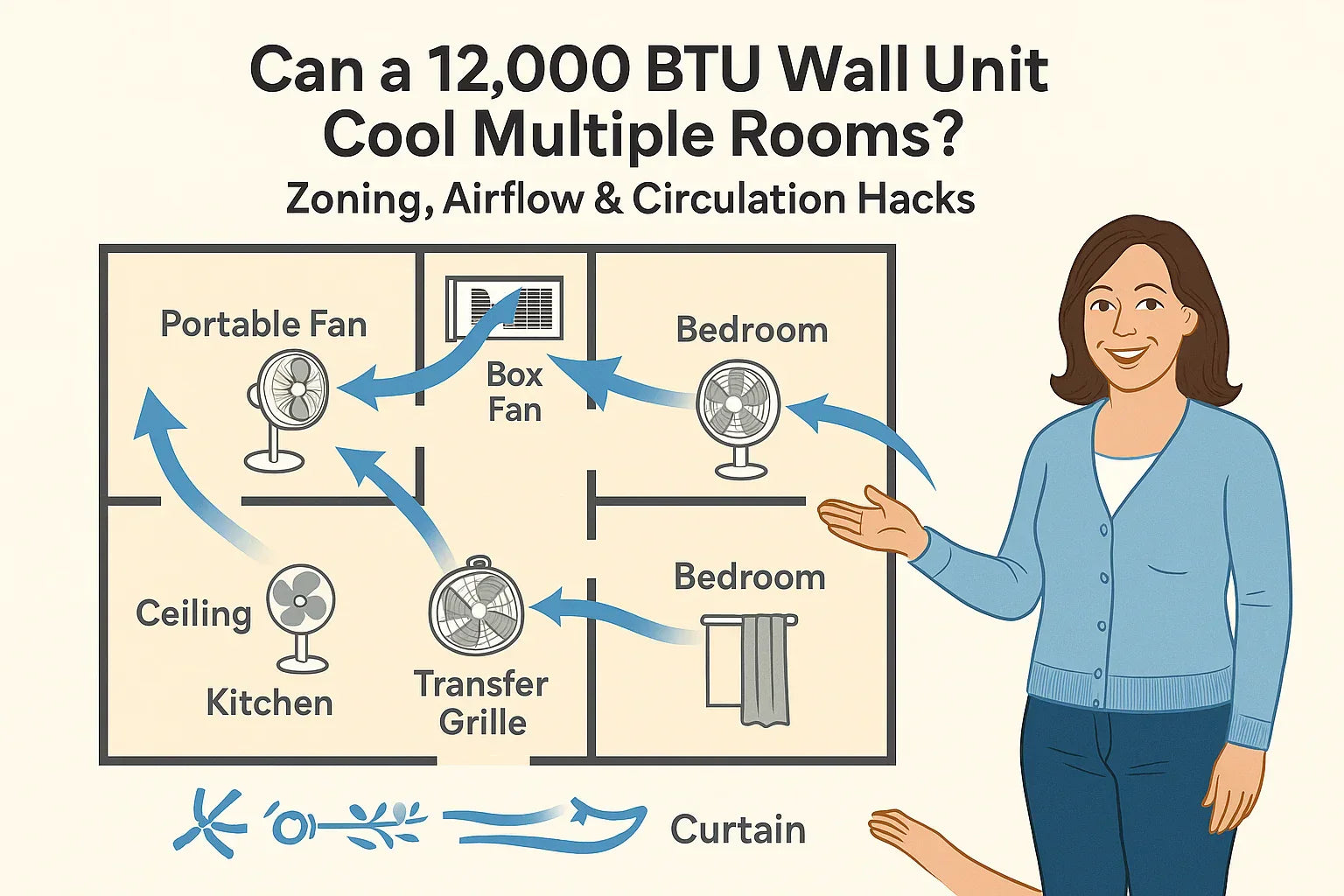

🛠️ 4. Airflow & Circulation Hacks
These are my tried-and-tested methods to help a single wall unit cool more than one space.
🌀 Portable Fans
-
Place a fan near the doorway to push cool air into the next room.
-
Oscillating fans work well for gentle distribution.
-
Example: I use a 16" pedestal fan pointed toward the hallway leading to my kitchen.
📦 Box Fan in Doorway
-
Works best for pulling hot air out of a room and replacing it with cooler air.
-
Place in a window or doorway facing outward to exhaust warm air, allowing cool air to flow in.
🌪️ Ceiling Fans
-
Summer mode: Blades spin counterclockwise, pushing air down.
-
Helps distribute cooled air evenly.
-
Keep on low-to-medium speed for comfort without drafts.
↔ Transfer Grilles
-
Install above doors or on walls between rooms to let air circulate even with doors closed.
-
Passive (no fan) or active (with a small booster fan).
🚪 Keep Pathways Open
-
Pro tip: Even a half-closed door can block most cool air flow.
-
If privacy is needed, consider a curtain partition—it’s more air-permeable than a solid door.
🏠5. DIY Zoning Ideas
If you want to target certain spaces for cooling without upgrading your AC system, zoning is key.
âś‚ Temporary Curtains or Sliding Panels
-
Use tension rods with blackout curtains in open archways to contain cool air where you need it most.
🌞 Heat Load Reduction
-
Close blinds and curtains during the day in unused rooms to prevent heat gain.
-
Add reflective window film in sun-heavy spaces.
📆 Schedule Cooling by Occupancy
-
Focus airflow toward the living room during the day.
-
Redirect toward bedrooms in the evening using fans and open doorways.
⚠️ 6. When a Single Unit Isn’t Enough
Sometimes no amount of hacking will overcome the physics.
Signs You’ve Hit the Limit
-
Persistent hot spots far from the unit.
-
AC runs constantly but temp doesn’t drop.
-
Humidity stays high even when the air feels cooler near the unit.
Options If You Need More Cooling Power
-
Add a second small unit in the farthest hot room.
-
Upgrade to a ductless mini-split with multiple indoor heads.
-
Install through-the-wall fans to actively push cool air into other zones.
📖 Reference: HVAC.com – Mini-Split vs. Window/Wall AC
🏡 7. Samantha’s Real-World Verdict
In my living/dining/kitchen combo (about 520 sq ft with partial wall separation), my 12,000 BTU wall unit works fine for all three areas with help from a couple of fans.
But when I tried cooling my bedroom down the hall, even with fans, it stayed warmer. That’s when I realized:
-
Adjacent, open rooms? Possible.
-
Fully separate rooms? You’re asking too much of one unit.
📋 8. Samantha’s Multi-Room Cooling Checklist
Before you try to cool multiple rooms with one unit:
-
Confirm your total area is within BTU limits.
-
Improve insulation and shade to lower heat load.
-
Add fans or grilles for better circulation.
-
Accept that some rooms may not get as cool.
🌟 10. Final Takeaway
A 12,000 BTU wall unit can cool more than one space—if those spaces are open to each other and your total cooling load is reasonable.
For truly separate rooms, you’ll get better comfort (and lower bills) by either adding another unit or upgrading to a multi-zone system.
In the next topic we will read about: Troubleshooting a 12,000 BTU Wall AC: What to Do If It’s Not Cooling (or Heating)
