🏠 Introduction: The Myth of “One Number Fits All”
Ask most homeowners how they picked their air conditioner, and you’ll hear something like:
“My room is about 400 square feet, so I bought a 12,000 BTU unit.”
It sounds logical—but it’s rarely accurate.
Why? Because square footage is only the starting point in HVAC math. The real load on your system depends on how much air volume your space holds, how much heat your walls and windows leak in, and how your insulation fights (or fails to fight) temperature swings.
When you’re dealing with a PTAC system like the Amana J-Series 15,000 BTU, these nuances matter even more. PTACs are designed for targeted zone comfort, not whole-home cooling, so a few hundred extra BTUs—or a few thousand missing—can completely change how the room feels.
Today, Savvy breaks down how ceilings, windows, and wall construction transform your BTU equation from “one-size-fits-none” to “perfectly dialed-in.”
📏 1. Ceiling Height — The Hidden Volume Multiplier
🧮 Why Height Changes the Math
Most sizing charts quietly assume your ceiling is 8 feet tall. But as anyone living in a loft, studio, or modern townhouse knows, that’s not always true. Every extra foot of height adds cubic feet of air your unit must condition.
The true formula measures volume, not just floor space:
Cooling Load (BTUs) ≈ Room Area × Ceiling Height ÷ 8 × 20
That “÷ 8” term corrects the chart for taller or shorter rooms.
Example:
A 400 sq ft room with an 8 ft ceiling → 8,000 BTUs (baseline)
A 400 sq ft room with a 10 ft ceiling → 10,000 BTUs
That’s a 25 % increase in required capacity.
🌬️ Air Stratification 101
Hot air rises—literally. In tall rooms, cooled air tends to sink while heat builds near the top. Without proper airflow, thermostats misread the actual comfort level.
The Amana J-Series helps offset this with multi-speed fans that keep air moving evenly from top to bottom. Still, Savvy recommends adding a ceiling fan in reverse mode to push warmth down in winter and assist circulation in summer.
📚 Pro Reference
According to the Department of Energy’s Residential Cooling Guide, every foot of ceiling height beyond 8 ft can raise load requirements by 10–15 %. So if your living room peaks at 11 ft, expect roughly 30 % more cooling demand than a flat-ceiling bedroom of the same size.
🌤️ 2. Window Orientation & Solar Gain — When the Sun Joins the Equation
☀️ West Is Worst
Glass is gorgeous, but it’s a heat magnet.
A single west-facing window can dump hundreds of extra BTUs per hour into your room during late afternoon. Multiply that by two or three windows, and suddenly your “12 k BTU room” behaves like a 15 k BTU oven.
| Window Exposure | Extra BTU Load | Typical Adjustment |
|---|---|---|
| North | Minimal | 0 % |
| East | Morning gain | +5 % |
| South | Steady sun | +10 % |
| West | Afternoon spike | +15–20 % |
For a 400 sq ft studio, that’s an extra 1,200–1,600 BTUs—enough to justify moving from a 12 k to a 15 k BTU unit.
🪟 Glazing, Tinting & Shades
The ENERGY STAR window efficiency guide explains that double-pane Low-E windows can cut solar gain by up to 30 %. Combine those with blackout curtains, and you might drop back a whole BTU size.
If upgrading windows isn’t feasible, thermal curtains or window films from Amazon can lower interior heat gain by 10–15 %.
(Savvy loves pairing the Amana J-Series with reflective curtains—it keeps the PTAC from short-cycling while maintaining that hotel-suite cool.)
🧱 3. Wall Type & Insulation — Your Thermal Armor
🔍 R-Values in Plain English
R-value measures resistance to heat flow: the higher, the better. Drywall with fiberglass insulation might rate R-13, while old plaster over brick may be R-3. That difference is massive.
| Wall Type | Approx. R-Value | Relative Heat Loss |
|---|---|---|
| Insulated stud wall | R-13 – R-15 | Baseline |
| Uninsulated brick | R-3 – R-5 | 3× more heat transfer |
| Concrete block | R-2 – R-4 | 4× more heat transfer |
The DOE’s Insulation Basics confirms that every R-1 difference changes energy use by roughly 3 %.
So, moving from R-3 to R-13 can reduce load by ~30 %.
🧩 Why PTACs Need Sealed Sleeves
A PTAC unit literally lives inside your wall. Any air leak around the sleeve bypasses your insulation.
Amana recommends installing the factory wall sleeve with perimeter sealing foam—otherwise, warm air seeps in behind the chassis, forcing your unit to fight unseen heat gain.
Savvy Tip: During installation, spray expanding foam around the sleeve edges before inserting the PTAC, and ensure the exterior grille fits flush.
🧊 4. Room Shape, Corners & Air Circulation — Comfort in Motion
🌀 Straight Shot vs. L-Shape
Air doesn’t flow in straight lines once furniture, walls, or corners interrupt it.
In rectangular rooms, a single PTAC can project cool air efficiently across the length. But in L-shaped or partitioned spaces, airflow often “pools” in one zone, leaving the far corner stuffy.
Solution:
-
Use oscillating fans or air circulators to balance temperatures.
-
Choose PTACs with multi-directional louvers—like the Amana J-Series—to steer air along both sections.
A study in the ASHRAE Journal notes that poor air mixing can reduce effective comfort coverage by 25 %. That means even if your BTU math is perfect, uneven circulation makes it feel undersized.
🪑 Layout Matters
Large furniture near the discharge grille blocks airflow, creating “dead zones.” Always keep at least 18 inches of open clearance above and in front of a PTAC. It’s a small design tweak with a big thermal payoff.

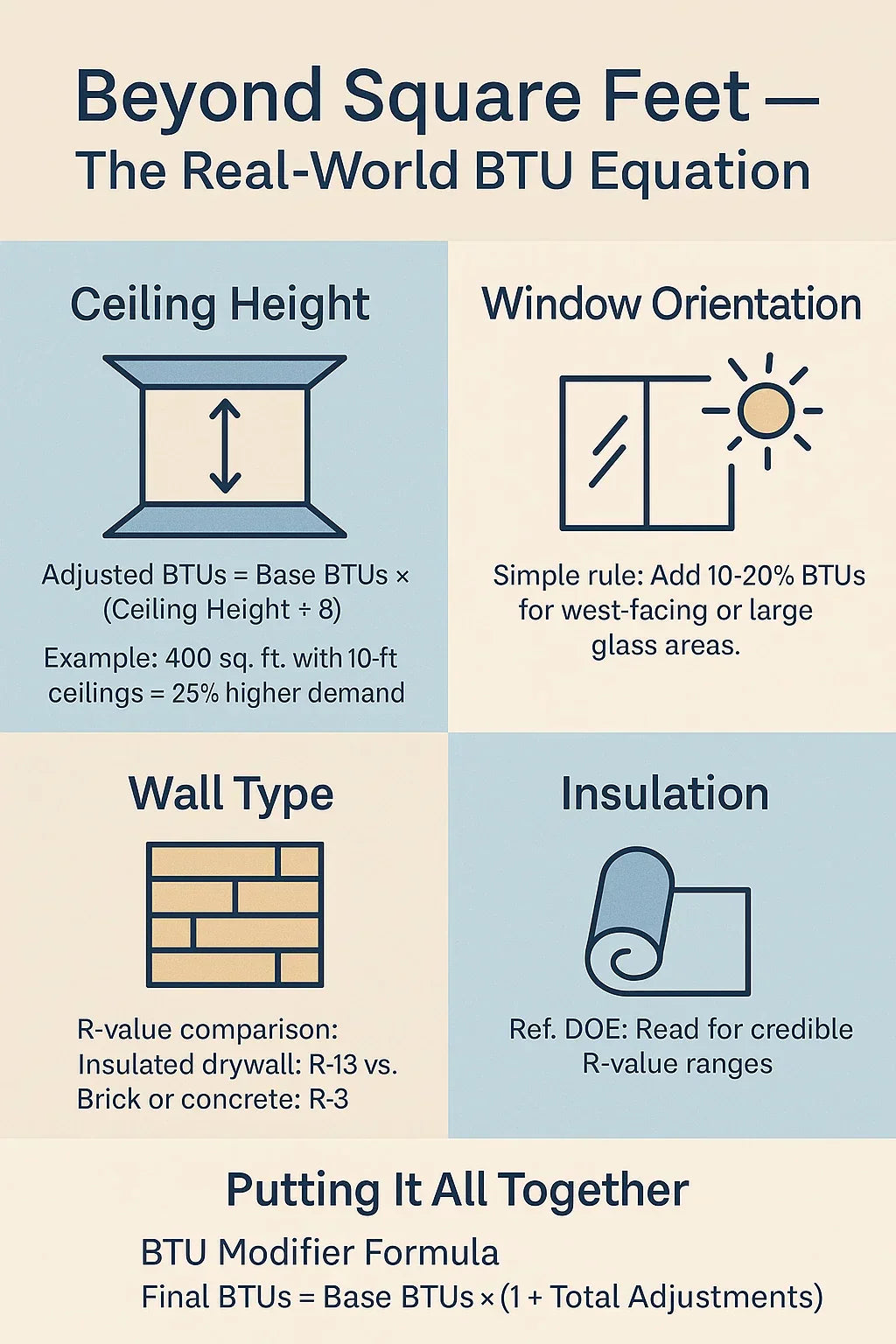

🧮 5. Putting It All Together — The BTU Modifier Formula
Savvy’s quick calculator:
Adjusted BTUs = (Base BTUs × Ceiling Factor × Solar Factor × Insulation Factor)
Here’s a guide:
| Factor | Adjustment | Why It Matters |
|---|---|---|
| Ceiling over 9 ft | +10–15 % | Extra air volume |
| West windows | +10–20 % | Solar gain |
| Poor insulation | +15 % | Heat leakage |
| Brick walls | +5–10 % | Thermal mass |
| High occupancy | +5 % per extra person | Body heat adds load |
Example Calculation
400 sq ft × 20 = 8,000 BTUs (base)
-
15 % (10 ft ceiling) + 10 % (windows) + 15 % (poor insulation) = ~11,000 BTUs
Suddenly, your “8 k BTU room” needs a unit rated closer to 12 k–15 k BTUs—right where the Amana J-Series 15 k fits perfectly.
🌡️ 6. Real-World Story: Savvy’s Studio Experiment
Savvy lives in a converted 1940s warehouse loft—concrete walls, 10-foot ceilings, giant west-facing windows. At first, she installed a 12 k BTU PTAC and assumed it would be plenty for her 430 sq ft studio.
By midsummer, her AC ran nearly nonstop from 2 PM to 7 PM, struggling to keep 74 °F. Humidity hovered around 60 %.
She re-ran the numbers:
-
Ceiling factor: +15 %
-
West windows: +20 %
-
Concrete walls: +10 %
-
Total adjustment: +45 %
8,600 × 1.45 = 12,470 BTUs needed minimum.
After upgrading to the 15,000 BTU Amana J-Series, the difference was instant. It cooled quickly, cycled normally, and maintained 48 % humidity even on 95 °F days.
Her review:
“It finally feels like the air knows what room it’s in.”
⚙️ 7. Matching Real Rooms to Real Equipment
🧩 Why the Amana J-Series Fits Complex Spaces
-
Dual Mode Comfort: Cools in summer, 3.5 kW electric heat for winter.
-
Variable Fan Speeds: Smooth temperature transition, less cycling.
-
Sealed Wall Sleeve: Minimizes air leaks from poor construction.
-
Dehumidification Balance: Pulls moisture steadily even on partial loads.
This unit bridges the gap between small-space flexibility and full-scale durability, making it ideal for apartments, hotels, or mixed-use rooms that rarely match textbook conditions.
🔌 Voltage & Power Check
The Amana J-Series supports both 208 V and 230 V circuits—critical for accurate performance. Undervoltage can slash effective output by 10 % or more, so verify your breaker before installation.
🧰 Smart Accessories & Upgrades
-
Google Nest Thermostat – learns your schedule and reduces run time ≈ 15 %.
-
Weather-sealed wall sleeves – eliminate thermal bridges.
-
Wi-Fi energy monitors – track PTAC draw to spot inefficiencies.
🌦️ 8. Climate Zone Adjustments — Your Zip Code Matters
The ASHRAE climate zone map divides the U.S. into zones based on temperature and humidity.
Your region’s mix of sensible heat (dry heat) and latent heat (moisture) shifts how your BTU math behaves.
| Climate Zone | Typical Condition | Adjustment to Base BTUs |
|---|---|---|
| Dry (Southwest) | High temp, low humidity | +10 % |
| Humid (Southeast) | Moderate temp, high humidity | +15 % |
| Warm (Midwest) | Balanced | 0 % |
| Cold (Northeast) | Low summer heat | −10 % |
Even with the same square footage, a Miami room demands ~25 % more capacity than a Portland room.
That’s why Amana’s dual cool + electric heat design is so valuable—it handles both the July sizzle and the January chill without a second system.
💡 9. Savvy’s Shortcut: The Visual Checklist
Before you size your next PTAC, ask these nine questions:
-
What’s my ceiling height?
-
Which way do my windows face?
-
How many windows and what type (glass)?
-
What’s behind my walls—insulation or brick?
-
How tight is my sleeve seal?
-
Any direct sunlight from 2 PM to 6 PM?
-
How many people use the room daily?
-
Are there heat-producing devices (TV, PCs)?
-
What’s my local climate zone?
If you check “yes” to three or more heat contributors, consider bumping up your BTUs by 10–20 %.
⚖️ 10. Efficiency Still Matters — Don’t Chase Power Alone
While adjusting BTUs is critical, efficiency decides how much you pay for comfort.
Look at EER (Energy Efficiency Ratio)—the higher, the better.
-
Typical PTAC EER: 8.5–9.0
-
Amana J-Series EER: ≈ 10.0 ✅
According to ENERGY STAR, every point increase in EER can cut annual cooling costs by 10–15 %.
So a correctly sized but efficient system beats a bigger, thirstier one every time.
🛠️ 11. Maintenance Matters — Keep Your Numbers Accurate
Even perfect math fails if filters clog and airflow drops.
The EPA’s indoor air quality guide warns that dirty filters can reduce capacity by 30 %.
Quick routine:
-
Clean filters every 30 days.
-
Vacuum the coil surface each season.
-
Inspect seal foam annually.
That maintenance keeps your PTAC operating at its rated BTUs and EER.
🧩 12. Why “Beyond Square Feet” Matters More in 2025
As building designs evolve—taller ceilings, bigger windows, open layouts—the gap between square foot charts and real world performance widens.
Manufacturers like Amana are responding with smarter controls, variable-speed compressors, and better dehumidification logic—but none of it matters if your base load math is off.
Sizing beyond square feet is not overcomplication; it’s precision. It’s the difference between a system that runs loud and lukewarm and one that runs quiet, balanced, and efficient.
🌟 Conclusion: Comfort Is a 3-Dimensional Equation
When you buy an air conditioner based on square feet alone, you’re solving a 2D problem in a 3D world.
Ceilings add volume. Windows add solar gain. Walls decide how long heat stays.
Get those right, and you enter the true Goldilocks Zone of comfort design—where your system is quiet, steady, and energy-wise for years to come.
For most medium-size rooms (350–500 sq ft) with mixed construction, the Amana J-Series 15,000 BTU PTAC Unit with 3.5 kW Electric Heat sits right in that “just-right” sweet spot.
It adapts to the quirks of your real home—because comfort isn’t flat, and neither is your space.
Buy this on Amazon at: https://amzn.to/47cH9ut
In the next topic we will know more about: When Heat Mode Matters — Matching Electric Heat (3.5 kW) to Your Winter Load
