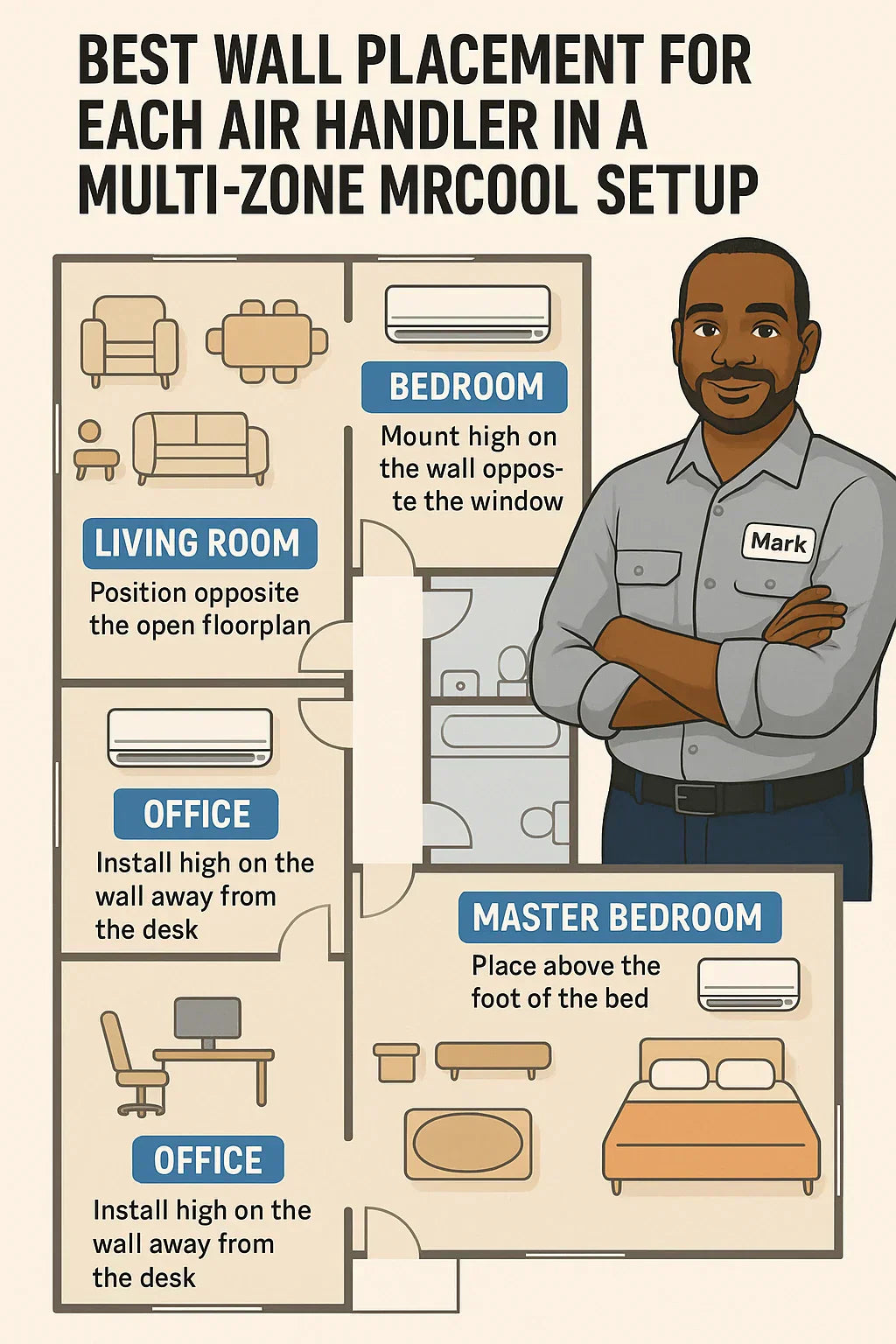

Best Wall Placement for Each Air Handler in a Multi-Zone MRCOOL Setup

🧰 Introduction: Why Placement Makes or Breaks Your Comfort

If you’ve invested in the MRCOOL DIY 5th Generation 36,000 BTU 3-Zone Mini Split System, you’re already on your way to customizable, energy-efficient comfort. But here’s the thing — even the best system underperforms if you install the indoor air handlers in the wrong spot.

Proper wall placement affects:

• Air circulation and room coverage

• Noise levels

• Temperature consistency

• System efficiency

• Even your home’s appearance

In this guide, we’ll walk through:

• How to place your 9k and 12k BTU air handlers by room type

• Ideal height, clearance, and wall positioning

• Common mistakes (like installing near windows or dead zones)

• Best practices for two-story and open-concept homes

• Verified tips backed by MRCOOL and energy efficiency experts

---

📦 Quick Recap: What Comes with Each Air Handler

Each MRCOOL 3-Zone DIY kit includes:

• 1x 9,000 BTU wall-mounted head

• 2x 12,000 BTU wall-mounted heads

• Mounting plate + wall template

• Remote control

• Condensate drain hose

• Pre-charged line set (16–25 ft)

• Communication cable

All heads are low-profile, wall-mounted units designed to distribute air horizontally across the space — so wall placement is everything.

---

🛏️ Zone 1: Where to Place the 9k BTU Air Handler (Small Room Strategy)

The 9k head is ideal for:

• Guest bedroom

• Small office

• Nursery

• Hobby room

🔧 Ideal Placement:

• Interior or exterior wall with at least 7.5 feet of clearance

• Mount at least 6 inches from the ceiling, centered if possible

• Ensure at least 12 inches of clearance on both sides for airflow and servicing

• Avoid walls with direct sun exposure or large windows

❌ Avoid:

• Mounting above beds or desks (can blow cold/hot air directly on people)

• Narrow corners — they trap air circulation

• Placing on same wall as the door (you’ll short-cycle)

🔗 ENERGY STAR Air Handler Placement Guidelines

---

🛋️ Zone 2: Placing the 12k Head in a Living Room or Open Area

The 12,000 BTU head is best for:

• Living rooms

• Dining areas

• Large master bedrooms

• Kitchens (when zoned)

🔧 Placement Tips:

• Opposite the main entry point of the room

• Mount at 8 feet high if possible — the MRCOOL head needs vertical airflow

• Choose a wall that allows the airflow to travel across the length of the room

• For open floor plans, consider centering the head between two zones (like dining/living)

💡 If mounting near a vaulted ceiling, keep at least 12–18 inches from the ceiling line.

🔗 Building Science Corp: Airflow Management

---

🖥️ Zone 3: Placing the 12k Head in a Large Bedroom, Loft, or Office

🔧 Best Practices:

• Mount on interior walls if the space is well-insulated

• Place away from the bed or work desk for noise and airflow comfort

• Ensure condensate drain has a slight downward slope

⚠️ If you need to mount on an exterior wall and line set must go upward (e.g., to attic), consider using a condensate pump to help drain water.

---

📐 General Rules for All Air Handlers

🔗 MRCOOL 5th Gen Install Manual PDF

---

🏡 Split-Level and Multi-Floor Homes: Placement Strategy

For 2-Story Homes:

• Place one 12k unit in a large, shared zone on the first floor (e.g., living/kitchen)

• Place the 9k in a bedroom or office upstairs

• Mount second 12k head in primary bedroom or rec space upstairs

Why it works:

• Cools downstairs zones where heat builds from appliances and windows

• Maintains steady comfort upstairs overnight

• Balances airflow and energy use

💡 Be sure to allow access to attic or basement for line set routing between floors.

🔗 DOE: Ductless Heat Pump Zoning Guide

---

🧊 Cold Climate Considerations for Placement

If your area drops below 20°F regularly, placement affects heating performance too.

Tips:

• Mount indoor heads away from draft-prone windows and doors

• Avoid placing directly above baseboard heaters or radiators

• For best heat circulation, mount toward center of room or hallway

🔗 Cold Climate Housing Research Center – Air Handler Placement

---

🌞 Hot Climate Considerations

In hot climates (Florida, Arizona, Texas):

• Avoid placing the air handler on west-facing exterior walls

• Add UV-blocking film to nearby windows

• Use ceiling fans in tandem to boost airflow (but don’t place directly under the head)

🔗 Energy.gov Guide to Cooling Efficiency in Hot Regions

---

🛑 Common Mistakes to Avoid

---

🧾 Tools You’ll Need for Proper Mounting



💬 Mark’s Placement Strategy (Real-World Example)

“I used the 12k in the open living room and aimed it across the sofa/dining zone. My 9k went into the office, mounted just above eye level near the corner but not right next to the door. My upstairs bedroom got the second 12k, installed about 8 inches from the ceiling opposite the windows. Result? Even, quiet comfort in every room.”

---

✅ Final Takeaways: Best Practices Recap

Proper placement = better performance, lower bills, and a more comfortable home.

In the next topic we will know more about: Maintenance Guide for Your MRCOOL 36k 3-Zone Mini Split: What to Do Each Season
