Whether you're a hands-on homeowner ready to take on a DIY challenge or simply looking to better understand what a professional installation involves, this step-by-step guide will walk you through every critical phase—from selecting the right location to performing the system startup. Let’s turn complexity into clarity and ensure your installation is safe, effective, and long-lasting.
Why Choose a Ductless Mini-Split?
Energy Savings Without Compromise
Ductless mini-split systems are designed for efficiency. Unlike traditional HVAC systems that rely on ductwork—which can account for up to 30% energy loss—mini-splits deliver conditioned air directly into the space. This minimizes waste and can significantly reduce your monthly utility bills.
Modern systems often include inverter technology, which adjusts compressor speed based on real-time demand. This intelligent feature enhances energy savings while maintaining consistent indoor comfort.
Zoned Comfort for Every Room
One of the most appealing features of ductless systems is their zoning capability. Each indoor unit operates independently, allowing you to tailor the temperature in different rooms based on individual needs. Whether you prefer a cooler bedroom or a warmer office, mini-splits provide unmatched flexibility.
Installation Flexibility and Clean Design
Because they don’t require ductwork, mini-splits are ideal for renovations, additions, or older homes. Their sleek and compact indoor units blend well with most interiors, while the streamlined installation process is often less intrusive than conventional systems.
Built-In Air Quality Benefits
Many mini-split models come with advanced filtration systems that help capture allergens, dust, and pollutants—contributing to a healthier home environment without sacrificing efficiency.
Browse top-rated ductless mini-split systems for fast, efficient comfort.

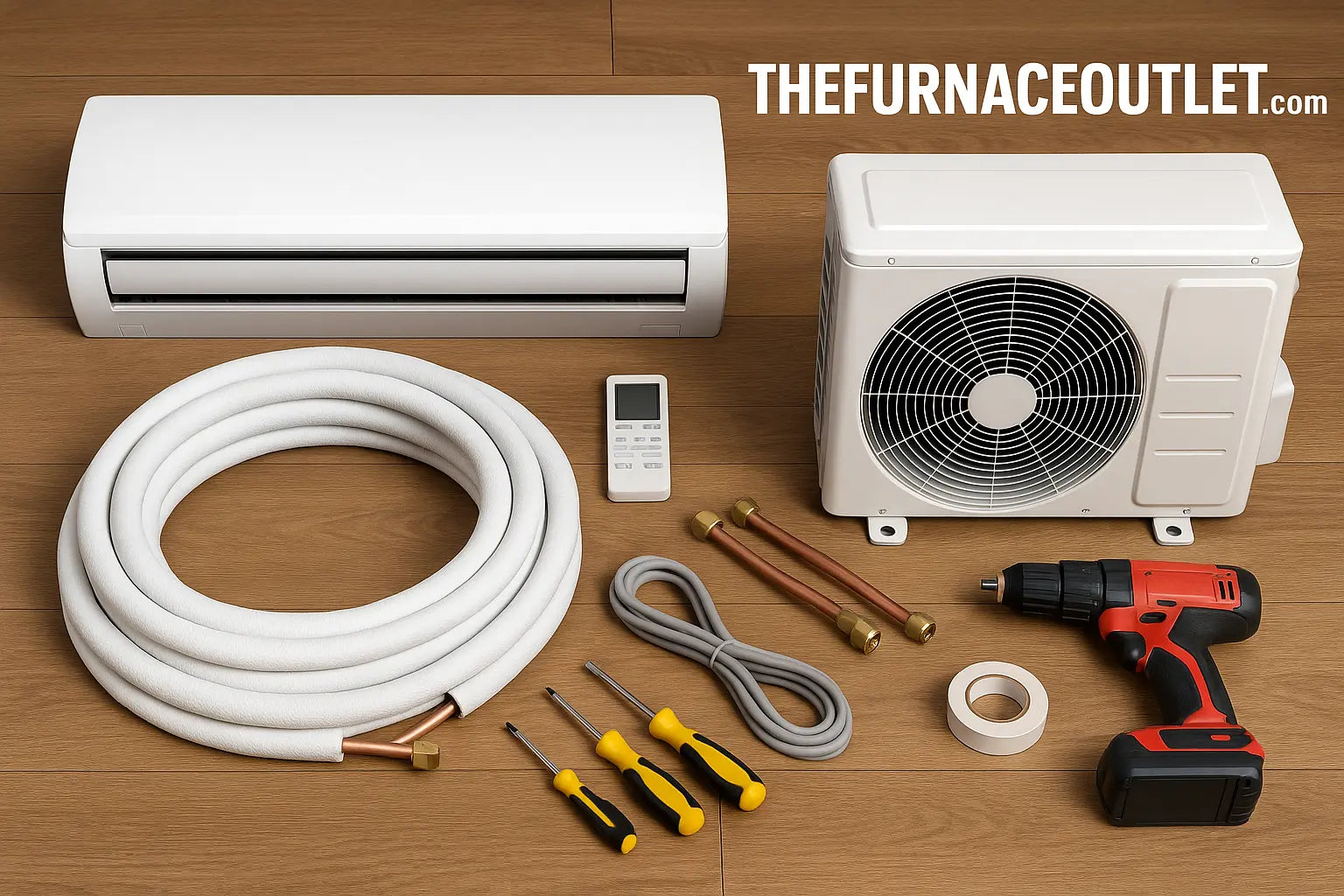

Prepare for Success: Tools & Materials Checklist
Essential Tools
-
Drill and drill bits
-
Hole saw (typically 3 inches)
-
Level and tape measure
-
Stud finder
-
Torque wrench (for refrigerant line connections)
-
Flare tool kit
-
Vacuum pump
-
Manifold gauge set
-
Multimeter (for electrical diagnostics)
Installation Materials
-
Mounting brackets or wall plates (indoor/outdoor units)
-
Pre-charged refrigerant lines
-
Electrical wire and connectors
-
Wall sleeve or grommet
-
Insulation and weatherproofing materials
-
Condensate drain line
Stock up on mini-split accessories like brackets, drain kits, and insulation sleeves.
Being well-prepared helps you avoid delays and makes the process smoother, whether you’re installing the unit yourself or supervising a professional.
Step 1: Select Optimal Mounting Locations
Indoor Unit Placement
Mount the indoor unit high on an interior wall for even air distribution. Avoid installing it near direct sunlight, heat sources, or dusty areas, as this can reduce system performance. Ensure at least 6 inches of clearance above the unit and unobstructed airflow around it.
Outdoor Unit Considerations
Place the outdoor unit on a solid, level surface such as a concrete pad or wall bracket. Ensure it’s away from obstructions like fences or foliage and not too close to bedrooms or quiet areas due to operational noise. Maintain at least 12 inches of clearance on all sides and check the unit's manual for model-specific guidelines.
Good placement minimizes energy loss, prevents airflow issues, and simplifies the refrigerant and electrical connections.
Step 2: Mount the Indoor Unit
-
Install the Wall Bracket
Use a level to ensure the bracket is perfectly straight. Mark and drill holes into studs or use wall anchors for stability. -
Drill the Service Hole
Use a 3-inch hole saw to create a passage through the wall for refrigerant lines, drain hose, and wiring. The hole should slope slightly downward toward the exterior to allow for condensate drainage. -
Position the Indoor Unit
Feed the lines and wiring through the hole, then carefully mount the unit onto the bracket. Ensure it’s level and securely attached.
Step 3: Set Up the Outdoor Unit
-
Prep the Area
Clear away debris and create a level surface. Use a pad or wall-mounted brackets if needed for elevation or uneven ground. -
Mount the Unit
Position the outdoor unit with adequate clearance and secure it using anti-vibration pads or feet. -
Connect the Lines and Wires
Run the refrigerant lines, electrical wiring, and condensate hose from the indoor unit to the outdoor location. Protect the lines with insulation and weather-resistant sleeves. Ensure tight, clean bends to prevent kinks.
Check out our DIY mini-split kits designed for homeowners.
Step 4: Safely Wire the System
-
Turn Off Power
Before handling electrical connections, shut off the breaker and confirm with a voltage tester. -
Wiring the Indoor to Outdoor Unit
Use the manufacturer's wiring diagram to guide you. Run a multi-conductor cable through the wall hole and connect terminals according to the color-coded instructions. -
Double-Check Everything
Secure all connections with wire nuts and tape. Verify the ground wire is properly connected, and ensure no exposed copper is left uninsulated.
Learn more about safe handling practices for A2L refrigerants and electrical safety.
Step 5: Connect and Test the Refrigerant Lines
-
Flare and Connect
Use your flare tool to create clean, precise flares at the end of each refrigerant line. When working with modern refrigerants, it’s crucial to understand the differences between R-32 and R-454B to avoid compatibility issues. -
Vacuum the System
Connect a vacuum pump and gauge set to the service port. Evacuate air and moisture from the lines for 15–30 minutes or until the system reaches the specified vacuum pressure. -
Charge and Seal
Open the service valves to release refrigerant into the system. Check all joints with a leak detector or soapy water.
Step 6: Power Up and Test the System
-
Restore Power
Turn the breaker back on and power up the system via the remote control or thermostat. -
Initial Performance Check
Set the system to heating or cooling mode and monitor for consistent operation. Ensure the indoor unit distributes air evenly and the outdoor unit runs quietly. -
System Diagnostics
Use the manifold gauge to confirm refrigerant pressure is within the correct range. If performance seems off, consult the unit’s troubleshooting guide or call a professional technician.
Common Issues and How to Resolve Them
Refrigerant Leaks
If the system isn’t cooling properly, inspect flare connections for leaks. Early detection is key—explore smart detection technology that prevents refrigerant leaks before they start.
Electrical Miswiring
A system that won’t start or behaves unpredictably may have a wiring issue. Check connections against the manual and verify voltage with a multimeter.
Poor Airflow
This can result from blocked vents, dirty filters, or improper placement. Clean filters, remove obstructions, and ensure clear airflow paths to resolve the issue.
Installation Confidence Starts with Preparation
