Best Wall Sleeves and Thermostats for the GE Zoneline PTAC

The GE Zoneline 15,000 BTU PTAC with Heat Pump (Model AZHS15DCXXA) is one of the most efficient and reliable packaged terminal units on the market. But if you want to get the best possible performance—in terms of noise, efficiency, and comfort control—you’ll need to pair it with the right wall sleeve and thermostat.

This guide walks you through everything Savvy homeowners and installers need to know about selecting compatible wall sleeves, thermostats, and accessories for their GE Zoneline PTAC.

🏗️ Why Wall Sleeves Matter

A wall sleeve is the permanent frame or enclosure built into the wall to house your PTAC unit. It:

• Supports the weight of the unit

• Provides weatherproofing and drainage

• Reduces vibration and noise

• Creates a thermal seal around the unit

Using an incompatible or poorly installed sleeve can:

• Cause rattling or leaks

• Lower efficiency by up to 20%

• Lead to condensation issues

• Shorten the life of your PTAC

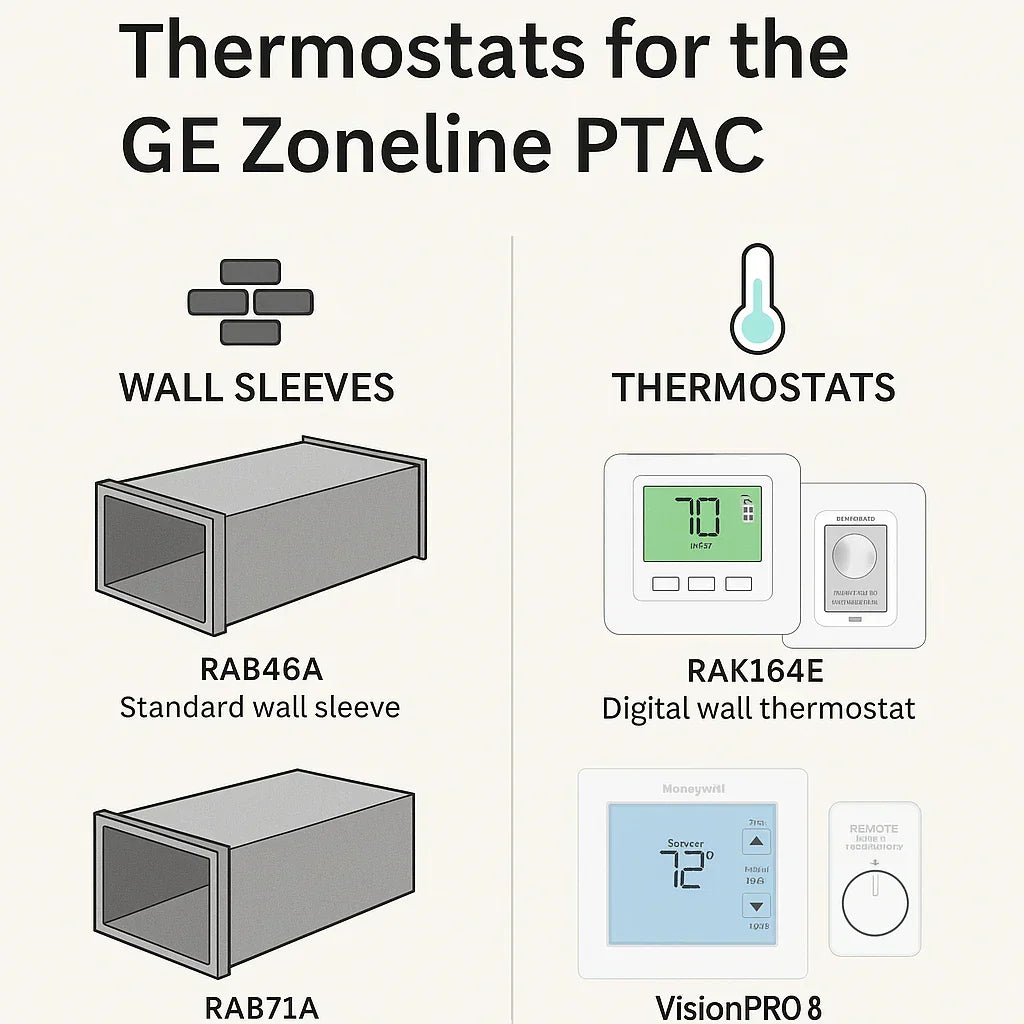

🔧 Best Wall Sleeves for the GE Zoneline PTAC

✅ RAB46A: Standard Wall Sleeve

• Compatible with all current Zoneline PTACs

• 14 1/8" depth, 42" width, and 16 1/16" height

• Molded insulation helps reduce sound and heat transfer

• Rear and side condensate drain knockouts

• Mounting points for louvers and exterior grilles

🔗 RAB46A Product Specs (GE)

🧱 RAB71A: Extra-Deep Sleeve for Thick Walls

• 16" deep for applications with thick masonry or layered framing

• Same width and height as RAB46A

• Great for retrofits in older homes or mid-rise buildings

🔗 GE RAB71A Installation Specs

🌧️ RAG67: Louvered Exterior Grille

• Prevents debris and rain from entering the sleeve

• Required for outdoor air intake routing

• Works with both standard and deep sleeves

🛠️ Wall Sleeve Installation Tips

• Always slope sleeve slightly downward toward the exterior to ensure proper drainage

• Seal the sleeve perimeter with foam and caulk to prevent air leaks

• Use vibration isolators if mounting in a wood-frame wall

🌡️ Why the Right Thermostat Matters

Zoneline PTACs support wired 24V thermostats, which:

• Offer more precise temperature control than the onboard panel

• Enable energy-saving scheduling

• Integrate with smart home systems

• Reduce overcycling and improve comfort

🌐 Compatible Thermostats for GE Zoneline

✅ RAK164E: GE Deluxe Digital Wall Thermostat

• Officially recommended by GE

• 7-day programmable

• Dual setpoints for heating and cooling

• Auto-changeover

• Supports occupancy-based savings mode

• Compatible with all Deluxe series Zoneline models

🔗 RAK164E Specs and Installation Guide

🧠 Honeywell VisionPRO 8000 (TH8321WF1001)

• Full-featured thermostat with Wi-Fi + touchscreen

• Compatible with multi-stage heat pump systems

• Ideal for smart home integration (Alexa, Google, etc.)

• Requires 24V common wire (C-wire) and setup via interface

🔗 Honeywell VisionPRO Details

🏨 RAK7202: Remote Basic Thermostat

• Designed for hotels and short-term rentals

• Features simple rotary dial or buttons

• Mounts on the wall and connects via standard 24V wiring

• Allows guests or tenants to control temp without accessing unit faceplate

⚖️ Thermostat Comparison Table

Model	Smart Features	Scheduling	GE Recommended	Requires C-Wire
RAK164E	No	Yes	✅	No
Honeywell TH8321	✅ (Wi-Fi)	Yes	❌ (3rd party)	✅
RAK7202	No	No	✅	No

🔌 Optional Accessories That Improve Performance

🛰️ RAK4002: Indoor Remote Temperature Sensor

• Senses ambient temperature further from unit

• Ideal for larger rooms or open layouts

• Prevents short cycling by avoiding hot/cold spots near unit

🪟 RAG67A: Architectural Outdoor Grille

• Stronger than basic louver grille

• Offers cleaner aesthetic and better wind resistance

• Available in multiple colors

⚡ RAK3153 / RAK3203 Power Cords

• 20-amp and 30-amp versions, match to your specific PTAC unit

• UL-listed for safety

🧠 Smart Thermostat Integration & Energy Savings

• A 7-day programmable or occupancy-based thermostat can reduce energy costs by 15–30%

• Auto fan and sleep modes further reduce cycling

• When paired with a remote sensor, temperature swings are minimized

🔗 Energy Star Smart Thermostat Guide

🧾 Final Install Checklist: What You Need

Component	Model	Notes
Wall Sleeve	RAB46A or RAB71A	Match depth to wall thickness
Exterior Grille	RAG67	Required for ventilation and rain protection
Thermostat	RAK164E or Honeywell	Based on wiring and smart features
Remote Sensor	RAK4002	Optional but improves accuracy
Power Cord	RAK3153 or RAK3203	Match to amperage of PTAC

✅ Final Thoughts: Set Your Zoneline Up for Success

The GE Zoneline PTAC is built for long-term performance, but it needs the right support system. Installing the RAB46A sleeve and a RAK164E digital thermostat gives you:

• Better control over comfort

• Fewer hot and cold spots

• Quieter, more efficient operation

• Protection from weather and wall moisture

With the proper accessories and smart setup, your Zoneline system can deliver quiet, efficient comfort for a decade or more.
