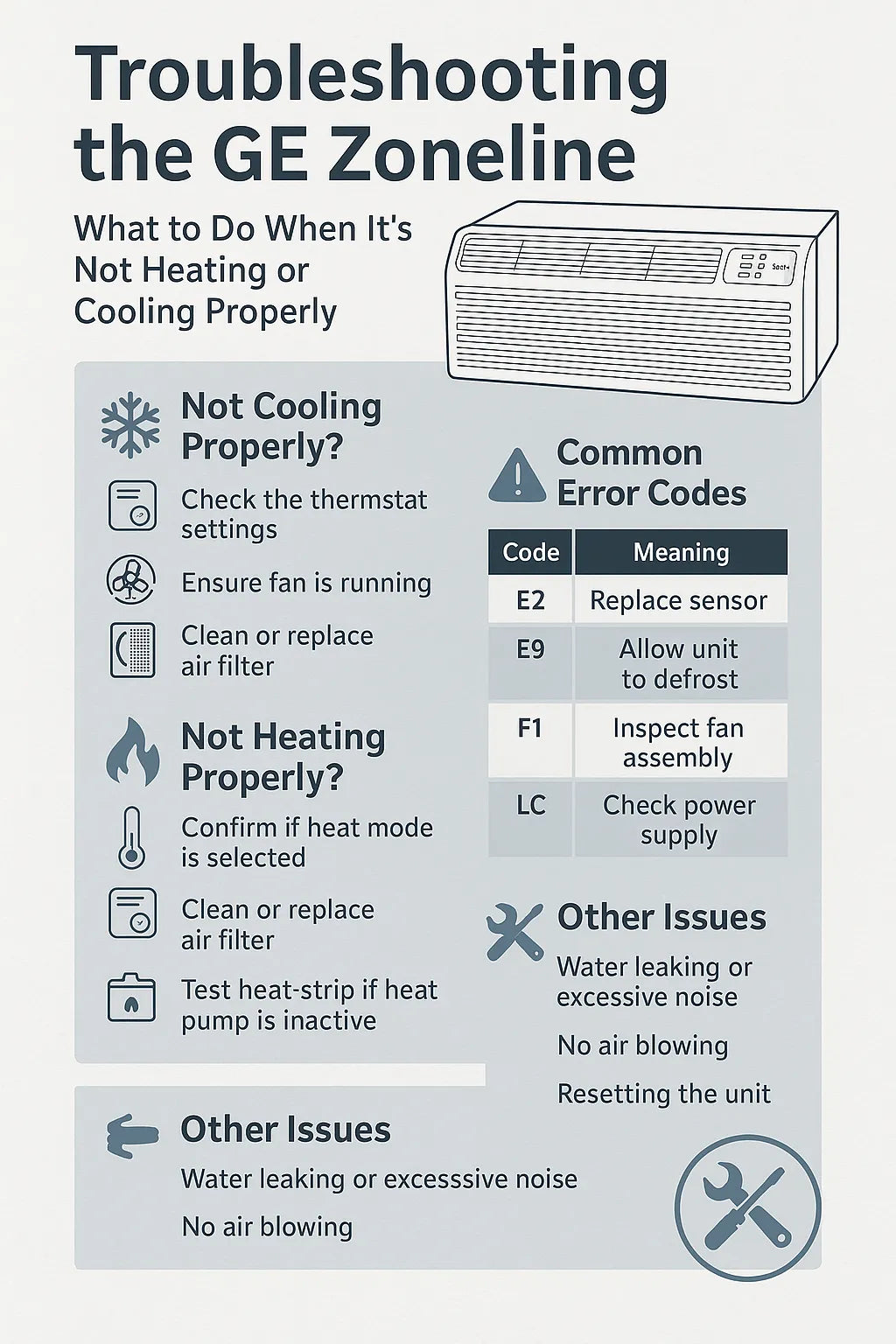

Troubleshooting the GE Zoneline: What to Do When It’s Not Heating or Cooling Properly

The GE Zoneline 15,000 BTU PTAC with Heat Pump (Model AZHS15DCXXA) is known for its reliability, but even the best systems occasionally hit snags. Whether your unit is blowing warm air when it should be cooling, or struggling to heat during cold mornings, this guide will walk you through step-by-step diagnostics to identify and resolve the most common problems.

If you're a Savvy homeowner or property manager, you can solve many issues without calling a technician. Here's how.

❄️ Not Cooling Properly? Step-by-Step Fixes

✅ Start with the Basics

• Is the unit plugged in securely?

• Check the circuit breaker in your electrical panel

• Clean or replace the air filter

• Is the "COOL" mode selected?

• Ensure the temperature setting is below room temperature

Tip: Set the fan to AUTO rather than ON. ON mode runs the fan without cooling.

❄️ Frost or Ice on the Coils?

• Dirty filters can cause coils to freeze

• Low refrigerant or poor airflow can also lead to ice buildup

Solution:

• Turn the unit off for 30 minutes to allow coils to defrost

• Clean the filter and resume operation

🔗 Energy.gov: Room Air Conditioner Troubleshooting

⚡️ Compressor Not Engaging?

• Listen for a "click" when switching into cooling mode

• No sound = relay or capacitor issue

Solution:

• Unplug the unit for 5 minutes and restart

• If still silent, contact a technician

♨️ Not Heating? Try These Fixes

📉 First, Understand the Dual Heating System

The Zoneline uses:

• A heat pump for efficient heating (best above 35°F)

• A backup electric resistance heater for colder temps

🔔 Is It Set to HEAT Mode?

• Double-check that you are not in AUTO, which can switch between cooling and heating unexpectedly

🔢 Is the Outdoor Temp Below 35°F?

• The heat pump becomes inefficient below freezing

• The unit should automatically switch to resistance heat

🔌 No Warm Air? Try This:

• Set the temp to 85°F and switch to HEAT

• Listen for relay click or fan activation

• If the fan runs but no heat is produced, your heat strip may be disabled

Solution:

• Check control panel settings or wall thermostat wiring

• Reset the unit or consult GE support

🔗 GE Zoneline Heat Pump Support

🔍 Error Codes & What They Mean

Zoneline units display codes on the control panel. Here's a quick guide:

Code	Meaning	Fix
E2	Room temp sensor fault	Replace sensor or reset unit
E9	Freeze protection active	Let defrost cycle complete
F1	Fan motor problem	Check for obstructions or motor fault
LC	Low voltage	Inspect power supply or outlet

🔗 GE Error Code Reference Guide

💧 Leaking Water or Condensation?

• Check for clogged condensate line or full drain pan

• Unit may be tilted inward instead of sloping outward

Solution:

• Clear the drain line with compressed air or a pipe cleaner

• Make sure the wall sleeve is angled slightly downward toward the exterior

🔗 Energy Star: Preventing HVAC Water Damage

🌬️ Unit Is Running But No Air Is Coming Out

Possible causes:

• Blower fan is stuck or obstructed

• Fan capacitor failure

• Incorrect fan mode setting

Solution:

• Set fan to HIGH and switch through modes (HEAT → COOL → FAN)

• If still no airflow, remove front panel and inspect fan blades

• Ensure nothing is lodged in fan cavity

💡 When to Reset the Unit

A reset can fix:

• Frozen control boards

• Sensor errors

• Power interruptions

How to Reset the GE Zoneline:

1. Turn off the unit and unplug it or switch off the breaker

2. Wait 3–5 minutes

3. Restore power and turn unit on

4. Re-enter thermostat settings

Some models also have a soft reset option using the MODE + FAN buttons.

🚧 Unusual Noises or Vibrations?

Rattling or Humming:

• Loose front panel or sleeve vibrations

Fix:

• Tighten screws

• Add weatherstripping or vibration pads

Buzzing During Heating:

• Heat strip activating (normal, short-lived)

Fix:

• If persistent, check for damaged relay or transformer

🚑 When to Call a Professional

If any of the following occurs, don’t attempt DIY repairs:

• Burning smell or visible smoke

• Unit trips the breaker repeatedly

• No cooling or heating despite all settings being correct

• Fan doesn’t start after reset

✅ Final Troubleshooting Checklist

Symptom	Start Here	Next Step
No cooling	Mode setting, filter	Reset or inspect compressor
No heat	Check outdoor temp, set to HEAT	Test backup heat strip
No air	Fan setting and filter	Check fan motor or capacitor
Leaks	Check slope, drain line	Clear clogs, reseal sleeve
Error code	Reference table	Reset or call tech

Need help identifying your GE Zoneline model or thermostat configuration? Send your model number and the symptoms you're seeing—we'll help you pinpoint the issue.

In the next topic we will know more about: Can One GE Zoneline Unit Cool Multiple Rooms? Zoning Tips and Circulation Hacks
