Do You Need a Coupler Kit? Extending Your MRCOOL Lineset Explained

When you’re planning a DIY MRCOOL mini split installation, one of the biggest questions is: “What happens if my lineset is too short?”

MRCOOL 5th Gen 50ft 1/4” x 1/2” Pre-Charged Lineset - DIY50-1412C-O

That’s where the MRCOOL Coupler Kit comes into play. It allows you to safely connect two pre-charged linesets together — for example, two 25ft linesets — to extend your reach without having to replace what you already own.

But do you really need one? Or is it better to buy a 50ft pre-charged lineset outright? In this guide, I’ll break it all down:

• ✅ What a coupler kit is (and how it works)

• ✅ When you might need one

• ✅ The pros and cons of using a coupler kit vs. a longer lineset

• ✅ Step-by-step installation instructions

• ✅ Safety, efficiency, and troubleshooting tips

By the end, you’ll know exactly when a coupler kit makes sense — and when it’s smarter to skip it.

---

🏡 What Is a Coupler Kit?

A coupler kit is a factory-sealed connector designed to join two MRCOOL pre-charged linesets together.

Here’s how it works:

• MRCOOL’s linesets come pre-filled with refrigerant.

• Each end has a quick-connect fitting with valves that seal the refrigerant inside until they’re connected.

• The coupler kit acts like a middle adapter, allowing you to connect one lineset to another without releasing refrigerant into the air.

👉 Think of it like an extension cord for refrigerant lines — except completely sealed, pressurized, and engineered for leak-free performance.

This innovation is part of what makes MRCOOL the only truly DIY-friendly HVAC system on the market. MRCOOL’s official site describes it as part of their “Quick Connect” technology.

---

📏 When You Might Need a Coupler Kit

Not every install calls for a coupler kit. Here are common scenarios where homeowners use one:

✅ 1. Your Run Is Longer Than 25ft but Shorter Than 50ft

If you measured your lineset path and it’s somewhere around 30–40ft, a 25ft lineset simply won’t cut it. A coupler kit with a second 25ft extension solves the problem.

✅ 2. You Already Own a 25ft Lineset

Maybe you bought a MRCOOL system that included a 25ft lineset, but after measuring, you realize you’re short. Instead of buying an entirely new 50ft line, you can add another 25ft with a coupler kit.

✅ 3. Complex Layouts with Bends

In older homes or tight floorplans, routing may require extra distance even if your straight-line measurement is under 25ft. Those extra bends add length quickly.

✅ 4. Multi-Level Homes

Running a lineset from a second-story air handler down to a ground-level condenser can exceed 25ft — but not necessarily 50ft. The coupler kit bridges that gap.

---

✅ Advantages of Using a Coupler Kit

Coupler kits are a handy solution for certain installs. Here’s why:

1. Flexible Length Options – Lets you cover 30–40ft runs without buying a 50ft line.

2. Cost-Effective if You Already Own a 25ft – Instead of replacing it, you can extend it.

3. Maintains DIY Capability – Still uses MRCOOL’s pre-charged, quick-connect fittings.

4. Factory-Sealed Reliability – Built to MRCOOL’s standards, not a risky aftermarket part.

For homeowners like Savvy, who value both savings and simplicity, it’s a great option in the right situations.

---

⚠️ Potential Drawbacks

But coupler kits aren’t always the best choice. Here’s what to keep in mind:

1. Extra Connection Point = Extra Leak Risk
   Every fitting is a potential weak spot. While MRCOOL’s design is reliable, fewer connections always mean fewer risks.

2. More Complex Installation
   Instead of just connecting two fittings, you now have four (two at each coupler joint).

3. Slight Efficiency Loss
   Longer runs — especially with extra joints — can slightly reduce cooling/heating performance.

4. Cost Trade-Off
   If you don’t already own a 25ft lineset, buying two plus a coupler kit may cost more than a single 50ft line.

👉 According to Energy.gov, refrigerant line length and joint integrity directly impact system efficiency. Keeping your setup as simple as possible is always the best approach.

---

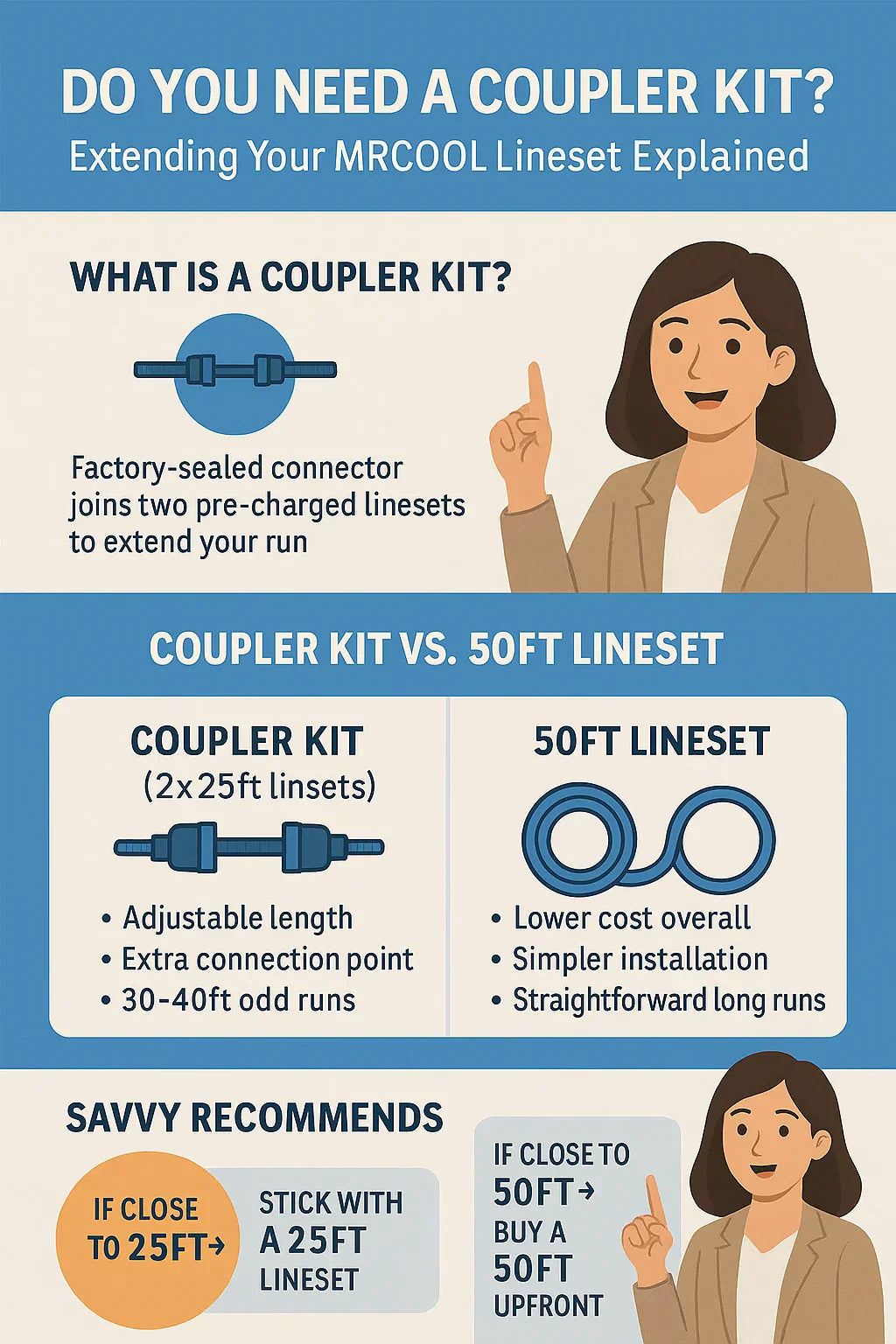

🔄 Coupler Kit vs. 50ft Lineset

Here’s a side-by-side comparison to make it crystal clear:

👉 My Savvy advice: If you’re starting fresh and know you’ll need close to 50ft, just order the 50ft lineset upfront. Use a coupler kit only when it truly makes sense.

---

🛠️ How to Install with a Coupler Kit (Step-by-Step)

Here’s the process if you do decide to use one:

Step 1: Plan Your Route 📐

• Measure carefully from indoor to outdoor unit.

• Ensure you’re within MRCOOL’s maximum run length (check your manual).

Step 2: Position the Linesets 🌀

• Lay out the first 25ft from the indoor air handler.

• Position the second 25ft toward the outdoor condenser.

Step 3: Connect Using the Coupler 🔗

• Align the quick-connect fittings on each lineset to the coupler.

• Hand-thread carefully to avoid cross-threading.

• Tighten to MRCOOL’s torque specifications.

Step 4: Insulate the Connection 🧵

• Wrap the joint with insulation tape.

• Ensure no exposed copper or fittings are left bare.

Step 5: Finish Connections Indoor & Outdoor ⚡

• Connect the first lineset to the air handler.

• Connect the second lineset to the condenser.

Step 6: Open the Valves & Test 🔓

• Slowly release refrigerant into the lines.

• Turn on your system and check performance.

• Inspect the coupler joint for leaks using a spray or detector.

👉 For visual guidance, check MRCOOL’s installation videos.

---

🧯 Safety & Efficiency Tips

Even though MRCOOL’s design is DIY-safe, refrigerant is under pressure. Keep these in mind:

• Always use a torque wrench for proper tightening.

• Don’t overtighten — this can damage seals.

• Keep the coupler accessible for future inspection.

• Never exceed MRCOOL’s maximum allowed length (varies by system).

• Always wear gloves and safety glasses.

The EPA’s Section 608 guidelines are why refrigerant handling is restricted, but MRCOOL’s sealed design keeps you compliant.

---

🚨 Common Mistakes to Avoid

Here are the slip-ups I’ve seen DIYers make with coupler kits:

• ❌ Using it when not necessary — If you’re close to 50ft, just buy the 50ft.

• ❌ Cross-threading the fittings — Always start by hand.

• ❌ Leaving joint uninsulated — Leads to condensation and corrosion.

• ❌ Overtightening — Damages seals and causes leaks.

• ❌ Exceeding max length — Hurts performance and may void warranty.

---

🎯 Final Take: Savvy’s Advice

Here’s the bottom line from me, Savvy:

• Use a coupler kit if you’re in that awkward middle zone (30–40ft) or already have a 25ft lineset you don’t want to waste.

• Choose a 50ft lineset upfront if your install is closer to 50ft — it’s simpler, more efficient, and reduces leak points.

• Always measure carefully, add 10–15% for routing, and double-check MRCOOL’s max length specs.

With the right choice, you’ll save money, avoid headaches, and enjoy a smooth DIY install — the way MRCOOL designed it.

In the next topic we will know more about: How Long Can Your MRCOOL Lineset Be? Maximum Length & Performance Tips
