⚡ Introduction: Why Compatibility Matters

If you’ve purchased or are considering a GE Zoneline PTAC (Packaged Terminal Air Conditioner), you’ll quickly notice that the unit doesn’t come with a power cord installed. Instead, you need to purchase the correct power cord kit separately.

This small but critical detail trips up many first-time buyers. While Zoneline offers several options—RAK315P (15A), RAK320P (20A), and RAK330P (30A)—not all cords work with every unit.

GE Zoneline 230/208V 30A Universal Power Cord Kit RAK330P

That’s where compatibility becomes essential. Buy the wrong cord, and you may face:

A PTAC that won’t power on.
Tripped breakers.
Disabled heating functions.
Wasted money and installation delays.

That’s exactly what happened to Mark, a practical homeowner. He initially bought a 20A cord for his Zoneline unit, only to discover it required the RAK330P 30A cord. Once he made the swap, everything worked perfectly.

This guide explains which GE Zoneline models are compatible with the RAK330P cord kit, how to confirm your unit’s requirements, and why choosing correctly matters for both safety and performance.

🔌 What the RAK330P Power Cord Kit Is

The RAK330P is GE’s 30-amp, 230/208V universal power cord kit, designed specifically for higher-capacity Zoneline PTACs.

Key Specs:

Amperage: 30A
Voltage: 208/230V
Purpose: Provides power to large Zoneline units, particularly those with electric resistance heating.
Safety Design: Unique plug shape ensures it only fits 30A outlets—no accidental mismatches.

💡 Important: The RAK330P is not compatible with 115V Zoneline models or mid-capacity 20A units.

📖 Reference: GE Appliances – Zoneline PTAC Accessories

📏 How to Check Your Zoneline Model for Compatibility

Before buying a cord, check your PTAC’s electrical nameplate.

Where to Find It:

Inside the front panel of your Zoneline PTAC.
Printed on a white or silver sticker.

What to Look For:

Voltage: 115V vs. 208/230V.
Amperage rating: 15A, 20A, or 30A.
Recommended power cord kit.

💡 Mark’s Tip:

“I assumed my PTAC just needed a standard cord. Once I opened the panel, the label clearly said 30A. That’s when I realized I needed the RAK330P.”

📖 Reference: Family Handyman – How to Read Appliance Labels

🏨 Common Zoneline Series Compatible with RAK330P

The RAK330P is used primarily with 208/230V GE Zoneline PTACs that require 30 amps.

Typical Compatible Units:

AZ95 Series – High-capacity models with electric resistance heating.
AZ97 Series – Large PTAC units for hotels and multi-units.
Some AZ61/65 models – If specified for 30A on the nameplate.

Not Compatible With:

115V Models (e.g., AZ41 Series) → Use RAK315P (15A).
208/230V Mid-Range Models (e.g., AZ45, AZ61 in 20A config) → Use RAK320P (20A).

📖 Reference: GE Zoneline PTAC Support

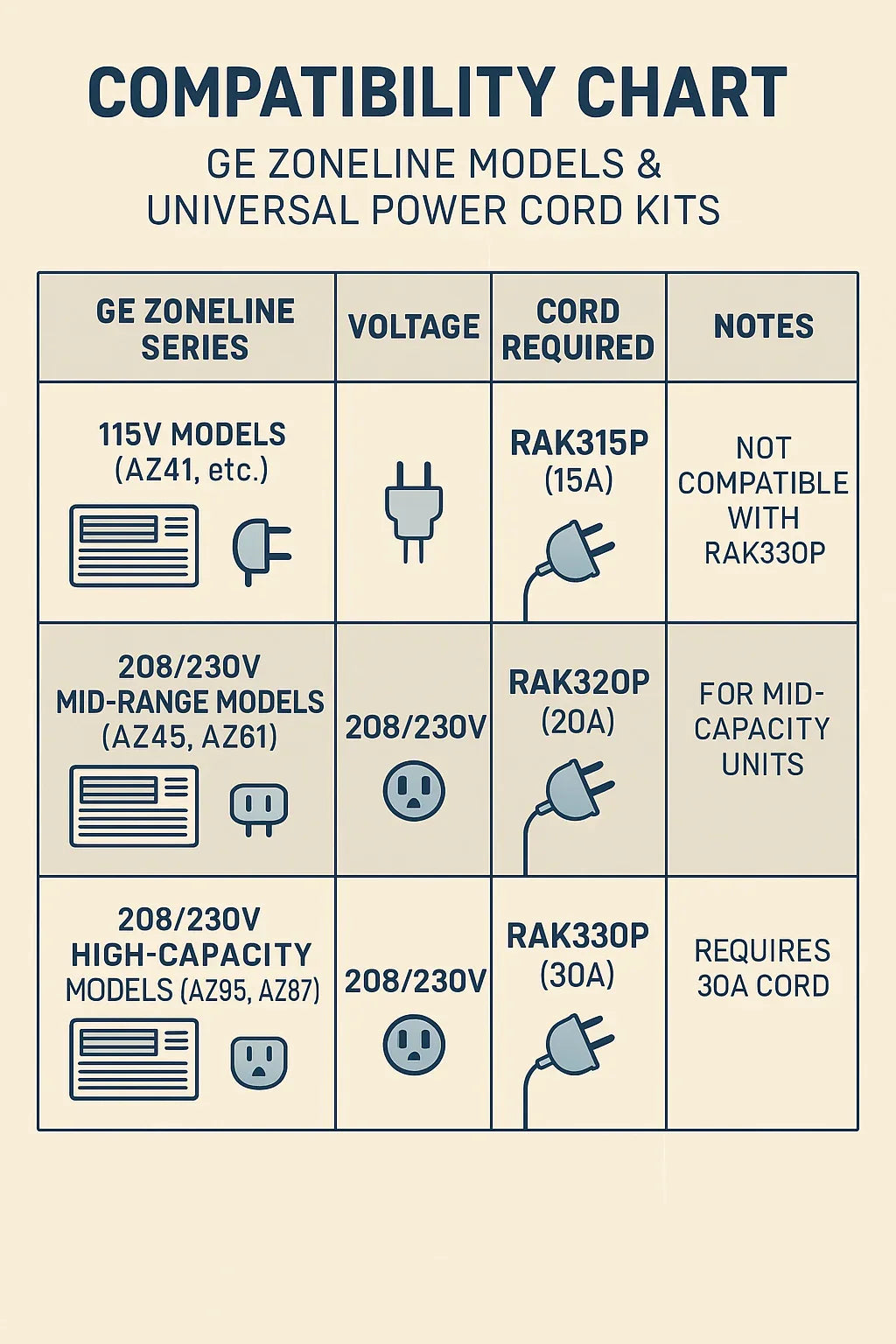

📊 Compatibility Chart

Here’s a simplified breakdown to guide your choice:

GE Zoneline Series	Voltage	Required Cord	Notes
AZ41 Series (115V)	115V	RAK315P (15A)	Entry-level models, not RAK330P compatible
AZ45 / AZ61 Series (208/230V Mid-Capacity)	208/230V	RAK320P (20A)	Common in hotels/apartments
AZ95 / AZ97 Series (208/230V High-Capacity)	208/230V	RAK330P (30A)	Requires 30A for full heating capacity

💡 Rule of Thumb: If your Zoneline has electric resistance heating or is a high-capacity model, you almost certainly need the RAK330P.

🛠️ Why the Right Cord Matters for Electric Heat

One of the most overlooked issues is that some GE Zoneline PTACs will still run the fan and cooling function with the wrong cord—but the heating element won’t activate without the correct amperage.

❌ Wrong cord → Fan runs, but no heat.
❌ Wrong cord → Breaker trips under load.
✅ Correct cord → Full heating and cooling performance.

💡 Mark learned this first-hand:

“My PTAC cooled fine with the 20A cord, so I didn’t think anything was wrong—until winter came and the heat didn’t work. Swapping to the RAK330P solved it.”

📖 Reference: Energy.gov – Electrical Safety Tips

👨🔧 Troubleshooting Cord Compatibility Issues

If your Zoneline won’t power on—or isn’t performing correctly—the cord could be the issue.

Common Signs of the Wrong Cord:

Unit won’t power at all → Cord amperage too low.
Breaker trips immediately → Outlet mismatch.
Heating doesn’t engage → Needs 30A RAK330P cord.
Burning smell or overheating → Replace cord immediately.

📖 Reference: ESFI – Electrical Safety Foundation International

💵 Cost of Getting It Wrong

Buying the wrong cord isn’t just inconvenient—it can be costly.

Wasted money: $70–$100 per wrong cord + return shipping.
Service delays: Hotel rooms or apartments out of service until corrected.
Potential damage: Undersized cords can overheat, damaging outlets.
Repair costs: PTAC repairs can run $500–$1,500 if issues aren’t addressed.

💡 Mark’s Lesson:

“I thought saving $20 by getting a smaller cord was smart. In reality, it cost me $250 for an electrician visit and a week of downtime for one unit.”

📖 Reference: HomeAdvisor – Electrical Outlet Installation Costs

🏨 Why Hotels & Multi-Unit Properties Standardize on RAK330P

For hotels, apartments, and senior living facilities, the RAK330P is often the go-to choice.

Benefits of Standardization:

Consistency: Same cord across dozens of units.
Simplified training: Staff learn one process.
Faster maintenance: Damaged cords swapped quickly.
Bulk pricing: Lower per-unit cost when ordering in quantity.

✅ Conclusion: Confirm Before You Buy

The RAK330P power cord kit is essential for 30A, 208/230V GE Zoneline PTAC models, especially those with electric resistance heating. Using the wrong cord can mean wasted money, lost time, and even safety risks.
