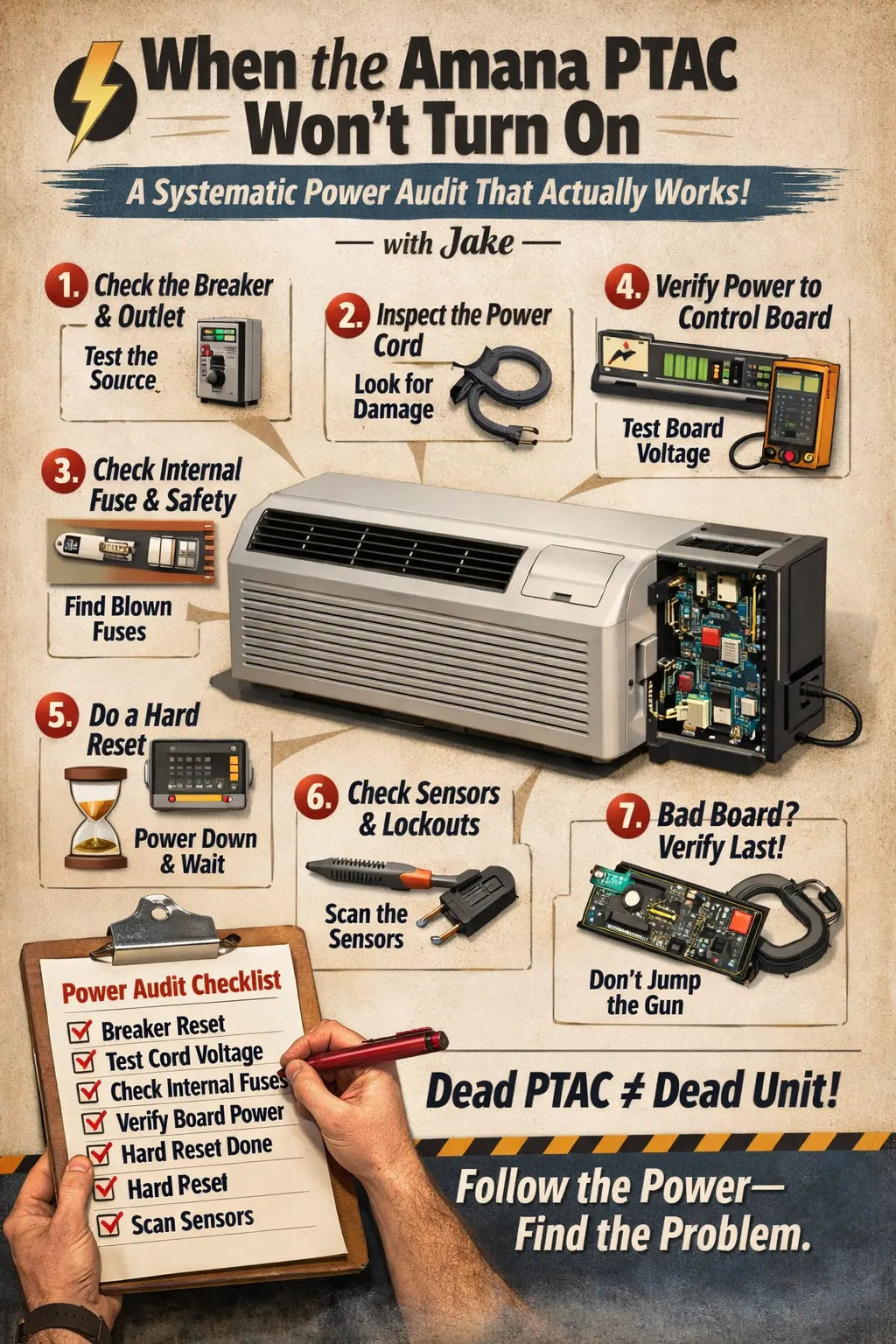

When the Amana PTAC Won’t Turn On — A Systematic Power Audit That Actually Works

When the Amana PTAC Won’t Turn On — A Systematic Power Audit That Actually Works

There are few things more frustrating than a PTAC that looks completely dead. No display. No fan. No reassuring click. Just silence.

Here’s the good news: most “won’t turn on” PTAC calls are not catastrophic failures. They’re power delivery problems—simple, boring, fixable issues hiding in plain sight.

This guide walks you through a real-world power audit, the same sequence I use in the field, specifically tailored to Amana Distinctions PTAC units. No guesswork. No part-swapping. Just logic, order, and proof.

🧭 Start With This Mindset: Dead PTAC ≠ Dead Unit

Before touching tools, reset your assumptions.

If the PTAC:

  • Shows no lights

  • Makes no sound

  • Doesn’t respond to reset buttons or controls

Then power is not reaching the control board, or the board is protecting itself.

Our job is to find where power stops.

⚡ Step 1: Confirm the Power Source (Not the PTAC Yet)

This step gets skipped more than you’d believe.

What to check first

  • Dedicated breaker (often 20A or 30A, depending on voltage)

  • GFCI outlets upstream (especially in hotels or apartments)

  • Maintenance disconnects hidden behind furniture

Flip the breaker fully OFF, then back ON. A half-tripped breaker can look “on” but deliver nothing.

Jake’s rule: If you haven’t physically reset the breaker, you haven’t checked power.

📌 If you manage multiple units, label breakers. PTAC mislabeling causes more wasted service calls than bad parts.

🔌 Step 2: Inspect the Power Cord & Plug Assembly

Amana PTACs are tough—but cords are not.

Look for:

  • Heat discoloration on prongs

  • Loose wall receptacles

  • Cord strain from furniture pressure

  • Melted insulation near the plug head

A damaged cord can pass a visual check but fail under load.

If possible, test voltage at the receptacle with a multimeter:

  • 208/230V units should read close to spec

  • Anything under ~200V can prevent startup

If voltage is unstable, stop here—the PTAC is not the problem.

🧯 Step 3: The Internal Safety Circuit (Where Most Audits End)

If external power checks out, now we open the unit.

⚠️ Power OFF at the breaker before removing the front cover.

Inside the Amana Distinctions PTAC, power flows through multiple safety devices before reaching the control board.

Key components to inspect:

  • Internal fuse

  • Thermal cutoff

  • Line voltage relay

These exist to prevent fire or compressor damage. If one opens, the unit appears completely dead.

A blown internal fuse is not “bad luck.” It’s evidence.

Ask:

  • Was there a surge?

  • A shorted fan motor?

  • Moisture intrusion?

Replacing a fuse without finding the cause is a callback waiting to happen.

🧠 Step 4: Control Board Power Verification (The Deciding Moment)

Now we test whether power reaches the brain.

Using a multimeter:

  • Confirm line voltage at the board input

  • Check low-voltage output to display/control interface

Outcomes:

  • ❌ No voltage at board: wiring or safety device issue upstream

  • ❌ Voltage in, no response out: failed control board

  • ✅ Voltage in and out: issue lies with user interface or sensors

This is where homeowners often jump straight to “bad board” incorrectly. Testing removes doubt.

🔁 Step 5: Hard Reset (Not the Fake Kind)

PTACs don’t “reboot” like phones—but they do lock out after electrical faults.

Proper reset sequence:

  1. Power OFF at breaker

  2. Wait 5 full minutes

  3. Restore power

  4. Do not touch controls for 60 seconds

This allows internal capacitors to discharge and relays to normalize.

If the unit powers up after this, log it. Intermittent power issues often repeat.

🌡️ Step 6: Check for Sensor-Triggered Lockouts

Even with power present, the PTAC may refuse to start.

Common lockout triggers:

  • Open temperature sensor circuit

  • Shorted thermistor

  • Out-of-range readings due to moisture or corrosion

Symptoms:

  • Display flickers briefly then dies

  • Unit powers for seconds, then shuts down

  • No fan engagement

This is where “dead unit” complaints turn into cheap sensor fixes.

🧰 Step 7: When It Is the Control Board (And How to Be Sure)

Control boards fail—but not as often as blamed.

You can confidently condemn the board only if:

  • Verified correct line voltage

  • Confirmed intact fuses & safeties

  • Confirmed sensor continuity

  • No visible corrosion or burn marks elsewhere

At that point, replacement is justified—not guessed.

📋 Power Audit Checklist (Print This)

Before declaring the unit dead:

  • ⬜ Breaker reset & verified

  • ⬜ Receptacle voltage confirmed

  • ⬜ Cord & plug inspected

  • ⬜ Internal fuse tested

  • ⬜ Board input voltage verified

  • ⬜ Hard reset performed

  • ⬜ Sensors checked

Miss one step and you risk replacing the wrong part.

🧠 Why This Matters for Amana Distinctions PTAC Owners

The Amana Distinctions 12,000 BTU PTAC with 3.5 kW heat is designed to protect itself aggressively. That’s good engineering—but it means power problems look worse than they are.

Understanding the power path saves:

  • Time

  • Money

  • Unnecessary replacements

  • Repeat service calls

You don’t need to be an HVAC tech. You just need order and proof.

🔗 External Verified Resources (Max 6)

🧱 Final Word from Jake

A PTAC that won’t turn on is almost never a mystery.
It’s a trail—and power always leaves footprints.

Follow them in order, and the unit will tell you what’s wrong.
