🏡 Introduction: Why Sizing Matters for Comfort and Efficiency
If you're considering installing a ductless mini split system like MRCOOL, one of the most important steps is sizing it correctly. Buy a system that's too small, and you risk uneven temperatures and overworking the unit. Go too big, and you'll face unnecessary energy costs and short cycling. For Mike—a DIYer upgrading the HVAC in his 3-bedroom, 1,800 sq ft home—getting the right BTU calculation is the key to year-round comfort.
In this guide, we'll walk through how to calculate BTU needs, break down Mike's actual floorplan room by room, and recommend the best MRCOOL mini split configuration based on real-world layout and usage.
🔍 BTU 101: What Does BTU Mean in HVAC Sizing?
BTU stands for British Thermal Unit. It's the amount of energy needed to heat or cool one pound of water by one degree Fahrenheit. When it comes to HVAC, BTUs measure how much heating or cooling a system can provide.
Rule of thumb: You need about 20 BTUs per square foot of living space. However, this is just a starting point. Room function, ceiling height, insulation, and sunlight exposure can all affect the final BTU load required.

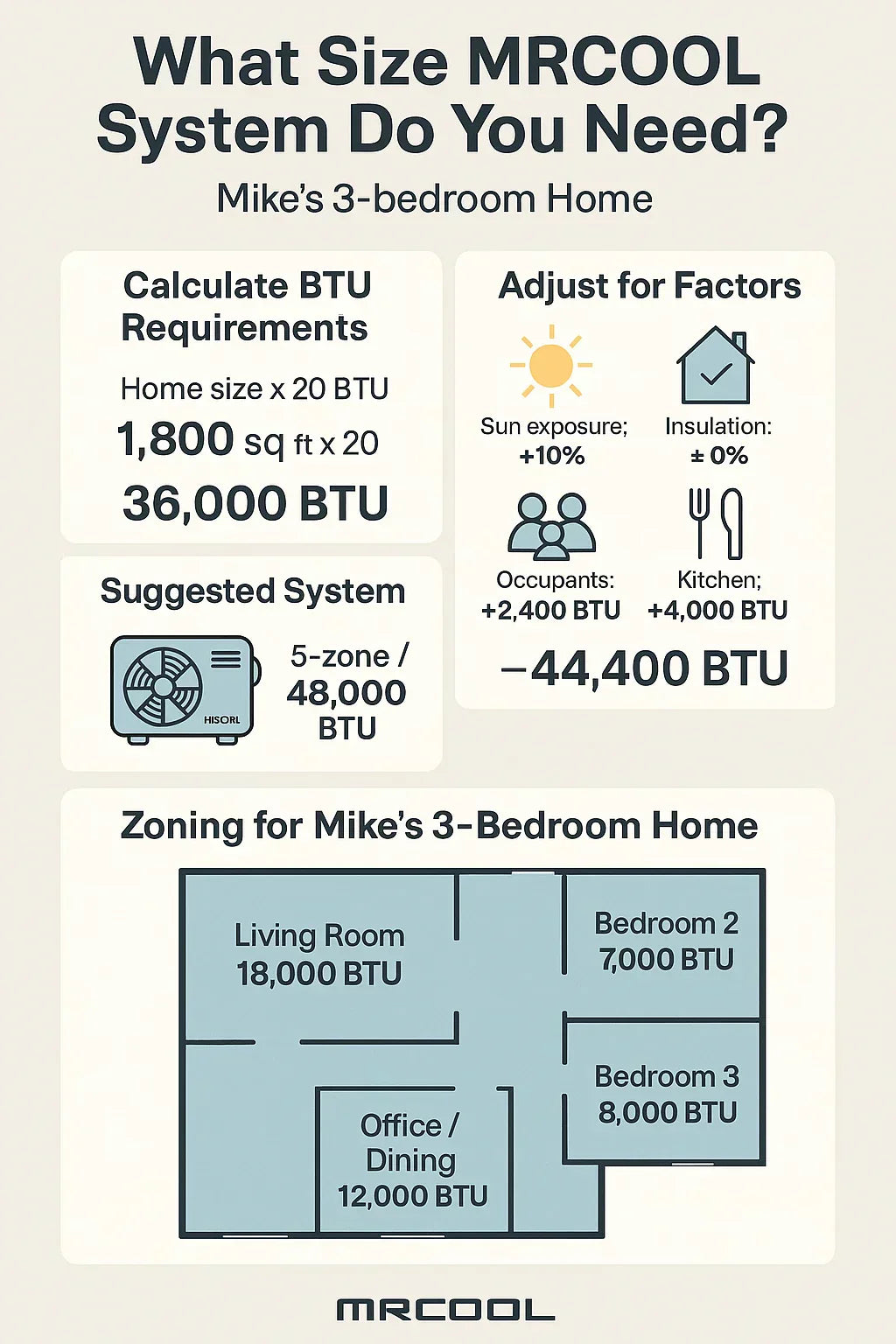

📏 Step-by-Step BTU Calculation for Mike’s Home
Mike’s home is a single-story, 3-bedroom layout with 1,800 sq ft. Let’s apply the base formula first:
Base Load: 1,800 sq ft x 20 BTUs = 36,000 BTUs
But we can’t stop there. Here's what else we need to factor in:
➕ Modifiers to Account For:
-
Sun Exposure: Home faces south and gets full sun during the day.
-
Add 10%
-
-
Occupants: Four people = +600 BTUs per person over two = +1,200 BTUs
-
Kitchen: Adds roughly 4,000 BTUs due to heat from cooking appliances
-
Insulation: Recently upgraded. No penalty or bonus.
✅ Adjusted Load Calculation:
-
Base: 36,000
-
+10% sun: +3,600
-
+Occupants: +1,200
-
+Kitchen: +4,000
Total Estimated Load = ~44,800 BTUs
🛠️ Zoning the Home: How Many Zones Should Mike Use?
Now that we know the home needs ~45,000 BTUs total, we need to decide how to distribute that across rooms.
🏠 Recommended Room-by-Room Breakdown:
| Room | Size (sq ft) | Suggested BTU | Recommended Handler |
|---|---|---|---|
| Master Bedroom | 225 | 9,000 | 9k handler |
| Bedroom 2 | 180 | 7,000 | 7k handler |
| Bedroom 3 | 200 | 8,000 | 9k handler (rounded) |
| Living/Kitchen | 800 | 18,000 | 18k handler |
| Office/Dining | 395 | 12,000 | 12k handler |
Total Recommended BTUs: 54,000 (slightly over to allow for future use and efficiency loss)
This layout supports a 5-zone configuration and allows for tailored control in each space—perfect for Mike’s work-from-home lifestyle.
📦 Which MRCOOL Systems Fit These Requirements?
MRCOOL offers several DIY-friendly systems, but only one supports this configuration natively.
✅ MRCOOL DIY 5-Zone 48,000 BTU System
-
Supports combinations up to 60,000 BTU total handler capacity
-
Comes pre-charged with R-410A refrigerant
-
Works in heating mode down to 5°F
-
No HVAC license required for installation
✅ MRCOOL Advantage (Pro Install Only)
-
Slightly lower upfront cost
-
Requires vacuum pump and professional setup
-
SEER2 ratings vary by handler size
❄️ What If Mike Lives in a Cold Climate?
If Mike lived in a northern zone, heating performance in winter becomes critical.
-
Choose models that heat effectively down to 5°F (like MRCOOL DIY series)
-
Check HSPF2 ratings for heating efficiency
-
Make sure wall units are sized to handle heating AND cooling demand, not just cooling
In extreme climates, add electric baseboard or supplemental heat sources in key rooms.
🔌 Line Sets, Voltage, and Amp Draw: What You Need to Know
-
Line Sets: MRCOOL DIY units use pre-charged Quick Connect line sets like the DIY35-1412C (35 ft, 1/4 x 1/2)
-
Voltage: Most multi-zone MRCOOL systems require 208/230V
-
Breaker Size: Check the outdoor unit specs (typically 30-40 amps for 48k BTU systems)
-
Clearance: At least 12 inches on sides and 24 inches in front of the condenser
❌ Common Mistakes in BTU Sizing (and How to Avoid Them)
-
Ignoring sun exposure and insulation
-
Undersizing bedrooms to save money
-
Oversizing living areas and causing short cycling
-
Skipping Manual J load calculations
🧠 Mike’s Final Setup: At-a-Glance Summary
| Room | Air Handler | BTU |
| Master Bedroom | 9k | 9,000 |
| Bedroom 2 | 7k | 7,000 |
| Bedroom 3 | 9k | 9,000 |
| Kitchen/Living | 18k | 18,000 |
| Office/Dining | 12k | 12,000 |
| Total | 5 Zones | 55,000 |
Recommended System: MRCOOL DIY 5-Zone 48,000 BTU
