What’s Included in the Box? Unboxing the Daikin 3-Ton Split System

0 comments

🏠 Introduction: Why Unboxing Matters

When you buy a new Daikin 3-Ton Light Commercial Split System, it’s natural to wonder: “What exactly do I get when that pallet shows up at my business or job site?”

Unlike smaller appliances, HVAC equipment doesn’t come fully plug-and-play. A central air system arrives in multiple pieces—some factory-assembled, some requiring additional components and professional installation.

Mike, a small business owner in Minnesota who recently upgraded his shop’s HVAC, puts it like this:
“When I ordered my Daikin, I figured it would be like unboxing a TV—you plug it in, hit the remote, and boom, it works. Turns out, HVAC systems are more like buying a truck chassis. You get the heart of the machine, but you’ve still gotta add the right wheels and accessories to make it run.”

This detailed unboxing guide will walk you through:

What comes inside the box when you order the Daikin 3-Ton Split System.
What’s not included but essential for installation.
Why Daikin (and other manufacturers) package equipment this way.
What to expect during delivery and setup.
Mike’s real-world insights to keep the process smooth.

By the end, you’ll know exactly what to expect and won’t be caught off guard on installation day.

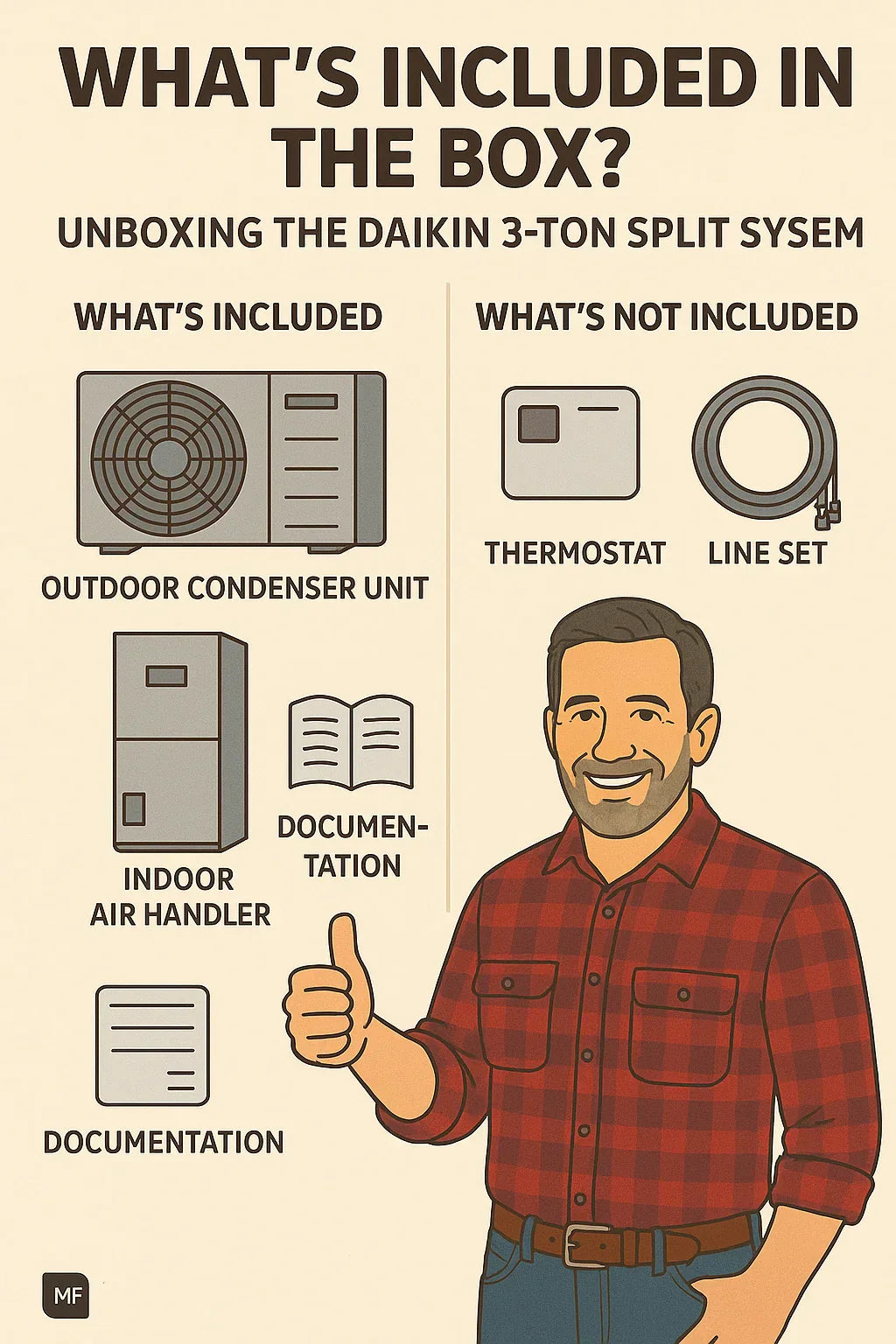

📦 What You’ll Find in the Box

Let’s start with the most important part—what Daikin actually ships when you purchase a 3-ton split system package.

The Daikin Light Commercial 3-Ton Split System (like the DX3SEA3640 + AMST36CU1400) typically arrives in two large boxes (often strapped to a pallet for shipping):

1. Outdoor Condenser Unit (Daikin DX3SEA3640)

This is the powerhouse of your system—the part that sits outside your building and handles the heavy lifting of heat transfer.

Features inside the outdoor unit:

Compressor: The “engine” that circulates refrigerant.
Condenser coil: Releases heat to the outside air.
Fan assembly: Pulls air across the coil for cooling efficiency.
Weather-resistant casing: Built with durable steel and protective coatings to withstand northern winters and southern heat alike.
Factory charge of R-410A refrigerant: Pre-filled to match typical line lengths (installer may adjust charge based on your setup).

Mike’s tip:
“That outdoor unit is heavier than it looks—300 pounds isn’t something you want to muscle off a truck yourself. Let the delivery team or your installer handle it.”

2. Indoor Air Handler (Daikin AMST36CU1400)

This is the indoor component that moves air through your ductwork. Unlike a furnace, which generates heat, this air handler is built for cooling (and can pair with a furnace or electric heat kit for heating).

Key features:

Multi-positional design: Can be installed as upflow, downflow, or horizontal (left/right), making it flexible for tight spaces.
Blower motor: Moves conditioned air into ducts.
Evaporator coil: Works with refrigerant to remove heat and humidity from indoor air.
Control board and wiring connections: The “brains” that communicate with thermostat and condenser.
Cabinet insulation: Reduces noise and increases efficiency.

Mike’s perspective:
“The air handler is the most underrated part of the system. Everyone talks about the outdoor unit, but if your blower isn’t right, you’re not gonna feel comfortable inside.”

3. Factory Documentation & Paperwork

Every Daikin system comes with a small packet of paperwork, usually taped inside the box.

What’s included:

Owner’s Manual: For system operation and basic maintenance.
Installation Guide: Step-by-step instructions for professional installers.
Warranty Documentation: Daikin typically offers a 10-year parts warranty (registration required).
Serial Numbers & Labels: Needed for warranty claims and service tracking.

**🔧 What’s Not Included in the Box (But Needed for Install)**

Here’s where many first-time buyers get tripped up. You open the boxes, see the condenser and air handler, and think, “Wait a second… where’s the thermostat? The wiring? The line set?”

Don’t worry—that’s by design. HVAC systems are customized for each installation.

Items Not Included in the Box:

Thermostat:
- Smart or basic options available.
- Sold separately because preferences vary.
Refrigerant Line Set:
- Copper tubing that connects indoor and outdoor units.
- Length depends on your building layout (can range from 10 ft. to 50 ft.+).
Electrical Disconnect & Wiring:
- Safety shutoff required by code.
- Wiring lengths and gauge depend on your electrical setup.
Ductwork or Transitions:
- Your existing duct system may need modifications.
- Not included because every building is unique.
Condensate Drainage:
- Tubing or pumps to remove water collected by the evaporator coil.

Mike’s tip:
“Think of it like buying a grill. You get the grill body in the box, but you still gotta buy the propane tank, the cover, and the spatula. Same with HVAC—you’ve got the main parts, but the extras depend on your setup.”

⚡ Why Some Items Aren’t Included

At first, it might feel frustrating to realize that not everything comes standard. But there are good reasons:

Every building is unique. Line lengths, duct sizes, and wiring vary. Including one-size-fits-all parts would waste money and materials.
Keeps costs competitive. By selling only the core system, Daikin avoids charging you for items you may not need.
Gives installers flexibility. Contractors can select the right accessories for your building rather than being locked into factory defaults.

🛠️ Installation Essentials Checklist

To make sure you’re ready, here’s a pre-install checklist for Daikin’s 3-ton system:

✅ Refrigerant line set (copper tubing).
✅ Thermostat (smart, programmable, or manual).
✅ Electrical disconnect box, breaker, and wiring.
✅ Duct adapters, transitions, or modifications.
✅ Condensate drain tubing or pump.
✅ Mounting pad or brackets for outdoor unit.

Mike’s advice:
“If you’re DIYing some prep work, you can at least have the electrical and ductwork lined up before the installer comes. Saves time, saves labor hours.”

📈 What to Expect from the Delivery

Shipping & Packaging

Units usually arrive strapped to a pallet.
Outdoor condenser weighs ~250–300 lbs.
Air handler weighs ~100–150 lbs.

How It’s Packaged

Heavy-duty cardboard boxes with protective foam.
Weather-resistant wrapping if shipped long-distance.
Labels on each box clearly showing model numbers.

Delivery Day Tips

Arrange for liftgate service if no loading dock is available.
Clear space near your building for the pallet drop.
Inspect boxes for damage before signing delivery paperwork.

Mike’s story:
“When mine showed up, the delivery guy asked if I had a forklift. I laughed—this is a hardware store, not a warehouse! Luckily, I had arranged for liftgate service. Saved me a lot of hassle.”

🛠️ The Unboxing Experience (Step-by-Step)

If you want the play-by-play, here’s how unboxing typically goes:

Cut pallet straps with a utility knife.
Slide boxes (don’t drop them—compressors hate rough handling).
Inspect exterior for dents, scratches, or crushed corners.
Open carefully—don’t use a deep blade near coils.
Locate documentation packet—don’t toss it with the packaging!
Check included parts (blower, coil, fan, compressor).
Re-seal boxes until installer arrives (keeps dust and damage away).

📉 Common Mistakes to Avoid

❌ Expecting everything you need in the box.
❌ Letting units sit in the rain before install.
❌ Forgetting to register warranty within 60 days.
❌ DIY installation without a licensed HVAC pro (can void warranty).

Mike’s warning:
“Don’t cheap out and try to wire it yourself if you’re not trained. Not only can you fry the system, but Daikin won’t honor the warranty. Trust me, it’s not worth it.”

✅ Mike’s Final Word

Mike sums up the unboxing process like this:
“When you crack open a Daikin 3-ton split system, you’re getting the two most important parts: the outdoor condenser and the indoor air handler. That’s the heart and lungs of your system. But just like building a truck or setting up a computer, you still need the right accessories to make it run in your space. Don’t panic if the box looks ‘incomplete’—that’s how it’s supposed to be.”
