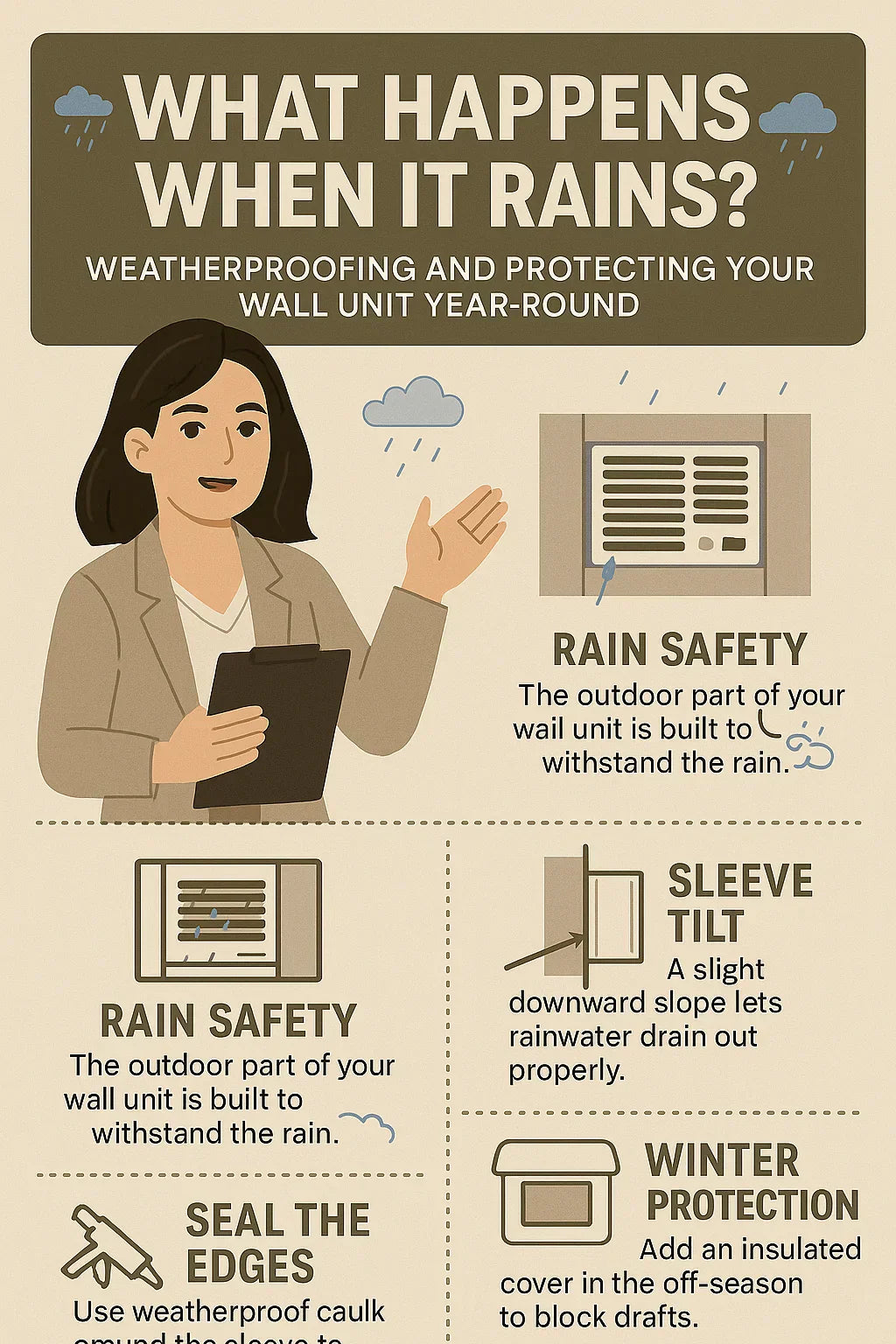

If you own an Amana 11,600 BTU 115V Through-the-Wall Air Conditioner with Remote (Model PBC122J00AA), you already know how dependable it is in the heat. But what about when the weather turns wet, windy, or freezing? Let’s talk about protecting your investment from the elements — rain or shine, season after season.
🌦️ 1. Why Weatherproofing Your Wall AC Matters
Through-the-wall air conditioners are built for year-round exposure, but constant weather wear can still take a toll. Over time, rain, snow, wind, and sun can:
-
Corrode the metal casing or grille.
-
Clog the drain holes with debris.
-
Cause drafts or leaks through poor wall seals.
Good weatherproofing ensures your AC stays efficient and dry inside — no matter what’s happening outside.
📎 According to the U.S. Department of Energy, moisture intrusion and air leakage are two of the most common causes of premature AC failure.
💬 Savvy Tip: Think of your wall unit like a mini window to the outdoors — if you wouldn’t leave your window unsealed, don’t leave your AC that way either.
🧱 2. How Through-the-Wall ACs Handle Rain by Design
Your Amana PBC122J00AA is specifically engineered to handle rain safely.
💧 Built-In Protection Features:
-
Sloped chassis: Channels rainwater toward the rear drain pan.
-
Drain holes: Allow water to drip out naturally.
-
Protective rear grille: Prevents leaves or debris from clogging the drain.
-
Weather-sealed sleeve: Keeps indoor components dry.
So yes — it’s absolutely fine for rain to fall directly on your AC’s outdoor portion. That’s how it’s designed.
📎 Amana’s official installation guide confirms that the unit’s drainage and corrosion-resistant coating are tested for outdoor exposure.
💬 Savvy Tip: Never try to “cover” your AC while it’s running during rain — you’ll trap moisture and heat, which can damage the system.
💦 3. Common Weather-Related Issues (and How to Prevent Them)
While your wall unit is rain-ready, poor installation or skipped maintenance can lead to issues. Here’s what to watch for:
| Problem | Cause | Solution |
|---|---|---|
| Water dripping inside | Sleeve not tilted outward | Ensure ¼-inch downward slope to outside |
| Rust on outer shell | Standing water or salt air | Clean and apply protective coating yearly |
| Drafts in winter | Gaps around sleeve | Seal edges with silicone or foam strips |
| Moldy smell | Blocked drain holes | Clear drain pan monthly during summer |
💬 Savvy Tip: The goal is flow, not containment. Let water drain out freely — don’t try to seal every hole shut.
🪟 4. The Importance of Sleeve Tilt and Drainage
One of the most overlooked steps in installation is the tilt.
Your sleeve should slope about ¼ inch downward toward the outside.
Why?
Because gravity helps drain rainwater and condensation safely away.
Quick Test:
-
Pour a small cup of water inside the rear pan.
-
If it doesn’t flow out immediately, your sleeve may be too level.
📎 Energy.gov highlights proper tilt as essential for both drainage and efficiency.
💬 Savvy Tip: A simple carpenter’s level and a small shim can fix drainage alignment in under five minutes.
🧰 5. Sealing the Edges — Keeping Weather Out and Comfort In
Air leaks are the silent enemy of comfort — and water intrusion’s best friend.
Use weatherproof silicone sealant or closed-cell foam strips around your AC sleeve edges.
Seal These Key Areas:
-
Between the sleeve and the interior wall.
-
Around the exterior flange (where the sleeve meets siding or brick).
-
Under the interior trim frame.
📎 Home Depot’s weatherproofing guide suggests silicone as the most durable option for wall AC sealing.
💬 Savvy Tip: Don’t seal the bottom drain path — that’s where water needs to flow out. Only seal sides and top.
🌬️ 6. Wind and Storm Protection — Reinforcing for Heavy Weather
Even though Amana units are built tough, strong winds or flying debris can damage the fins or grille.
Prep for Windy Seasons:
-
Install a rear grille guard (usually included with the sleeve).
-
Trim nearby tree branches.
-
Securely fasten the sleeve to wall studs using all mounting holes.
If your home faces extreme storms or hurricanes, consider an optional weather guard cover when the unit is not in use.
📎 FEMA’s severe weather home safety guide recommends securing exterior-mounted units against windborne debris.
💬 Savvy Tip: Avoid vinyl tarps — they trap condensation. Use a breathable polyester cover designed for ACs instead.
❄️ 7. Winter Weatherproofing — Keeping Cold Air and Moisture Out
During winter, your through-the-wall AC can become a draft pathway if left unprotected.
🧣 Simple Winter Prep Steps:
-
Unplug the AC (if removable).
-
Cover the interior grille with a magnetic or insulated panel.
-
Cover the outdoor section with a vented winter cover.
-
Seal any visible gaps with foam or weatherstripping.
📎 ENERGY STAR recommends insulating unused cooling units to reduce winter heat loss by up to 10%.
💬 Savvy Tip: You can also slide the unit out completely during off-season months — your wall sleeve will stay sealed with a snap-on cover.
☀️ 8. Sun, Heat & UV Protection — Don’t Forget the Summer Sun
Prolonged sun exposure can fade and weaken your AC’s outer shell and grille.
Even though it’s designed for durability, a little shade goes a long way.
Sun Protection Tips:
-
Install a small awning or canopy above the unit.
-
Use UV-resistant paint or sealant on metal sleeves.
-
Keep blinds angled down indoors to reduce direct heat load.
📎 Energy.gov’s passive cooling guide notes that exterior shading can cut AC energy demand by 15–25%.
💬 Savvy Tip: A shaded AC not only lasts longer — it also cools more efficiently because the condenser runs cooler.
🌫️ 9. Handling Heavy Rain and Flood Conditions
Even though light to moderate rain is fine, you should always check your wall unit after severe storms.
After a Storm:
-
Check that the rear grille isn’t clogged with leaves or mud.
-
Inspect for water pooling in the drain pan.
-
Wipe interior edges with a dry cloth if damp.
If the unit was partially submerged, do not power it on until inspected by a professional.
📎 EPA’s flood cleanup safety guide warns that running water-damaged electrical appliances can cause shorts or fires.
💬 Savvy Tip: If you live in a flood-prone area, install your wall AC at least 12–18 inches above ground level for extra safety.
🪟 10. Mold and Moisture Management — Keeping It Fresh Inside
Moisture is the silent culprit of odors and reduced efficiency.
If you ever notice a musty smell, it’s a sign your AC needs a quick clean.
Easy Fix:
-
Remove the front grille.
-
Wipe down the evaporator coils with a damp cloth.
-
Spray a light AC coil cleaner if needed.
-
Let it air dry before running again.
📎 EPA Indoor Air Quality Guide explains that cleaning your AC prevents mold spores and bacterial growth.
💬 Savvy Tip: Run your AC on Fan Mode for 10 minutes after a humid day — it dries out moisture buildup naturally.
🧽 11. Seasonal Maintenance Checklist for Year-Round Protection
| Season | Task | Goal |
|---|---|---|
| Spring | Clear debris, inspect drainage | Prep for cooling season |
| Summer | Clean filter monthly | Maximize airflow |
| Fall | Seal around sleeve | Block drafts |
| Winter | Add insulated cover | Prevent heat loss |
💬 Savvy Tip: Mark your calendar for quick “AC check” reminders — it’s faster than a grocery run and saves on repair bills later.
🌈 12. Bonus: Weatherproof Accessories That Make Life Easier
Here are a few small upgrades that can make your Amana wall unit nearly invincible against weather:
✅ Rear Grille Guard – protects coils from debris.
✅ Vented Winter Cover – keeps moisture out while letting air circulate.
✅ Silicone Sealant (Clear or White) – fills gaps without cracking.
✅ Foam Insulation Strip Kit – prevents drafts around the frame.
✅ UV-Resistant Paint – preserves the outer casing in sunny climates.
💬 Savvy Tip: Accessories aren’t just about protection — they improve appearance, too. A well-sealed unit looks cleaner and more professional.
🧠 13. Real-World Example: Savvy’s Setup in a Rainy Climate
I live in a coastal area where summer storms roll in often. My Amana 11,600 BTU unit has survived heavy rainfall, 50 mph winds, and humidity that could wilt houseplants — all thanks to these three things:
-
A sloped sleeve with good drainage.
-
Sealed edges using weatherproof silicone.
-
A breathable cover in the off-season.
After three years, my unit still looks brand new and runs whisper-quiet.
💬 Savvy Tip: Coastal or humid climates benefit most from monthly drainage checks — salt air and algae can clog vents faster than you’d think.
💡 14. The Payoff: A Little Prep = Years of Reliable Cooling
Weatherproofing isn’t complicated — but it pays off big:
✅ Prevents leaks and mold.
✅ Reduces energy loss by sealing air gaps.
✅ Extends the life of your AC.
✅ Keeps your home quiet, dry, and comfortable all year.
💬 Savvy’s Final Thought:
“Your Amana can handle the rain — but a few smart habits make sure it thrives through every season.”
In the next topic we will know more about: DIY or Call a Pro? Installing the Amana 11,600 BTU the Smart Way
