If you’re setting up your Amana 11,600 BTU 115V Through-the-Wall Air Conditioner with Remote (Model PBC122J00AA), you’ve already chosen one of the most efficient models for small spaces. Now let’s make sure it fits perfectly — because a snug, well-installed wall sleeve is the secret to performance, quiet operation, and long-term reliability.

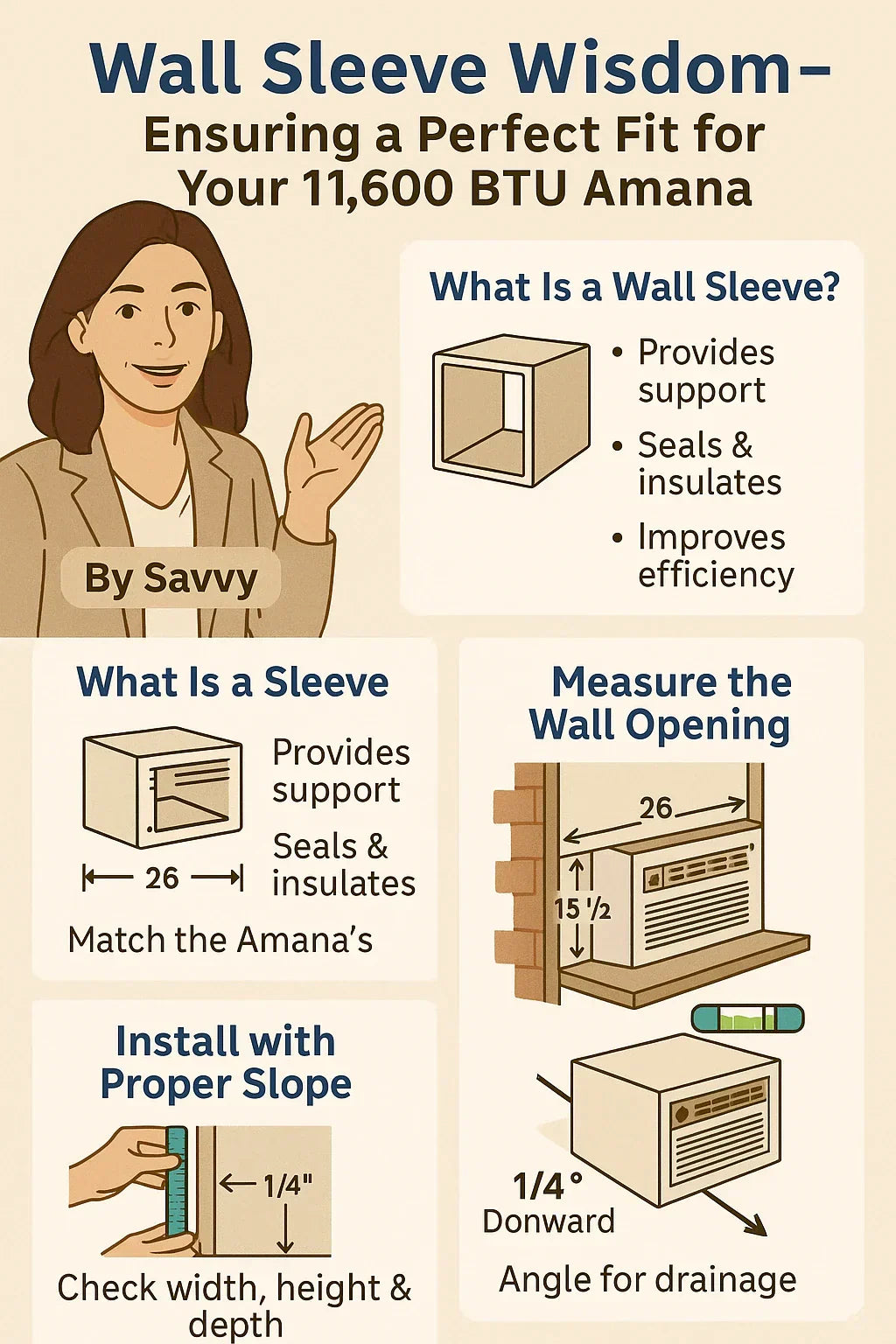

🧊 1. What Exactly Is a Wall Sleeve — and Why It Matters
Think of the wall sleeve as the foundation your Amana AC sits on. It’s a protective metal or polymer casing that slides into your wall opening and holds the air conditioner in place.
Without it, the AC can’t stay secure, can’t drain water correctly, and — worst of all — can leak air or moisture into your living space.
🧩 The Wall Sleeve Does Three Key Things:
-
Provides structure and support: Keeps your AC stable inside the wall cavity.
-
Prevents air and water leaks: Proper seals stop hot air, rain, and bugs from sneaking in.
-
Improves efficiency: A tight fit ensures your unit cools your room, not your drywall.
📎 According to ENERGY STAR, improper AC installations can increase energy loss by 20–30% — most often due to gaps or misaligned sleeves.
💬 Savvy Tip: If your AC seems louder than usual, or if you feel drafts around it, the issue may not be the unit itself — it’s usually the sleeve.
🧱 2. Matching the Right Sleeve to the 11,600 BTU Amana
Your Amana PBC122J00AA is designed for a standard 26-inch-wide wall sleeve — the same used by most 24" and 27" Amana and GE through-the-wall models.
✅ Recommended Sleeve Model:
Amana WS900E (or an equivalent 26" x 15.5" x 16.75" universal sleeve).
This sleeve fits perfectly with the PBC122J00AA and includes side insulation panels and rear grille options.
| Sleeve Type | Compatible? | Notes |
|---|---|---|
| Amana WS900E | ✅ Yes | Designed for this model |
| GE AKRQ06 Sleeve | ⚠️ Partial | Fits but requires adapter trim |
| LG AXSVA4 Sleeve | ⚠️ Similar size, minor fit adjustments | |
| Friedrich WSE Sleeve | ❌ No | Different depth and drain setup |
📎 You can verify sizing and compatibility at Amana’s official product support page.
💬 Savvy Tip: Always double-check your wall sleeve dimensions before ordering — "close enough" doesn’t cut it when sealing for air efficiency.
🧭 3. Measuring Your Wall Opening the Right Way
Getting your measurements correct is half the battle. Even a ¼-inch mismatch can cause gaps or vibration issues later.
Here’s what to measure:
-
Width: Inside edge to inside edge of the wall cutout (should be ~26").
-
Height: Bottom to top of the opening (should be ~15.5").
-
Depth: From interior drywall to exterior wall surface (typically 16–17").
💬 Savvy Tip: If your wall is thicker than the sleeve, you can use an Amana deep-sleeve extender kit to bridge the gap.
📎 Home Depot’s wall AC installation guide explains how to size and prep your wall opening with illustrations.
🔨 4. Preparing the Wall for Installation
Before sliding in your new sleeve, the wall must be:
-
Clean and level (no debris or protruding nails).
-
Sealed with waterproofing tape to prevent leaks.
-
Framed with wood or metal studs for extra support.
🧰 Materials You’ll Need:
-
Level
-
Stud finder
-
Silicone sealant
-
Foam insulation strips
-
Drill and screws
💬 Savvy Tip: Make sure the wall cutout slopes ¼-inch downward toward the outside — this helps condensation drain properly.
📎 Energy.gov stresses correct drainage slope as key to preventing internal water damage.
🧩 5. Sliding in the Sleeve — Step-by-Step
Once your wall opening is ready, installing the sleeve is surprisingly easy:
-
Position the sleeve from inside the room, pushing it through until it’s flush with the interior wall.
-
Check for level and tilt: Use a small bubble level to confirm slight downward slope outward.
-
Secure the sleeve: Screw into wall studs through pre-drilled flanges.
-
Seal around the edges: Apply silicone or foam tape to prevent air leaks.
-
Install rear grille: Snap or screw into place on the outdoor side.
💬 Savvy Tip: Do a “fit check” before fully sealing — slide your Amana AC partway into the sleeve to make sure everything lines up smoothly.
🌬️ 6. Why Proper Sealing Saves You Money
A sleeve that’s not sealed correctly can create hidden energy losses:
-
Hot outdoor air seeps in around the edges.
-
Cool indoor air escapes into the wall cavity.
-
Condensation builds up and damages drywall.
Over time, this doesn’t just affect comfort — it can add $40–$80 per year to your utility bills.
📎 The U.S. Department of Energy’s air sealing guide confirms that small air leaks can account for 20%–40% of total energy loss in older homes.
💬 Savvy Tip: If you can feel warm air near your AC edges when it’s off, reseal your sleeve — you’re literally feeling wasted energy.
🧰 7. Drainage 101 — Avoiding the Drip Drama
Your Amana unit drains condensation to the outside through the sleeve. If the sleeve isn’t angled or installed properly, water can:
-
Pool inside the wall cavity.
-
Drip indoors.
-
Cause mold growth or rust.
🔧 The Quick Fix:
Make sure your sleeve is tilted slightly outward (¼ inch over 16 inches) and the rear drain hole is unobstructed.
💬 Savvy Tip: Never plug the drainage holes — they’re designed to help your AC breathe.
📎 The EPA Indoor Air Quality guide highlights the importance of correct drainage to prevent indoor humidity and mold.
🪟 8. Insulation: The Unsung Hero of Efficiency
A properly insulated sleeve keeps your Amana running quieter and more efficiently.
Use foam insulation panels or gasket kits around the sleeve’s interior edges.
This creates:
✅ A tighter seal.
✅ Less compressor noise.
✅ Better temperature control.
💬 Savvy Tip: For apartments or condos, this also reduces sound transmission to neighboring units — a bonus for peace and privacy.
🧱 9. Replacing an Old Sleeve — When to Start Fresh
If you’re upgrading from an older wall AC, it’s tempting to reuse your old sleeve — but here’s when you shouldn’t:
-
It’s rusted, warped, or leaking.
-
The drain holes are clogged or misaligned.
-
The interior insulation is deteriorating.
Replacing it ensures your new Amana can perform at its full rated 9.7 CEER efficiency.
💬 Savvy Tip: A replacement sleeve typically costs under $100 — but can save you hundreds in long-term performance.
📎 The Spruce notes that older sleeves can cause rattle noise and vibration if not aligned to modern AC standards.
🧩 10. A Perfect Fit for Comfort, Quiet, and Longevity
When installed properly, your wall sleeve ensures:
-
Quiet operation: No vibration or rattling.
-
Energy efficiency: No air leaks or wasted cooling.
-
Longevity: AC lasts longer thanks to proper drainage and support.
💬 Savvy Tip: Always keep your sleeve’s serial label handy — it helps when ordering future replacement parts or grilles.
🧽 11. Seasonal Sleeve Care — Don’t Forget the Basics
Even though it’s just a metal frame, your wall sleeve still needs a little attention.
🗓️ Spring:
-
Check for debris, bird nests, or leaves in the rear grille.
-
Wipe interior edges with a damp cloth.
🍂 Fall:
-
Inspect sealant and foam for wear.
-
Cover the rear opening with an insulated sleeve cap if removing the AC for winter.
📎 Family Handyman recommends a quick sleeve inspection each spring to ensure proper drainage and airflow before the cooling season begins.
💬 Savvy Tip: A simple nylon mesh cover can keep out dust and insects when your unit isn’t in use.
🧠 12. Common Mistakes Homeowners Make (and How to Avoid Them)
| Mistake | Problem It Causes | How to Fix It |
|---|---|---|
| Sleeve installed level (no tilt) | Water leaks indoors | Reinstall with ¼-inch outward slope |
| No insulation | Hot air leaks, vibration noise | Add foam gasket or insulation strips |
| Sleeve too deep | Condensation inside wall | Use trim kit or extender panel |
| Sleeve not secured | Rattling or shifting | Screw into wall studs firmly |
| Wrong rear grille | Restricted airflow | Use the one included with your AC |
💬 Savvy Tip: Don’t reuse an old grille from a different brand — airflow pattern differences can cause performance drop.
🛠️ 13. Real-World Fit Check: Savvy’s Apartment Install
When I installed my Amana 11,600 BTU in a 1950s brick apartment, the old sleeve was corroded and slightly crooked — no wonder it was loud and inefficient!
After replacing it with a WS900E sleeve, sealing it with silicone, and adding insulation strips, here’s what I noticed immediately:
✅ Quieter operation (almost 5 dB lower noise).
✅ Cooler air faster — room hit 74°F in half the time.
✅ No more humidity smell or condensation drip.
💬 Savvy Tip: If your AC hums louder after installation, double-check the sleeve’s alignment — that’s almost always the culprit.
💡 14. The Payoff: A Snug Sleeve = Smart Comfort
A perfect wall sleeve isn’t just about installation aesthetics — it’s about protecting your investment.
When your Amana fits perfectly:
-
You save up to 15% in energy costs.
-
You eliminate rattles and leaks.
-
You extend the lifespan of both the unit and your wall.
💬 Savvy’s Final Thought:
“Your Amana cools the air — but your wall sleeve makes it all possible. Treat it like part of the system, not just an accessory.”
In the next topic we will know more about: No Ducts, No Problem — Why Through-the-Wall ACs Are Perfect for Older Homes
