Troubleshooting Common Issues in R-32 AC and Gas Furnace Systems
Introduction
An R-32 air conditioner and gas furnace system offers high energy efficiency and reliable climate control, but like any HVAC setup, occasional issues can arise. Understanding common problems and their solutions can help homeowners troubleshoot minor issues before calling a technician.
This guide provides step-by-step troubleshooting methods, identifying potential causes and solutions for cooling, heating, and system performance issues.
For official troubleshooting resources, visit Energy Star’s HVAC Repair Guide.
1. Air Conditioner Issues and Solutions
1.1 AC Not Cooling Properly
🔹 Possible Causes:
- Clogged or dirty air filter restricting airflow.
- Low refrigerant levels due to a leak or improper charge.
- Dirty evaporator or condenser coils reducing efficiency.
- Thermostat set incorrectly or malfunctioning.
✅ Solutions:
- Replace the air filter every 1-3 months to maintain airflow.

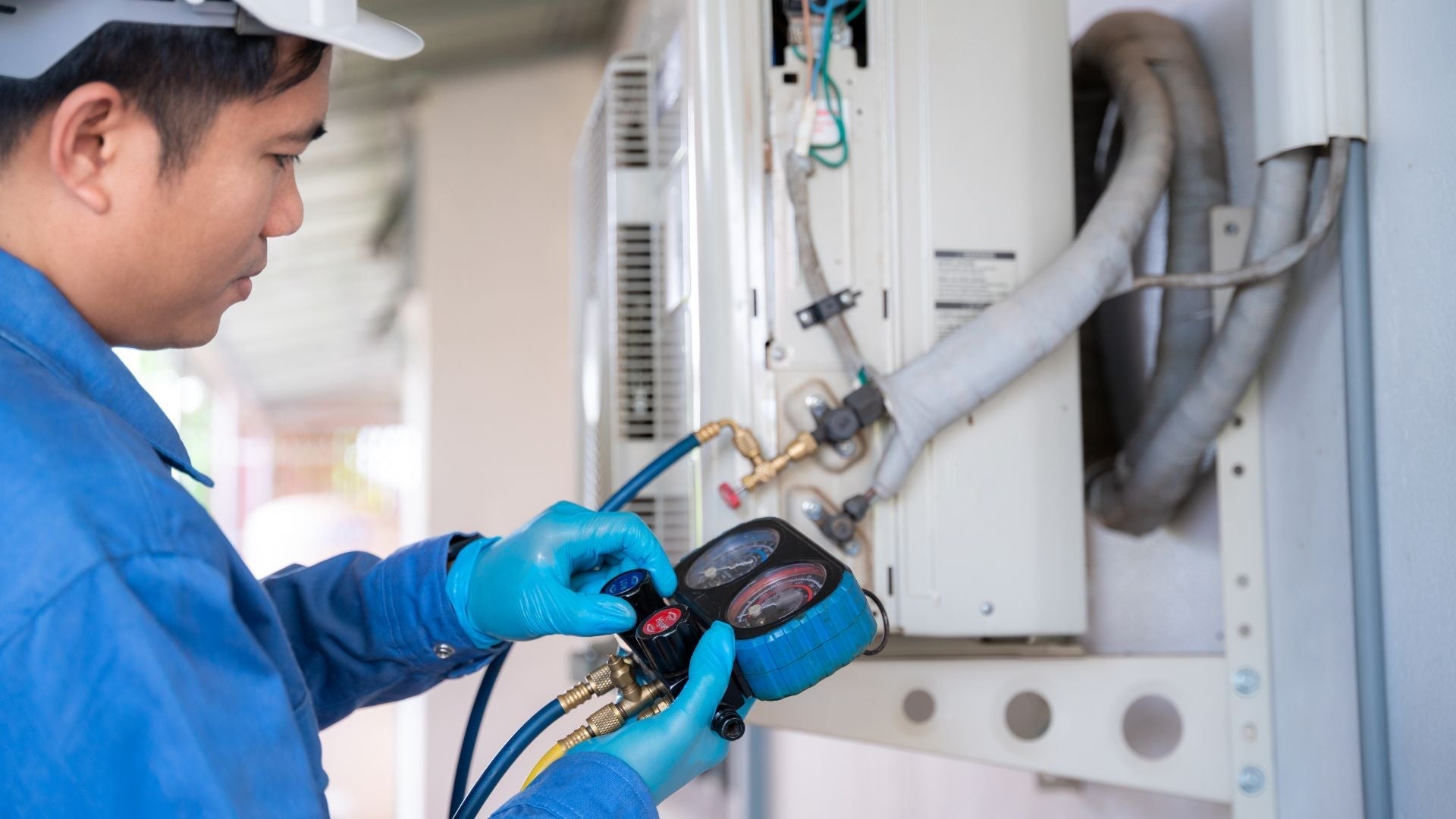

- Check refrigerant pressure using a manifold gauge and inspect for leaks.
- Clean the evaporator and condenser coils to remove dirt buildup.
- Test thermostat settings and recalibrate if necessary.
🔗 More on AC Cooling Troubleshooting: Daikin’s Guide to AC Issues
1.2 AC Making Unusual Noises
🔹 Possible Causes:
- Loose or damaged fan blades.
- Worn-out blower motor bearings.
- Refrigerant leaks causing hissing sounds.
- Electrical issues creating buzzing or clicking noises.
✅ Solutions:
- Inspect and tighten fan blades and blower components.
- Lubricate blower motor bearings to reduce friction.
- Check for refrigerant leaks and call a certified technician for repairs.
- Inspect electrical connections and tighten loose wires.
🔗 More on Noisy HVAC Systems: Trane’s AC Noise Guide
1.3 AC Running Continuously
🔹 Possible Causes:
- Thermostat set too low, causing overcooling.
- Low refrigerant levels reducing cooling efficiency.
- Dirty coils or air filter restricting airflow.
✅ Solutions:
- Adjust thermostat settings to prevent excessive cooling.
- Inspect and clean coils and air filters to improve performance.
- Check refrigerant levels and top off if necessary.
🔗 Read More: Carrier’s Guide to AC Overcycling
2. Gas Furnace Issues and Solutions
2.1 Furnace Not Producing Heat
🔹 Possible Causes:
- Thermostat set incorrectly or malfunctioning.
- Dirty burners preventing proper ignition.
- Faulty ignitor or pilot light issue.
- Clogged air filter restricting airflow.
✅ Solutions:
- Ensure thermostat is set to heating mode and check temperature settings.
- Clean burners with a soft brush to remove dust buildup.
- Inspect ignitor or pilot light and replace if faulty.
- Replace air filters to ensure proper airflow.
🔗 More on Furnace Heating Problems: Goodman’s Gas Furnace Troubleshooting Guide
2.2 Furnace Blowing Cold Air
🔹 Possible Causes:
- Clogged condensate drain preventing burner ignition.
- Faulty flame sensor shutting down the system.
- Gas supply issue preventing proper combustion.
✅ Solutions:
- Check and clear the condensate drain line to allow proper function.
- Clean the flame sensor using fine-grit sandpaper.
- Inspect gas supply connections and verify gas valve operation.
🔗 Learn More: Lennox’s Guide to Furnace Blowing Cold Air
2.3 Furnace Short Cycling (Turning On and Off Frequently)
🔹 Possible Causes:
- Overheating due to restricted airflow.
- Faulty limit switch shutting down the system.
- Incorrect thermostat calibration.
✅ Solutions:
- Replace clogged air filters to improve airflow.
- Test and replace the limit switch if overheating persists.
- Recalibrate or replace the thermostat if necessary.
🔗 Read More on Furnace Short Cycling: Trane’s Furnace Repair Guide
3. System-Wide Issues and Fixes
3.1 Weak Airflow Throughout the Home
🔹 Possible Causes:
- Dirty air filter restricting airflow.
- Leaky ductwork reducing system efficiency.
- Blocked or closed vents limiting air distribution.
✅ Solutions:
- Replace or clean air filters regularly to maintain airflow.
- Seal duct leaks using professional-grade tape.
- Ensure all supply and return vents are open and unobstructed.
🔗 More on Ductwork Issues: Energy Star’s Guide to Sealing Duct Leaks
3.2 HVAC System Not Responding to Thermostat
🔹 Possible Causes:
- Dead thermostat batteries preventing function.
- Loose thermostat wiring disconnecting signals.
- Faulty thermostat sensor misreading room temperature.
✅ Solutions:
- Replace thermostat batteries and check power supply.
- Tighten thermostat wiring connections to restore operation.
- Reset the thermostat and recalibrate temperature readings.
🔗 Find a Smart Thermostat: Nest Learning Thermostat
4. When to Call a Professional Technician
✔️ Refrigerant leaks – Only EPA-certified professionals can recharge R-32 refrigerant. ✔️ Electrical or wiring issues – Prevent fire hazards and ensure safety. ✔️ Blower motor or compressor failure – Major component replacements require professional service. ✔️ Persistent short cycling or airflow issues – May indicate deeper system inefficiencies.
🔗 Find a Licensed Technician: NATE-Certified HVAC Contractors
Conclusion
Understanding common R-32 AC and gas furnace system issues can help homeowners troubleshoot problems early, avoiding costly repairs and downtime. By following these step-by-step solutions, you can keep your HVAC system running smoothly year-round.
