At this stage, you’ve already done the hard thinking:
✔ the wall sleeve is installed
✔ the electrical plan is confirmed
✔ the site is prepped
Now comes the moment that looks simple—but absolutely isn’t forgiving if rushed:
sliding and securing your Amana PTAC into the wall sleeve.
Amana J-Series PTAC Model 17,000 BTU PTAC Unit with 5 kW Electric Heat
This is where alignment, patience, and sequence matter more than strength. Done right, your PTAC runs quieter, drains properly, and lasts longer. Done wrong, you invite rattles, leaks, airflow problems, and service calls you didn’t budget for.
Let’s do it the Savvy way—slow, intentional, and correct the first time.
🧠 Before You Touch the Unit: What This Step Is Really About
Sliding the PTAC is not just “pushing a box into a hole.” You’re accomplishing four critical things at once:
-
Ensuring proper airflow alignment
-
Locking in correct drainage geometry
-
Preventing vibration and noise
-
Protecting the chassis, coils, and electrical components
That’s why sequence matters.

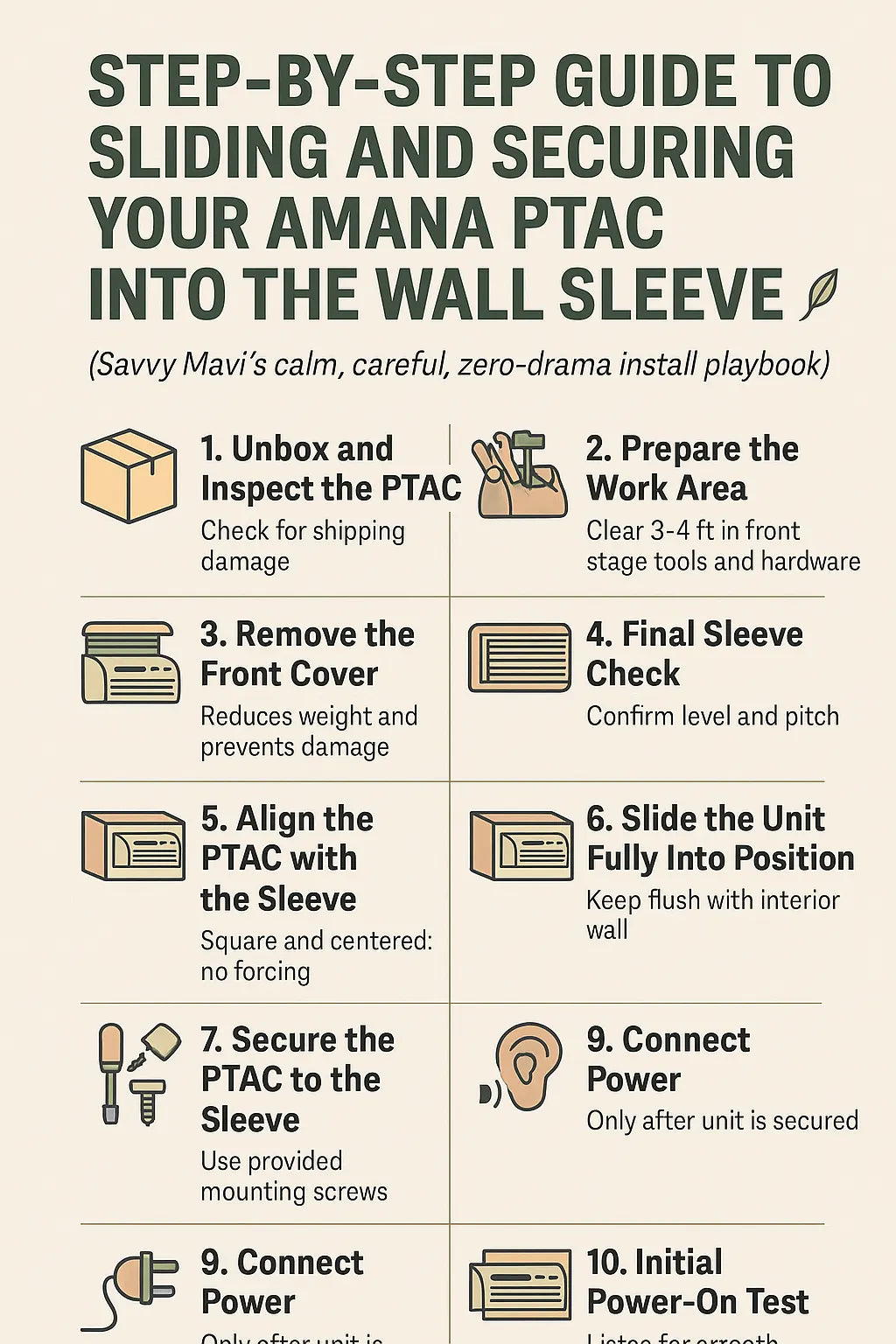

📦 Step 1: Unbox and Inspect the PTAC (Do This First)
Before the unit ever goes near the wall sleeve:
Check for:
-
Dents or bent panels
-
Loose internal components
-
Shipping foam or tape still inside the unit
-
Intact front grille and filter
📌 Savvy rule: Never install a damaged PTAC “hoping it’s fine.” Sliding a compromised unit into a sleeve can worsen hidden issues.
Manufacturer reference:
https://www.amana-ptac.com/products/ptac/ptc173j---standard-efficiency
🧰 Step 2: Prepare the Work Area (Space = Safety)
PTACs are awkward, front-heavy, and easy to misalign if you’re cramped.
Clear:
-
At least 3–4 feet of open space in front of the sleeve
-
All packaging, cords, tools, and obstacles
-
A straight path from floor → sleeve opening
Stage:
-
Screws and brackets (from the PTAC kit)
-
Level
-
Flashlight
-
Gloves
If you’re working solo, stage a temporary support (like a sturdy box or low platform) so you’re not lifting and aligning at the same time.
🧤 Step 3: Remove the Front Cover (Reduces Weight + Prevents Damage)
Most Amana PTACs allow you to remove the front cover and filter before installation.
Why this matters:
-
Reduces weight
-
Improves grip and visibility
-
Prevents cracking or snapping plastic clips
This step alone makes alignment dramatically easier.
Installation manual reference:
https://www.theacoutlet.com/documents/Installation-Guide-Amana-J-Series.pdf
📐 Step 4: Final Sleeve Check (Do Not Skip)
Before sliding the unit:
Confirm:
-
Sleeve is level side-to-side
-
Sleeve is slightly pitched outward for drainage
-
No screws, foam, or debris protrude inside the sleeve
-
Outdoor grille is installed (or planned per instructions)
📌 Savvy reminder: The PTAC will follow the sleeve’s geometry. If the sleeve is wrong, the unit will be wrong.
🚶 Step 5: Align the PTAC With the Sleeve (No Forcing)
This is where patience matters.
How to align:
-
Center the PTAC with the sleeve opening
-
Keep the unit square—not angled
-
Support the bottom so it doesn’t drop or scrape
Start the slide slowly. The unit should move smoothly. If it binds or catches:
⛔ Stop
✔ Pull back slightly
✔ Re-check alignment
Forcing a PTAC can:
-
Bend the sleeve
-
Damage condenser fins
-
Shift internal drain paths
🧊 Step 6: Slide the Unit Fully Into Position
Continue sliding until:
-
The PTAC chassis is fully seated
-
The unit face aligns flush with the interior wall or trim
-
No gaps appear between chassis and sleeve rails
You should not feel resistance at the final position. If you do, something is misaligned.
🔩 Step 7: Secure the PTAC to the Sleeve (This Prevents Rattles)
Once seated, the PTAC must be mechanically secured.
Typically includes:
-
Side or bottom mounting screws
-
Factory-designated attachment points
Use only the approved fasteners and locations listed in the manual.
Why this matters:
-
Prevents vibration noise
-
Keeps the unit from shifting over time
-
Maintains proper drainage angle
Over-tightening is just as bad as under-tightening. Snug—not stressed.
🌬️ Step 8: Check Airflow Paths (Inside and Outside)
Before replacing the front cover:
Inside:
-
Ensure nothing blocks the air intake
-
Confirm filter seats properly
Outside:
-
Confirm outdoor grille clearance
-
No landscaping, fencing, or walls too close
Blocked airflow = higher amp draw + shorter compressor life.
Accessory reference:
https://www.amana-ptac.com/products/ptac-accessories/outdoor-grilles
🔌 Step 9: Connect Power (Only After the Unit Is Secured)
Never plug in or energize a PTAC before it’s secured in the sleeve.
Power connection checklist:
-
Correct voltage receptacle or hard-wire connection
-
Cord fully seated
-
No tension on the cord
-
Breaker OFF before connection
Electrical safety reference:
https://www.cpsc.gov/safety-education/safety-guides/electrical
🧪 Step 10: Initial Power-On Test (The “Quiet Check”)
Turn the breaker on and power up the PTAC.
Listen for:
-
Smooth fan startup
-
No rattling or buzzing
-
No vibration against the sleeve
Run cooling first, then heating briefly.
If something sounds off:
⛔ Power down
✔ Re-check mounting and alignment
Do not ignore early noises—they only get louder.
🧼 Step 11: Reinstall the Front Cover and Filter
Once everything checks out:
-
Reinstall the front cover
-
Confirm all clips engage properly
-
Clean fingerprints from vents and surfaces
You’re not just installing a machine—you’re finishing a system.
❌ Common Mistakes (That Cause Big Headaches)
Avoid these classics:
-
Sliding the PTAC before sleeve pitch is confirmed
-
Forcing the unit when alignment is off
-
Forgetting to secure the chassis
-
Plugging in before mounting
-
Ignoring minor vibration sounds
Most PTAC complaints trace back to this exact step being rushed.
✅ Final Savvy Install Checklist
Before you walk away:
-
☐ Unit slides freely and sits flush
-
☐ Chassis is secured to sleeve
-
☐ Airflow is unobstructed
-
☐ Drainage path remains intact
-
☐ Power connection is correct
-
☐ Startup is quiet and stable
If all boxes are checked—you nailed it.
🌿 Savvy’s Final Thought
Sliding and securing your Amana PTAC is where planning becomes performance.
Take your time.
Respect alignment.
Listen to the unit.
Because a PTAC that goes in calm…
runs calm for years.
