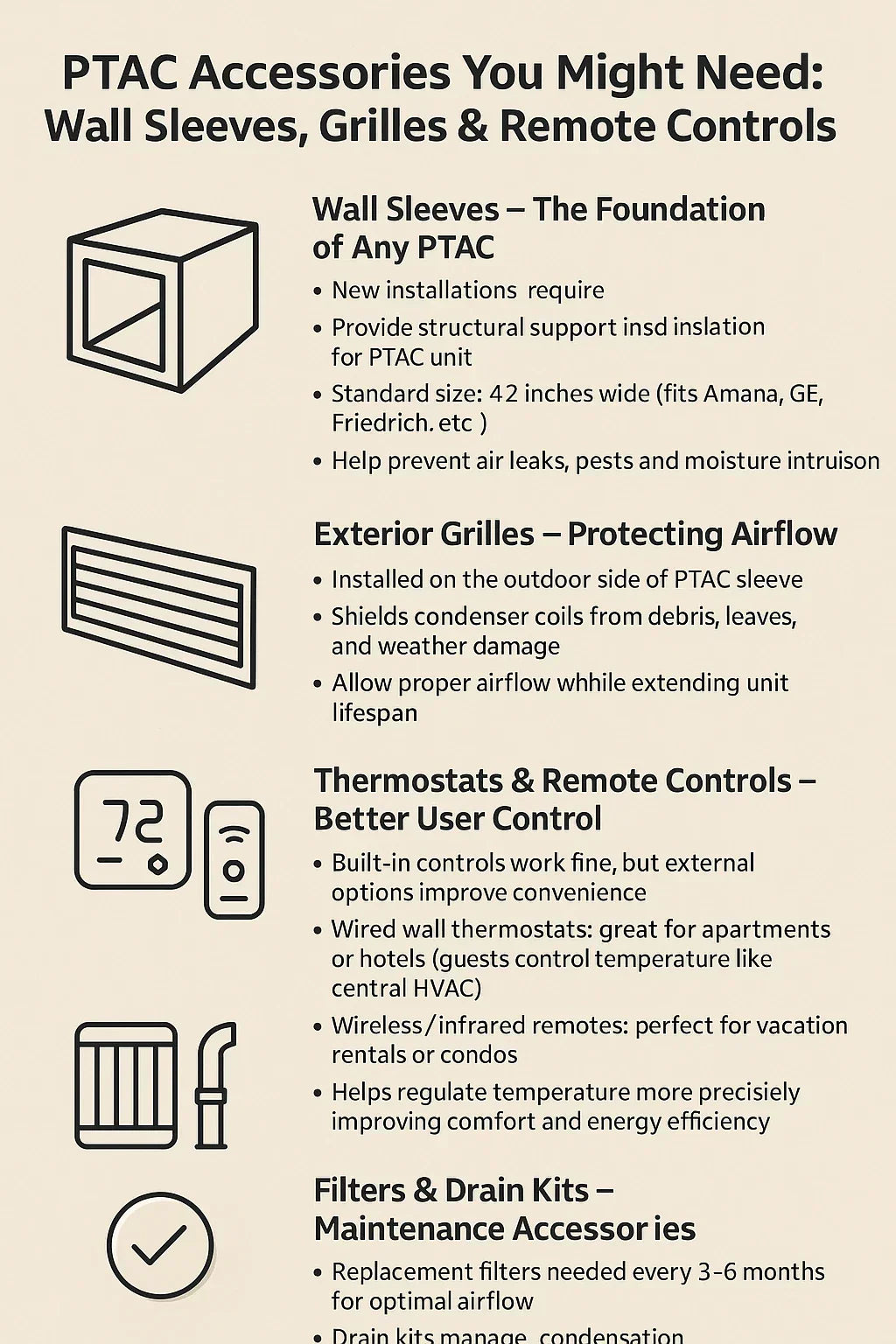

PTAC Accessories You Might Need: Wall Sleeves, Grilles & Remote Controls

🏠 Introduction: Why Accessories Matter

Buying a PTAC (Packaged Terminal Air Conditioner) is only the beginning. If you’re installing a new Amana Distinctions PTAC — or replacing an older model — you’ll quickly discover that the unit itself isn’t the whole story.

Amana Distinctions Model 12,000 BTU PTAC Unit with 2.5 kW Electric Heat

To get the most out of your PTAC, you’ll likely need a few essential accessories:

• 🛠️ Wall sleeves to house and insulate the unit.

• 🌬️ Exterior grilles to protect airflow and extend lifespan.

• 🎛️ Thermostats or remotes to make operation convenient.

• 🧹 Filters and drain kits to keep things clean and leak-free.

Think of accessories as the “support team” for your PTAC. Without them, your unit might work, but it won’t perform as efficiently, quietly, or reliably. In this Savvy guide, we’ll break down everything you need to know about PTAC accessories, how much they cost, why they matter, and how they improve comfort and ROI.

---

🛠️ Section 1: Wall Sleeves – The Foundation of Every PTAC

What Is a PTAC Wall Sleeve?

A PTAC wall sleeve is a rectangular metal or insulated box installed inside the wall opening. The PTAC slides into this sleeve, which provides structural support, insulation, and weatherproofing.

Why It’s Essential

• Without a wall sleeve, there’s nowhere to install the PTAC.

• Prevents air leaks and drafts.

• Keeps out rain, moisture, and pests.

• Reduces noise transfer from outdoors.

• Extends the unit’s lifespan by protecting it from environmental wear.

Standard Sizing

• Almost all PTACs, including Amana, GE, and Friedrich, use the standard 42-inch sleeve.

• Depths vary (13–16 inches), so check the model specs before ordering.

Cost Range

• $75–$125 for standard models.

• Heavy-duty insulated sleeves: $150+.

👉 Pro Tip: If you’re replacing an old PTAC, you may be able to reuse the existing sleeve — but check for rust, cracks, or warping first.

🔗 Amana PTAC Accessories

---

🌬️ Section 2: Exterior Grilles – Protecting Airflow & Longevity

What Is an Exterior Grille?

The grille is a protective cover that attaches to the outdoor side of the wall sleeve. It shields the PTAC’s condenser coil while allowing air to flow in and out.

Why You Need One

• Prevents leaves, dirt, and debris from clogging the condenser.

• Stops small animals, birds, or insects from nesting inside.

• Protects against rain and snow while still maintaining airflow.

• Extends the PTAC’s lifespan by reducing strain and corrosion.

Types of Grilles

• Aluminum: Lightweight, rust-resistant.

• Steel: Heavier, more durable, better for harsh climates.

• Architectural grilles: Designed to match building exteriors.

Cost Range

• $50–$100 depending on material.

👉 Pro Tip: Always choose a grille that matches the wall sleeve brand and size to avoid airflow restrictions.

🔗 Energy Star – Protecting HVAC Equipment

---

🎛️ Section 3: Thermostats & Remote Controls – Comfort at Your Fingertips

Why Go Beyond Built-In Controls?

Every PTAC comes with a control panel on the front. But in many settings — especially hotels, apartments, and rentals — external controls make life easier.

Options for Better Control

1. Wired Wall Thermostats

   • Guests or tenants use the wall thermostat like central HVAC.

   • Cleaner appearance, less fiddling with unit controls.

   • Perfect for hotels or apartments where consistency matters.

2. Wireless Remotes

   • Infrared or RF remotes allow operation from across the room.

   • A favorite in vacation rentals and condos.

3. Smart Thermostats

   • Wi-Fi enabled.

   • Allow remote control via smartphone apps.

   • Great for property managers overseeing multiple units.

Benefits

• More accurate temperature regulation.

• Easier for guests/tenants to use.

• Reduces energy waste (especially with smart or programmable thermostats).

Cost Range

• Wired thermostats: $50–$200.

• Wireless remotes: $20–$60.

• Smart controls: $150–$300.

🔗 DOE – Smart Thermostat Guide

---

🧹 Section 4: Filters & Drain Kits – Maintenance Must-Haves

Replacement Filters

• Capture dust, pollen, and debris before they reach coils.

• Prevent airflow restriction (which causes noise and energy waste).

• Should be cleaned monthly and replaced every 3–6 months.

• Cost: $10–$30 per filter.

Drain Kits

• PTACs create condensation in cooling mode.

• Drain kits direct water outdoors instead of letting it drip inside.

• Prevents leaks that damage carpets, walls, and flooring.

• Cost: $20–$40.

🔗 ASHRAE – Condensate Management

---

⚡ Section 5: Optional Accessories That Add Value

• Sub-bases: Provide additional electrical support and sometimes built-in receptacles.

• Power cords: Must match the unit’s amperage (15A, 20A, or 30A).

• Extension sleeves: For installations in thicker walls.

• Decorative covers: Improve aesthetics, especially in apartments or condos.

---

📊 Section 6: Real-World Cost & Setup Example

Example: Hotel Installing 20 Amana PTACs

• Wall Sleeves: $100 × 20 = $2,000

• Exterior Grilles: $75 × 20 = $1,500

• Wired Thermostats: $150 × 20 = $3,000

• Filters (annual replacement): $20 × 20 = $400

👉 Accessory Total: $6,900

While it seems like a big investment, here’s what you gain:

• Lower energy bills thanks to sealed sleeves and thermostats.

• Longer PTAC lifespan from proper airflow and protection.

• Better guest comfort, fewer complaints, higher satisfaction scores.

---

🏨 Section 7: Who Benefits Most From Accessories?

Hotels & Hospitality

• Wall sleeves + grilles are non-negotiable.

• Wired thermostats give guests familiar, central-HVAC-style control.

• Filters and drain kits reduce costly maintenance calls.

Apartments & Condos

• Accessories ensure long-term efficiency and durability.

• Tenants value quiet operation and easy controls.

Vacation Rentals

• Remotes and smart controls boost convenience and appeal.

• Accessories prevent leaks or noise issues that lead to bad reviews.

---

✅ Conclusion: Don’t Overlook PTAC Accessories

When budgeting for a PTAC, don’t stop at the unit price. Accessories are the key to efficiency, longevity, and comfort.

For an Amana Distinctions PTAC, you’ll almost always need:

• 🛠️ A wall sleeve for installation.

• 🌬️ An exterior grille for airflow protection.

• 🎛️ A thermostat or remote for convenience.

• 🧹 Filters and drain kits to keep the unit in top shape.

👉 Spending a little more upfront on accessories can save thousands over the life of the PTAC — while making guests, tenants, or homeowners far more comfortable.

---

In the next topic we will Know more about: Is 12,000 BTUs Enough? Sizing Tips for PTAC Units in Guest Rooms & Apartments
