Installing a through-the-wall air conditioner can seem intimidating, but with proper planning and the right tools, you can ensure a safe, effective installation that maximizes comfort and efficiency. This comprehensive guide walks you through preparation, installation, safety checks, and post-installation best practices, using the Amana 9,300 BTU Through-the-Wall AC (PBC093J00AA) as an example.
Whether you're a homeowner planning a DIY project or want to understand what your contractor will be doing, this guide removes confusion and helps protect your investment.

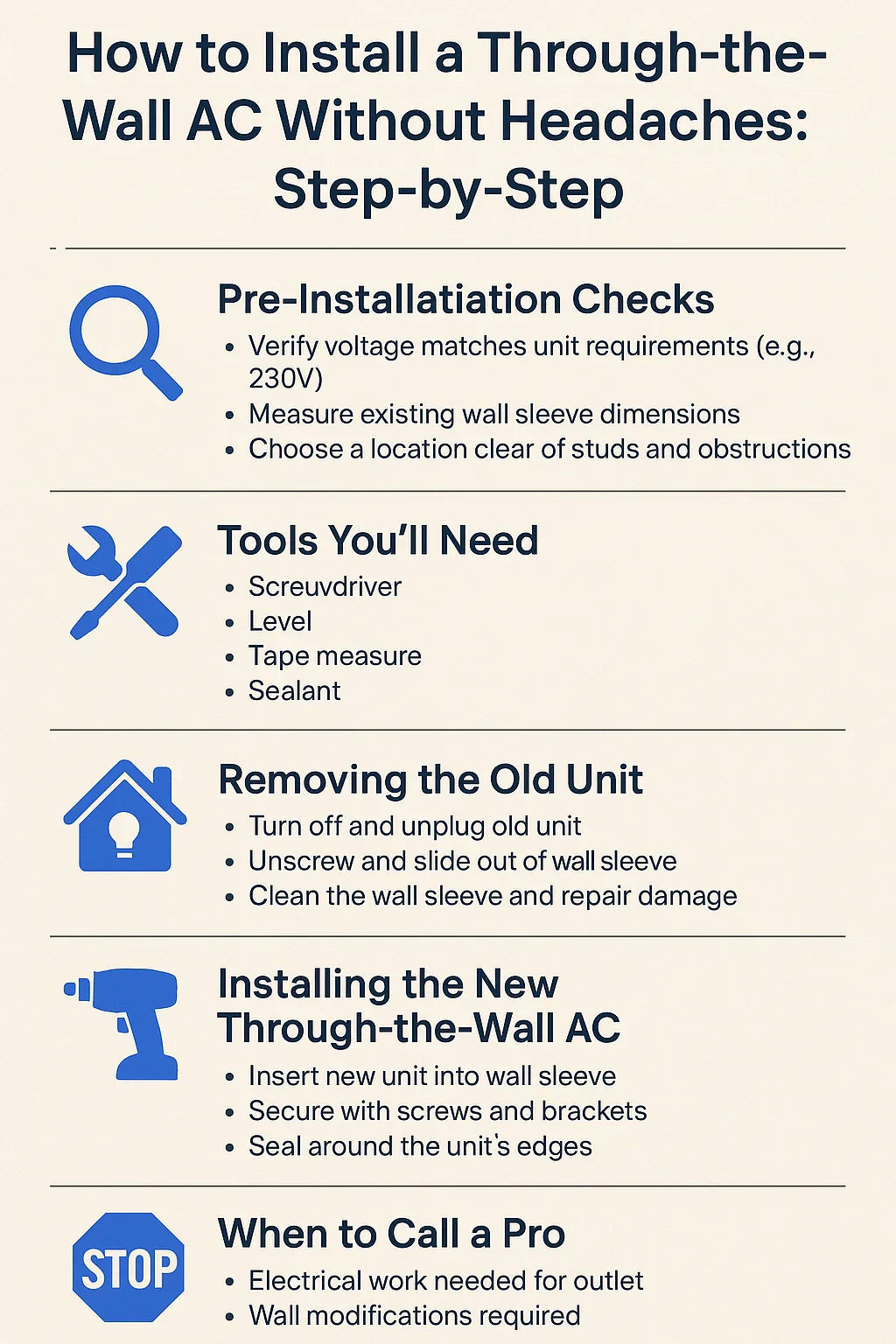

🧰 Tools and Materials Checklist
Before starting, ensure you have:
-
Drill with masonry bits
-
Level
-
Stud finder
-
Tape measure
-
Reciprocating saw or jigsaw
-
Screwdrivers
-
Pry bar
-
Weatherproof caulking
-
Wall sleeve compatible with your AC
-
Exterior wall support brackets (if required)
-
Insulation foam
-
Safety glasses and gloves
For detailed wall sleeve information, visit Amana's wall sleeve guide.
🗂️ Step 1: Assess Your Installation Location
✅ Key Factors:
-
Access to a dedicated electrical outlet matching your AC voltage (often 230/208V).
-
A clear section of wall unobstructed by pipes, electrical wiring, or studs.
-
Compliance with building codes and HOA rules.
-
Easy access for maintenance and cleaning.
Use a stud finder to locate studs and mark the area for cutting. Ideally, position the unit near the center of the room and above an electrical outlet to reduce cord clutter.
Check the Department of Energy’s room AC guidelines for additional installation location considerations.
🪚 Step 2: Measure and Mark the Wall Opening
Sizing Guidelines:
-
The wall sleeve typically requires a 24.5 to 27-inch opening width.
-
Height and depth will depend on your AC model; consult your manual.
Measure twice, mark clearly with a pencil, and ensure the hole will be level.
🧱 Step 3: Cut the Wall Opening
Safety Tips:
-
Wear safety glasses and gloves.
-
Score the drywall using a utility knife before using a saw.
-
Remove drywall, insulation, and any obstructions.
-
Cut through exterior sheathing carefully.
If cutting through brick or masonry, use a masonry bit and reciprocating saw or consider hiring a professional for clean cuts.
For masonry cutting, see Family Handyman’s guide.
🏗️ Step 4: Install the Wall Sleeve
Slide the wall sleeve into the opening, ensuring it is level and flush with the interior wall. Secure using screws into framing on all sides.
Sealing:
-
Apply weatherproof caulking around the exterior edge.
-
Use foam insulation around any gaps to prevent air leaks.
A properly installed sleeve ensures energy efficiency and prevents moisture intrusion.
For weatherproofing details, review the EPA’s home sealing guidance.
🧊 Step 5: Insert and Secure the AC Unit
Carefully slide the through-the-wall AC unit into the sleeve. You may need assistance due to the weight.
-
Ensure the back of the unit extends outside for proper ventilation.
-
Follow the manufacturer’s guide for securing the chassis.
-
Attach any trim kits for a finished appearance.
To understand airflow clearances, consult the Amana PBC093J00AA manual.
⚡ Step 6: Electrical Connections and Testing
Plug the unit into a dedicated outlet matching the voltage and amperage requirements.
Test:
-
Power on and test cooling, fan speeds, and thermostat.
-
Check for unusual noises.
-
Confirm the drain system is working properly.
For safety standards and circuit guidelines, see the National Electrical Code.
🌧️ Step 7: Exterior Weatherproofing and Drainage
Ensure:
-
The back of the unit is tilted slightly downward (about 1/4 inch) for proper drainage.
-
Caulk any exterior gaps.
-
Install drip guards if necessary to prevent water from damaging the siding.
For drainage maintenance, the EPA humidity guide can help you manage moisture effectively.
🛡️ Safety Checks Post-Installation
✅ Ensure the unit is level side-to-side and slightly tilted back.
✅ Confirm there are no vibrations or rattling noises.
✅ Check that the filter is properly installed and accessible.
✅ Inspect the power cord for damage.
✅ Test GFCI outlets if applicable.
Routine checks after installation help extend the life of your unit and reduce energy waste.
🧽 Maintenance After Installation
-
Clean the air filter monthly.
-
Check the exterior for debris or blockages.
-
Inspect the seal around the unit annually.
-
Schedule a professional inspection seasonally if needed.
The Energy Star maintenance guide offers best practices to maintain your unit efficiently.
🪟 Comparing DIY vs. Professional Installation
DIY:
✅ Cost savings (labor).
✅ Flexible timing.
✅ Satisfaction of personal project completion.
Consider if: You have carpentry skills and understand electrical safety.
Professional:
✅ Compliance with warranty conditions.
✅ Proper sealing and safety adherence.
✅ Clean, efficient installation.
Consider if: Your wall is masonry, or if you lack the required tools or confidence.
💡 Tips to Maximize Efficiency After Installation
✅ Use blackout curtains to reduce heat load.
✅ Seal windows and doors to prevent air leaks.
✅ Use ceiling fans to enhance circulation.
✅ Set the thermostat at 78°F for balanced efficiency and comfort.
✅ Turn off the unit when not needed or use a programmable timer.
These steps can help lower your electricity bills by up to 30% during the summer.
🎯 Conclusion: A Smart Upgrade for Your Comfort
Installing a through-the-wall AC can significantly improve your comfort while preserving window space and reducing noise. By following this detailed guide, you can:
✅ Ensure a safe, secure, and sealed installation.
✅ Improve cooling efficiency.
✅ Extend the lifespan of your unit.
✅ Maintain your room aesthetics and daylight access.
The Amana is a top choice for small spaces when paired with a correct installation approach.
📌 Next Steps
✅ Review your room layout and electrical setup.
✅ Purchase your through-the-wall AC and wall sleeve.
✅ Decide whether you will DIY or hire a professional.
✅ Use this guide to plan a safe, efficient installation.
By investing in proper installation, you protect your AC investment and ensure reliable comfort for years to come.
In the next topic we will know more about: Maintaining Your Amana Through-the-Wall AC for Long-Term Performance
