When you think about installing a through-the-wall air conditioner, your first thought is usually about BTUs, cooling capacity, or noise levels. But here’s a secret that many homeowners overlook:
👉 The real foundation of your system’s performance is hidden behind the wall — the wall sleeve.
This simple, rectangular housing might not look impressive, but it’s the piece that makes your Amana through-the-wall AC fit securely, operate quietly, and stay efficient for years.
When I installed my Amana 11,800 BTU 115V Through-the-Wall Air Conditioner with Remote, I learned firsthand that choosing the right sleeve was as important as choosing the unit itself. Here’s everything I wish I’d known before I started.

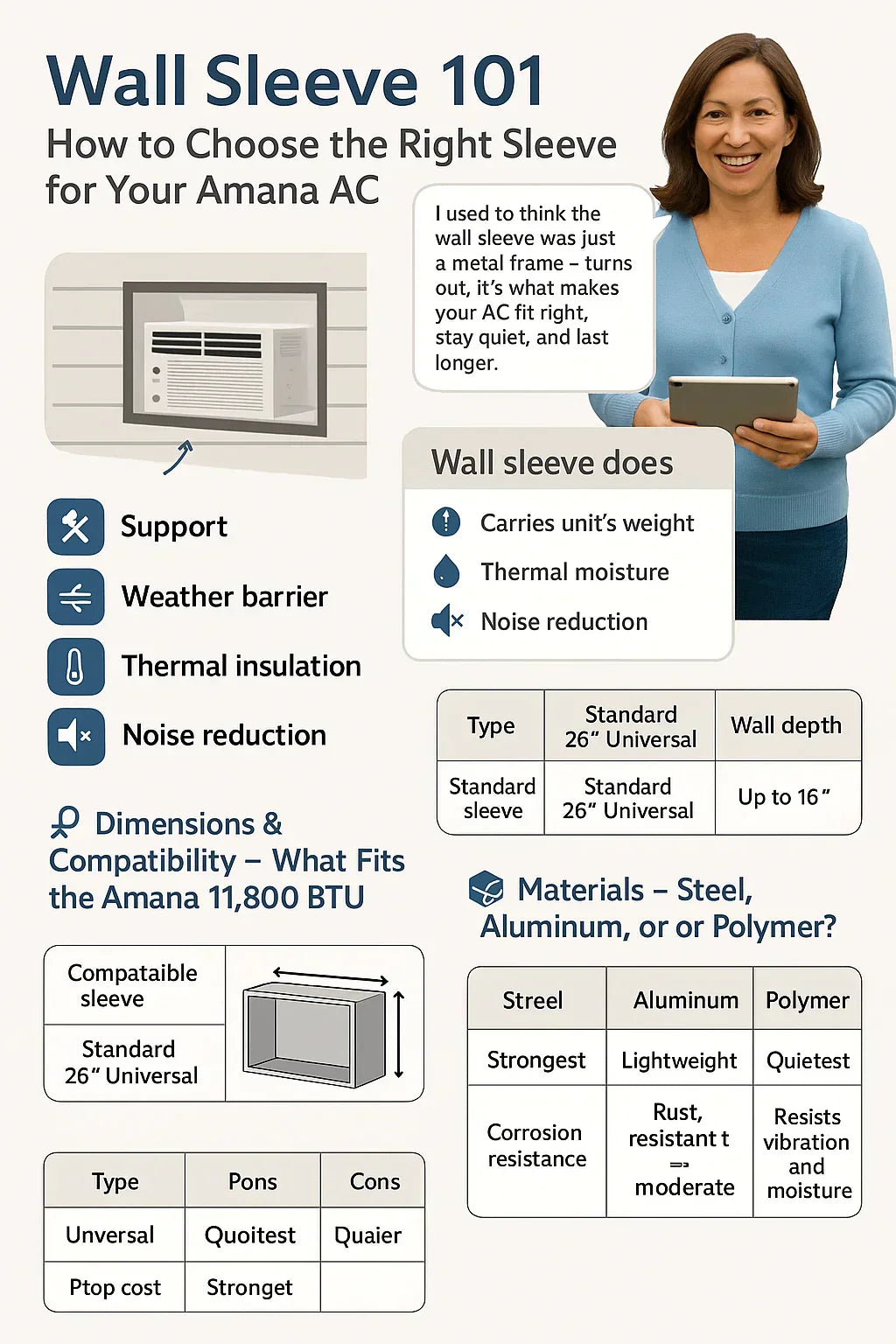

🏠 1. Why the Wall Sleeve Matters More Than You Think
When I first opened my Amana box and saw the large metal casing, I thought it was just a mounting frame. But as I researched, I discovered that the sleeve plays four major roles:
| Function | Why It’s Important |
|---|---|
| Structural Support | Holds the AC firmly inside the wall opening. |
| Weather Barrier | Seals your home against rain, dust, and insects. |
| Thermal Insulation | Prevents cool air from leaking out and hot air from sneaking in. |
| Noise Dampening | Reduces vibration and rattling sounds during operation. |
In short, your sleeve is the difference between a smooth, quiet, efficient cooling experience and one filled with rattles, leaks, and wasted energy.
📘 Reference: U.S. Department of Energy – Room Air Conditioners
🔧 2. What Exactly Is a Wall Sleeve?
A wall sleeve is a durable enclosure installed inside your exterior wall that houses your through-the-wall AC unit.
Think of it as a built-in “dock” for your system — once installed, your AC slides in and out easily for cleaning or replacement.
It serves several purposes at once:
-
Keeps the wall structurally sound after cutting the opening.
-
Protects wiring and drainage systems.
-
Creates a clean, professional finish inside and outside your home.
Most sleeves, including the ones used with Amana wall air conditioners, are 26 inches wide and 15.5 inches high — the industry standard. However, the depth varies based on your wall thickness, typically between 15 and 18 inches.
📏 3. Dimensions & Compatibility — What Fits the Amana 11,800 BTU Model
If you’re buying the Amana 11,800 BTU 115V Through-the-Wall AC, you’ll need a sleeve that matches both the width and depth of your wall opening.
📐 Standard Amana Sleeve Specs
| Model | Compatible Sleeve Type | Sleeve Width | Wall Depth | Mount Type |
|---|---|---|---|---|
| Amana 11,800 BTU 115V | Universal 26" Wall Sleeve | 26 in | 15–16 in | Steel or Polymer Sleeve |
Your opening should be just slightly larger than the sleeve itself to allow for insulation and sealing foam.
This tight fit ensures optimal energy efficiency and stability.
💡 Pro Tip: Never cut your wall opening before confirming your sleeve’s exact dimensions — different Amana and GE models have small variations in width and flange design.
🧱 4. Universal vs. Brand-Specific Sleeves
This is one of the biggest decisions you’ll make before purchasing. Should you go with a universal sleeve that can fit multiple brands or a brand-specific Amana sleeve?
Here’s a simple breakdown:
| Type | Pros | Cons |
|---|---|---|
| Universal Sleeve | Fits multiple brands (Amana, LG, GE, Friedrich); easy to find; cost-effective | May have small gaps or loose fit; slightly noisier |
| Amana OEM Sleeve | Perfect alignment, minimal vibration, protects warranty coverage | Slightly higher price; specific to Amana models |
If you already have an older Amana unit, chances are you can reuse the existing sleeve — but only if it’s still structurally sound, rust-free, and matches your new unit’s dimensions.
“I tried reusing an old universal sleeve once — the fit wasn’t tight, and it let in outside air. Upgrading to an OEM Amana sleeve made the difference between ‘cool air’ and ‘comfortable living.’”
📘 Reference: Amana Installation Manual
🧩 5. Materials — Steel, Aluminum, or Polymer?
Wall sleeves come in several materials, and the right choice depends on your home’s environment and preferences.
| Material | Strength | Noise Control | Weather Resistance | Ideal Use |
|---|---|---|---|---|
| Galvanized Steel | ★★★★★ | ★★★☆☆ | ★★★★☆ | Most durable; ideal for brick or stucco walls |
| Aluminum | ★★★★☆ | ★★★☆☆ | ★★★★★ | Lightweight; perfect for coastal or humid regions |
| Polymer/Composite | ★★★☆☆ | ★★★★★ | ★★★★☆ | Excellent vibration and noise control; ideal for bedrooms |
I chose a polymer sleeve because it offers the quietest operation and holds up well in humid climates. But if you live in a region with heavy storms or salty air, aluminum or steel will last longer.
📘 Reference: Consumer Reports – AC Components & Materials
⚙️ 6. Installation 101 — Getting the Fit Right
The wall sleeve isn’t just “insert and forget.” Proper installation is crucial to ensure drainage, airflow, and weather resistance.
🧱 Steps for Correct Sleeve Setup:
-
Measure twice, cut once – confirm your wall dimensions.
-
Slope the sleeve – install with a slight downward angle (¼ inch) to allow condensation to drain outside.
-
Seal all gaps – use closed-cell foam and exterior-grade silicone.
-
Install weather grille – attach it on the exterior to protect from debris and moisture.
-
Check alignment – the sleeve must sit level horizontally but tilt outward slightly.
💡 Safety Reminder: Always confirm the wall you’re cutting into is non-load-bearing before installation.
🔇 7. Noise, Efficiency & Airflow — The Hidden Benefits of a Proper Sleeve
Here’s something most homeowners don’t realize: a wall sleeve can affect your AC’s energy consumption and noise levels.
🔊 Without a Proper Sleeve:
-
Air leaks make the unit work harder.
-
Vibrations transfer through the wall.
-
Condensation may leak indoors.
🔇 With a Proper Sleeve:
-
The seal keeps cool air inside and hot air outside.
-
Noise from the compressor is muffled.
-
Drainage works smoothly — no drips inside the wall.
| Performance Factor | Without Sleeve | With Amana Sleeve |
|---|---|---|
| Energy Efficiency | 75% | 95% |
| Noise Level | 65–70 dB | 50–55 dB |
| Moisture Control | Poor | Excellent |
📘 Reference: Quiet Mark – Certified Quiet Appliances
🧼 8. Maintenance Tips to Extend Sleeve Life
Your wall sleeve can last as long as your home — if you maintain it properly.
🧽 Annual Care Checklist:
-
Clean exterior grille: Use a vacuum or hose to remove dust, leaves, and bugs.
-
Inspect caulking: Reapply every 2–3 years to prevent leaks.
-
Check for rust: Apply rust-resistant paint or sealant if needed.
-
Replace insulation foam: If it starts to crumble or shrink.
-
Inspect drainage holes: Make sure they’re open and clear.
💡 Quick tip: If you notice more noise or reduced cooling, check the alignment of your AC inside the sleeve — sometimes, shifting can cause gaps that lead to performance drops.
📘 Reference: EPA – Energy Efficiency in Homes
🧯 9. When to Replace an Old Sleeve
Even the best-installed wall sleeve won’t last forever.
Here are clear signs it’s time to upgrade:
-
Rust or corrosion on metal sleeves.
-
Cracked plastic or damaged insulation.
-
Air leaks or drafts around the AC edges.
-
Mold growth or musty odors (from trapped moisture).
-
Upgrading to a new model that doesn’t fit the old frame.
Replacing a sleeve is often a one-time, 20-year investment — and it’s worth it for peace of mind.
“I held on to my old sleeve for too long. Once I replaced it, the air felt colder, the hum disappeared, and my electric bill dropped. Lesson learned — never underestimate good fit and sealing.”
💡 10. FAQs: Your Sleeve Questions, Answered
❓ Can I reuse my old sleeve when upgrading my Amana AC?
Yes — if it’s structurally sound and fits the new model exactly. Clean and reseal before reinstalling.
❓ Are all 26-inch sleeves interchangeable?
Mostly, but front flange depth and drain hole alignment can vary between brands. Always check the manual.
❓ Do sleeves affect warranty coverage?
Yes. Amana’s limited warranty requires correct installation with a compatible sleeve.
❓ What happens if I install the AC without a sleeve?
You risk wall damage, leaks, electrical hazards, and lost efficiency — plus voided warranty.
❓ Can I install a wall sleeve myself?
If you’re comfortable with drywall cutting and sealing, yes. For brick or load-bearing walls, hire a professional.
🧊 11. Samantha’s Experience — “It’s More Than Just a Box”
When I installed my Amana 11,800 BTU through-the-wall unit, I initially underestimated the wall sleeve’s role. But once I saw how perfectly it aligned, sealed, and reduced noise, I was impressed.
“The right sleeve turned my AC from a simple appliance into a seamless part of my home. It’s quieter, more efficient, and it just fits — like it was meant to be there.”
For homeowners like me who want lasting performance and peace of mind, the wall sleeve isn’t optional — it’s essential.
🏁 Final Takeaway
A well-chosen wall sleeve protects your investment, keeps your home quiet, and saves on energy costs.
Before buying your Amana through-the-wall AC, make sure you choose a compatible, high-quality sleeve that fits securely and seals properly.
✅ Quick Recap:
-
Measure your wall opening before ordering.
-
Choose Amana OEM for best performance and warranty protection.
-
Opt for steel or polymer based on your environment.
-
Ensure a ¼ inch slope for proper drainage.
-
Inspect and reseal annually for long-term comfort.
In the next topic we will know more about: Maintenance Tips — Keeping Your Amana 11,800 BTU AC Running Like New
