When I first started learning about HVAC systems, I didn’t realize how much of the puzzle came down to one key question: will this part actually work with the rest of my system?
It’s easy to get caught up in tonnage numbers or efficiency ratings, but compatibility is what makes everything run smoothly. That’s especially true when you’re talking about an indoor coil like the Goodman CAPFA6030C3 3.5–5 ton upflow/downflow cased A-coil.
In this guide, I’ll break down what this coil is, how to make sure it matches your furnace/air handler and your outdoor condenser or heat pump, and what to avoid if you want to maximize efficiency and avoid headaches.
📦 1. What the CAPFA6030C3 Coil Is Designed For
The Goodman CAPFA6030C3 is a 3.5–5 ton cased A-coil designed for 21” wide cabinets.
Here’s what that means:
-
Tonnage range: 42,000–60,000 BTUs (3.5, 4, 4.5, or 5-ton systems).
-
Airflow flexibility: Can be used in upflow (basement setups) or downflow (attic or crawlspace setups).
-
Cabinet width: Built to fit a 21-inch furnace or air handler.
-
Cased design: Comes in its own insulated cabinet for easier installation and better airflow control.
👉 Mark’s Take: It’s a versatile coil, but only if you match it correctly with your furnace and condenser.
📖 Learn more about evaporator coils from the U.S. Department of Energy
🏠 2. Furnace and Air Handler Compatibility
The CAPFA6030C3 is designed to pair with Goodman gas furnaces and air handlers, but the key is making sure your equipment matches in both cabinet width and capacity.
✅ Furnace Compatibility
-
Works with Goodman furnaces in the 80,000–120,000 BTU range.
-
Cabinet must be 21 inches wide (measure before ordering).
-
Can be installed in upflow or downflow positions.
✅ Air Handler Compatibility
-
Fits Goodman air handlers with a 21” cabinet width.
-
Capacity must be within the 3.5–5 ton cooling range.
👉 Mark’s Tip: If your furnace or air handler cabinet isn’t 21 inches wide, you’ll need a different coil model. Don’t try to force it—it won’t seal properly, and you’ll lose efficiency.
📖 More on airflow configurations at ACCA – Airflow Standards
❄️ 3. AC and Heat Pump Compatibility
The CAPFA6030C3 is designed for use with Goodman air conditioners and heat pumps rated 3.5–5 tons (42,000–60,000 BTUs).
Compatible Outdoor Units Include:
-
Air Conditioners
-
Goodman GSXH5, GSX14, GSX16 (in 3.5, 4, and 5-ton sizes).
-
-
Heat Pumps
-
Goodman GSZH5, GSZ14, GSZ16 (3.5–5 tons).
-
Why It Works Across Multiple Units:
-
The coil is built with enough flexibility to handle different refrigerant loads.
-
Goodman designs its coils to match across their product lines for easier pairing.
👉 Mark’s Note: Just because it’s rated 3.5–5 tons doesn’t mean it will automatically match your condenser. Always confirm with AHRI (more on that below).
📖 More on heat pumps at ENERGY STAR – Heat Pumps
📊 4. SEER2 and AHRI Certification
The efficiency of your HVAC system isn’t just about the condenser—it’s about the coil + condenser combo.
-
Your condenser might be rated 15 SEER2, but if you install the wrong coil, you may only get 13 SEER2 in practice.
-
AHRI (Air-Conditioning, Heating, and Refrigeration Institute) tests and certifies coil + condenser combinations.
-
A certified AHRI match ensures you get the rated efficiency and performance.
👉 Mark’s Advice: Before you buy, plug your condenser and coil model numbers into the AHRI Directory to confirm compatibility.
📖 Details at AHRI SEER2 Performance Standards
🧩 5. Cross-Brand Compatibility: Can It Work With Other Units?
While the CAPFA6030C3 is optimized for Goodman systems, some homeowners ask whether it can pair with units from other brands.
The Answer:
-
Sometimes yes, but not guaranteed.
-
Cross-brand pairings must be verified in the AHRI directory.
-
Without AHRI certification, you risk:
-
Losing efficiency.
-
Shortening equipment life.
-
Voiding warranties.
-
👉 Mark’s Take: If you’re sticking with Goodman equipment, you’re safe. If you’re mixing brands, double-check before buying.
📖 Energy efficiency program rules at ENERGY STAR – Central AC Systems
⚠️ 6. Common Compatibility Mistakes
From what I’ve seen, here are the top mistakes homeowners make:
-
❌ Buying based on tonnage only. (Ignoring cabinet width or airflow direction.)
-
❌ Forgetting airflow setup. (Buying upflow when you need downflow.)
-
❌ Skipping AHRI match verification. (Assuming any coil will work with any condenser.)
-
❌ Cross-brand guesswork. (Installing without checking efficiency listings.)
👉 Mark’s Warning: Even a small mismatch can cost you hundreds of dollars per year in lost efficiency.
📖 See the International Association of Certified Home Inspectors on coil inspection and failure points.

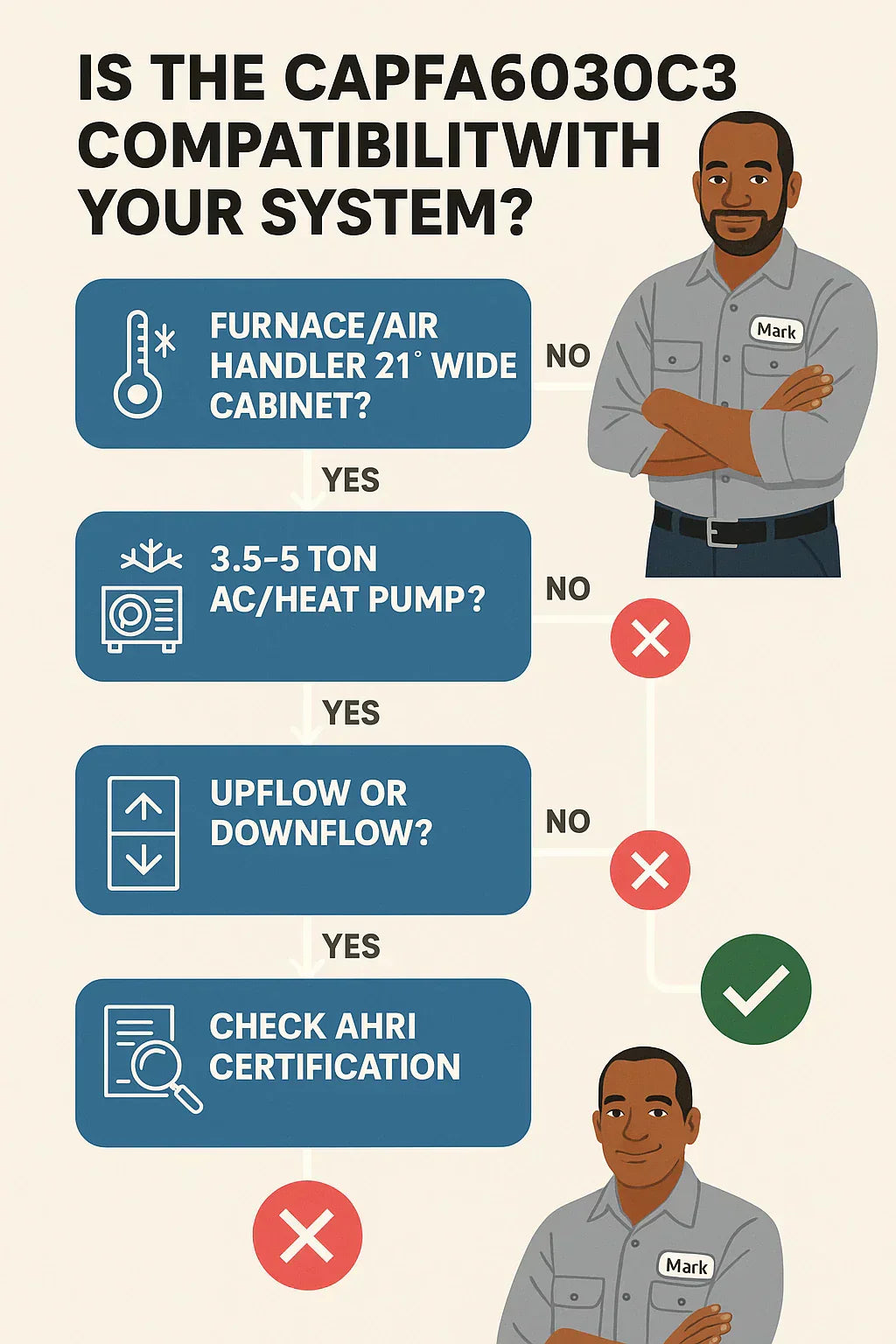

✅ 7. Mark’s Quick Compatibility Checklist
Here’s my go-to checklist for homeowners considering the CAPFA6030C3:
-
System size: 3.5–5 tons (42k–60k BTUs).
-
Furnace/air handler cabinet width: 21”.
-
Airflow setup: Upflow or downflow confirmed.
-
Outdoor unit: Goodman AC or heat pump in the same tonnage range.
-
AHRI match: Verified combo for SEER2 efficiency.
-
Warranty: Installed by a licensed pro for full coverage.
💰 8. Cost and Long-Term Value
-
Coil cost: $600–$1,200 (equipment only).
-
Installation cost: $800–$1,500 (labor + refrigerant handling).
-
Total investment: $1,400–$2,700.
When properly matched, a new coil can:
-
Restore full system efficiency.
-
Lower cooling costs by 10–20%.
-
Extend system life by reducing strain on your condenser.
🧹 9. Post-Installation Considerations
Once your new coil is installed, keep it running smoothly by:
-
Changing filters regularly.
-
Checking condensate drains.
-
Scheduling pro cleanings every 2–3 years.
📖 Maintenance guidance from HVAC.com – Coil Cleaning
✅ 10. Final Takeaways
-
The Goodman CAPFA6030C3 is a versatile 3.5–5 ton cased A-coil built for 21” furnaces and air handlers.
-
It’s compatible with Goodman AC units and heat pumps in the same tonnage range.
-
AHRI certification is the key to ensuring efficiency and warranty coverage.
-
Cross-brand use is possible but must be verified.
-
Proper matching = efficiency, comfort, and peace of mind.
👉 Mark’s Last Word: Don’t buy on tonnage alone—always match your coil to your furnace, condenser, and airflow setup. Get it right, and the CAPFA6030C3 will serve you well for years to come.
