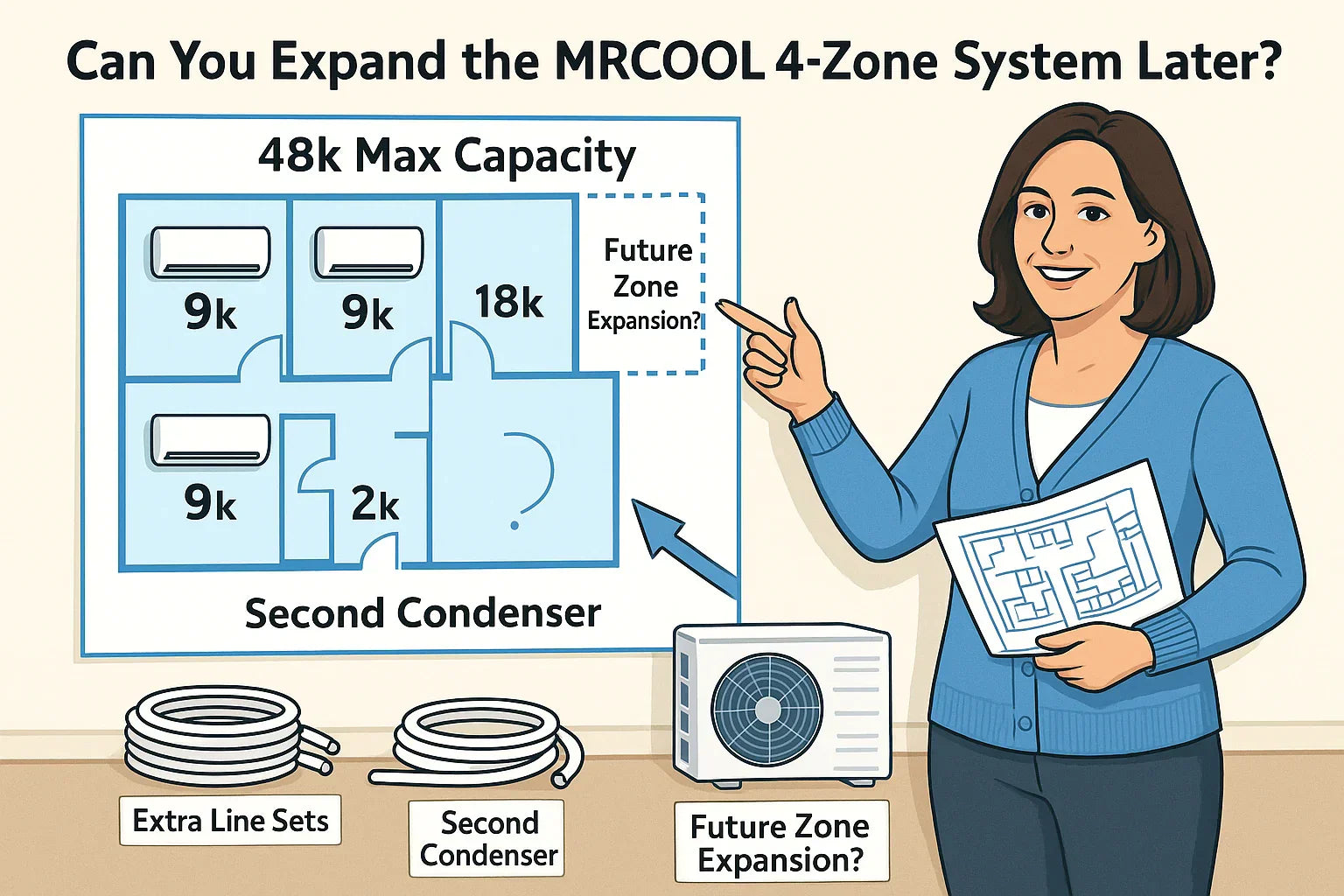

Can You Expand the MRCOOL 4-Zone System Later? Futureproofing Your Install

Installing the MRCOOL DIY 5th Gen 48,000 BTU 4-Zone System feels like a future-ready HVAC solution—but what if your needs change?

Can you add a 5th zone later? Upgrade one room to a larger BTU handler? What happens if you remodel or move?

This guide explores all the ways you can futureproof your MRCOOL install—or expand it later—without starting from scratch.

---

🧠 Understanding the Limits of the 48k 4-Zone Condenser

First, it’s important to know what your system is designed to handle.

Each indoor handler must be paired with the outdoor condenser’s available capacity. For example:

• 9k + 9k + 9k + 18k = 45k

• 12k + 12k + 12k + 12k = 48k

• 18k + 18k + 12k = 48k (3-zone config)

🔗 MRCOOL DIY 5th Gen Brochure

---

➕ Can You Add a 5th Zone Later?

Short answer: No—not to the 48k condenser. It supports a maximum of 4 zones.

Options If You Want to Add a 5th Zone:

1. 🧊 Add a Second DIY System

• MRCOOL offers single-zone and dual-zone systems

• Example: Add a 12k single-zone for a garage or finished basement

• Both systems can be controlled independently

2. 🔁 Replace With a Larger-Capacity Multi-Zone Condenser

• As of now, the 48k system is the largest DIY multi-zone unit MRCOOL offers

• Future product lines (or pro-installed models) may allow 5+ zones

• Would require removing and reinstalling indoor units with a new condenser

🔗 MRCOOL Multi-Zone System Info

---

🔄 Can You Upgrade an Existing Zone?

Yes! As long as the total BTU load stays at or below 48k, you can:

• Swap a 9k handler for a 12k or 18k

• Replace a unit in a high-demand room (e.g., kitchen, sunroom)

• Upgrade for better coverage after layout changes

Steps to Upgrade a Zone:

1. Power down and remove old handler

2. Disconnect Quick Connect line set

3. Mount and connect new handler

4. Update system controller and remote settings

5. Re-test zone individually

📘 Use MRCOOL's Quick Connect™ line sets and couplers only to maintain refrigerant seal.

---

🧰 Futureproofing Tips During Initial Install

Planning ahead saves major time and money later.

🔧 Leave Room for Line Set and Drain Expansion

• Use oversized conduit runs or line set covers

• Install wall sleeves or chase pathways for future runs

• Leave space around wall brackets or mounting rails

---

⚡ Use Higher Ampacity Electrical Circuits

• Install a 40A breaker even if your current demand is lower

• Use 8-gauge wiring for future upgrades

• Consider a dedicated subpanel if you plan to expand zones or add another condenser

🔗 National Electrical Code (NEC) Info

---

📍 Mount the Condenser Centrally

• Reduces line set length to each zone

• Simplifies expansion to nearby rooms later

• Avoids creating pressure imbalances on far runs

---

🏡 Plan for Flexible Room Uses

Think ahead:

• Will your home office become a nursery?

• Could you finish the attic, basement, or garage later?

• Are you adding a sunroom or converting a porch?

Design your line set paths and BTU loads with flexibility in mind.

---

🏗️ Can You Relocate the System in the Future?

Yes—this is a huge MRCOOL advantage. The Quick Connect line sets are precharged and reusable, as long as:

• The lines are not damaged or contaminated

• You reseal the system using MRCOOL caps during transport

• You re-torque the fittings and test for leaks upon reinstall

This makes it possible to:

• Move the system to a new home

• Shift handlers during a remodel

• Upgrade layout without replacing all hardware

💡 Tip: Keep extra Quick Connect seal caps and flare nuts on hand during a move.

---

💸 Costs of Expanding or Reconfiguring

🔗 Cost to Add HVAC Zones

---

🛑 Things You Can’t Do with a 48k 4-Zone Condenser

Always consult MRCOOL’s documentation before making changes.

---

🧱 What If You’re Building or Remodeling?

Consider a dual-system strategy:

• Use 48k for main zones

• Add 12k or 18k single-zone units in outbuildings, additions, or ADUs

• Maintain redundancy and efficient zoning

This approach also reduces load strain during extreme weather.

---

📦 MRCOOL-Compatible Expansion Accessories



---

✅ Final Takeaways: Yes, You Can Expand—If You Plan Ahead

Bottom line: The MRCOOL system gives you modular flexibility—but to expand later, you'll need to stay within technical limits or plan for a second system.
