🎯 Introduction
When most people think about indoor air quality (IAQ), the first thing that comes to mind is the air filter. Some think about humidifiers, dehumidifiers, or air purifiers. But there’s a hidden MVP in your HVAC system that plays a major role in whether your air is clean, balanced, and comfortable: the plenum.
The plenum box is the chamber that connects your HVAC blower to the ductwork. It comes in two forms:
-
The supply plenum (which pushes conditioned air into ducts).
-
The return plenum (which pulls indoor air back into the system).
A properly sized, sealed, and insulated plenum is what makes filtration and circulation actually work. If it leaks, is poorly insulated, or is the wrong size, your filter can’t capture pollutants efficiently, and your home’s air quality takes a hit.
This Savvy homeowner’s guide breaks down:
-
How plenums impact filtration and circulation.
-
Common IAQ problems caused by plenum issues.
-
Best maintenance tips to keep your air clean.
-
Whether a kit or custom plenum works best for air quality upgrades.

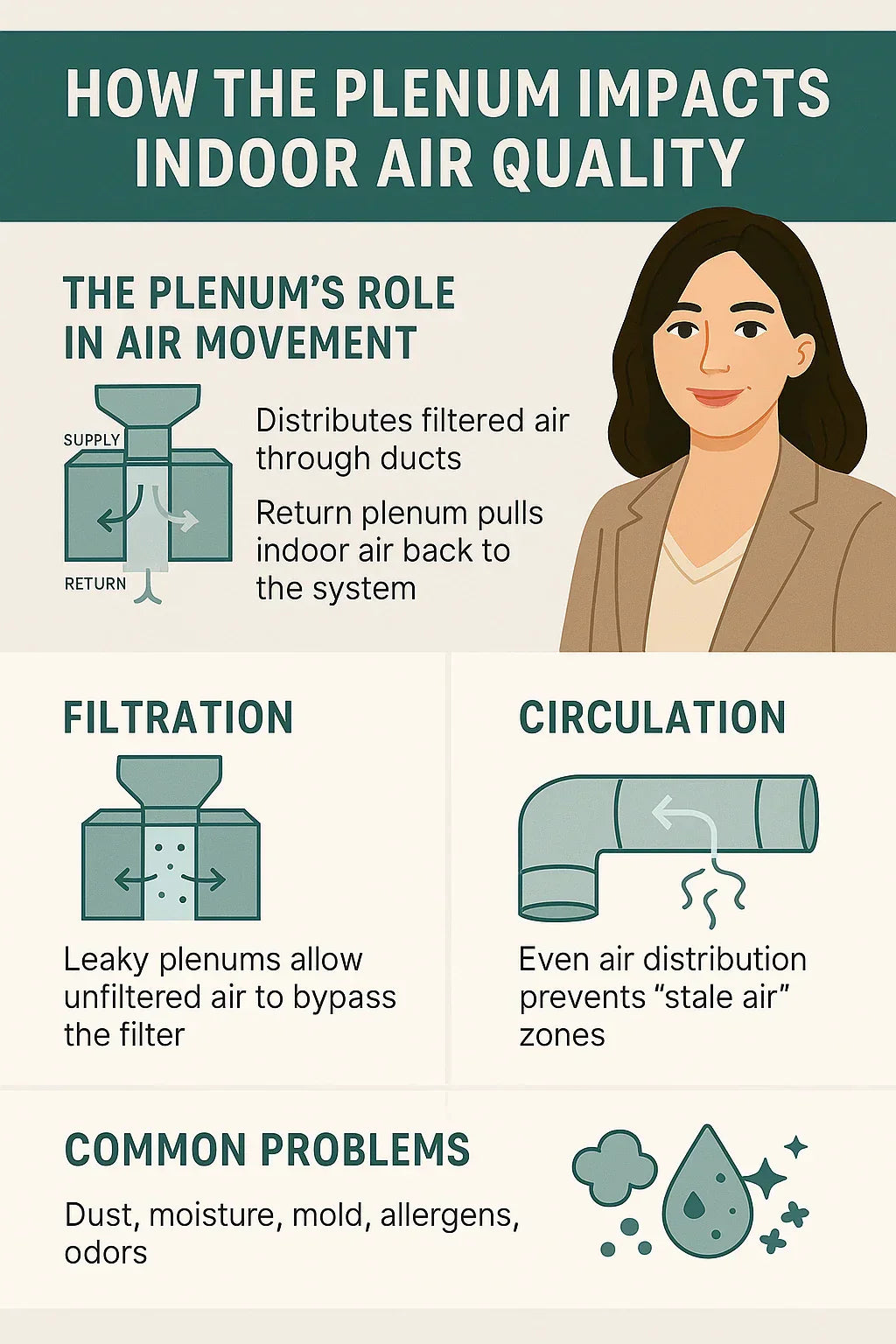

🏠 The Plenum’s Role in Air Movement
Think of the plenum as your HVAC’s air traffic controller.
-
Supply Plenum: Distributes clean, conditioned air from the blower into multiple ducts.
-
Return Plenum: Collects used indoor air and channels it back to the system for filtering and conditioning.
Without a properly functioning plenum system, your home would have uneven circulation, stale air pockets, and more airborne pollutants.
📖 Further Reading: ASHRAE – Fundamentals of Airflow
🔒 How the Plenum Affects Filtration
Your air filter is usually located near or inside the return plenum. This means every bit of recirculated air must pass through the filter before being conditioned again.
But here’s the catch:
-
If your plenum has leaks, unfiltered air from the attic, crawlspace, or basement can bypass the filter.
-
This introduces dust, allergens, VOCs, and moisture directly into circulation.
-
Even high-MERV filters can’t help if the plenum is leaking.
✅ Benefits of a Sealed Plenum
-
Ensures 100% of return air passes through the filter.
-
Reduces dust buildup inside ducts.
-
Supports higher-efficiency filters (MERV 11–16).
📖 Further Reading: EPA – Guide to Indoor Air Quality
🧱 The Circulation Connection
Filtration is only as good as the airflow circulation supporting it.
A plenum that is:
-
Too small: Creates high static pressure → system strain, poor filtration, weak circulation.
-
Too large: Reduces velocity → uneven distribution, stagnant zones.
-
Leaky: Pulls in dirty air and reduces filter efficiency.
When the plenum is properly sized and sealed, your HVAC system maintains balanced air circulation. This means:
-
No hot/cold spots.
-
Cleaner, evenly distributed air.
-
Consistent comfort across all rooms.
👉 This is why standard 20x20x36 plenum kits are popular — they’re pre-sized for common residential units, making it easier to achieve airflow balance.
🧹 Common Air Quality Issues Linked to Plenums
Poorly designed or neglected plenums are one of the top hidden causes of indoor air quality problems:
1. Dust Buildup
-
Leaky plenums suck in dust from attics or basements.
-
Results in more frequent cleaning and clogged filters.
2. Moisture & Mold
-
Uninsulated plenums cause condensation.
-
Moisture inside = breeding ground for mold spores.
3. Allergen Spikes
-
Air bypass reduces filter effectiveness.
-
Pollen, dander, and contaminants remain in circulation.
4. Odors & VOCs
-
Return plenum leaks can pull in garage, crawlspace, or attic odors.
-
Introduces harmful volatile organic compounds (VOCs) into living spaces.
📖 Further Reading: CDC – Mold in Homes and IAQ
⚡ How to Optimize Your Plenum for IAQ
Here are Savvy’s go-to steps to keep your plenum helping, not hurting, your air quality:
1. Seal Leaks
-
Use HVAC-grade mastic or foil tape.
-
Avoid standard duct tape (it dries out and fails).
-
Check seams, duct collars, and corners.
2. Insulate the Plenum
-
Wrap with foil-faced insulation or rigid board.
-
Prevents condensation, mold, and energy loss.
3. Inspect Regularly
-
Check plenums twice a year (spring and fall).
-
Look for dust streaks, rust, or moisture stains.
4. Filter Upgrades
-
A sealed plenum supports MERV 11–16 filters.
-
HEPA bypass filters can be added to custom plenums.
5. Balance Airflow
-
Ensure plenum matches blower capacity (400 CFM per ton).
-
Standard plenum kits simplify this for most systems.
📖 Further Reading: Energy Star – Improving Air Duct Systems
🏡 Kit vs. Custom for Air Quality
✅ Plenum Kit (e.g., 20x20x36)
-
Works best for standard residential units.
-
Affordable, DIY-friendly.
-
Easy to seal and insulate.
-
Supports higher-grade filters when installed properly.
✅ Custom Plenum
-
Best for non-standard systems or advanced IAQ upgrades.
-
Supports HEPA bypass filters, UV lights, and zoning dampers.
-
Required for unusual duct layouts or tight spaces.
-
Professionally fabricated and installed.
🧰 Maintenance Tips for Cleaner Air
-
Change filters every 2–3 months (or monthly with pets/allergies).
-
Inspect plenums for leaks at least twice a year.
-
Reseal with mastic if you notice dust streaks or air leaks.
-
Replace damaged insulation immediately.
-
Consider professional duct cleaning every 3–5 years.
📖 Further Reading: Mayo Clinic – Air Quality & Health
📊 Real-World Scenarios
Case 1: Dusty House Mystery
-
Homeowner noticed dust returning days after cleaning.
-
Inspection revealed gaps in return plenum pulling attic air.
-
Sealed with mastic → dust levels dropped dramatically.
Case 2: Mold Growth in Supply Plenum
-
Uninsulated metal plenum in humid basement.
-
Condensation led to mold inside the box.
-
Replaced with insulated 20x20x36 kit → no more moisture issues.
Case 3: Custom Plenum for Allergy Relief
-
Family with severe allergies needed HEPA filtration.
-
Contractor built custom plenum with bypass HEPA and UV light.
-
Result: noticeable reduction in allergy flare-ups indoors.
✅ Conclusion
Your plenum may not be as visible as your filter or thermostat, but it’s just as important for indoor air quality.
-
A sealed, insulated, properly sized plenum ensures all air passes through your filter.
-
Balanced circulation prevents stale air pockets and keeps comfort consistent.
-
For most homes, a 20x20x36 plenum kit provides a reliable, affordable upgrade.
-
For advanced filtration or complex systems, a custom plenum is worth the investment.
