Troubleshooting Guide: Common Problems with 30,000 BTU Combo Systems & How Jake Fixes Them

🛠 Introduction – Why Troubleshooting Matters

I’m Jake, and I’ve been called out to plenty of “emergencies” that turned out to be quick, no-cost fixes. One time, a customer was ready to replace their entire 30,000 BTU furnace/AC combo system—turns out, the thermostat was just set to “fan only.”

Knowing the basics of troubleshooting can:

• Save you money on service calls.

• Get your heat or cooling back faster.

• Help you explain the problem better if you do need a tech.

This guide is your plain-language reference for common furnace and AC problems—and how I go about fixing them.

---

🌀 Section 1 – How a 30k BTU Combo System Works (Quick Refresher)

Your 30,000 BTU combo system is essentially two machines in one, sharing some parts:

• Furnace: Produces heat (gas burners or electric heating elements).

• Air Conditioner: Removes heat from indoor air via refrigerant cycle.

• Shared components: Blower motor, ductwork, thermostat, and sometimes control boards.

In heating mode, the furnace warms air and the blower pushes it through the ducts. In cooling mode, the AC’s evaporator coil chills the air while the blower circulates it.

---

🔥 Section 2 – Common Heating Problems & Fixes

Problem 1 – Furnace Won’t Start

Possible causes:

• Thermostat set incorrectly

• Tripped breaker or blown fuse

• Door safety switch not engaged

Jake’s fix process:

1. Check thermostat mode (set to “heat”) and temperature.

2. Inspect breaker panel; reset if needed.

3. Open furnace panel to ensure safety switch is engaged.

---

Problem 2 – Weak or No Heat

Possible causes:

• Dirty air filter

• Blocked vents or returns

• Blower motor issues

• Leaky ducts

Jake’s fix process:

• Replace filter if dirty.

• Walk room-to-room to make sure vents are open and unobstructed.

• Listen for blower—if it’s not running, check motor and capacitor.

---

Problem 3 – Furnace Short Cycling

Possible causes:

• Oversized furnace

• Dirty flame sensor

• Blocked flue or vent pipe

Jake’s fix process:

• Clean flame sensor with fine emery cloth.

• Inspect flue for debris or ice blockage.

---

❄️ Section 3 – Common Cooling Problems & Fixes

Problem 1 – AC Not Cooling Enough

Possible causes:

• Low refrigerant

• Dirty condenser coil

• Clogged air filter

Jake’s fix process:

• Clean condenser with a hose (gentle spray).

• Check filter.

• Call a pro for refrigerant check—don’t DIY.

---

Problem 2 – AC Won’t Turn On

Possible causes:

• Thermostat issue

• Tripped breaker

• Faulty contactor relay in outdoor unit

Jake’s fix process:

• Verify thermostat mode and temp.

• Reset breaker.

• Test contactor (pro task).

---

Problem 3 – Water Leaking Inside

Possible causes:

• Clogged condensate drain line

• Frozen evaporator coil

Jake’s fix process:

• Clear drain with wet/dry vac.

• If coil is frozen, turn off system and let it thaw; check airflow causes.

---

🔄 Section 4 – Problems That Affect Both Heating & Cooling

• Blower Motor Not Running: Could be bad capacitor, motor failure, or control board issue.

• Thermostat Malfunction: Batteries dead, miscalibration, or wiring fault.

• Ductwork Issues: Leaks, blockages, or disconnected runs.

---

📊 Section 5 – Jake’s Troubleshooting Table

---

🧰 Section 6 – DIY vs. Call-a-Pro

Safe DIY checks:

• Filters

• Thermostat settings

• Breaker resets

• Visual inspection for blockages

Pro-only tasks:

• Refrigerant handling

• Gas line or combustion repairs

• Major electrical work

• Control board replacement

---

🔄 Section 7 – Preventing Future Problems

• Change filters monthly or as recommended.

• Keep outdoor AC unit clear of debris.

• Schedule annual heating and cooling tune-ups.

• Seal and insulate ductwork.

---

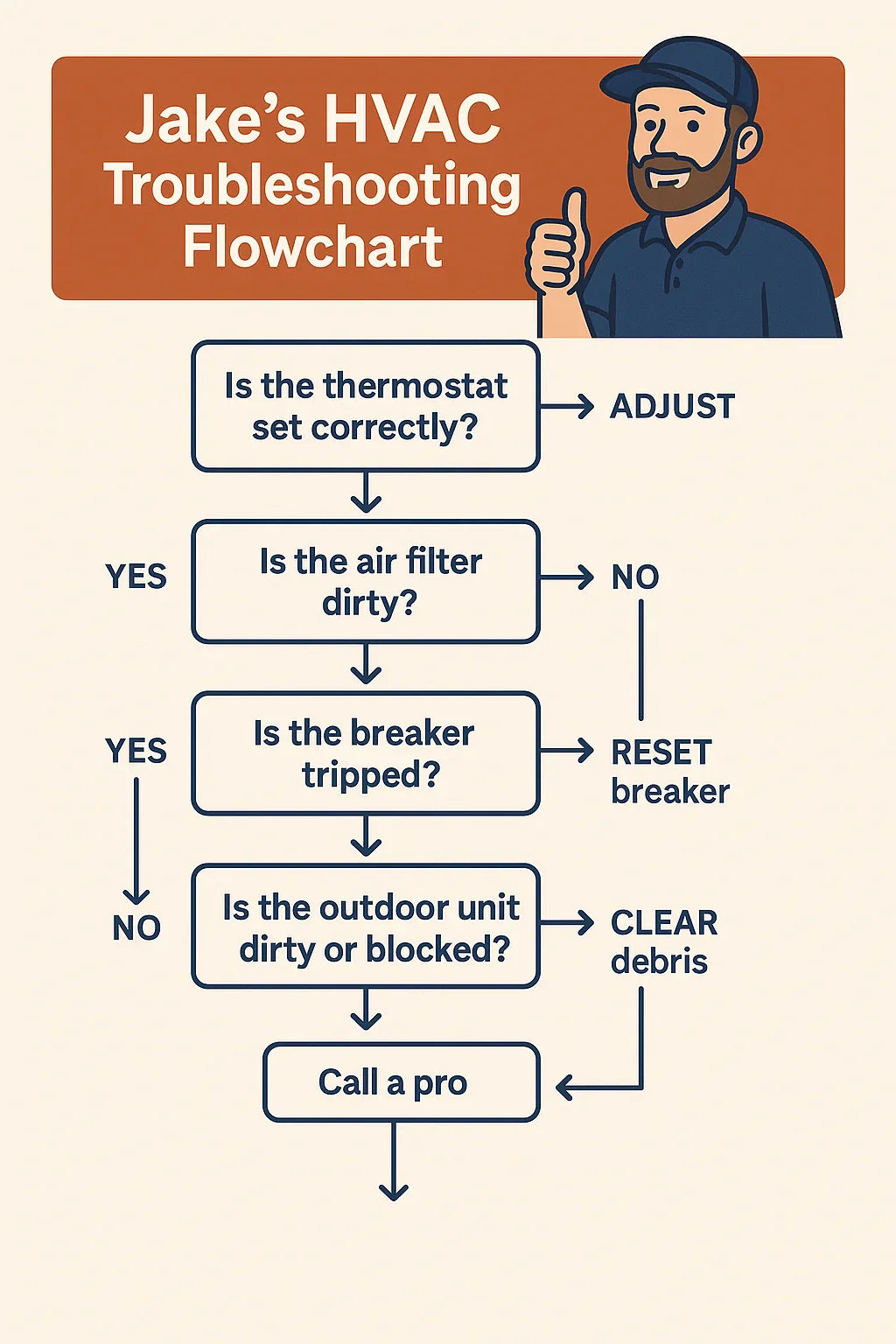

📄 Section 8 – Jake’s Quick-Reference Checklist

When your 30k BTU combo acts up:

1. ✅ Check thermostat mode & temp

2. ✅ Inspect and replace filter

3. ✅ Reset breaker if tripped

4. ✅ Make sure vents are open

5. ✅ Clear outdoor unit of debris

6. ✅ Call a pro if issues persist

---

✅ Conclusion

Your 30,000 BTU furnace/AC combo is a reliable workhorse—but like any machine, it can hiccup now and then. By knowing the common issues and fixes, you can solve small problems fast and avoid bigger ones.
